159 PUL-SI
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors
Power Ultra Long Life Snap-In

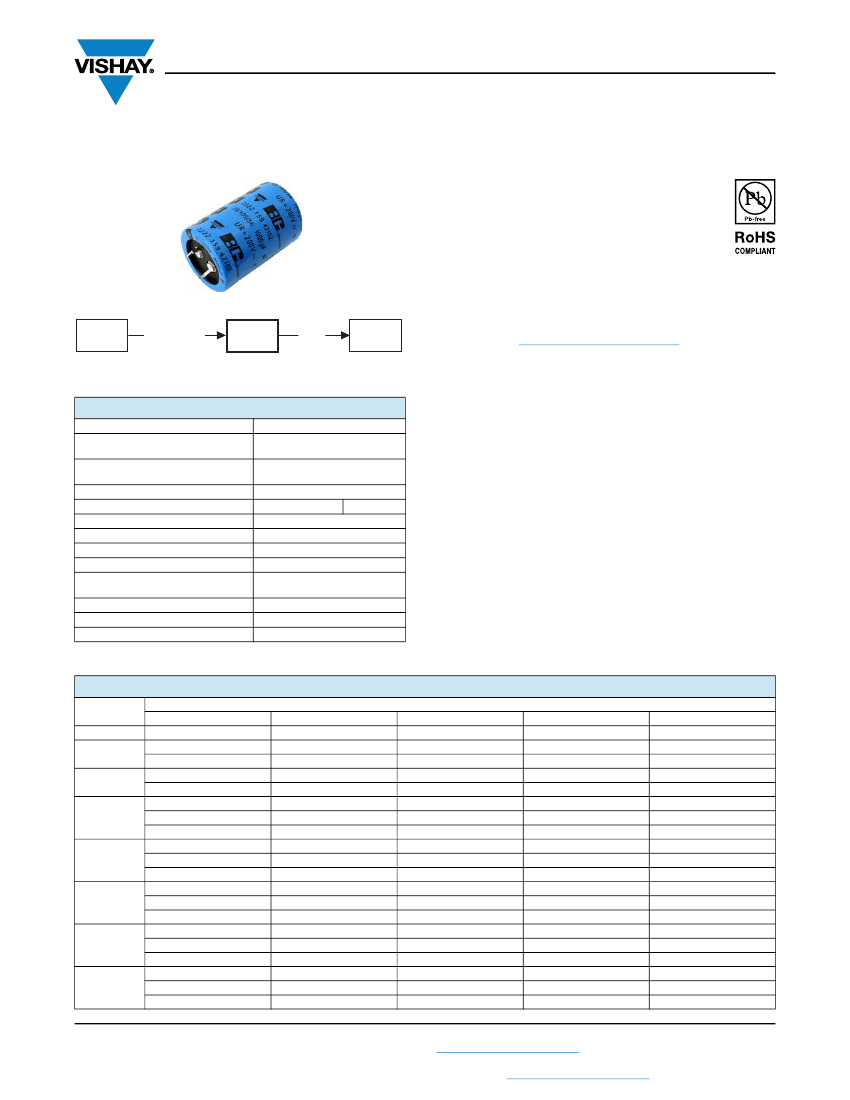

FEATURES
• Useful life: 5000 h at 105
C
• Available up to 500 V
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, very small dimensions, cylindrical
aluminum case, insulated with a blue sleeve
• Low ESR, high ripple current capability
• Keyed polarity snap-in version available
• High reliability
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
059
PLL-SI
miniaturized
159
PUL-SI
85
°C
157
PUM-SI
Fig. 1
APPLICATIONS
•
•
•
•
•
Solar PV inverters
General purpose, industrial and audio / video systems
Smoothing and filtering
Standard and switched mode power supplies
Energy storage in pulse systems
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
(Ø D x L in mm)
Rated capacitance range
(E6 / E12 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 105 °C
Load life at 105 °C
Useful life at 105 °C
Useful life at 40 °C and
1.6 x I
R
applied
Shelf life at 0 V, 105 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
22 x 25 to 35 x 60
56 μF to 1800 μF
± 20 %
200 V to 450 V
500 V
-25 °C to +105 °C
2000 h
2000 h
5000 h
500 000 h
1000 h
IEC 60384-4 / EN130300
25 / 105 / 56
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance code on rated capacitance, code letter in
accordance with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM or in 2 digits according to IEC 60062)
• Name of manufacturer
• Code for factory of origin
• “-” sign to identify the negative terminal, visible from the
top and side of the capacitor
• Code number, last 8 digits 159 xxxxx
• Climatic category in accordance with IEC 60068
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
56
68
82
100
200
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
250
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
22 x 30
25 x 25
-
U
R
(V)
400
-
22 x 25
-
22 x 30
25 x 25
22 x 35
25 x 30
-
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
450
22 x 25
22 x 30
25 x 25
22 x 35
-
22 x 40
25 x 30
30 x 25
-
25 x 35
-
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
-
30 x 40
35 x 30
-
500
22 x 30
22 x 35
25 x 30
22 x 35
25 x 30
22 x 40
25 x 35
-
25 x 40
30 x 30
-
25 x 45
30 x 35
-
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
-
120
150
180
220
Revision: 31-Jan-17
Document Number: 28341
1
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
159 PUL-SI
www.vishay.com
Vishay BCcomponents
U
R
(V)
400
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
-
30 x 50
35 x 40
35 x 45
-
-
-
-
-
35 x 60
-
-
-
-
-
-
-
-
-
-
-
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
270
200
-
-
-
22 x 30
-
-
22 x 35
25 x 30
22 x 40
30 x 25
-
-
25 x 35
30 x 30
25 x 45
30 x 30
35 x 25
25 x 50
30 x 35
35 x 30
30 x 45
35 x 35
30 x 50
35 x 35
35 x 45
35 x 50
250
22 x 35
25 x 30
30 x 25
22 x 40
25 x 30
30 x 25
25 x 35
30 x 30
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
-
30 x 45
35 x 35
35 x 40
35 x 40
35 x 45
35 x 45
35 x 50
-
-
450
30 x 45
35 x 35
-
30 x 50
35 x 40
-
35 x 45
-
35 x 50
35 x 40
-
35 x 60
-
-
-
-
-
-
-
-
-
-
-
-
-
-
500
30 x 50
35 x 40
-
35 x 45
-
-
35 x 55
-
35 x 60
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
330
390
470
560
680
820
1000
1200
1500
1800

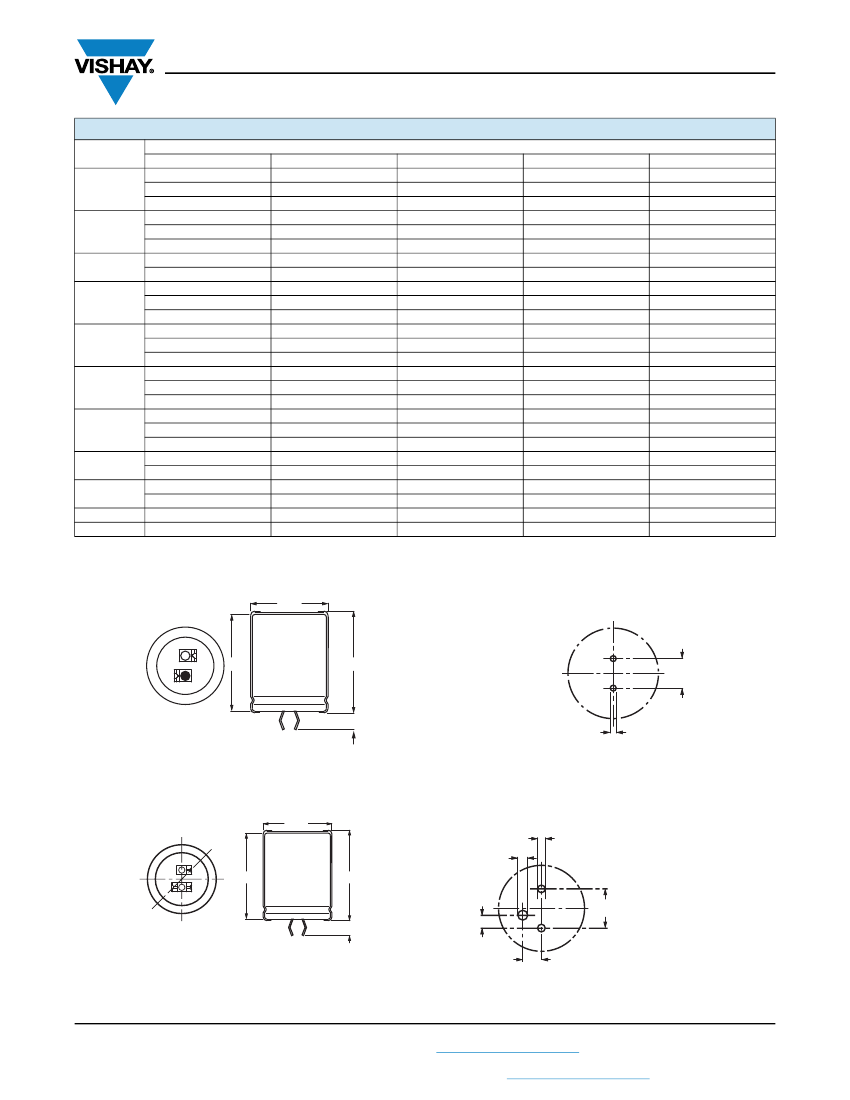

DIMENSIONS
