3.3 V HCMOS/ TTL, J LEADED, PLASTIC MOLDED
ILLATOR
SURFACE MOUNT CRYSTAL CLOCK OSCILLATOR
ASML SERIES
RoHS
Compliant
14.0 x 8.95 x 4.7 mm
|| || || || || || || || || || || || | || | ||
The 14x9.8mm plastic package oscillator is not recommended for new designs. Please consider our reduced size ceramic or plastic
molded SMD packages. Recommended series include ASL, ASV, ASVM, ASFL, ASFLM, ASE, ASEM .
Product Life Cycle: Declining, Planned EOL/Obsolescence pending 12/31/2011
FEATURES:
• Industry standard J-Leaded terminals.
• Plastic molded SMD, suitable for RoHS compliant reflow
• Tristate Enable/Disable.
• HCMOS output.
• 3.3Vdc operation.
• Extended temperature -40°C to +85°C option.
APPLICATIONS:
• Provide clock signals for microprocessors and digital circuits.
• Communication equipment, AV and OA equipment
STANDARD SPECIFICATIONS:
Parameters
Frequency Range:
Operating Temperature:
Storage Temperature:
Overall Frequency Stability*:
Supply Voltage (Vdd):
Supply Current
(I
dd
)
:
Minimum
1
.0
0
-55
-100
2.97
-----
-----
-----
-----
-----
0.9*Vdd
-----
-5.0
40
-----
-----
-----
Typical
-----
-----
-----
-----
3.3
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
Maximum
1
06.
2
5
+70
+
12
5
+100
3.63
1
5
35
60
15
10
-----
0.1*Vdd
+5.0
60
1
0
5
25
Units
MH
z
°C
°C
ppm
V
mA
pF
TTL
V
V
ppm
%
ms
ns
ps
Notes
See options
See options
F ≤
20
MHz
F ≤ 70 MHz
F ≤
106.25
MHz
Output Load
Output Voltage:
Tri-state function :
Aging:
Symmetry:
Start-up Time :
Rise/Fall Time (Tr/Tf):
Period jitter one sigma :
V
OH
V
OL
"1" (VIH≥2.2V)
or Open: Oscillation
"0"
(VIL<0.8V)
: Hi
Z
@
+
2
5°C First y ear
@1
/
2
Vdd
(See
options)
OPTIONS AND PART IDENTIFICATION
(Left blank if standard)
ASML -
MHz -
-
-
-
Please specify the
frequency in MHz.
e.g. 14.31818MHz
Frequency in MHz
Operating Temp.
Range
D: -10°C to +60°C
E: -20°C to +70°C
F: -30°C to +70°C
N: -30°C to +85°C
L: -40°C to +85°C
Overall Freq.
Stability
R: ±25ppm
K: ±30ppm
C: ±50ppm
Blank: 40/60% @1/2Vdd
S: 45/55%
@1/2Vdd
S1: 45/55%
@1.4Vdc
Symmetry
Blank: Bulk
T: 1000pcs/reel
Packaging
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 05.17.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
3.3 V HCMOS/ TTL, J LEADED, PLASTIC MOLDED
ILLATOR
SURFACE MOUNT CRYSTAL CLOCK OSCILLATOR
ASML SERIES
RoHS
Compliant
14.0 x 8.95 x 4.7 mm
| | | | | | | | | | | |
| | |

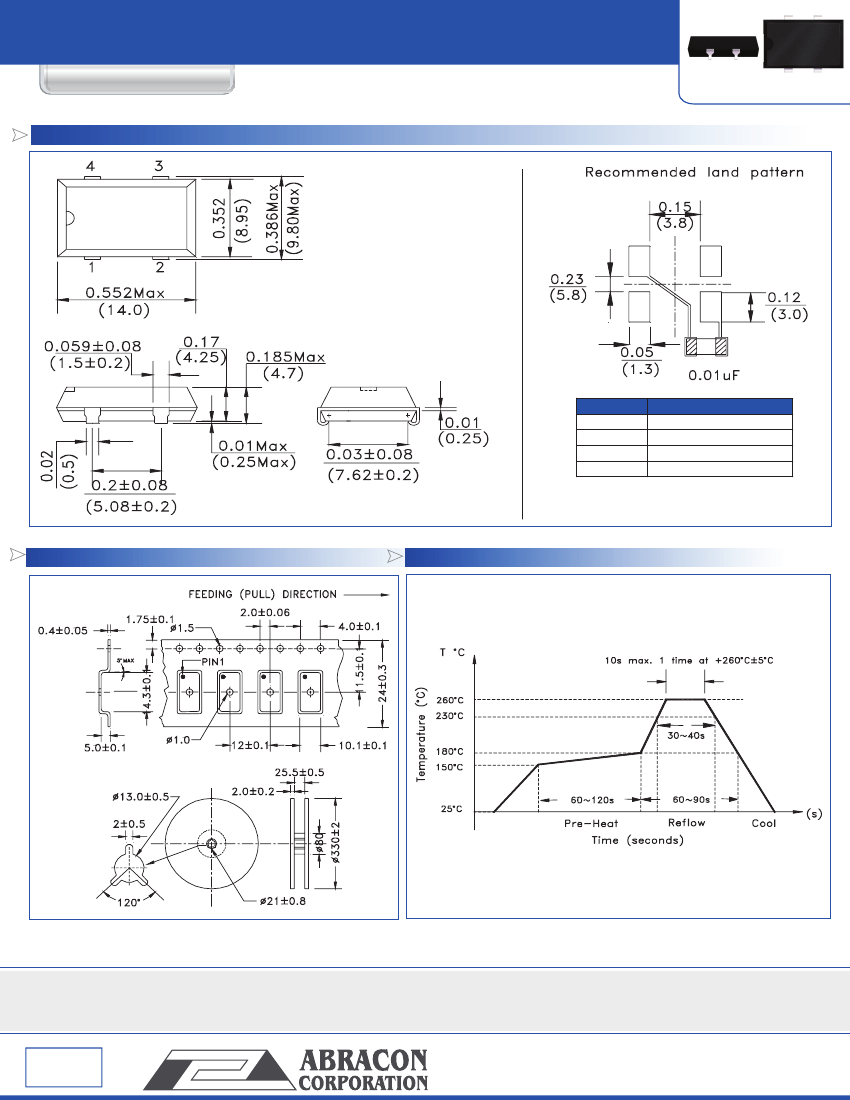

OUTLINE DRAWING:
PIN
1
2
3
4
Dimension : Inch (mm)
FUNCTION
Tristate
GND/Case
Output
Vdd
Note: Recommend using an approximately
0.01uF bypass capacitor between pin 2 and 4.
TAPE AND REEL:
T= tape and reel (1,000pcs/reel)
Dimension : mm
REFLOW PROFILE:
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 05.17.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
