LFVCXO021821Bulk datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LFVCXO021821Bulk

Preview

LFVCXO021821Bulk: DescriptionVCXO Oscillators 8.96MHz 5V 100ppm 0C +70C; CategoryPassive components; File Size861KB，2 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFVCXO021821Bulk Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFVCXO021821Bulk	-	-	View	Buy Now

LFVCXO021821Bulk Overview

VCXO Oscillators 8.96MHz 5V 100ppm 0C +70C

LFVCXO021821Bulk Parametric

Parameter Name	Attribute value
Product Category	VCXO Oscillators
Manufacturer	IQD
Frequency	8.96 MHz
Frequency Stability	100 PPM
Load Capacitance	15 pF
Operating Supply Voltage	5 V
Supply Voltage - Min	4.75 V
Supply Voltage - Max	5.25 V
Output Format	HCMOS
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Length	7 mm
Height	1.7 mm
Width	5 mm
Packaging	Bulk
Current Rating	60 mA
Duty Cycle - Max	60 %
Mounting Style	SMD/SMT
Product	VCXO
Factory Pack Quantity	100
Type	VCXO Crystal Oscillators - Voltage Controlled

Preview

Download Datasheet

View All

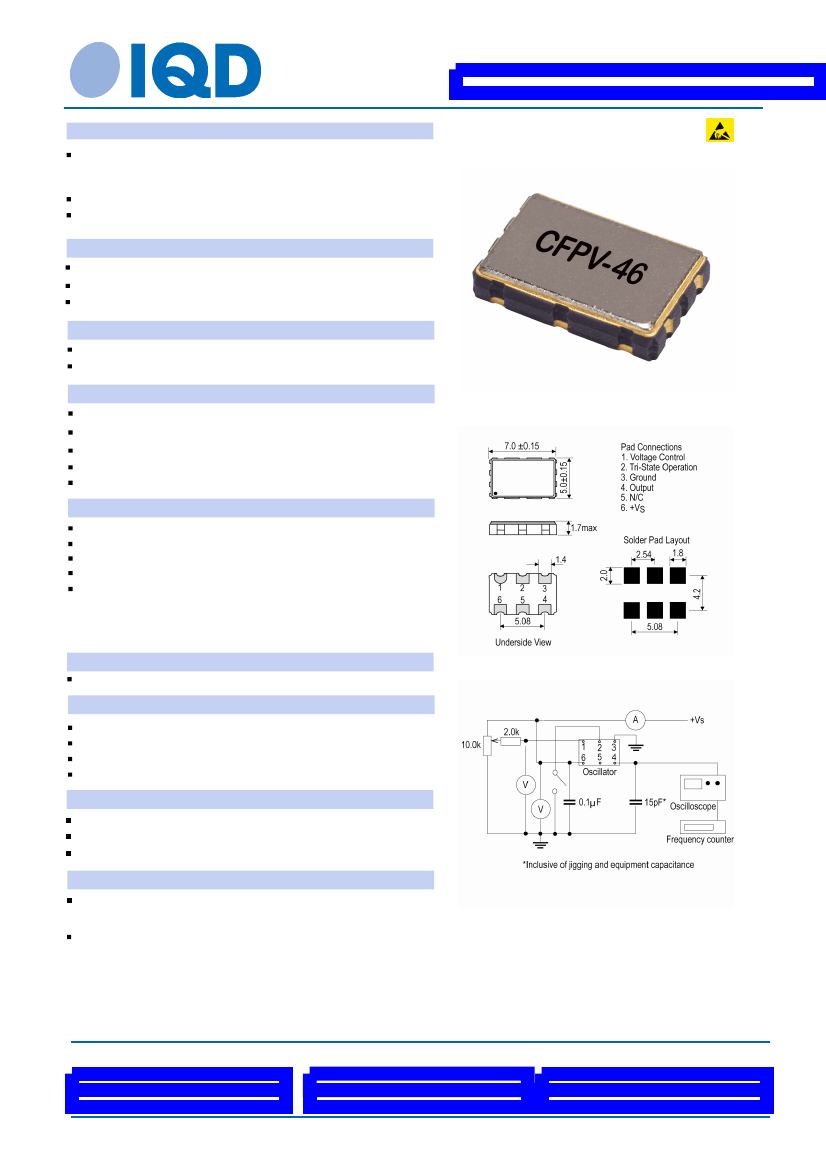

VCXO Specification

Part No. + Packaging:

LFVCXO021821Bulk

Description

Standard 7 x 5mm Voltage Controlled Crystal Oscillators

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPV-46

Model Issue number

7

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

8.960MHz

±100.00ppm

0.00 to 70.00°C

Supply Voltage

Current Draw

Frequency Adjustment

5.0V ±0.25V

60.00mA

Pulling

Control Voltage

±100ppm min APR

2.5V ±2.0V

Outline (mm)

Input Impedence

50kΩ min

Modulation Bandwidth: >10kHz (@-3dB, Vc=2.5V)

Linearity: Positive < ±10%

Output Details

HCMOS

Output Compatability

Drive Capability

15pF max

Rise and Fall Time

10.0ns max

40/60%

Duty Cycle

Logic ‘1’ (>2.5V) to pad 2 enables oscillator output

Logic ‘0’ (<0.5V) to pad 2 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection pad 2 enables oscillator output

Noise Parameters

Test Circuit

Phase Jitter: 20ps max @ 1sigma

Environmental Parameters

Operable Temperature Range: -40 to 85°C

Shock: MIL-STD-202, Method 213, Cond. E

Vibration: MIL-STD-883, Method 2007, Cond. A

Storage Temperature Range: –55 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
