1N5694AB datasheet, PDF - EEWORLD Datasheet

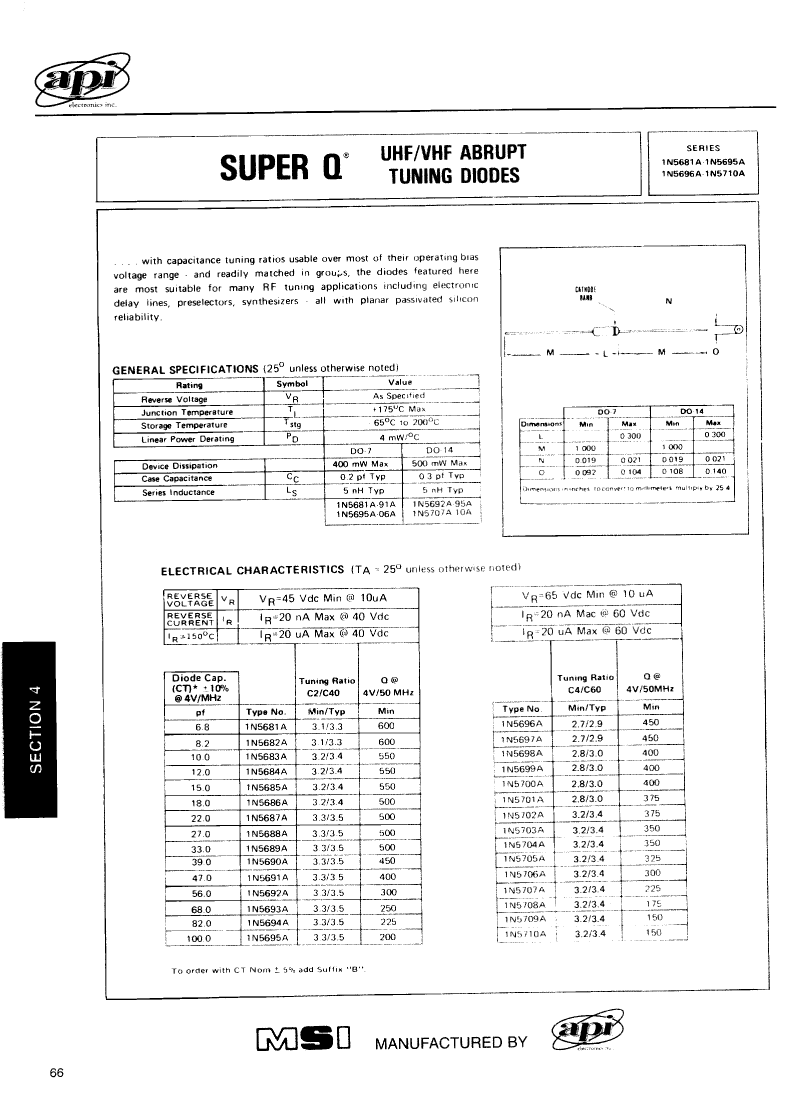

1N5694AB: DescriptionVariable Capacitance Diode, Very High Frequency to Ultra High Frequency, 82pF C(T), 45V, Silicon, Abrupt, DO-14, DO-14, 2 PIN; CategoryDiscrete semiconductor diode; File Size68KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

1N5694AB Overview

Variable Capacitance Diode, Very High Frequency to Ultra High Frequency, 82pF C(T), 45V, Silicon, Abrupt, DO-14, DO-14, 2 PIN

Parameter Name	Attribute value
Parts packaging code	DO-14
package instruction	O-LALF-W2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SUPER Q
Minimum breakdown voltage	45 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode Capacitance Tolerance	5%
Minimum diode capacitance ratio	3.3
Nominal diode capacitance	82 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JEDEC-95 code	DO-14
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.5 W
Certification status	Not Qualified
minimum quality factor	225
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Varactor Diode Classification	ABRUPT
Base Number Matches	1
