Features
n
Requires 64 % less space than 0402-size
resistor
n
RoHS compliant*
n
Power rating at 70 °C = 1/20 W
n
Three layer termination process with
nickel barrier prevents leaching and
provides excellent solderability
n
Suitable for most types of soldering
processes
n
Standard packaging on paper tape and
reel
*R
oH
S
C
OM
LE
AD
F
RE
E

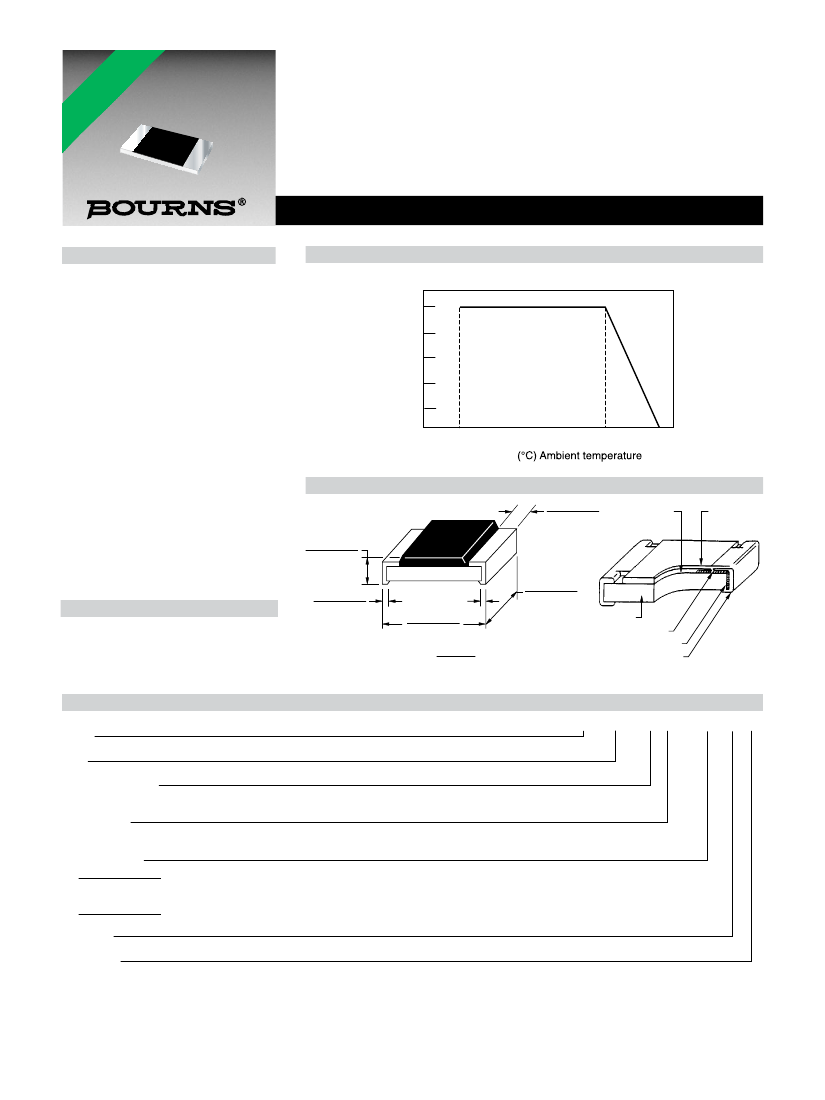

CR0201 - Chip Resistor
Derating Curve
Rated power in percentage (%)
Power Rating @ 70 °C ................ 1/20 W
Operating Temperature Range
............................... -55 °C to +125 °C
Derated to 0 Load at .................+125 °C
Maximum Working Voltage..............25 V
Maximum Overload Voltage ............50 V
Resistance Range
1 %, E-96
and E-24 .......10 ohms to 2 megohms
5 %, E-24 ....10 ohms to 10 megohms
Zero Ohm Jumper ............<0.05 ohms
Temperature Coefficient
1 % and 5 % ................. ±200 ppm/°C
Zero Ohm Jumper
......................... N/A
Zero Ohm Jumper
Rated Current..............................0.5 A
Maximum Overload Current ...........1 A
AEC-Q200 ..................... Contact Bourns
to confirm availability
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
Electrical Characteristics
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
100
80
60
40
20
0
-55
0
70
125
Dimensional Drawings
0.12 ± 0.05
(0.005 ± 0.002)
0.23 ± 0.03
(0.009 ± 0.001)
Resistor (Ru0
2
)
(Jumper chip is
a conductor)
Overcoat
Part Marking System
No Marking on the CR0201 Chip
Resistors.
0.15 ± 0.05
(0.006 ± 0.002)
0.60 ± 0.03
(0.024 ± 0.001)
0.30 ± 0.03
(0.012 ± 0.001)
Alumina Substrate
Internal Electrode
Secondary Electrode (Nickel Plated)
External Electrode (Sn)
DIMENSIONS:
MM
(INCHES)
How to Order
Model
(CR = Chip Resistor)
Size
• 0201
Resistance Tolerance
F = ±1 % .................. For values from 10 ohms through 2 megohms
J = ±5 % ................... For values from 10 ohms through 10 megohms, and for zero ohm jumper
TCR (ppm/°C)
W = ±200 .................. Used with “F” and “J” Resistance Tolerance code for all values except zero ohm jumper
/ = N/A .................... Used with zero ohm jumper only
Resistance Value
For 1 % Tolerance:
<100 ohms ................ “R” designates decimal point (example: 24R3 = 24.3 ohms)
≥100
ohms ................ First three digits are significant, fourth digit represents number of zeros to follow (example: 8252 = 82.5k ohms)
For 5 % Tolerance:
≥10
ohms .................. First two digits are significant, third digit represents number of zeros to follow (example: 474 = 470k ohms; 000 = Jumper)
Packaging
G = Paper Tape (10,000 pcs.) on 7-inch Plastic Reel
Termination
LF = Tin-plated (RoHS compliant)
CR 0201 - F W - 8252 G LF
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.

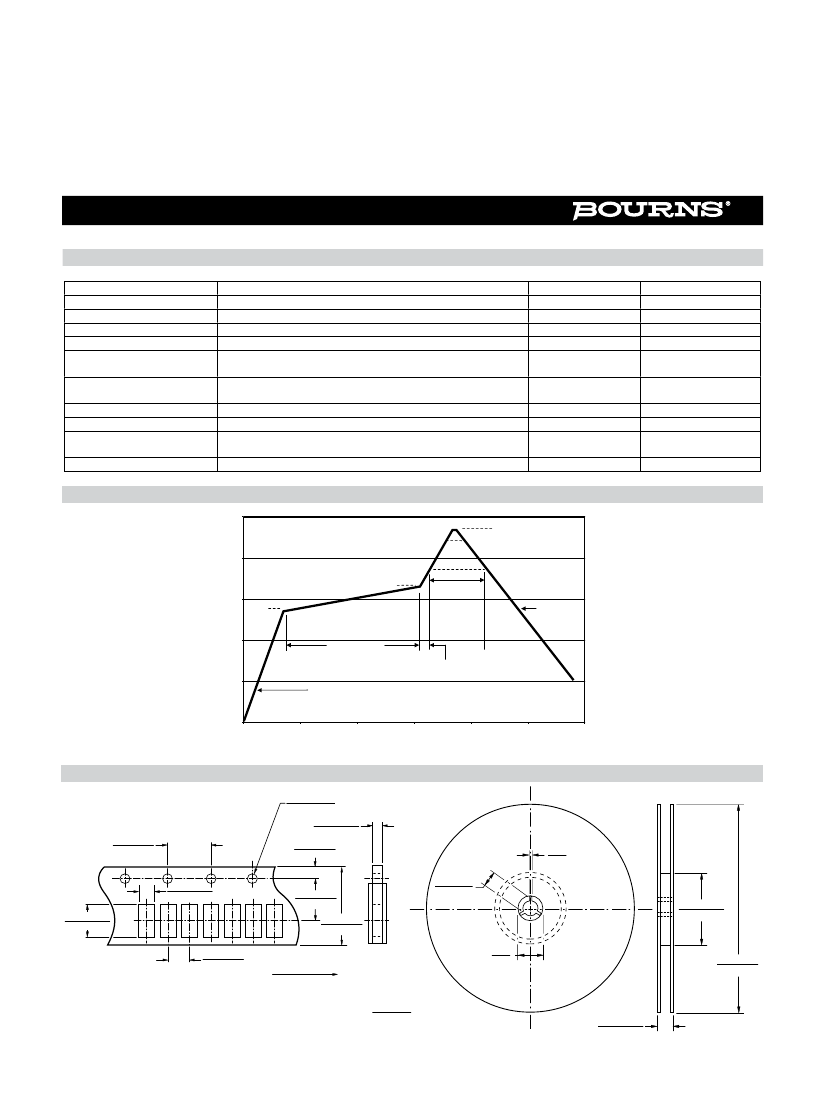

CR0201 - Chip Resistor
Performance Characteristics
Test
Thermal Shock
Short Time Overload
Resistance to Solder Heat
Resistance to Dry Heat
Load Life
Load Life with Humidity
Solderability
Bending
Dielectric Withstanding
Voltage
Insulation Resistance
Procedure
-55 ℃ for 30 minutes, +155 ℃ for 30 minutes, 5 cycles
2.5 X rated voltage for 5 seconds
270 ±5 ℃ for 10 ±1 seconds
125 ±5 ℃ for 96 ±4 hours
Rated voltage for 1000 hours, 70 ℃,
1.5 hours “ON“, 0.5 hours “OFF”
Rated voltage for 1000 hours, 40 ±2 ℃, 90~95 % RH,
1.5 hours “ON“, 0.5 hours “OFF”
245 ±5 ℃, 2 ±0.5 seconds
3 mm
--
50 V
Method
IEC60115-1-4.19
IEC60115-1-4.13
IEC60115-1-4.18
IEC60115-1-4.23.2
IEC60115-1-4.25.1
IEC60115-1-4.24
IEC60115-1-4.17
IEC60115-1-4.33
IEC60115-1-4.7
IEC60115-1-4.6
Test Limits
DR
≤±(3 % + 0.1 Ω)
≤±(3 % + 0.1 Ω)
≤±(3.0 % + 0.1 Ω)
≤±(2.0 % + 0.1 Ω)
≤±(5.0 % + 0.1 Ω)
≤±(5.0 % + 0.1 Ω)
≥95 % of area covered
≤±(1.0 % + 0.1 Ω)
>50 V
≥1 GΩ
Soldering Profile for RoHS Compliant Chip Resistors and Arrays
275
<1>
Maximum of 20 seconds between
+255 °C and +260 °C
260 °C peak
<1>
255 °C
225
220 °C
Temperature (°C)
190 °C
175
150 °C
60 - 90
seconds
Ramp Down
6 °C/second
60 - 120 seconds
10 seconds minimum
75
Ramp Up
3 °C/second maximum
25
125
0
50
100
150
Time (seconds)
200
250
300
Packaging Dimensions (Conforms to EIA RS-481A)
1.5 + 0.1/-0 DIA.
(0.059 + 0.004/-0)
0.27 ± 0.05
(0.011 ± 0.002)
4.0 ± 0.1
(0.157 ± 0.004)
1.75 ± 0.1
(0.069 ± 0.004)
2.0
(.080)
13.0 ± 0.5
(.512 ± .020)
60.0 +1/-0
(2.362 +0.04/-0)
0.38 ± 0.05
(0.015 ± 0.002)
0.68 ± 0.05
(0.027 ± 0.002)
3.5 ± 0.05
(0.138 ± 0.002)
8.0 ± 0.3
(0.315 ± 0.012)
2.0 ± 0.1
(0.079 ± 0.004)
Direction of Feeding
Paper
(Punched)
20.5
(.807)
178.0 ± 2.0
(7.008 ± .080)
REV. 08/15
DIMENSIONS:
MM
(INCHES)
11.4 ± 1.1
(0.449 ± 0.043)
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
