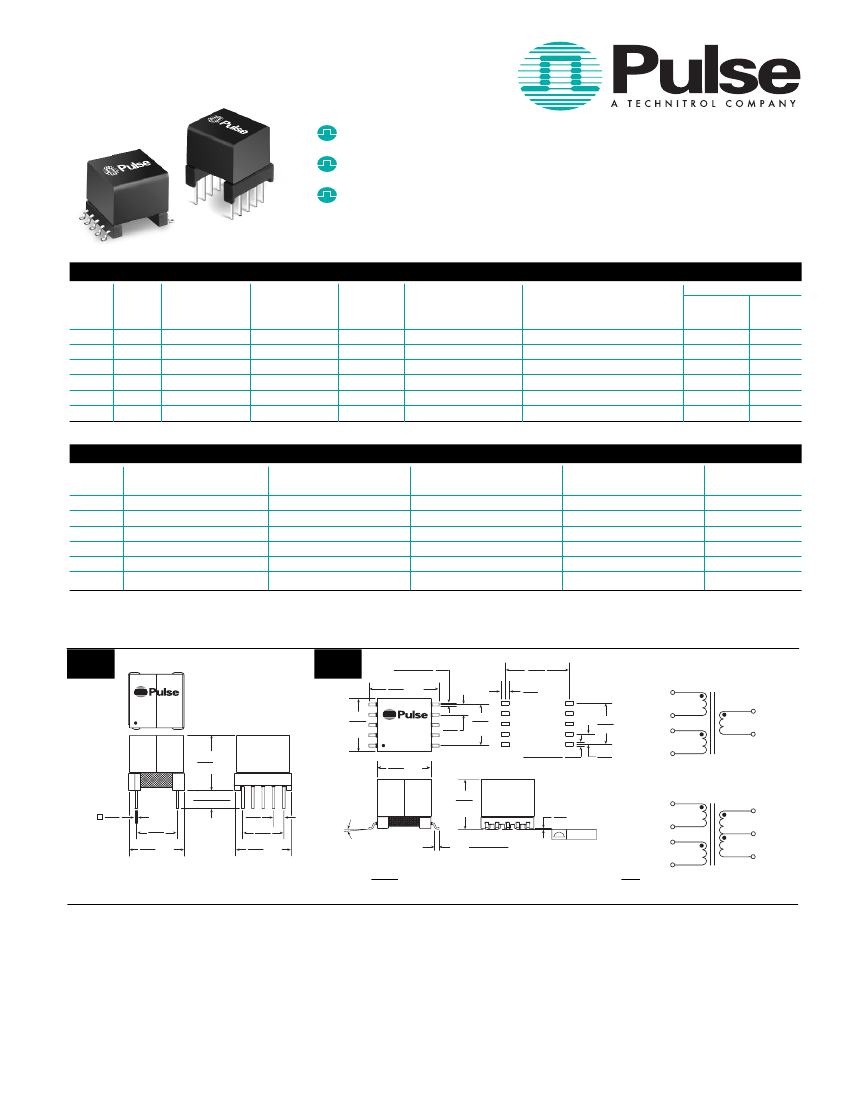

HDSL LINE TRANSFORMERS
For Conexant Chipsets
Excellent THD performance
Small footprint
Designed to meet UL1950 supplementary insulation
requirements for working voltage up to 250Vrms
Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C
Part
Number
B1017
B1018
B1028
1
B1020A
B1040A
1
B1075
Mount.
THT
THT
SMT
THT
SMT
THT
Matched to
Conexant's
Chipset No.
BT8921/BT8970
BT8921/BT8970
BT8921/BT8970
RS8973
RS8973
RS8973
Application
784Kpbs
1168Kpbs
1168Kpbs
272 to 2320Kpbs
272 to 2320Kpbs
272 to 2320Kpbs
Turns Ratio Inductance - Line Side Leakage Inductance - Line Side
Line - Chip
@ 10kHz, 100mV
@100kHz
(±2%)
(1-5) with (2-4) shorted (1-5) with (2-4) and (7-9) shorted
2CS:1
2CS:1CT
2CS:1CT
2CS:1
2CS:1
2CS:1CT
3.0mH ±6%
2.0mH ±10%
2.0mH ±6%
2.0mH ±6%
2.0mH ±10%
2.0mH ±6%
15µH MAX @ 0.02Vrms
13µH MAX @ 0.10Vrms
11µH MAX @ 0.10Vrms
6.5µH MAX @ 0.02Vrms
6.5µH MAX @ 0.02Vrms
8µH MAX @ 0.02Vrms
DC Resistance
Line Side
(1-4) = (2-5)
≤
1.25Ω
≤
1.25Ω
≤
1.20Ω
≤
2.00Ω
≤
1.60Ω
≤
2.00Ω
Chip Side
(7-9)
≤
1.00Ω
≤
1.00Ω
≤
1.00Ω
≤
1.10Ω
≤
1.05Ω
≤
0.70Ω
Additional Electrical Specifications
Part
Number
B1017
B1018
B1028
B1020A
B1040A
B1075
1
2
Longitudinal Balance
(dB)
≤
-53 (40kHz to 200kHz)
≤
-53 (30kHz to 300kHz)
≤
-50 (40kHz to 300kHz)
≤
-50 (30kHz to 300kHz)
≤
-50 (30kHz to 420kHz)
≤
-50 (30kHz to 300kHz)
Ω
THD @ 135Ω
(dB)
≤
-70
(10kHz, 5.0Vrms)
≤
-70
(40kHz, 1.85Vrms)
≤
-70
(20kHz, 4.5Vrms)
≤
-70
(10kHz, 5.0Vrms)
≤
-70
(10kHz, 5.0Vrms)
≤
-70
(10kHz, 5.0Vrms)
Ω
Insertion Loss @ 135Ω
(dB)
≤
0.40 (26kHz to 200kHz)
≤
0.50 (40kHz)
(Data
not available)
≤
0.65 (30kHz to 580kHz)
≤
0.60 (30kHz to 580kHz)
≤
0.50 (30kHz to 580kHz)
Ω
Return Loss @ 135Ω
(dB)
≥
19 (40kHz to 200kHz)
≥
16 (40kHz to 300kHz)
≥
16.5 (40kHz to 300kHz)
≥
16 (40kHz to 300kHz)
≥
16 (40kHz to 300kHz)
≥
16 (40kHz to 300kHz)
Isolation Voltage
(Vrms @ 60 sec)
1500
1500
1500
1500
1500
1500
Transformers are shipped in trays unless Tape & Reel packaging is specified by adding the suffix
“T”
to the part number (i.e. B1028T)
DCR on the chip side of part number B1075 is given for (7-8) = (8-9)
Mechanicals
B10XX
(THT)
Date Code
Country of Mfg.
Schematics
.605
15,37
.100
2,54
.394
10,00
MAX
10
X .051
± .002
1,30
± 0,05
.394
10,00
.098
2,50
B10XX
(SMT)
B10XX
Weight
. . . . .6.2 grams
Tray
. . . . . . . . .60/tray
10
X .028
± .002
0,71
± 0,05
.695
17,65
MAX
B1017, B1020A, B1040A
1
.530
13,46
MAX
Date Code
Country of Mfg.
B10XX
.098
2,50
Line
4
2
5
2:1
9
7
Chip
.500
12,70
MAX
.516
13,11
MAX
.485
12,32
MAX
10
X
.018
0,46
.173 ± .015
4,39
± 0,38
.394
10,00
.550
13,97
MAX
.098
2,50
.394
10,00
.547
13,89
MAX
10
X 0°
8°
