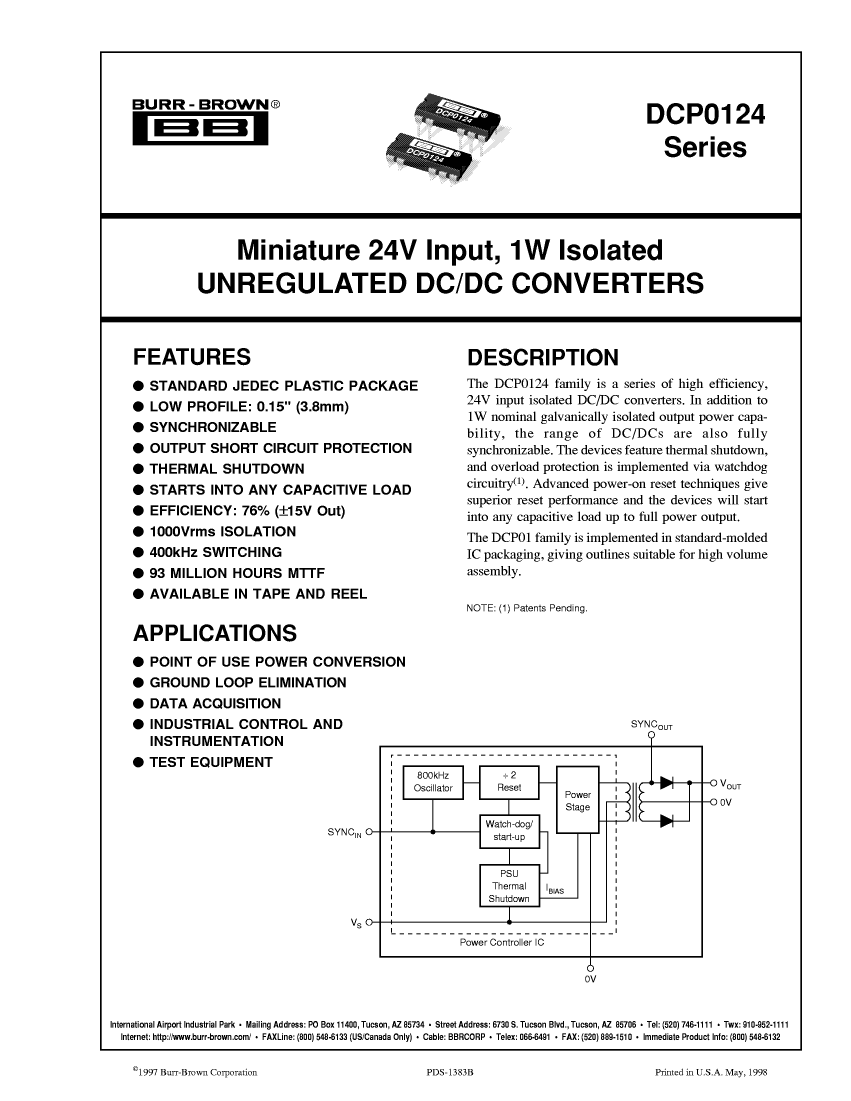

DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, PLASTIC, DIP-14

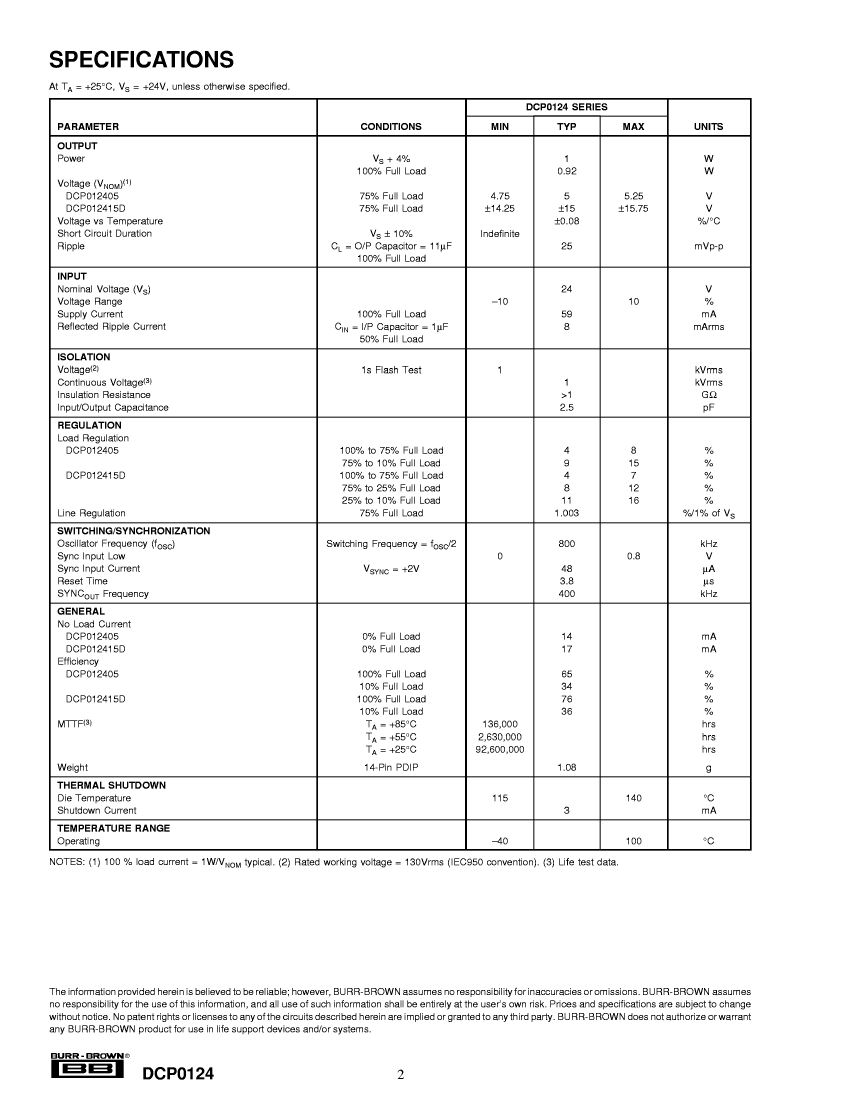

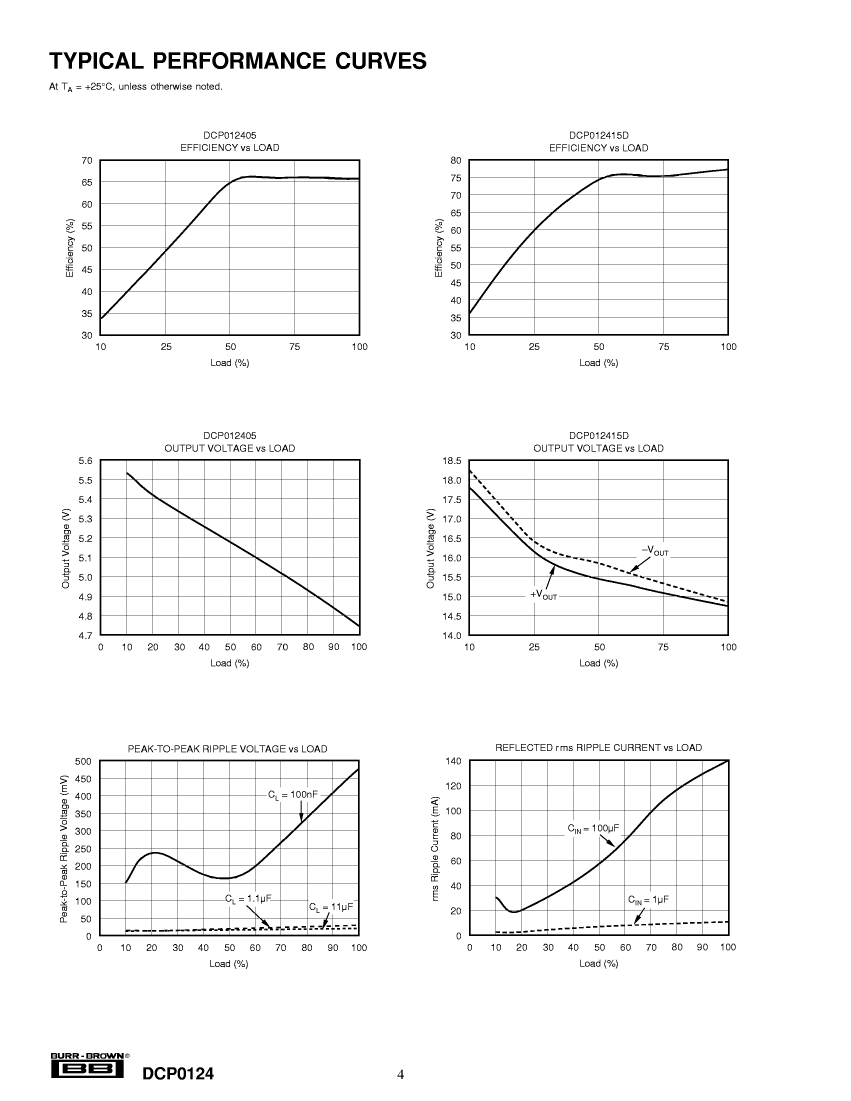

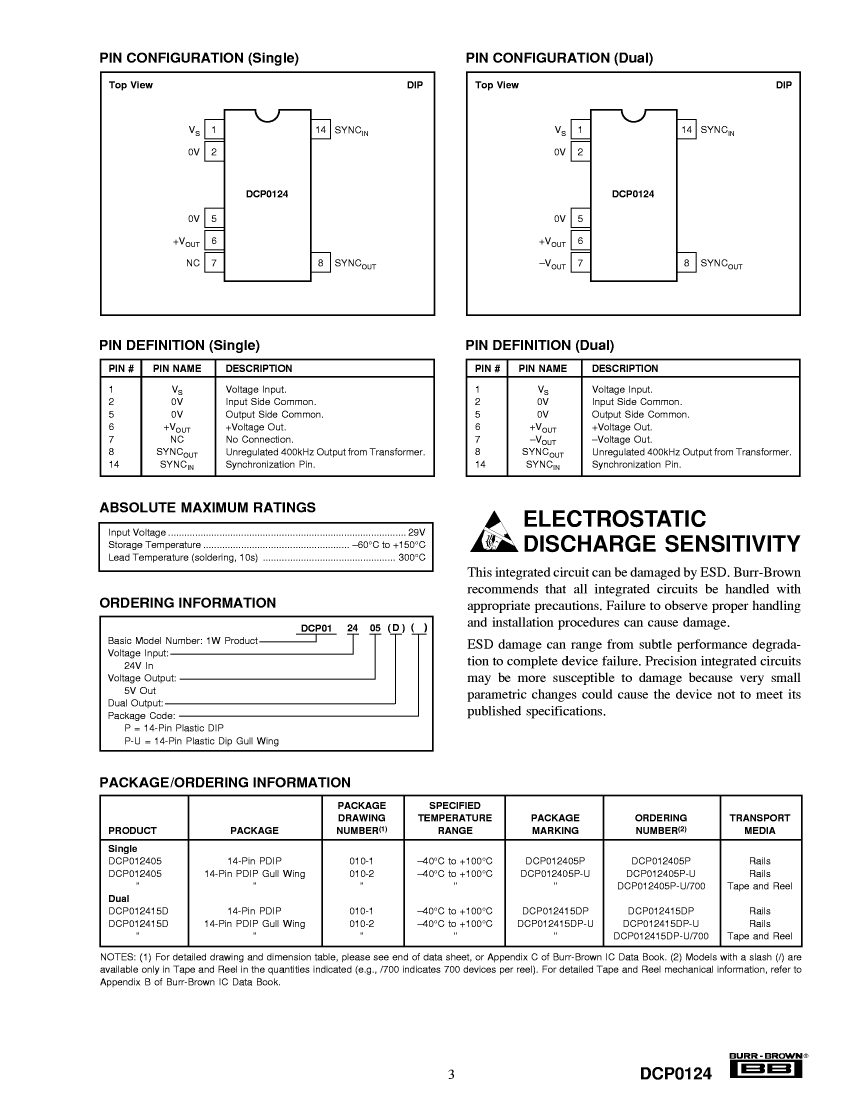

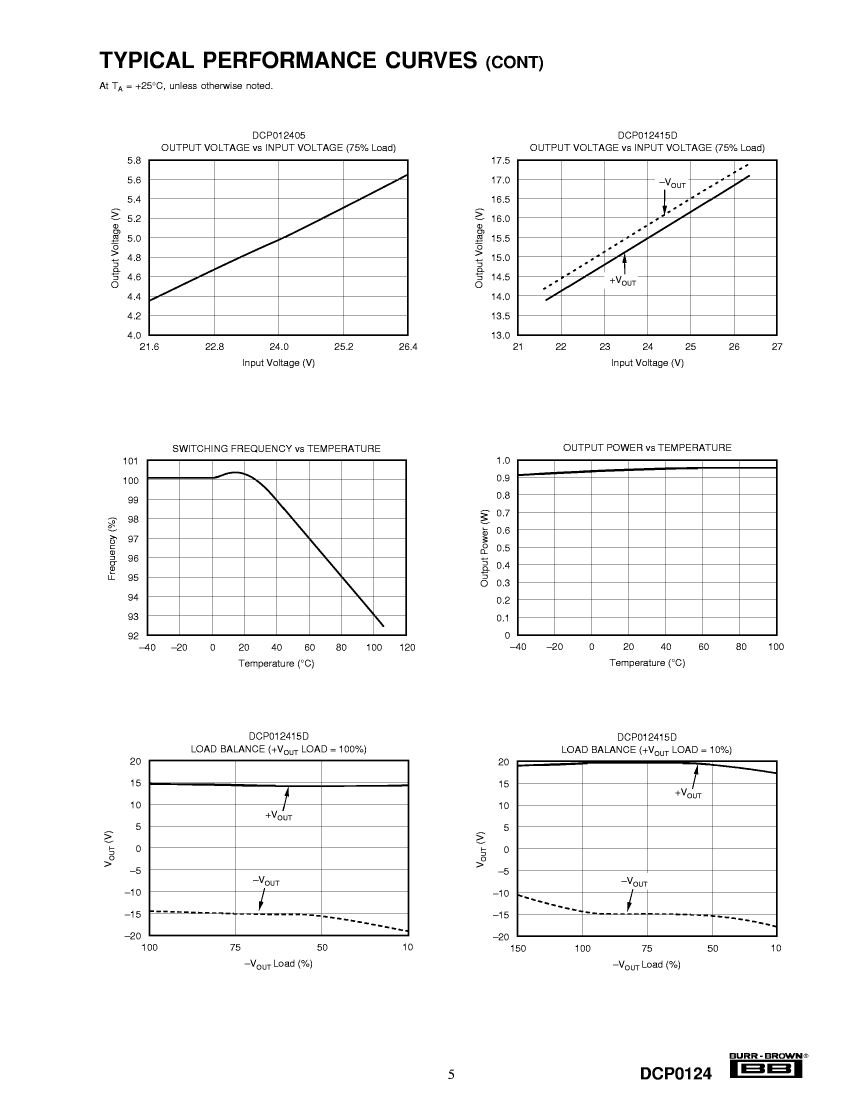

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Burr-Brown |
| package instruction | PLASTIC, DIP-14 |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | DC-DC UNREGULATED POWER SUPPLY MODULE |
| Maximum input voltage | 26.4 V |
| Minimum input voltage | 21.6 V |
| Nominal input voltage | 24 V |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e0 |
| Maximum load regulation | 23% |
| Number of functions | 1 |
| Output times | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -40 °C |
| Maximum output voltage | 5.25 V |
| Minimum output voltage | 4.75 V |
| Nominal output voltage | 5 V |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | GWDIP14,.4 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| surface mount | YES |
| technology | HYBRID |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Maximum total power output | 1 W |
| Fine-tuning/adjustable output | NO |
| Base Number Matches | 1 |
| DCP012405P-U | DCP012405P-U/700 | DCP012415DP-U/700 | DCP012405P | DCP012415DP-U | |
|---|---|---|---|---|---|
| Description | DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, PLASTIC, DIP-14 | DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, PLASTIC, DIP-14 | DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC, DIP-14 | DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, PLASTIC, DIP-14 | DC-DC Unregulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC, DIP-14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Burr-Brown | Burr-Brown | Burr-Brown | Burr-Brown | Burr-Brown |
| package instruction | PLASTIC, DIP-14 | PLASTIC, DIP-14 | PLASTIC, DIP-14 | PLASTIC, DIP-14 | PLASTIC, DIP-14 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | DC-DC UNREGULATED POWER SUPPLY MODULE | DC-DC UNREGULATED POWER SUPPLY MODULE | DC-DC UNREGULATED POWER SUPPLY MODULE | DC-DC UNREGULATED POWER SUPPLY MODULE | DC-DC UNREGULATED POWER SUPPLY MODULE |
| Maximum input voltage | 26.4 V | 26.4 V | 26.4 V | 26.4 V | 26.4 V |
| Minimum input voltage | 21.6 V | 21.6 V | 21.6 V | 21.6 V | 21.6 V |
| Nominal input voltage | 24 V | 24 V | 24 V | 24 V | 24 V |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDIP-T14 | R-PDSO-G14 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Maximum load regulation | 23% | 23% | 35% | 23% | 35% |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Output times | 1 | 1 | 2 | 1 | 2 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 100 °C | 100 °C | 100 °C | 100 °C | 100 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum output voltage | 5.25 V | 5.25 V | 15.75 V | 5.25 V | 15.75 V |
| Minimum output voltage | 4.75 V | 4.75 V | 14.25 V | 4.75 V | 14.25 V |
| Nominal output voltage | 5 V | 5 V | 15 V | 5 V | 15 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | DIP | SOP |
| Encapsulate equivalent code | GWDIP14,.4 | GWDIP14,.4 | GWDIP14,.4 | DIP14,.3 | GWDIP14,.4 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | NO | YES |
| technology | HYBRID | HYBRID | HYBRID | HYBRID | HYBRID |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum total power output | 1 W | 1 W | 1 W | 1 W | 1 W |
| Fine-tuning/adjustable output | NO | NO | NO | NO | NO |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
