EEC2E705HQA403

Description
Film Capacitors 7uF 250 Volts
CategoryPassive components    capacitor
File Size280KB，2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric Compare View All

EEC2E705HQA403 Online Shopping

Suppliers Part Number Price MOQ In stock
EEC2E705HQA403 - - View Buy Now

EEC2E705HQA403 Overview

Film Capacitors 7uF 250 Volts

EEC2E705HQA403 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresRATED AC VOLTAGE (V): 250
capacitance7 µF
Capacitor typeFILM CAPACITOR
dielectric materialsPOLYPROPYLENE
high29 mm
JESD-609 codee3
length37 mm
Manufacturer's serial numberEC
Installation featuresCHASSIS MOUNT
negative tolerance5%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Package shapeRECTANGULAR PACKAGE
Package formQuick Connect
method of packingBulk
positive tolerance10%
Rated (AC) voltage (URac)250 V
seriesEC
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal shapeLUG
width15.5 mm
Base Number Matches1

Preview

Download Datasheet

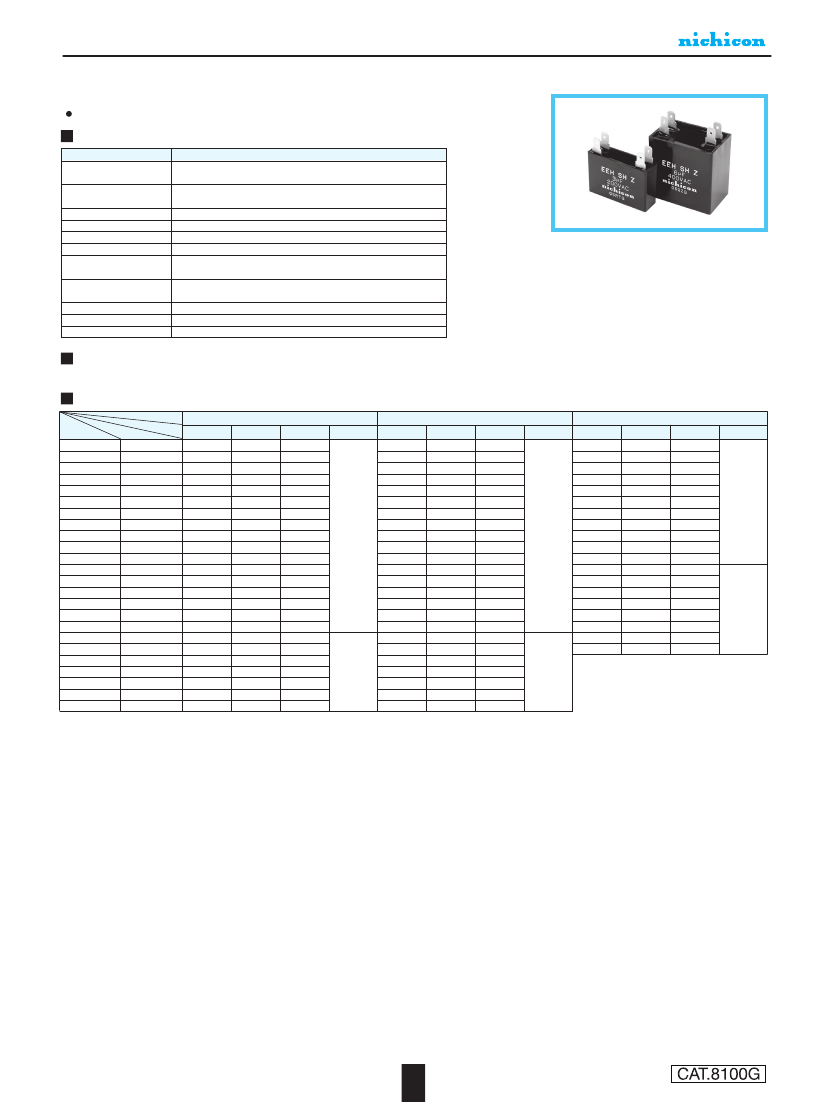

EEC
Specifications
Item
PLASTIC FILM CAPACITORS
Metallized Polypropylene Film AC Power Capacitor
Compliant to the RoHS directive (2011/65/EU).
Performance Characteristics
Maximum permissible
temperature
Minimum ambient
temperature
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Dielectric Loss Tangent
Withstand Voltage
Insulation Resistance
Encapsulation
Current duration class
Safety Mechanism
+85˚C (Z)
– 25˚C (B)
200 to 400VAC
1.0 to 50µF
+10 to –5%
0.12% or less (at 20˚C, 50 / 60Hz 200VAC)
Between Terminals : Rated Voltage (VAC)
×
175%
10secs.
Between Terminals connected together and case : 2000VAC 60secs.
Between Terminals connected together and case :
1000 MΩ or more (at 500VDC)
Flame-retardant epoxy cased, Resin filled
40D (40,000h)
Non-included

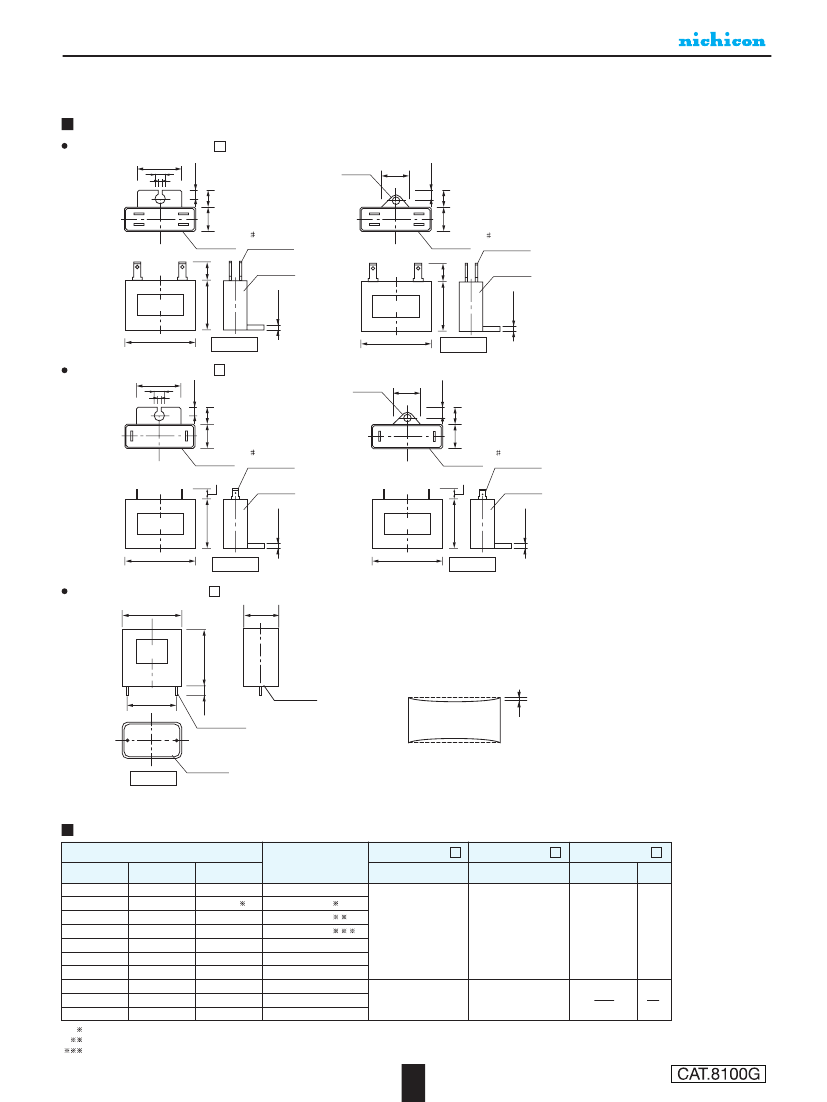

Drawing
Please refer to page 404.
Dimensions
(µF)
Cap.
Unit : mm
Size
V (Code)
Cod
e
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
6.0
7.0
8.0
10.0
12.0
14.0
15.0
16.0
18.0
20.0
22.0
25.0
30.0
40.0
50.0
105
155
205
255
305
355
405
455
505
605
705
805
106
126
146
156
166
186
206
226
256
306
406
506
A
–
–
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
58.0
58.0
58.0
58.0
58.0
58.0
58.0
200VAC (2D)
B
C
–
–
–
–
11.5
25.0
11.5
25.0
11.5
25.0
11.5
25.0
11.5
25.0
13.5
27.0
13.5
27.0
13.5
27.0
15.5
29.0
17.5
31.0
19.5
33.0
21.5
35.0
24.0
37.0
24.0
37.0
24.0
37.0
26.0
40.0
26.0
40.0
26.0
40.0
26.0
40.0
26.0
40.0
30.0
44.0
34.0
49.0
Fig.
①③
⑤
②④
A
–
–
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
58.0
58.0
58.0
58.0
58.0
58.0
58.0
250VAC (2E)
B
C
–
–
–
–
11.5
25.0
11.5
25.0
11.5
25.0
11.5
25.0
11.5
25.0
13.5
27.0
13.5
27.0
13.5
27.0
15.5
29.0
17.5
31.0
19.5
33.0
21.5
35.0
24.0
37.0
24.0
37.0
24.0
37.0
26.0
40.0
26.0
40.0
26.0
40.0
26.0
40.0
26.0
40.0
30.0
44.0
34.0
49.0
Fig.
①③
⑤
A
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
37.0
58.0
58.0
58.0
58.0
58.0
58.0
58.0
58.0
400VAC (2G)
B
C
11.5
25.0
11.5
25.0
13.5
27.0
15.5
29.0
15.5
29.0
17.5
31.0
19.5
33.0
19.5
33.0
21.5
35.0
24.0
37.0
24.0
37.0
26.0
40.0
26.0
40.0
26.0
40.0
30.0
44.0
30.0
44.0
30.0
44.0
30.0
44.0
34.0
49.0
Fig.
①③
⑤
②④
②④
403
