3046L-3-102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3046L-3-102

3046L-3-102: DescriptionBoard Mount Humidity Sensors LP Digital Humidity Sensor; CategoryPassive components The resistor; File Size229KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3046L-3-102 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3046L-3-102	-	-	View	Buy Now

3046L-3-102 Overview

Board Mount Humidity Sensors LP Digital Humidity Sensor

3046L-3-102 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	PCB Mount, 7726
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
structure	Sealed
Manufacturer's serial number	3046
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	6.58 mm
Package length	19.68 mm
Package form	PCB Mount
Package width	6.59 mm
Rated power dissipation(P)	0.125 W
resistance	1000 Ω
Resistor type	POTENTIOMETER
series	3046
size code	7726
technology	CONDUCTIVE PLASTIC
Temperature Coefficient	-1000,1000 ppm/°C
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Compact

■

Sealed

■

Long life

■

Inﬁnite resolution

■

Free shaft rotation

■

AC or DC

■

Shaft options available

■

Flexible wire leads

■

Economical

■

RoHS compliant*

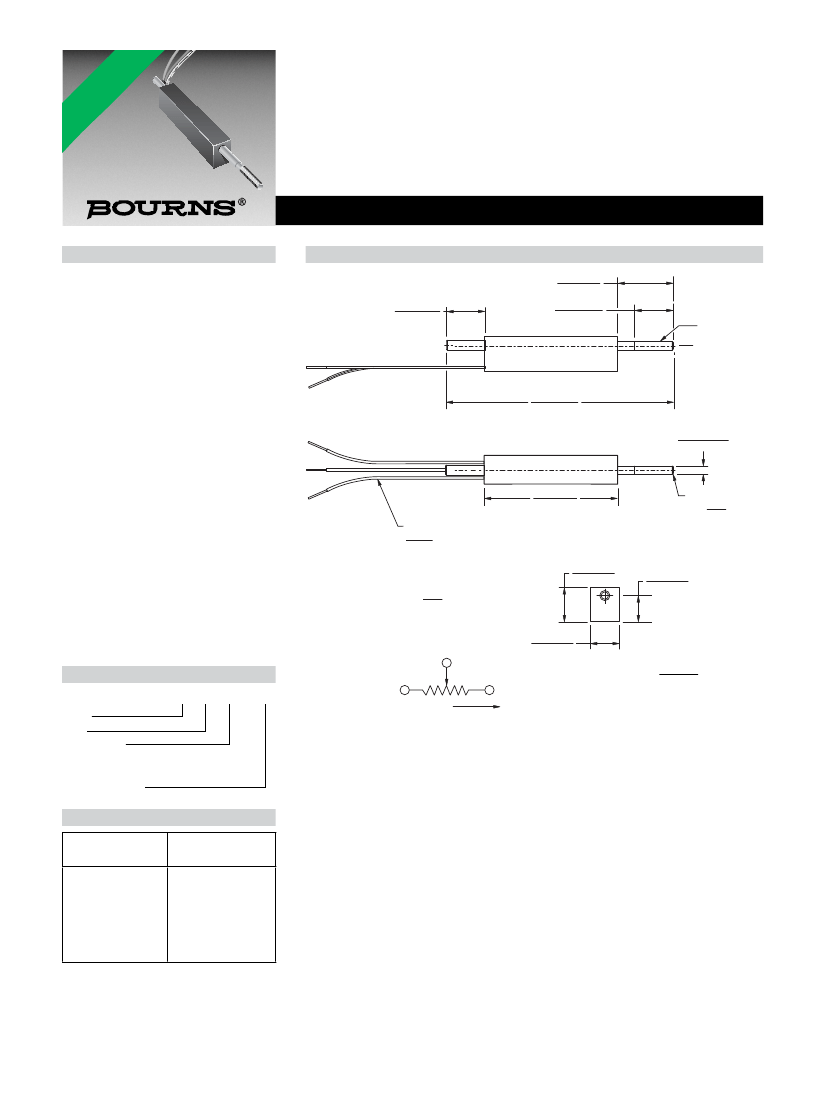

3046 Linear Motion Potentiometer

Speciﬁcations

†

Standard Electrical Travel

.............................. 0.15, 0.25, 0.35 in.

(3.81, 6.35, 8.89 mm)

Standard Resistances

.................... 1K to 50K ohms (±20 %)

Independent Linearity .................... ±5 %

Resolution ................................... Inﬁnite

Power Rating @ 70 °C (158 °F)

........................................... 0.125 watt

Operating Temperature Range

............................... -55 °C to +125 °C

Temperature Coeﬃcient ...1000 PPM/°C

Insulation Resistance ........50 megohms

@ 500 VDC

Backlash ................................. Negligible

Shaft Actuating Force .. 2N max. @ 21 °C

Life ..................................500,000 cycles

Shock ................................ 50 G for 7ms

Vibration ........................ 20 G, 10-2K Hz

Marking.........Manufacturer’s trademark,

resistance code, wiring diagram,

date code, manufacturer’s model

number and style

Speciﬁcations are typical. Contact factory for

special requirements.

† Speciﬁcations applicable from 5 % to 95 %

of electrical travel.

Product Dimensions

10.46 ± 0.05

(.412 ± .002)

10.26 ± 0.05

(.404 ± .002)

6.604 ± 1.016

(.260 ± .040)

#0-80 UNF-2A

THREADED SHAFT

(STANDARD).

SHAFT SHOWN IN

RETRACTED

POSITION

40.41 ± 0.05

(1.591 ± .002)

1.59 ± .013

DIA.

(.0625 ± .0005)

19.68 ± 0.13

(.775 ± .005)

3 ELECTRICALLY INSULATED LEADWIRES

152.40

MINIMUM LENGTH (28 AWG INSULATED CONDUCTOR)

(6.00)

6.58 ± 0.07

(.259 ± .003)

TOLERANCES: ±

.010

EXCEPT WHERE NOTED

(0.25)

CHAMFER:

0.25

45° X

(0.10)

4.5 ± 0.38

(.177 ± 0.15)

RED

2 WIPER

YELLOW

SHAFT EXTENDED

GREEN

5.69 ± 0.07

(.224 ± .003)

How to Order

DIMENSIONS:

(INCHES)

3046 L - 2 - 502

Model

Style

Range (Travel)

1 = 0.15 ” (3.81 mm)

2 = 0.25 ” (6.35 mm)

3 = 0.35 ” (8.89 mm)

Resistance Value

WIRING DIAGRAM

Standard Resistance Table

Resistance

(Ohms)

1,000

2,500

5,000

10,000

20,000

50,000

Resistance

Code

102

252

502

103

203

503

REV. 04/15

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.

3046L-3-102 Related Products

	3046L-3-102	3046L-2-252	3046L-3-252	3046L-3-203	3046L-2-102	3046L-1-503	3046L-2-103
Description	Board Mount Humidity Sensors LP Digital Humidity Sensor	Slide Potentiometers 5KOHMS 0.15" RANGE/TRAVEL	Slide Potentiometers 2.5KOHMS 0.35" RANGE/TRAVEL	Slide Potentiometers 20KOHMS 0.35" RANGE/TRAVEL	Slide Potentiometers 1KOHMS 0.15" RANGE/TRAVEL	Slide Potentiometers 50KOHMS 0.35" RANGE/TRAVEL	Analog Front End - AFE Ultra-small, Integr AFE for Wearable
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	PCB Mount, 7726	PCB Mount, 7726	PCB Mount, 7726	PCB Mount, 7726	PCB Mount, 7726	PCB Mount, 7726	PCB Mount, 7726
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	6 weeks	7 weeks	7 weeks	7 weeks	6 weeks	7 weeks	6 weeks
structure	Sealed	Sealed	Sealed	Sealed	Sealed	Sealed	Sealed
Manufacturer's serial number	3046	3046	3046	3046	3046	3046	3046
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	6.58 mm	6.58 mm	6.58 mm	6.58 mm	6.58 mm	6.58 mm	6.58 mm
Package length	19.68 mm	19.68 mm	19.68 mm	19.68 mm	19.68 mm	19.68 mm	19.68 mm
Package form	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Package width	6.59 mm	6.59 mm	6.59 mm	6.59 mm	6.59 mm	6.59 mm	6.59 mm
Rated power dissipation(P)	0.125 W	0.125 W	0.125 W	0.125 W	0.125 W	0.125 W	0.125 W
resistance	1000 Ω	2500 Ω	2500 Ω	20000 Ω	1000 Ω	50000 Ω	10000 Ω
Resistor type	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
series	3046	3046	3046	3046	3046	3046	3046
size code	7726	7726	7726	7726	7726	7726	7726
technology	CONDUCTIVE PLASTIC	CONDUCTIVE PLASTIC	CONDUCTIVE PLASTIC	CONDUCTIVE PLASTIC	CONDUCTIVE PLASTIC	CONDUCTIVE PLASTIC	CONDUCTIVE PLASTIC
Temperature Coefficient	-1000,1000 ppm/°C	-1000,1000 ppm/°C	-1000,1000 ppm/°C	-1000,1000 ppm/°C	-1000,1000 ppm/°C	-1000,1000 ppm/°C	-1000,1000 ppm/°C
Tolerance	20%	20%	20%	20%	20%	20%	20%
Base Number Matches	1	1	1	1	1	1	1
Maker	Bourns	Bourns	Bourns	Bourns	-	Bourns	-
