WIMA MP 3-X1
Metallized Paper (MP) RFI-Capacitors Class X1
in PCM 10 mm to 27.5 mm. Capacitances from 1000 pF to 0.22
mF.
Rated Voltages from 300 VAC to 500 VAC.
Special Features
˜
Particularly high reliability against
active and passive flammability
˜
Excellent self-healing as well as
high voltage strength
˜
High degree of interference
suppression due to good
attenuation and low ESR
˜
For temperatures up to +110° C
˜
According to RoHS 2011/65/EU
D
Electrical Data
Capacitance range:
1000 pF to 0.22
m
F (E12-values on request)
Rated voltages:
300 VAC, 440 VAC, 500 VAC
Continuous DC voltage*
(general guide):
T
730 V for 300 VAC
T
850 V for 440 VAC and 500 VAC
Capacitance tolerances:
±20%
Operating temperature range:
–40) C to +110) C
Climatic test category:
40/110/56/C in accordance with IEC
Insulation resistance
at +20+ C:
12 x 10
3
M¸
Measuring voltage:
100 V/1 min. for 300 VAC and 440 VAC
500 V/1 min. for 500 VAC
Dissipation factors:
tan
d
T
13 x 10
–3
at 1 kHz and +20+ C
Approvals:
Country
Germany
USA/Canada
Authority
VDE
UL
Specification
IEC 60384-14
UL 60384-14
CAN/CSA-E60384-14
Test specifications:
In accordance with IEC 60384-14
Maximum pulse rise time:
Capacitance
pF/mF
1000 ... 4700
6800 ... 0.022
0.033 ... 0.15
0.22
Pulse rise time V/msec
max. operation
2500
1750
750
500
Typical Applications
Class X1 RFI applications to meet
EMC regulations
˜
Capacitors connected to the mains
between phase and neutral or
phase and phase conductors
˜
High peak voltage applications,
pulse peak voltage
T
4 kV
for pulses equal to a voltage amplitude
with 2 x 300 VAC = 425 V,
with 2 x 440 VAC = 623 V,
with 2 x 500 VAC = 707 V
according to IEC 60384-14
Test voltage:
2300 VDC, 2 sec.
Reliability:
Operational life
300 000 hours
Failure rate
1 fit (0.5 x U
r
and 40) C)
Symbol
V
D E
EN 60384-14
Construction
Dielectric:
Paper, epoxy resin impregnated
Capacitor electrodes:
Vacuum-deposited
Internal construction:
Capacitor paper
Vacuum-deposited
electrode
Metal contact layer
(schoopage)
Terminating wire
Approval-No.
101355 (440/500 VAC)
89748 (300 VAC)
E 100438 (300 VAC)
Mounting Recommendation
To minimize or avoid shock and/or
vibration stresses to terminating wires
and solder connections we recommend to
fix voluminous resin-potted MP capacitors
as from e.g. PCM 22.5 mm in an
appropriate way since for constructional
reasons they do not sit tight on the
board.
* If safety-approved EMI suppression
capacitors are operated with a DC vol-
tage being above the specified AC voltage
rating the given approvals are no longer
valid (IEC 60384-14).
Furthermore the permissible pulse rise time
du/dt (F
max
.) will be subject to a reduction
according to
F
max.
= F
r
x 2 x UAC / UDC
if the DC operating voltage UDC is higher
than 2 x UAC
Packing
Available taped and reeled up to and
including PCM 22.5 mm.
Detailed taping information and graphs
at the end of the catalogue.
For further details and graphs please
refer to Technical Information.
Encapsulation:
Self-extinguishing epoxy resin, UL 94 V-0,
metal foil
Terminations:
Tinned wire.
Marking:
Marking: Black on Silver.
04.16
89
WIMA MP 3-X1
Continuation
D
General Data
Capacitance
1000
1500
2200
3300
4700
6800
0.01
0.015
0.022
0.033
0.047
0.068
0.1
0.15
0.22
pF
„
„
„
„
„
m
F
„
„
„
„
„
m
F
„
„
W
4
4
4
4
5
5
5
6
7
8
10
8
10
12
13
H
8.5
8.5
8.5
8.5
10
13
13
14
15
17
18
20
22
24
25
300 VAC
*
L PCM**
Part number
13.5 10
MPX12W1100FA00_ _ _ _
13.5 10
MPX12W1150FA00_ _ _ _
13.5 10
MPX12W1220FA00_ _ _ _
13.5 10
MPX12W1330FA00_ _ _ _
13.5 10
MPX12W1470FB00_ _ _ _
19
15
MPX12W1680FC00_ _ _ _
19
15
MPX12W2100FC00_ _ _ _
19
15
MPX12W2150FD00_ _ _ _
19
15
MPX12W2220FE00_ _ _ _
19
15
MPX12W2330FF00_ _ _ _
19
15
MPX12W2470FG00_ _ _ _
28
22.5 MPX12W2680FH00_ _ _ _
28
22.5 MPX12W3100FI00_ _ _ _
28
22.5 MPX12W3150FJ00_ _ _ _
33
27.5 MPX12W3220FK00_ _ _ _
500 VAC
*
PCM**
Part number
15
MPX15W1680FC00_ _ _ _
15
MPX15W2100FC00_ _ _ _
15
MPX15W2150FD00_ _ _ _
15
MPX15W2220FE00_ _ _ _
15
MPX15W2330FG00_ _ _ _
Part number completion:
Tolerance:
Packing:
Pin length:
20 % = M
bulk = S
6-2 = SD
W
H
L
440 VAC
*
PCM**
Part number
5
5
6
7
10
13
13
14
15
18
19
19
19
19
19
15
15
15
15
15
MPX14W1680FC00_ _ _ _
MPX14W2100FC00_ _ _ _
MPX14W2150FD00_ _ _ _
MPX14W2220FE00_ _ _ _
MPX14W2330FG00_ _ _ _
Capacitance
6800
0.01
0.015
0.022
0.033
pF
m
F
„
„
„
W
5
5
6
7
10
H
13
13
14
15
18
L
19
19
19
19
19
** PCM = Printed circuit module = pin spacing
Upon request with long pins 35-2 mm max.
W
L
H
* f = 50/60 Hz
Dims in mm.
6 -
2
d
Rights reserved to amend design
data without prior notification.
Taped version see page 145.
)C/C
(%)
d = 0.6
l
if PCM10
d = 0.8
l
if PCM15
tan
*
(x 10
-3
)
40
36
32
28
24
20
16
12
8
4
0
-55 -40
-20
PCM
at the pin exi t
points
(
±
0.5)
Typical Graphs of the
Capacitor Paper Dielectric
valid for:
MP 3-X2
MP 3-X1
MP 3-Y2 / 3R-Y2
12
8
4
0
-4
-8
-12
-55 -40
-20
0
20
40
60
80 100
T(° C)
0
20
40
60
80
Capacitance change versus temperature
(f =1 kHz) (general guide)
10
4
M
S
x µF(s)
Dissipation factor change versus
temperature (f = 1 kHz) (general guide)
30
26
22
18
tan
*
(x 10
-3
)
100
T(° C)
10
3
14
10
6
10
2
-55 -40
-20
0
20
40
60
90
04.16
Insulation resistance change versus
temperature (general guide)
80 100
T(° C)
2
0
2
10
10
3
10
4
10
5
f/Hz
10
6
Dissipation factor change versus
frequency (general guide).
D
Recommendation for Processing
and Application of
Through-Hole Capacitors
Soldering Process
Internal temperature of the capacitor must
be kept as follows:
Polyester:
preheating: T
max.
T
125° C
soldering: T
max.
T
135° C
Polypropylene: preheating: T
max.
T
100° C
soldering: T
max.
T
110° C
Single wave soldering
Soldering bath temperature: T
260 ° C
Dwell time:
t
5 sec
Double wave soldering
Soldering bath temperature: T
260 ° C
Dwell time:
St
5 sec
Due to different soldering processes and
heat requirements the graphs are to be
regarded as a recommendation only.
WIMA Quality and Environmental Philosophy
ISO 9001:2008 Certification
ISO 9001:2008 is an international basic
standard of quality assurance systems
for all branches of industry. The approval
according to ISO 9001:2008 of our facto-
ries by the infaz (Institut für Auditierung und
Zertifizierung) certifies that organisation,
equipment and monitoring of quality assu-
rance in our factories correspond to inter-
nationally recognized standards.
WIMA Environmental Policy
All WIMA capacitors, irrespective of
whether through-hole devices or SMD,
are made of environmentally friendly
materials. Neither during manufacture
nor in the product itself any toxic sub-
stances are used, e.g.
–
–
–
–
–
Lead
PCB
CFC
Hydrocarbon chloride
Chromium 6+
–
–
–
–
–
PBB/PBDE
Arsenic
Cadmium
Mercury
etc.
RoHS Compliance
According to the RoHS Directive 2011/65/EU
certain hazardous substances like e.g. lead,
cadmium, mercury must not be used any
longer in electronic equipment as of July 1st,
2006. For the sake of the environment WIMA
has refraind from using such substances since
years already.
WIMA WPCS
The WIMA Process Control System (WPCS)
is a quality surveillance and optimization
system developed by WIMA. WPCS is a
major part of the quality-oriented WIMA
production. Points of application during
production process:
”
”
”
”
”
”
”
incoming material inspection
metallization
film inspection
schoopage
pre-healing
pin attachment
cast resin preparation/
encapsulation
”
100% final inspection
”
Testing as per customer requirements
We merely use pure, recyclable materials
for packing our components, such as:
”
”
”
”
carton
cardboard
adhesive tape made of paper
polystyrene
WIMA Kondensatoren sind bleifrei
konform RoHS 2011/65/EU
WIMA capacitors are lead free
in accordance with RoHS 2011/65/EU
Tape for lead-free WIMA capacitors
We almost completely refrain from using
packing materials such as:
”
foamed polystyrene (Styropor®)
”
adhesive tapes made of plastic
”
metal clips
DIN EN ISO 14001:2004
WIMA’s environmental management has
been established in accordance with the
guidelines of DIN EN ISO 14001:2004 to
optimize the production processes with
regard to energy and resources.
04.16
15
D
Typical Dimensions for
Taping Configuration
P
2
P
Vh
H
H
1
W
2
P
1
Diagram 1:
PCM 2.5/5/7.5mm
W
0
D
0
F
P
0
P
d
P
W
W
1
H
1
t
P
1
P
1
H
d
F
P
0
P
2
F
P
2
d
P
0
Diagram 2: PCM 10/15 mm
Diagram 3: PCM 22.5 and 27.5*mm
*PCM 27.5 taping possible with two feed holes between components

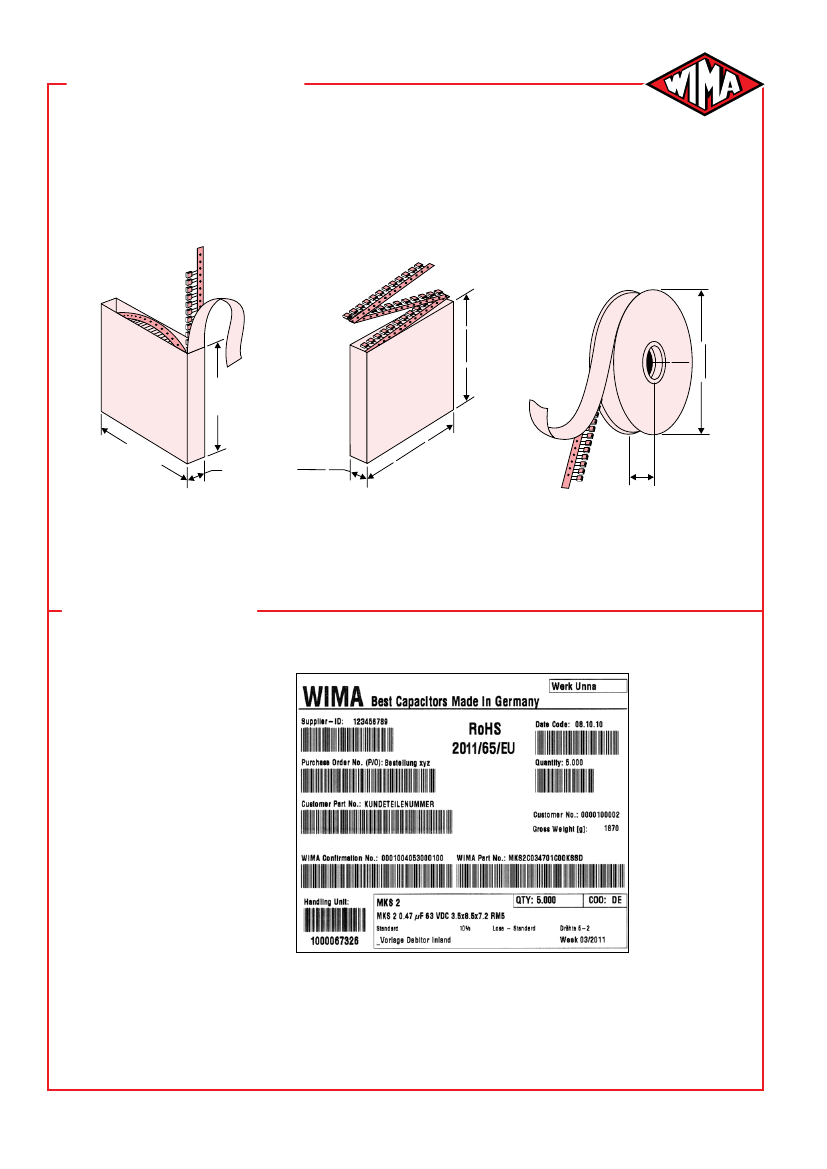

Dimensions for Radial Taping
Designation
Carrier tape width
Hold-down tape width
Hole position
Hold-down tape position
Feed hole diameter
Pitch of component
Feed hole pitch
Feed hole centre
to pin
Hole centre to
component centre
Feed hole centre to bottom
edge of the component
Feed hole centre to top
edge of the component
Pin spacing at
upper edge of carrier tape
Pin diameter
Component alignment
Total tape thickness
Package
(see also page 146)
Unit
Dims in mm.
„
Symbol
PCM 2.5 taping
W
W
0
W
1
W
2
D
0
P
P
0
P
1
P
2
H
H
1
F
d
Dh
t
18.0
p0.5
6.0
for hot-sealing
adhesive tape
PCM 5 taping
18.0
p0.5
6.0
for hot-sealing
adhesive tape
PCM 7.5 taping
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 10 taping*
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 15 taping*
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 22.5 taping
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 27.5 taping
18.0
p0.5
12.0
for hot-sealing
adhesive tape
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
12.7
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
12.7
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
12.7
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
25.4
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
25.4
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
38.1
p1.5
12.7
p0.3
7.8
p0.7
19.05
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
30.0 to 43.0
22.5
p0.8
0.8
–0.05
p
3.0 max.
0.7
p0.2
54
p2
B 60
p2
68
p2
depending
on PCM and
component dimensions
+0,08
cumulative pitch
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
*
38.1
p1.5
or 50.8
p1.5
12.7
p0.3
5.3
p0.7
19.05
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
35.0 to 45.0
27.5
p0.8
0.8
–0.05
p
3.0 max.
0.7
p0.2
+0.08
cumulative pitch
error max.
1.0 mm/20 pitch
5.1
p0.5
6.35
p1.3
16.5
p0.3
18.5
p0.5
H+H
component
< H
1
32.25 max.
2.5
p0.5
0.4
p0.05
p
2.0 max.
0.7
p0.2
3.85
p0.7
6.35
p1.3
16.5
p0.3
18.5
p0.5
H+H
component
< H
1
32.25 max.
5.0
+0.8
–0.2
2.6
p0.7
6.35
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
24.5 to 31.5
7.5
p0.8
„
7.7
p0.7
12.7
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
25.0 to 31.5
10.0
p0.8
+0.06
„
5.2
p0.7
12.7
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
26.0 to 37.0
15
p0.8
+0,06
0.5
p0.05
p
2.0 max.
0.7
p0.2
ROLL/AMMO
0.5
p0.05
or
0.6
–0.05
0.5
p0.05
or
0.6
–0.05
0.8
–0.05
p
3.0 max.
0.7
p0.2
AMMO
+0,08
p
3.0 max.
0.7
p0.2
p
3.0 max.
0.7
p0.2
52
p2
B 58
p2
or
66
p2
REEL
P
360 max.
P
30
p1
B
52
p2
58
p2
depending on
comp. dimensions
REEL
P
360 max.
P
30
p1
REEL
P
500 max.
P
25
p1
see details page 147.
Please clarify customer-specific deviations with the manufacturer.
Diameter of pins see General Data.
04.16
*
PCM 10 and PCM 15 can be crimped to PCM 7.5.
Position of components according to PCM 7.5 (sketch 1). P
0
= 12.7 or 15.0 is possible
145
D
Types of Tape Packaging of
Capacitors for Automatic
Radial Insertion
˜
ROLL Packaging
˜
AMMO Packaging
˜
REEL Packaging
340 max.
370 max.
30
±
1
25
±
1
340 max.
34
0m
ax.
50 max.
50 max.
70 max.
.
ax
0 m ax.
34 0 m
49
B
BAR CODE (Labelling)
Labelling of package units in
plain text and with
alphanumerical Bar Code
Scanner decoding of
„
„
„
„
„
„
„
„
–
–
–
–
–
–
WIMA supplier number
Customer‘s P/O number
Customer‘s part number
WIMA confirmation number
WIMA part number
Lot number
Date code
Quantity
article
capacitance value
rated voltage
dimensions
capacitance tolerance
packing
BARCODE „Code 39”
In addition part description of
as well as gross weight and customer‘s
name are indicated in plain text.
360 max.
500 max.
146
04.16
京公网安备 11010802033920号
EEWORLD
