3787-C-48 Overview

Test Leads BNC TO MINI GRABB

3787-C-48 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pomona Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	APPLICABLE CABLE: RG 58C/U, CABLE LENGTH: 48INCH
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

Pomona

Model 3787

BNC Male To

Minigrabber® Test Clips

FEATURES:

•

Cable assembly is perfect for interfacing test instruments to discrete test points.

•

BNC connector is the highest quality, field replaceable construction. The nickel plated shell resists corrosion and the

gold plated center contact promotes high quality, low resistance connections in the field and the laboratory.

•

Breakout wires are crimped to the cable conductors and over-molded with a flexible PVC strain relief for long service

life.

MATERIALS:

BNC Male: Body - Brass, Tarnish Resistant Plating, Center Contact - Brass, Gold Plated,

Dielectric: PTFE, Impedance: 50 Ohms

Minigrabber® Test Clips: Contact, Beryllium Copper, Gold Plated, Insulation: Nylon, Color: One Black/One Red

Breakout Wires: 20 AWG, 41 x 36 t.c., PVC Insulation, O.D. .087" (2,21 mm), Color Matches Grabbers

Molded Breakout: PVC, Color: Black

Cable: RG58C/U Coaxial cable, Non-contaminating PVC jacket. Impedance: 50 Ohms

RATINGS:

Operating Voltage: 45 VRMS Max.

Operating Temperature: +50° C (+122° F)

ORDERING INFORMATION:

Model 3787-C-XX

XX = Length in Inches

Standard Lengths: -18"” (45,72), -24" (61 ), -36" (91,44 ), -48" (122 ), -60" (152,4 )

Additional lengths can be quoted upon request.

Ordering Example: 3787-C-36 Cable length is 36" (91,44)

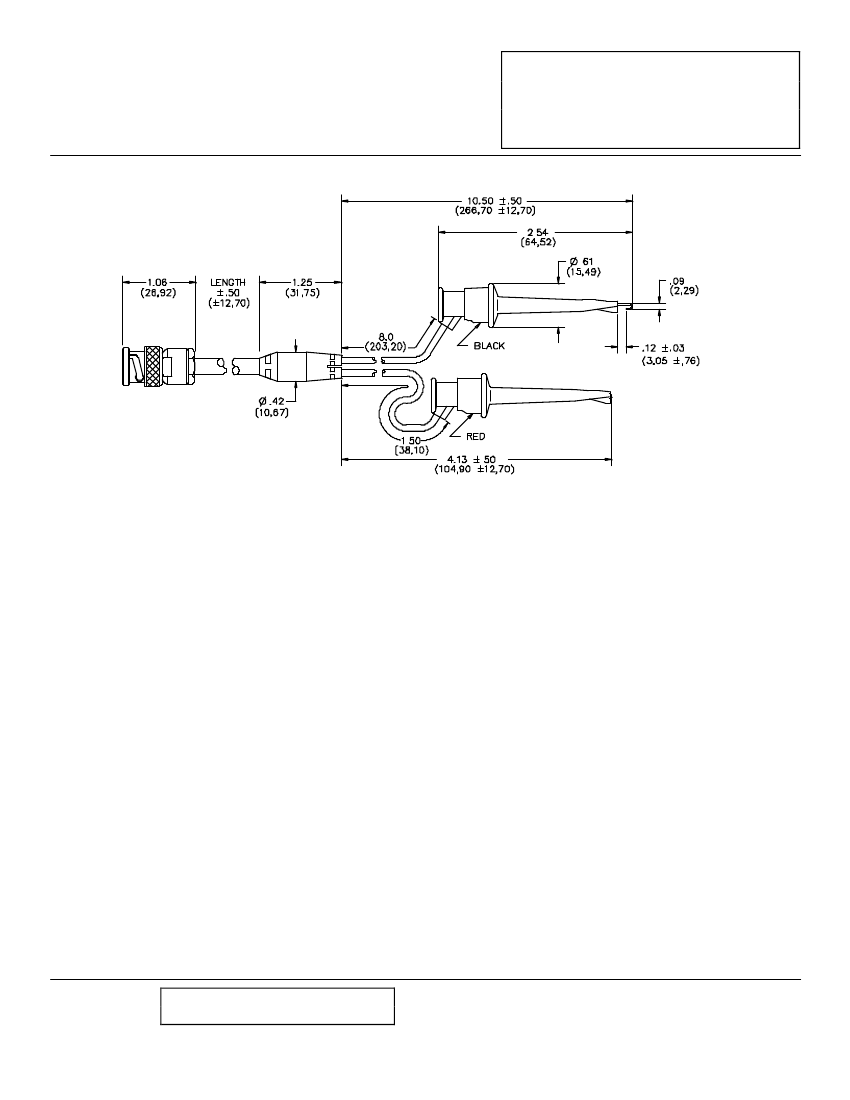

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies.

6/9/99

SY/EH/LS

Made in USA

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90328

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1

S:\Engineering \Release\DataSheets\FlukeDataSheet\d3787_1_01.doc
