REV
005
DATE
21 Jun 2017
1
ECN NUMBER
C03630
ECR COMMENT
ADD TEMPERATURE RATING
2
3
4
5
6
7
A

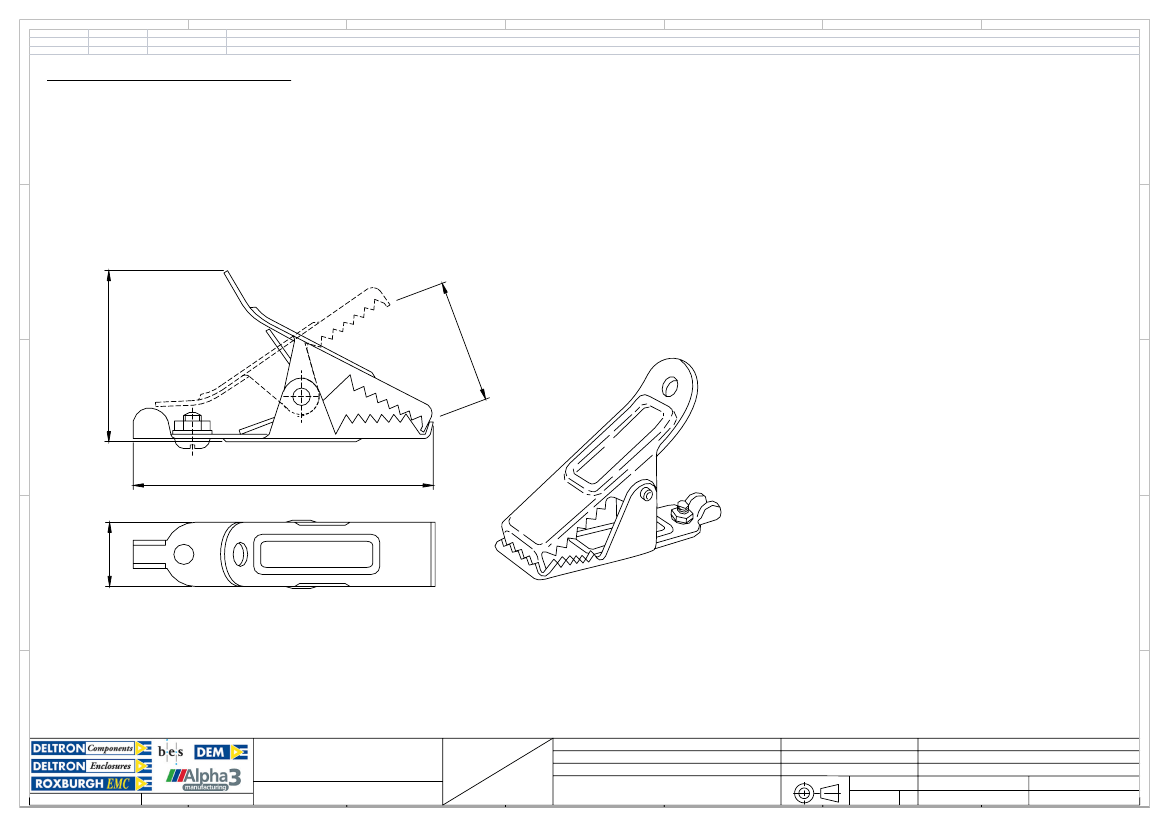

General purpose crocodile clip.
Manufactured from bright mild steel.
Large (30mm) jaw opening makes it suitable as a battery clip.
The integral cable clamp has a secure 4mm screw fixing.
The enhanced finger grip ensures a simple operation.
CLIP
MATERIAL
: Bright Mild Steel
CS4, nickel plated
: Temperature Rating
-20 to + 200
°
C
: M4 x 6mm, Steel,
Nickel plated
: 25 Amps
: 50V
A
B
SCREW / NUT
& WASHER
Current Rating
RATED VOLTAGE:
B
30
C
44
C
75
D
16
D
PVC INSULATED BOOT AVAILABLE IN
RED 310-0500 OR BLACK 310-0100
OPERATING TEMPERATURE WITH BOOT FITTED -20 TO +60
°
C
E
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF
ALPHA 3 MANUFACTURING.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
ALPHA 3 MANUFACTURING
IS PROHIBITED.
DEM Manufacturing is a division of Alpha 3 Manufacturing LTD
DEM Manufacturing, Deltron Emcon House, Hargreaves Way,
Sawcliffe Ind. Park, Scunthorpe, North Lincolnshire, DN15 8RF, UK
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETRES
E
IF IN DOUBT ASK! DO NOT SCALE DRAWING!
FINISH
MATERIAL
AUTHOR
EDITOR
APPROVER
Shaun Barron
DT
DT
SHEET 1 OF 1
+44(0)1724 273200
www.dem-uk.com
LINEAR & RADIAL TOLERANCE:
NO DECIMAL PLACES
1 DECIMAL PLACE
2 DECIMAL PLACES
ANGULAR TOLERANCE:
SEE NOTE
SEE NOTE
THIRD ANGLE PROJECTION
THE FINISHED PRODUCT SHOULD BE CLEAN AND FREE FROM ALL
LIQUIDS AND DEBRIS. SURFACES SHOULD BE OF UNIFORM
APPEARANCE FREE FROM SHARP EDGES, BURRS AND CORROSION
SCALE 1:1
A4
LARGE CROCODILE
304-0000
PART
304-0000
ISSUE/REV.
VERSION
005
7
EDIT DATE
RELEASED
21 Jun 2017
TITLE
FILE
MicroPython Open Source section
