5026-36: DescriptionTest Leads ALLG CLP/BNTM PL 36"; CategoryTopical application Test and measurement; File Size37KB，1 Pages; ManufacturerPomona Electronics Inc.; Websitehttps://www.pomonaelectronics.com/

Download Datasheet Parametric Compare View All

5026-36 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5026-36	-	-	View	Buy Now

5026-36 Overview

Test Leads ALLG CLP/BNTM PL 36"

5026-36 Parametric

Parameter Name	Attribute value
Product Category	Test Leads
Manufacturer	Pomona Electronics Inc.
RoHS	Details
Equipment Type	Cable Assemblies
Connector Type	Alligator clip to bantam plug
Cable Type	22 AWG Tinned Copper
Length	36 in
Color	Gray
Current Rating	5 A
Description/Function	Converts bantam phone plug (female) into alligator clips
Features	Shielded cable to reduce noise
Factory Pack Quantity	2
Voltage Rating	150 V

Preview

Download Datasheet

View All

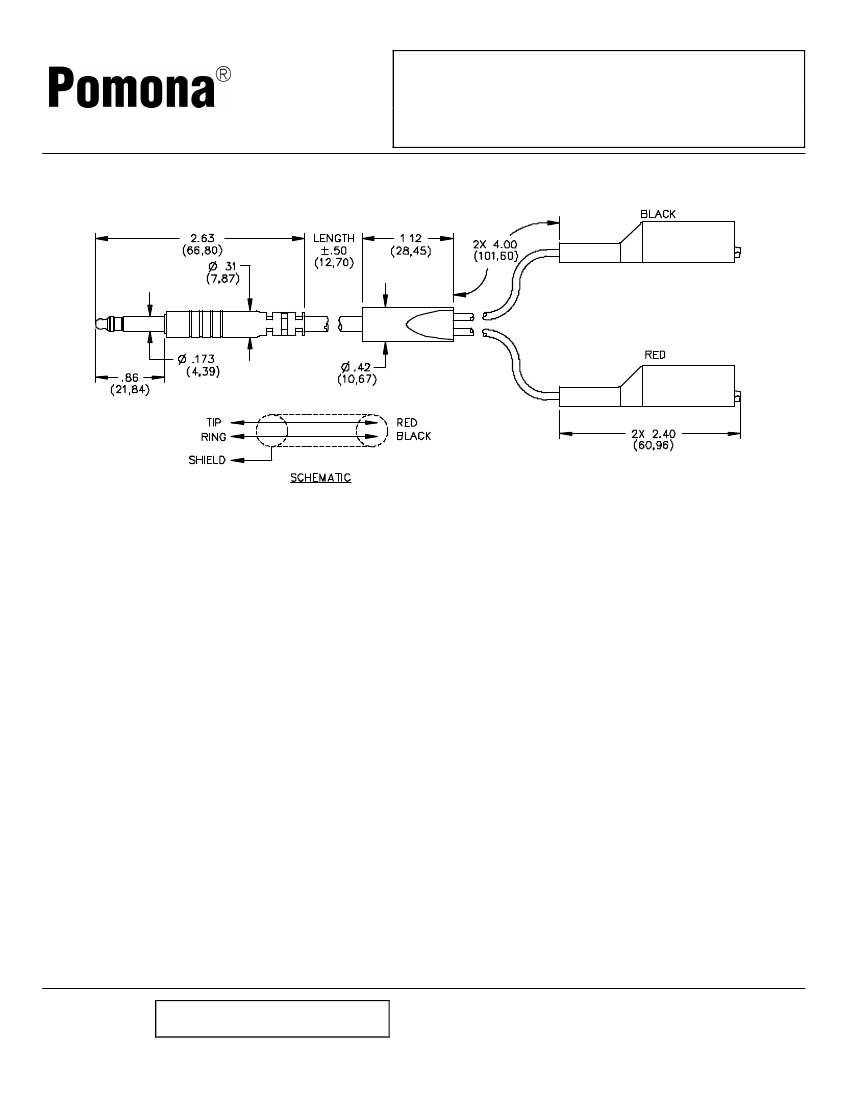

Model 5026 & 5026N

Bantam Plug (Miniature Phone Plug)

To Alligator Clips

FEATURES:

•

Converts Bantam (Miniature Phone Plug) Female into Alligator Clips

•

Shielded cable to reduce noise

•

Bantam molded to the cable for optimum durability

MATERIALS:

Conn: 1

end: Miniature 3 Cond. Phone Plug. (5026 brass, 5026N nickel plated brass).

Insulation: PVC, black. Sleeve, no connection

Cable: Two cond. Shielded, 22 AWG, 7 x 30 t.c., 4.6 (.180) O.D., Y-mold insulation, PVC, gray

Conn: 2

end: Alligator clips. Steel, nickel plated. Vinyl boots, one Black and one Red.

RATINGS:

Operating Temperature: +50°C. (+122°F.) Max.

Operating Voltage: 150 VRMS/DC

Current: 5 Amperes

ORDERING INFORMATION:

Model 5026-XX

XX=Cable Length, Standard Lengths: 36” (914), 60” (1524), 84” (2134)

Ordering Example: 5026-84, Cable length is 84” with brass Bantam connector

5026N-60, Cable length is 60” with nickel plated brass Bantam connector

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

7/1/02 SY/EH/LS

Last saved by Laura Goldberg

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90613

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1

C:\Laura Goldberg\FlukeDataSheet \d5026_26N_1_02.doc

5026-36 Related Products

	5026-36	5026-60	5026N-60
Description	Test Leads ALLG CLP/BNTM PL 36"	Test Leads ALLG CLP/BNTM PL 60"	Test Leads TEST CLIP
Is it lead-free?	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to
Reach Compliance Code	-	unknown	unknown
Other features	-	CABLE LENGTH: 60INCH, PLUG, MALE	CABLE LENGTH: 60INCH, PLUG, MALE
Connector type	-	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE
Base Number Matches	-	1	1
