3276: DescriptionTest Plugs u0026 Test Jacks MINI B-PLUG 4-40X.48; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerPomona Electronics Inc.; Websitehttps://www.pomonaelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

3276 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3276	-	-	View	Buy Now

3276 Overview

Test Plugs u0026 Test Jacks MINI B-PLUG 4-40X.48

3276 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pomona Electronics Inc.
Reach Compliance Code	unknown
Other features	MALE
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

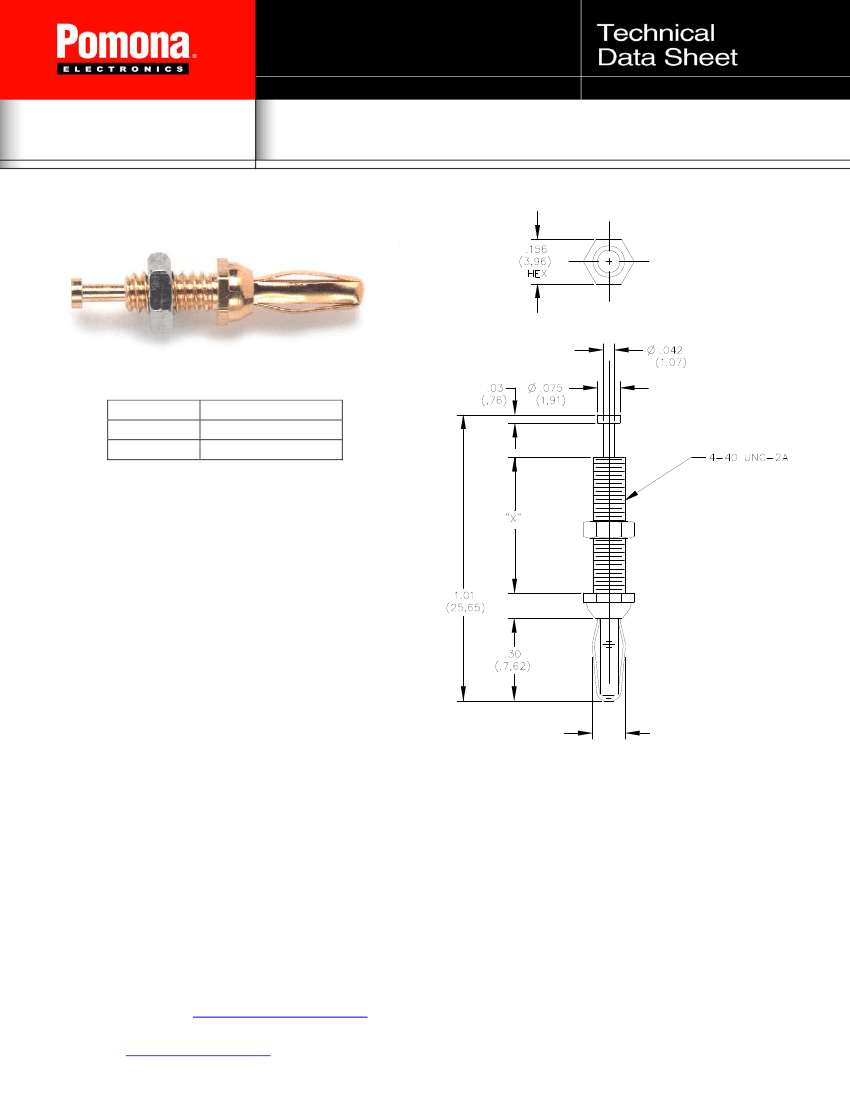

Model 3276 & 4513

Miniature Banana Plug with Threaded Stud

Model

3276

4513

"X" Dimension

.23" (5,8mm)

.48" (12,2mm)

Minimum Panel Thickness is 0.030” (0.76mm)

Features

•

Threaded stud enables fast and easy mounting to

panels.

Solder turret allows wire attachment.

Miniature banana plug features gold plated Beryllium

Copper for long insertion life and low contact

resistance.

Materials

Miniature Banana Plug:

Spring: Beryllium Copper, Gold Plated

Body: Brass, Gold Plated

Hex Nut: 4-40 Nut, Brass, Nickel Plated

Ø.120

(3,05)

Ratings

Operating Voltage: 2500 VDC

Current: 5 Amperes Max.

Ordering Information

Model 3276

Model 4513

Parts are packaged ten per bag, unassembled.

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

USA:

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),

.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks are

the property of their respective companies.

D1094004 Rev. 102

Page 1 of 1
