5645 Overview

Test Clips TEST CLIP 160 PIN

5645 Parametric

Parameter NameAttribute value
Product CategoryTest Clips
ManufacturerPomona Electronics Inc.
RoHSDetails
ProductQFP Clips
Type0.65 mm lead pitch
FeaturesInterfaces with high density QFP surface mount chips

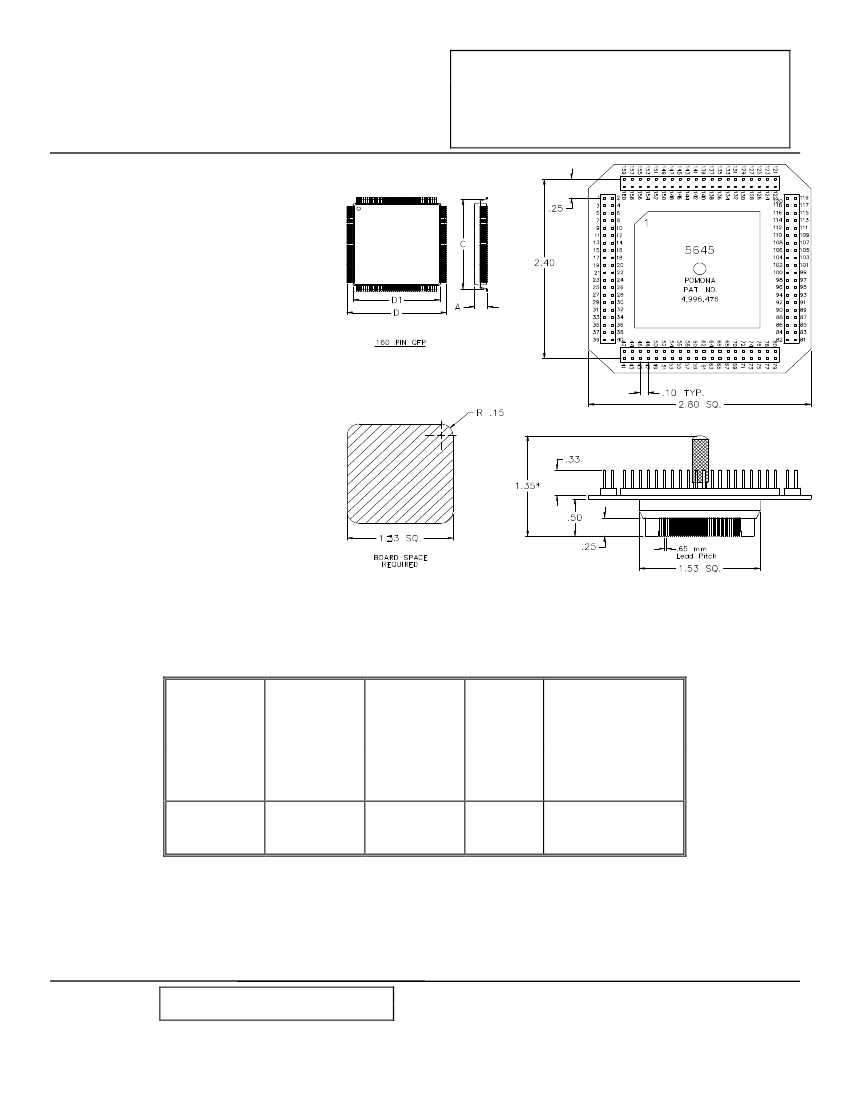

Pomona
®
Model Model 5645 & 5645-2
160 Pin EIAJ QFP Test Clip
0.65mm Lead Pitch
These new test clips provide the user with
an easy means to connect instrumentation
to the fine pitch QFP chip leads.
Interfaces with high density 160 Pin
EIAJ QFP surface mount chip leads.
Two stage alignment assures positive
connections.
Gold plated connector pins and
contacts assure noise free connections.
Gold plated .025" square pins provide
easy connection with either ribbon
cable or discrete jumpers.
Pomona's EIAJ test clips are perfect for
system design, field service testing, failure
analysis, and for use with logic analyzers.
Other clips are also available in other sizes to fit the most popular EIAJ chips now in use.
Pomona offers a test clip to fit the most commonly found variations on the EIAJ specifications.
Leads
“D”
31.9mm
31.2mm
Body
“D1”
28.0mm
28.0mm
Lead
Interface
“C”
30.3mm
(1.193")
29.6mm
(1.165")
Chip
Height
“A”
3.4mm
3.4mm
Pomona
Part Number
5645
5645-2
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 909-469-2900 Fax: 909-629-3317
Technical Assistance: 800-241-2060
PomonaACCESS
90350
(800) 444-6785 or (949) 253-3858
More drawings available at www.pomonaelectronics.com
Page 1 of 1
R:\Release\DataSheet\3_Market_00\D5645_45-2_1_01.doc
