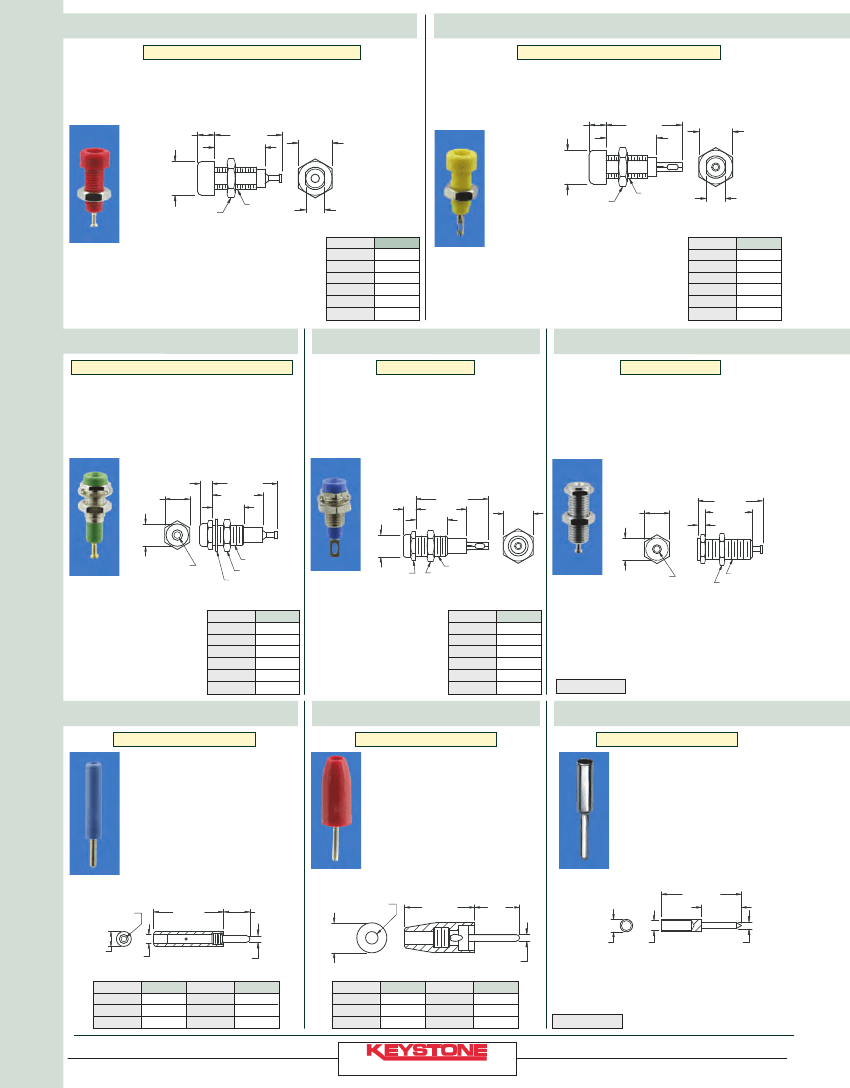

FULLY INSULATED DELUXE TIP JACK
ACCEPTS .080 (2.0) TIP WITH CLOSED ENTRY CONTACT
Fully molded body with recessed closed entry design. Assures maximum retention with .010Ω max-
imum contact resistance. Prevents accidental insertion of larger diameter probes. Current
rating: 10 Amps. Breakdown voltage 5700V RMS. Capacitance to metal panel 2.0 pF nominal. Sup-
plied with nut.
.188 [4.8]
.750 [19.1]
.562 [14.3]
.375 [9.5]
DIA.
.250-32
THREAD
.375 [9.5]
NUT
FULLY INSULATED STANDARD TIP JACK
ACCEPTS .080 (2.0) TIP
Economical tip jacks with molded Nylon body. Low contact resistance. Formed Phosphor Bronze
contact with solder hole for ease in attaching wire. Current rating 10 Amps. Breakdown voltage
5700 VRMS. Capacitance to metal panel 3.8 pF. Supplied with nut.
.188 [4.8]
.844 [21.5]
.562 [14.3]
.375 [9.5]
NUT
.375 [9.5]
DIA.
.250-32
THREAD
.209
[5.3]
NUT
.209
[5.3]
NUT
MATERIAL:
Body:
Molded Nylon ASTM D4066
Contact:
Beryllium Copper, Silver Plate
Terminal:
Brass, Tin Plate
CAT. NO.
6030
6031
6032
6033
6034
6035
COLOR
WHITE
RED
BLACK
GREEN
YELLOW
BLUE
MATERIAL:
Body:
Molded Nylon ASTM D4066
Contact:
Phosphor Bronze, Tin Plate
CAT. NO.
6018
6019
6020
6021
6022
6023
COLOR
WHITE
RED
BLACK
GREEN
YELLOW
BLUE
METAL-CLAD TIP JACK (MIL)
ACCEPTS .080 (2.0) TIP WITH CLOSED ENTRY CONTACT
High quality tip jack for high reliability industrial applications. Ideal for
use where required to withstand severe environmental conditions, tem-
perature, vibration and salt spray. Recessed closed entry contact. Cur-
rent rating 10 amps. Breakdown voltage: 5700V RMS. Made to
MIL-C39024/10. Capacitance to metal panel 2.0 pF. Supplied com-
plete with hardware.
METAL-CLAD TIP JACK (STD)
ACCEPTS .080 (2.0) TIP
Molded Nylon body with metal jacket. Contact is formed from phos-
phor bronze contact with solder hole for ease in attaching wire. De-
signed for positive contact, easy insertion and withdrawal. Current
rating: 10 Amps. Breakdown voltage 5700V RMS. Capacitance to
metal panel 3.8 pF. Supplied with nut.
UNINSULATED TIP JACK
ACCEPTS .080 (2.0) TIP
Quality, precision machined tip jack made of brass. Ideal for use on
metal panels where grounding is required. Fits panels up to .375 (9.5)
Thick. Supplied with nut.
PLUGS & JACKS
.156 [4.0]
.312 [7.9]
HEX.
.812 [20.6]
.632 [16.1]
.395
[10.1]
.156 [4.0]
.906 [23.0]
.632 [16.1]
.395 [10.1]
.375 [9.5]
NUT
.312 [7.9]
HEX.
.812 [20.6]
.593 [15.1]
.093
[2.4]
.281 [7.2]
DIA.
.281 [7.2]
DIA.
.250-32 THREAD
SPRING CONTACT TO
ACCEPT .080 [2.03]
DIA. PIN
.281 [7.2]
DIA.
.343 [8.7] HEX. NUT
LOCKWASHER
.250-32 THREAD
.312 7.9] HEX.
NUT
SPRING CONTACT TO
ACCEPT .080 [2.03]
DIA. PIN
.250-32 THREAD
.375 [9.5] HEX. NUT
MATERIAL:
Body:
Molded Nylon
ASTM D4066
Shell & Nut:
Brass QQ-B-626,
Nickel Plate QQ-N-290
Contact:
Beryllium Copper
for QQ-C-533. Gold Plate
MIL-G-45204
CAT. NO.
6012
6013
6014
6015
6016
6017
COLOR
WHITE
RED
BLACK
GREEN
YELLOW
BLUE
MATERIAL:
Body:
Molded Nylon
ASTM D4066
Shell:
Brass, Nickel Plate
Contact:
Phosphor Bronze,
Silver Plate
CAT. NO.
6024
6025
6026
6027
6028
6029
COLOR
WHITE
RED
BLACK
GREEN
YELLOW
BLUE
MATERIAL:
Body:
Brass, Nickel Plate
Contact:
Beryllium Copper
Current Rating:
15 Amps
CAT. NO. 6097
SOLDER TIP PLUGS
.080 (2.0) DIAMETER TIP
Designed for miniaturization where space is criti-
cal. Solder lead connection. Maximum reliability
with minimum contact resistance. Base of tip is
recessed to eliminate shock or grounding. Fits all
standard jacks.
SOLDERLESS TIP PLUGS
.080 (2.0) DIAMETER TIP
Fully insulated molded nylon sleeve. Maximum reli-
ability with minimum contact resistance. Recessed
metal head eliminates possibility of shock or
grounding. Designed for solderless connection of up
to 16 gauge stranded wire which fits through handle
and tip and is secured by screwing handle tight. Fits
all standard tip jacks.
STANDARD PHONE TIP
.080 (2.0) DIAMETER TIP
Accepts up to 12 gauge wire. Fits all standard
tip jacks.
MATERIAL:
Tip:
Brass, Nickel Plate
Handle:
Nylon 6/6
Current Rating:
10 Amps.
MATERIAL:
Tip:
Brass, Nickel Plate
Handle:
Nylon 6/6
Current Rating:
10 Amps.
MATERIAL:
Brass, Nickel Plate
1.000 [25.4]
.070 [1.78] DIA.
TO ACCEPT WIRE.
.875 [22.2]
.328 [8.4]
REF.
.156 [4.0] DIA.
TO ACCEPT WIRE.
.375 [9.5]
DIA.
.187 [4.8]
DIA.
.113 [2.9]
DIA.
.875 [22.2]
.500
[12.7]
REF.
.156 [4.0]
DIA.
.500 [12.7]
.125 [3.2]
DIA.
.080 [2.03] DIA.
.080 [2.03] DIA.
.080 [2.03] DIA.
CAT. NO.
6006
6007
6008
COLOR
WHITE
RED
BLACK
CAT. NO.
6009
6010
6011
COLOR
GREEN
YELLOW
BLUE
CAT. NO.
6000
6001
6002
COLOR
WHITE
RED
BLACK
CAT. NO.
6003
6004
6005
COLOR
GREEN
YELLOW
BLUE
CAT. NO. 1601
104
Tel (718) 956-8900
•
Fax (718) 956-9040
(800) 221-5510
•
kec@keyelco.com
RoHS COMPLIANT
~
ISO 9001 CERTIFIED
www.keyelco.com
31-07 20th Road – Astoria, NY 11105-2017

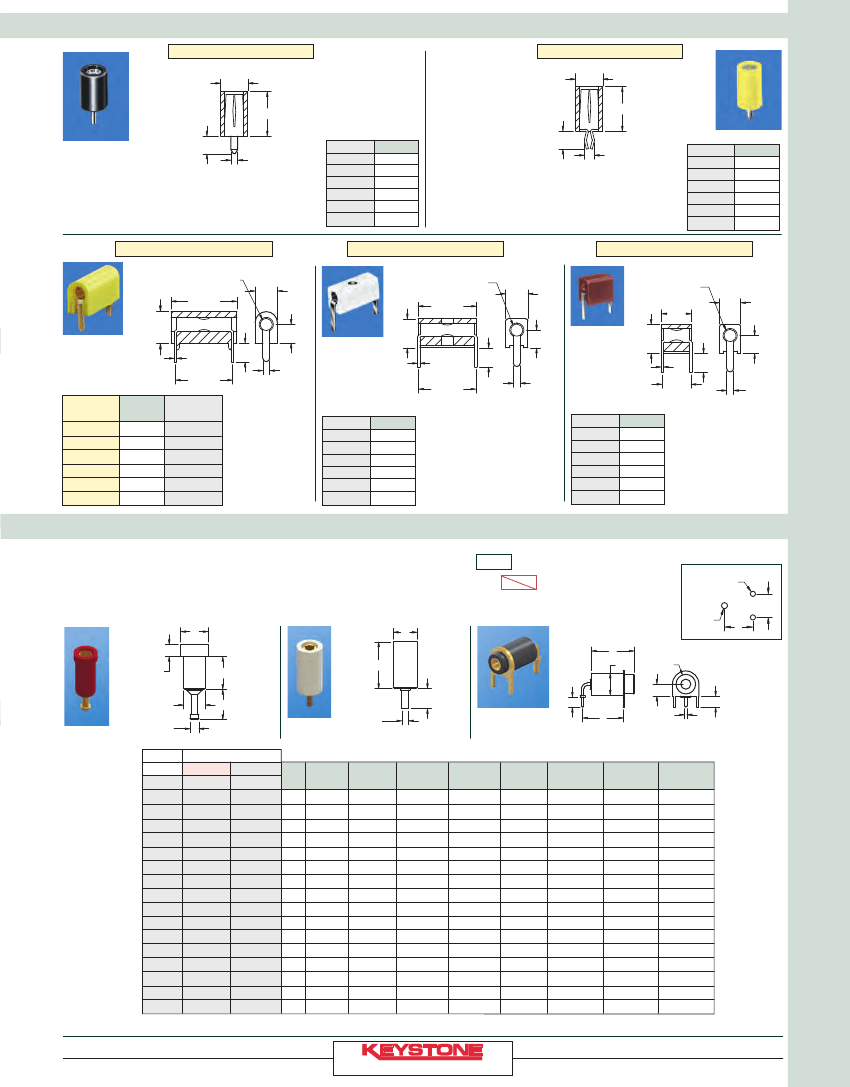

PC TEST JACKS
VERTICAL
.187 [4.8] DIA.
SNAP-FIT VERTICAL
.187 [4.8] DIA.
.312 [7.9]
.312 [7.9]
.125 [3.2]
.048 [1.2]
DIA.
MATERIAL:
Body:
Nylon per ASTM D4066
Contact:
Brass, Silver Plate
CAT. NO.
6036
6037
6038
6039
6040
6041
COLOR
WHITE
RED
BLACK
YELLOW
GREEN
BLUE
.125 [3.2]
.039 [0.99] x
.045 [1.14]
MATERIAL:
Body:
Nylon per ASTM D4066
Contact:
Beryllium Copper, Silver Plate
Mounting:
Snap-fits into .052 (1.32) hole
CAT. NO.
6042
6043
6044
6045
6046
6047
COLOR
WHITE
RED
BLACK
YELLOW
GREEN
BLUE
LOW PROFILE HORIZONTAL
SPRING CONTACT TO
ACCEPT .080 [2.03]
DIA. PIN
.460 [11.7]
.220
[5.6]
.133
[3.4]
.048
[1.2]
UNIVERSAL HORIZONTAL
SPRING CONTACT TO
ACCEPT .080 [2.03]
DIA. PIN
.410 [10.4]
.130
[3.3]
MINIATURE HORIZONTAL
SPRING CONTACT TO
ACCEPT .080 [2.03]
DIA. PIN
.208
[5.3]
.156
[4.0]
.156
[4.0]
.147
[3.7]
.203
[5.2]
.133
[3.4]
.125
[3.2]
.008 [.20]
.203
[5.2]
.008
[.20]
.133
[3.4]
.125
[3.2]
.008 [.20]
.400 [10.2]
.400 [10.2]
.048
[1.2]
.200
[5.1]
.048
[1.2]
GOLD PLATE
CAT. NO.
6060
6061
6062
6063
6064
6065
COLOR
WHITE
RED
BLACK
YELLOW
GREEN
BLUE
SILVER PLATE
CAT. NO.
6066
6067
6068
6069
6070
6071
MATERIAL:
Body:
Nylon per ASTM
D4066
Contact:
Beryllium
Copper, Gold or
Silver Plate
CAT. NO.
6054
6055
6056
6057
6058
6059
COLOR
WHITE
RED
BLACK
YELLOW
GREEN
BLUE
MATERIAL:
Body:
Nylon per ASTM D4066
Contact:
Beryllium Copper,
Silver Plate
CAT. NO.
6048
6049
6050
6051
6052
6053
COLOR
WHITE
RED
BLACK
YELLOW
GREEN
BLUE
TEST JACKS
MATERIAL:
Body:
Nylon per ASTM D4066
Contact:
Beryllium Copper,
Silver Plate
HIGH TEMPERATURE PTFE INSULATED TEST POINT JACKS
SPECIFICATIONS
Terminal Jack:
Beryllium Copper (QQ-C-533)
*Brass ASTM B16
Plating:
Gold per MIL-G-45204, Type II
Operating Tempuature:
-60 (-50) to + 500
A
A
C
D
C
C
.140 [3.6]
Bushing:
White PTFE
RoHS
(RoHS Compliant)
Red or Black PTFE
RoHS
(Non-RoHS Compliant)
.047 [1.2]
DIA. (2) PLS.
.200
[5.1]
.055 [1.4]
DIA.
D
Mounting Detail
A
B DIA.
B
R
E
R
E
E
F
R
.125 [3.2]
FIG. 3
FIG. 4
NON-RoHS
FIG. 5
Probe Dia.
± .001 (.03)
.040 (1.0)
.040 (1.0)
.040 (1.0)
.040 (1.0)
.080 (2.0)
.080 (2.0)
.090 (2.3)
.080 (2.0)
.080 (2.0)
.080 (2.0)
.080 (2.0)
.080 (2.0)
.080 (2.0)
.080 (2.0)
.080 (2.0)
.080 (2.0)
Probe
Length
.205 (5.2)
.245 (6.2)
.125 (3.2)
.140 (3.6)
.315 (8.0)
.195 (4.9)
.195 (4.9)
.225 (5.7)
.280 (7.1)
.340 (8.6)
.200 (5.1)
.280 (7.1)
.500 (12.7)
.250 (6.4)
.250 (6.4)
.250 (6.4)
RoHS
White
CAT NO.
11001
11002
11003
11004
11005
11006
11007
11008
11009
11010
11011
11012*
11013
11014
11015
11016
Red
CAT NO.
11001-R
11002-R
11003-R
11004-R
11005-R
11006-R
11007-R
11008-R
11009-R
11010-R
11011-R
11012-R*
11013-R
11014-R
11015-R
11016-R
Black
CAT NO.
FIG.
A
B
11001-B
3 .142 (3.6) .120 (3.0)
11002-B
3 .142 (3.6) .120 (3.0)
11003-B
3 .172 (4.4) .140 (3.6)
11004-B
3 .172 (4.4) .148 (3.8)
11005-B
3 .218 (5.5) .185 (4.7)
11006-B
3 .218 (5.5) .185 (4.7)
11007-B
3 .218 (5.5) .185 (4.7)
11008-B
3 .218 (5.5) .185 (4.7)
11009-B
3 .218 (5.5) .185 (4.7)
11010-B
3 .218 (5.5) .185 (4.7)
11011-B
4 .218 (5.5)
—
11012-B*
4 .218 (5.5)
—
11013-B
5 .218 (5.5) .187 (4.8)
11014-B
5 .218 (5.5) .187 (4.8)
11015-B
5 .218 (5.5) .187 (4.8)
11016-B
5 .218 (5.5) .187 (4.8)
C
.244 (6.2)
.283 (7.2)
.142 (3.6)
.179 (4.5)
.301 (7.6)
.271 (6.9)
.271 (6.9)
.301 (7.6)
.400 (10.2)
.271 (6.9)
.430 (10.9)
.500 (12.7)
.689 (17.5)
.378 (9.6)
.378 (9.6)
.378 (9.6)
D
.046 (1.2)
.046 (1.2)
.050 (1.3)
.046 (1.2)
.050 (1.3)
.046 (1.2)
.046 (1.2)
.046 (1.2)
.050 (1.3)
.046 (1.2)
—
—
.500 (12.7)
.400 (10.2)
.400 (10.2)
.500 (12.7)
E
.120 (3.0)
.120 (3.0)
.060 (1.5)
.120 (3.0)
.105 (2.7)
.120 (3.0)
.120 (3.0)
.120 (3.0)
.187 (4.8)
.136 (3.5)
.150 (3.8)
.150 (3.8)
.125 (3.2)
.125 (3.2)
.187 (4.7)
.125 (3.2)
R
.060 (1.5)
.060 (1.5)
.080 (2.0)
.060 (1.5)
.125 (3.2)
.074 (1.9)
.074 (1.9)
.074 (1.9)
.074 (1.9)
.074 (1.9)
.050 (1.3)
.050 (1.3)
.050 (1.3)
.050 (1.3)
.035 (.89)
.050 (1.3)
* Terminal Material: Brass ASTM B16
