AC/DC Oscilloscope Clamp On Current Probes
F
EATURES
:
• 4 Model family
• Compact stylish body
• Current ranges: 100, 50, 70 & 40 A
• Bandwidths 300k, 500k, 1M & 1.5MHz
• Dual sensitivity ranges
• Over-range indicator
• Adapter (included) or battery powered
• Full accessories included
The series is marketed under the
time-honored ELDITEST brand name
in both North America and the
European Union
N
EW
F
AMILY OF
P
ERFORMANCE
O
SCILLOSCOPE
C
URRENT
P
ROBES
:

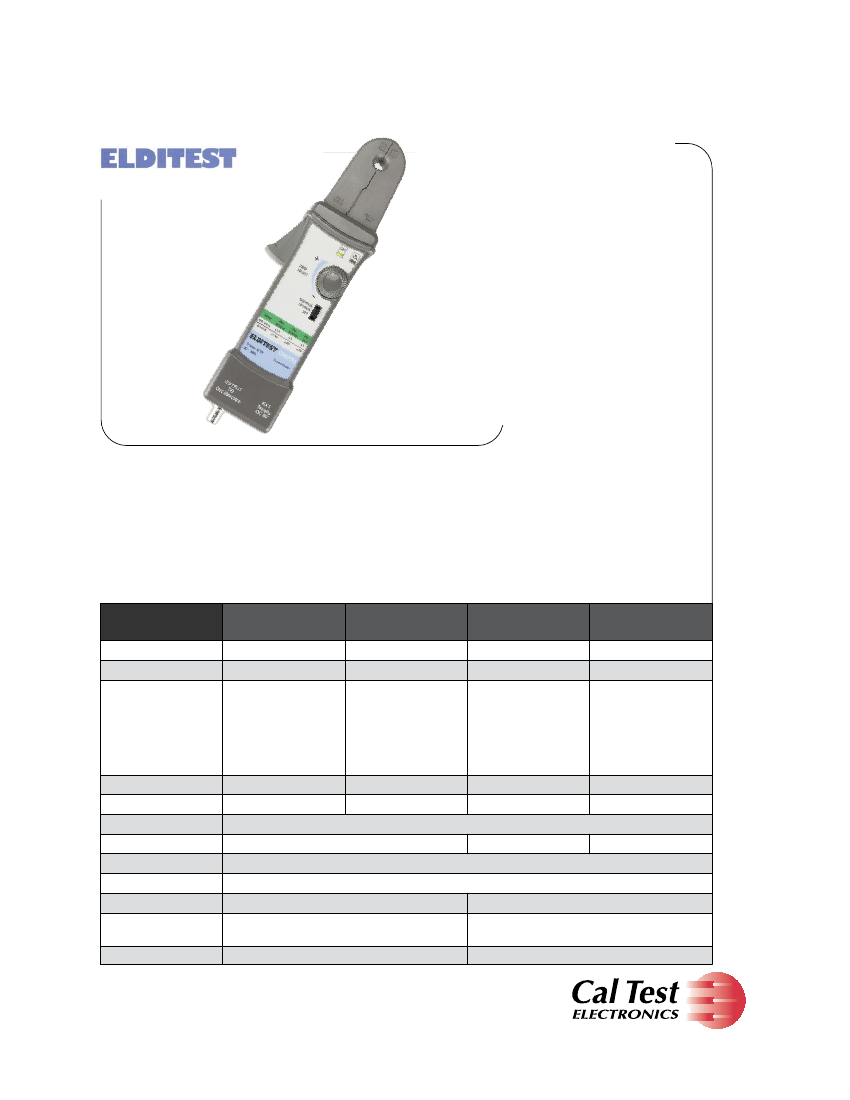

Cal Test introduces a four model family of ELDITEST current probes to extend the functionality of general purpose oscilloscopes. The
active probes feature dual-range selection, over-range indicator, and battery power for portable applications. The family range in current
capability up to 100 A (model CP6220) and operating bandwidth up to 1.5 MHz (model CP6990). The included power adapter is avail-
able with either North American or European connectors. The table below outlines each model’s specifications.
For additional product information, cross-reference, or other accessories, visit our web site at caltestelectronics.com.
S
PECIFICATIONS
:
MODELS
CP6220-NA
CP6220-EU
100 mV/A – 10 mV/A
10 A – 100 A
CP6550-NA
CP6550-EU
200 mV/A – 20 mV/A
5 A – 50 A
<±3% ±30 mA @ 200 mV/A
(30 mA to 5 A peak)
±4% ±300 mA @ 20 mV/A
(300 mA to 20 A peak)
±15% @ 200 mV/A
(20 A peak to 50 A peak)
DC – 500 kHz
0.7 µs (typ.)
CP6770-NA
CP6770-EU
500 mV/A – 50 mV/A
7 A – 70 A
<±3% ±20 mA @ 500 mV/A
(20 mA to 14 A peak)
±4% ±200 mA @ 50 mV/A
(200 mA to 100 A peak)
±15% @ 50 mV/A
(100 A peak to 140 A peak)
DC – 1 MHz
0.35 µs (typ.)
CP6990-NA
CP6990-EU
1 V/A – 100 mV/A
4 A – 40 A
<±3% ±10 mA @ 1 V/A (10
mA to 8 A peak)
±4% ±100 mA @ 100 mV/A
(100 mA to 80 A peak)
Measurement Ranges
Current (DC + peak AC)
±3% ±50 mA @ 100 mV/A
(50 mA to 10 A peak)
±4% ±50 mA @ 10 mV/A
DC Measurement Accuracy
(500 mA to 40 A peak)
±15% max @ 10 mV/A
(40 A peak to 100 A peak)
Bandwidth
Rise and Fall Time
Max. Working Voltage
Battery Life
Operating Temperature
Operating Humidity
Max. Cable Diameter
Dimensions
Weight
DC – 300 kHz
1.2 µs (typ.)
DC – 1.5 MHz
0.23 µs (typ.)
600 VAC RMS CAT II / 300 VAC RMS CAT III
8h
0 to 50° C (32 to 122° F)
0 to 95% (0 to 40° C; 32 to 104° F)
11 mm (0.43”)
262 mm x 79 mm x 36 mm
(10.3 x 3.15 x 1.4”)
260 g w/o battery
10.3 mm (0.4”)
262 mm x 81 mm x 36 mm
(10.3 x 3.2 x 1.4”)
310 g w/o battery
6h
4h
Specifications and appearance subject to change without notice
CP6000_rA
1 - www.caltestelectronics.com
O
RDER
I
NFORMATION
:
CP6220-EU
CP6550-EU
CP6770-EU
CP6990-EU
CP6220-NA
CP6550-NA
CP6770-NA
CP6990-NA
300 kHz, 100 A ac/dc, EU Adapter
300 kHz, 100 A ac/dc, NA Adapter
500 kHz, 50 A ac/dc, EU Adapter
500 kHz, 50 A ac/dc, NA Adapter
1 MHz, 70 A ac/dc, EU Adapter
1 MHz, 70 A ac/dc, NA Adapter
C
ONTACT
I
NFO
:
Toll Free: 888-256-2246 (US Only)
Phone: 714-221-9330
Fax: 714-921-9849
22820 Savi Ranch Pkwy
Yorba Linda, CA 92887-4610 USA
www.caltestelectronics.com
1.5 MHz, 40 A ac/dc, EU Adapter
1.5 MHz, 40 A ac/dc, NA Adapter
I
NCLUDED
A
CCESSORIES
:

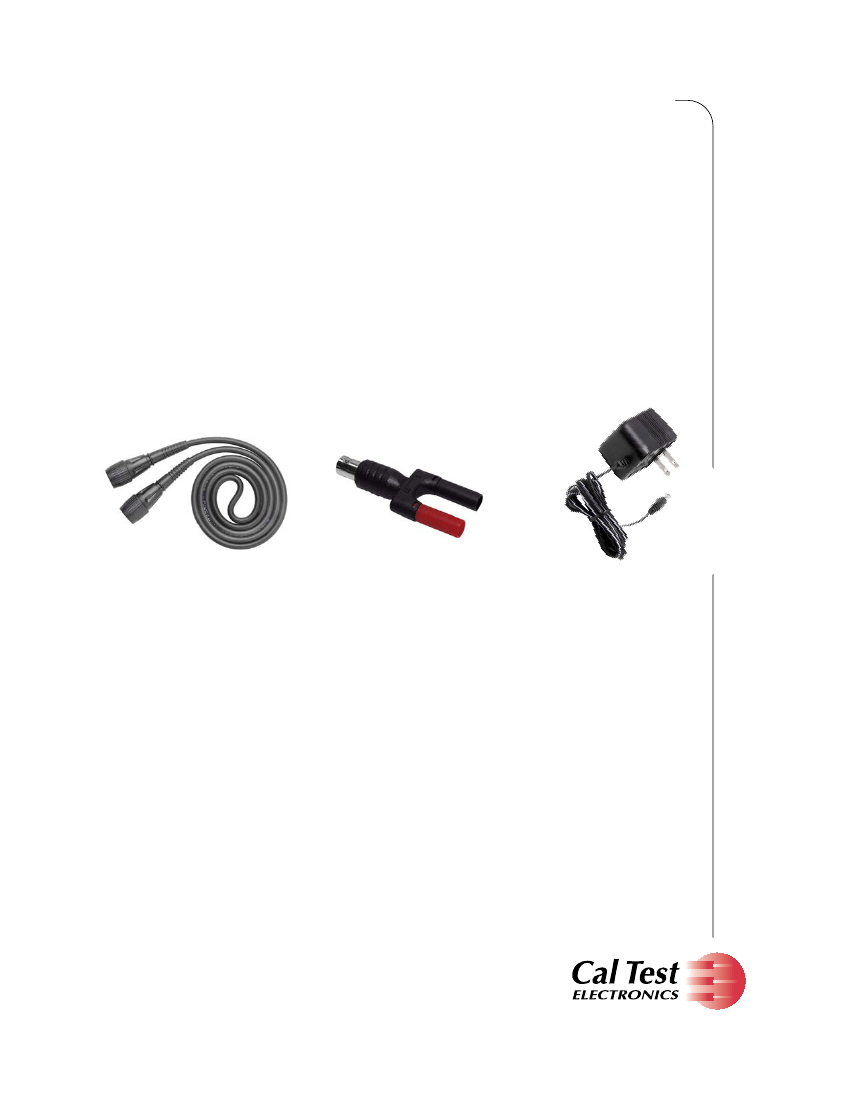

Insulated BNC Cable Assembly
CT3955-100
BNC to Banana Plug Adapter
CT3956
Power Adapter
CT3957–NA
CT3957-EU
Copyright © 2013, Cal Test Electronics, Inc.
All rights reserved. Information in this publica-
tion supersedes that in all previously pub-
lished material. Trade names referenced are
the service marks, trademarks or registered
trademarks of their respective companies.
Specifications and appearance subject to change without notice
CP6000_rA
2 - www.caltestelectronics.com
