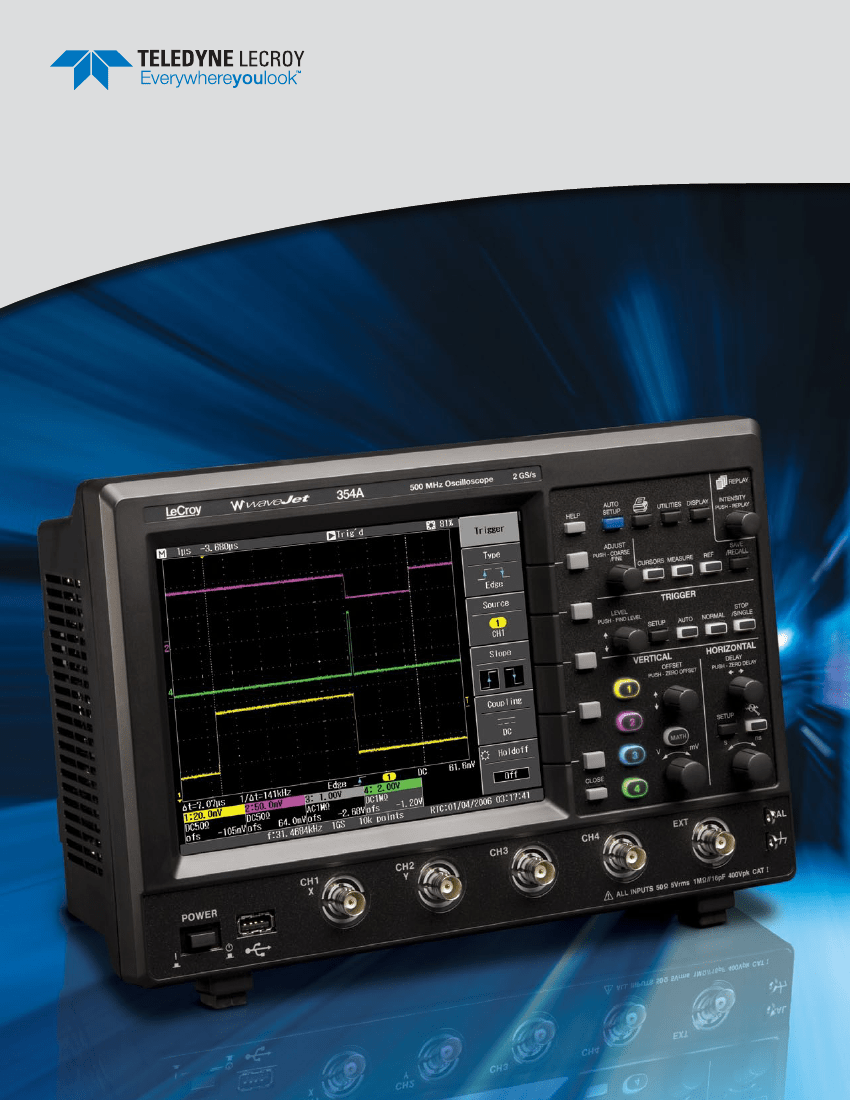

WaveJet
™
300A Oscilloscopes
100 MHz–500 MHz
Portable Performance for
Debug and Validation
A UniqUe ToolseT for PorTAble oscilloscoPes
Key features
•
100 MHz, 200 MHz,
350 MHz and 500 MHz
bandwidths
•
sample rates up to 2 Gs/s
•
long waveform memory
– 500 kpts/ch
•
26 measurement
parameters
•
replay history mode
•
7.5” color display
•
Multi-language user-
interface and help
•
Usb Host and Device
connections for printers,
memory sticks and Pc
remote control
•
Available GPib and lAn
connectivity
The WaveJet 300A provides
the banner specifications,
feature set and user interface
to simplify how you work and
shorten debug time. With a
big, bright 7.5” display, long
500 kpts/ch memory and
up to 2 Gs/s you will easily
capture and see every detail
of your waveform. The Usb
ports provide a quick way
to save waveforms, store
or print screen captures or
connect to a Pc. Math and
measurement tools help you
understand the waveforms
and replay mode allows
you to look at a history of
what has been captured.
Altogether these specs,
features and capabilities make
the WaveJet 300A the right
oscilloscope for your
debugging needs.
long capture Time
The 500 kpts/Ch memory eliminates
the tradeoff between long capture
and high sample rate providing long
capture at full 2 GS/s sample rate.
The long memory makes the WaveJet
a great tool for viewing low frequency
and high frequency signals or signals
with fast edges.

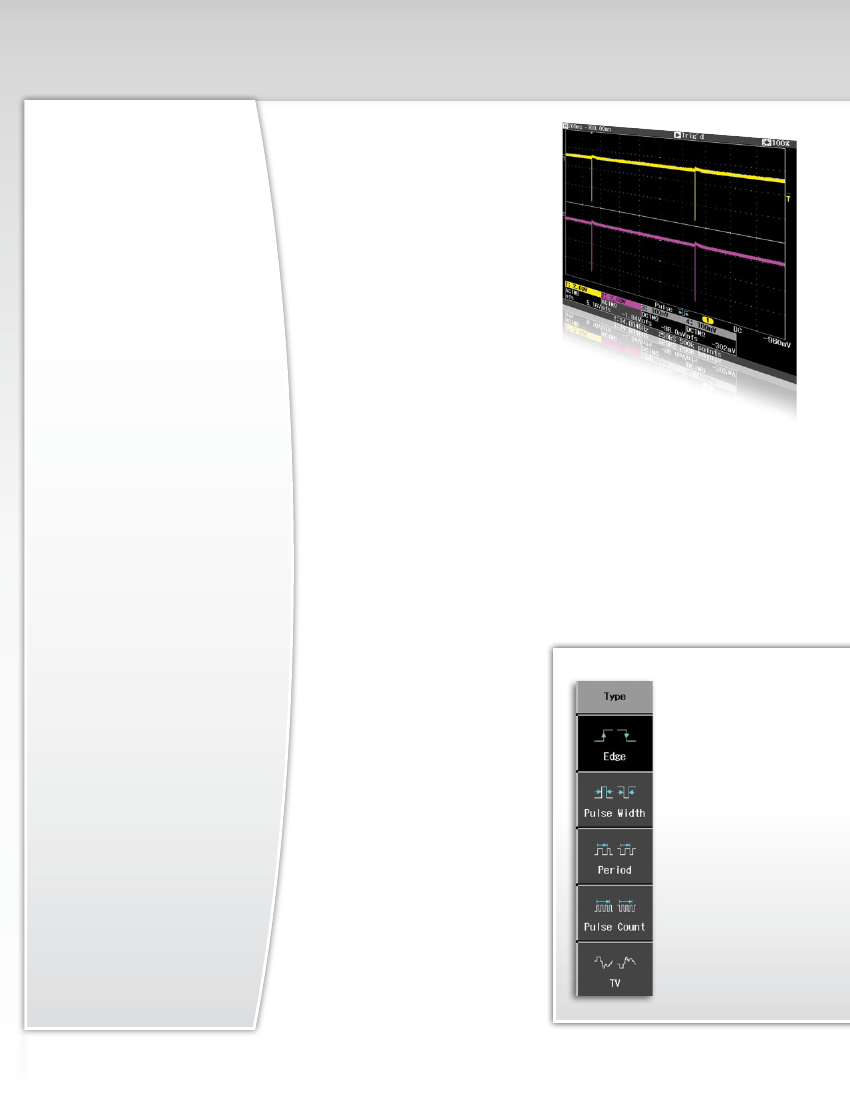

Advanced
Triggering
Along with edge
triggering, additional
triggering capabilities
include Pulse Width,
Period, Pulse Count
and TV to help you
capture the signals
you need to see.
frequency
counter
Use the built-in 6-digit
frequency counter to
2

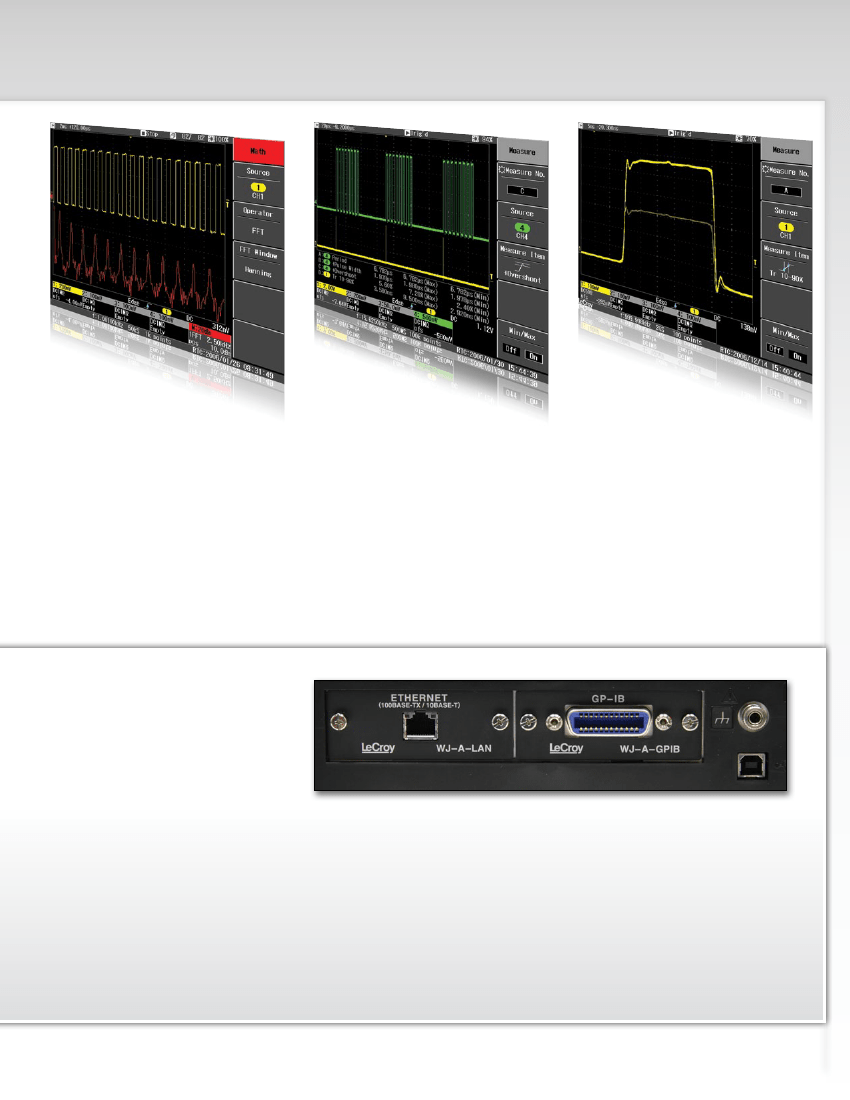

Waveform Math
The WaveJet provides math
capabilities for additional analysis.
Available math functions include
sum, difference, product and FFT.
Measurements can then be made
on the calculated waveforms
using the parameters or cursors
to provide additional debug and
analysis capabilities.
Automatic Measurements
Save time making measurements
on your signals by using the 26
automatic measurement parameters.
See your results color coded to
the channels that are being measured.
For a more in-depth look turn on the
min/max statistics to observe trends
in the measurements.
replay Mode
The fast update rate shows runts
and glitches when they occur but
it is hard to tell exactly when they
occurred. Replay mode lets you
go back in time to isolate those
anomalies, measure them with
parameters or cursors, and quickly
find the source of the problem.
simplify how you make measurements.
The counter is always displayed and
easy to read.
Acquisition Modes
Peak detect and equivalent time
acquisition modes offer flexibility
in how you capture and measure
your signals. The WaveJet can
capture glitches as small as 1 ns
with peak detect and can achieve
a sampling rate of up to100 GS/s
with equivalent time sampling.
connectivity and
communication
Saving waveforms and screen
images is an important part of
documenting results. The WaveJet
has a front panel USB port to save
data to memory stick and a rear
panel USB for printing hardcopies.
The rear panel USB port, along
with optional GPIB and Ethernet
connections provide full remote
control of the instrument. Teledyne
LeCroy’s Scope Explorer and
ActiveDSO software utilities
provide a quick method to begin
controlling the WaveJet.
3
inTUiTiVe User inTerfAce siMPlifies HoW YoU WorK
The WaveJet 300A series offers
a set of features and capabilities
not typically found in a portable
oscilloscope. its small form
factor includes a big, bright
7.5” display as well as, Usb,
GPib and ethernet connectivity.

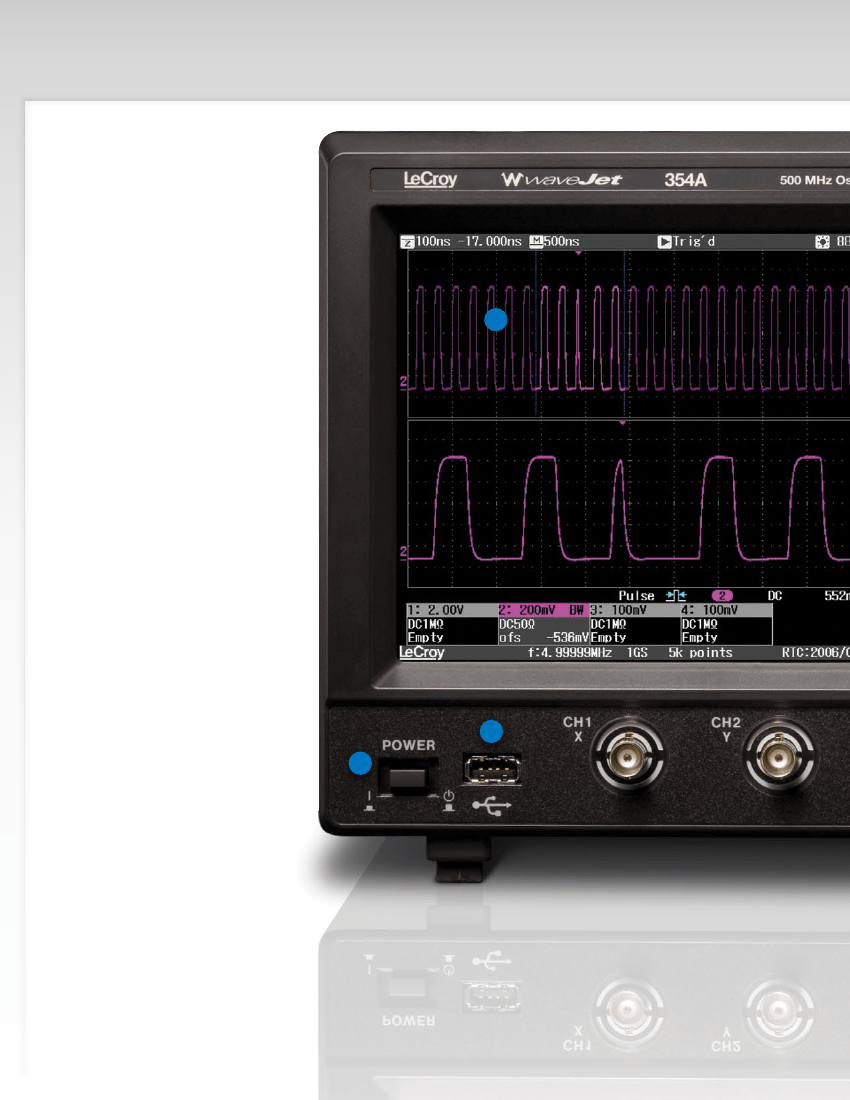

1. Display
The 7.5” VGA display allows you to
easily view signal details. It also
provides room to display measurements
and menus without cluttering the
waveform grid.
1
2. Power Up Time
The WaveJet is on and ready to
use in less than 3 seconds.
3. connectivity
Documenting your work is easy using
the front-mounted USB port on the
WaveJet. Simply press the Print button
on the front panel to quickly save screen
images to your USB memory device.
3
2
4
4
5
6

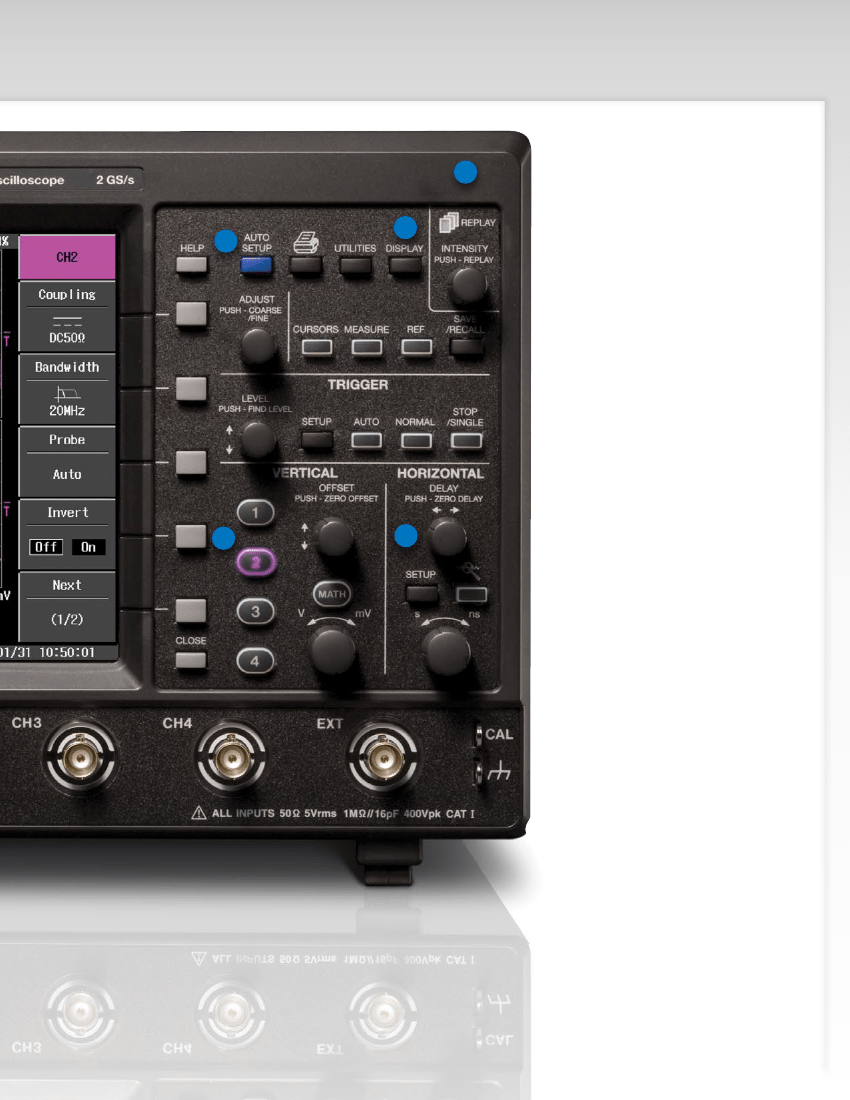

4. Portability
The small 4” footprint and light weight
of the WaveJet means it is easy to
carry and use anywhere, even when
bench space is limited.
5. Auto setup
Quickly configure vertical, horizontal,
and trigger settings with a single
button press.
6. intensity/replay control
7
8
Rotate to control waveform intensity,
or push to toggle to Replay mode. In
Replay mode, rotate this knob to see
a history of waveforms captured by
the WaveJet.
7. Active channel indicators
These channel LEDs are color matched
to each waveform on the display. The
active channel for the vertical controls
is always lit to simplify operation.
8. Push Knobs
Push the Offset knob to automatically
zero the channel offset, or the Delay
knob to automatically center the trigger
point on the screen.
9. local language User
interface
Select from 9 different language
preferences.
5
