5665 Overview

Test Sockets PLCC SOCKET INTERF

5665 Parametric

Parameter Name	Attribute value
Maker	Pomona Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PLCC SOCKET, 94V-0
Device slot type	IC SOCKET
Type of equipment used	PLCC84
Manufacturer's serial number	5665
Number of contacts	84

Preview

Download Datasheet

View All

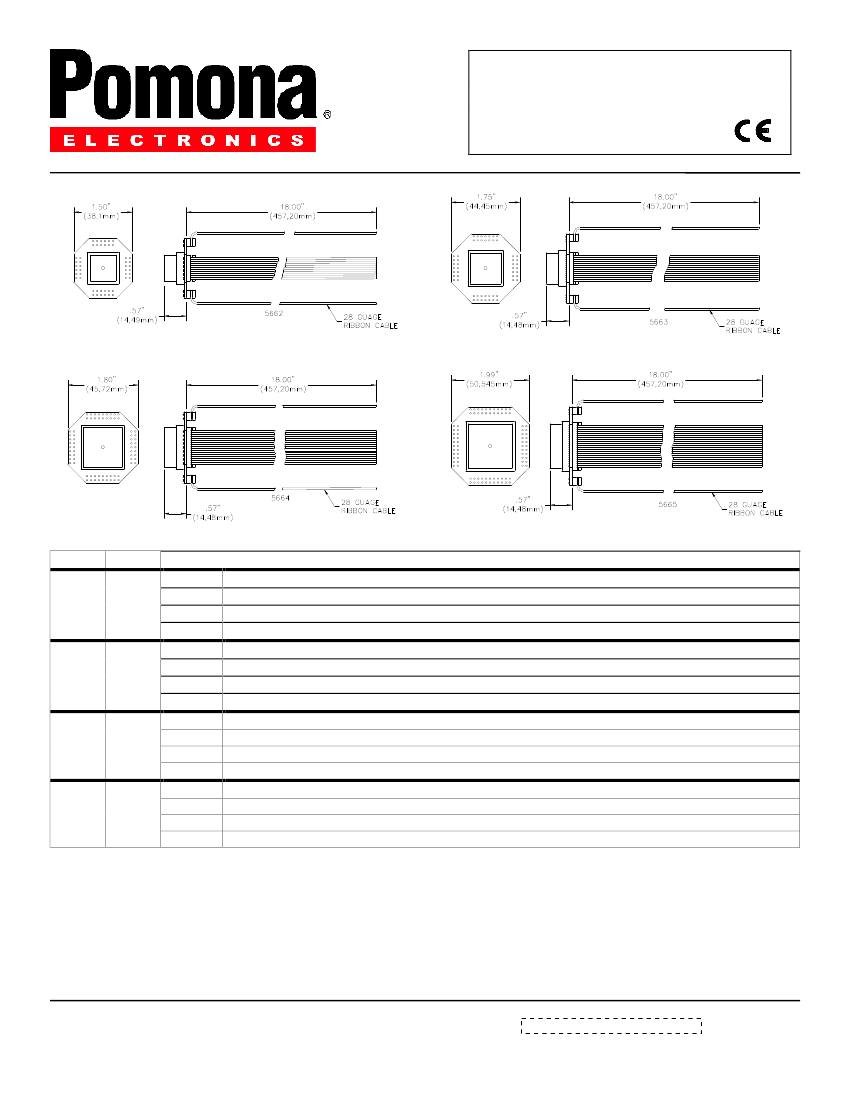

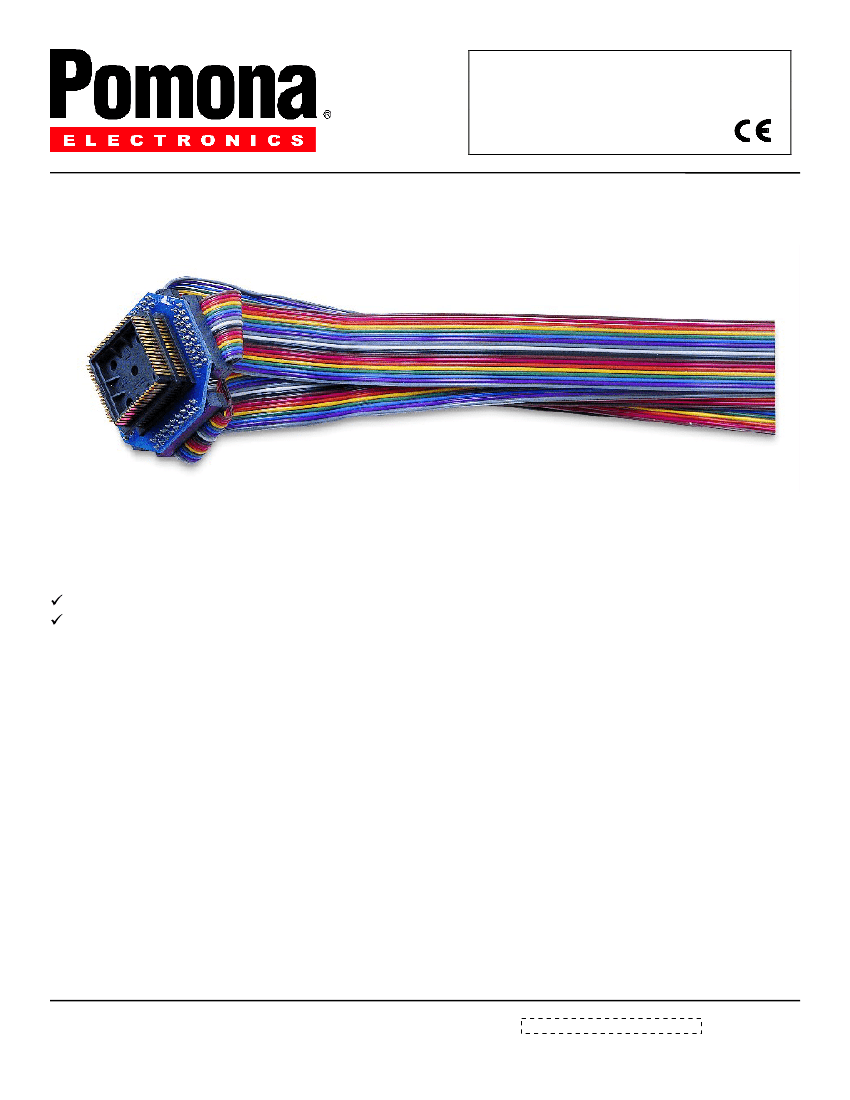

Model 5662, 5663, 5664, 5665

PLCC Socket Interface

FEATURES:

These PLCC cabled socket interfaces provide direct access to PC boards

Four 28 AWG ribbon cables, 18 inches long, allow you to create your own end connection for automated

or manual testing

MATERIALS:

Upper and Lower Contacts: .635 (.025) Sq. pins, Phosphor Bronze, Gold Plated, 30 Microinches Max.

Insulation: FR4, Black

RATINGS:

Operating Voltage: Hands free usage in controlled voltage environments: 300 Vrms maximum. For CE

compliance: not intended for hand-held use at voltages above 33 Vrms/70 Vdc.

Current: 1 Amperes Max.

Operating Temperature: +105°C (+122°F) Max

Insulation Resistance: 1000 Megohms Min.

Contact Resistance: 25 Milliohms per Contact Max.

Capicitance: 2.0 Picofarads between contacts

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies.

Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)

For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com

Rev: 100

D1094601, D1094602, D1094603, D1094604

Page 1 of 2
