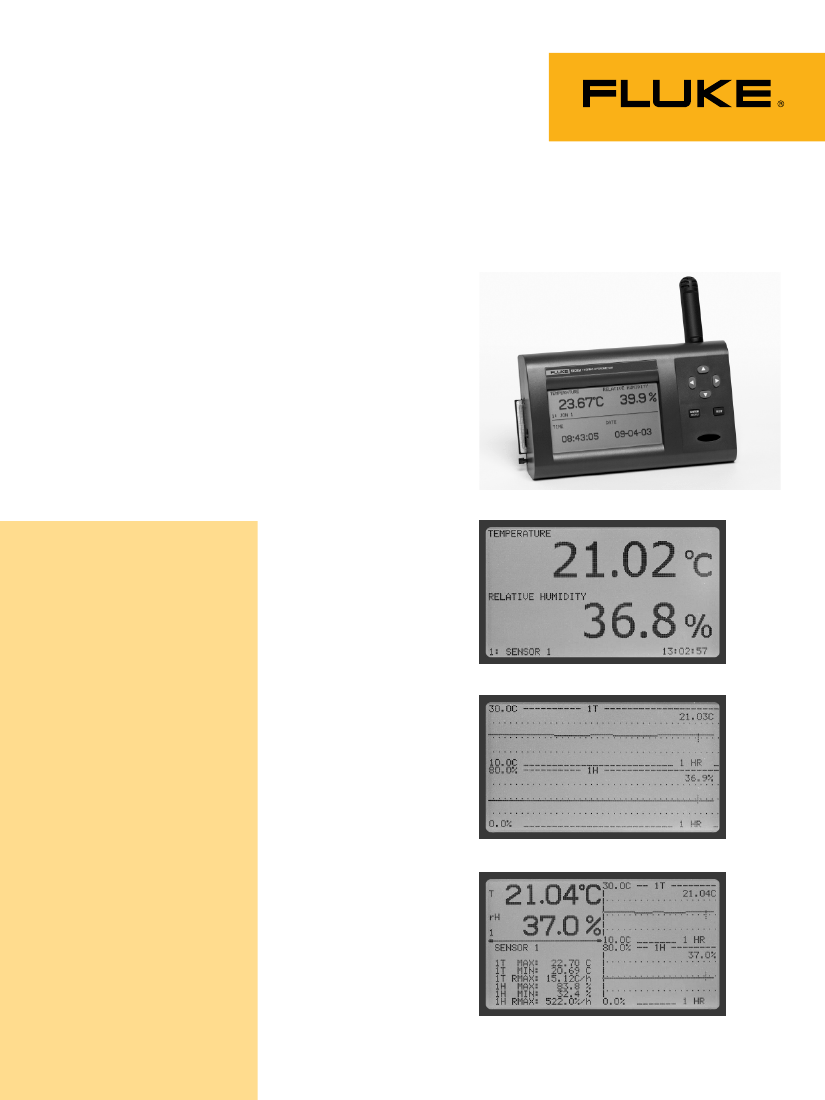

Fluke 5020A
Thermo-Hygrometer
Technical Data
Comprehensive and precise
environmental monitoring of
temperature and humidity
The Fluke 5020A Thermo-
Hygrometer is a dual-sensor,
graphical data logger / analyzer
offering precise real-time and
historical display and analysis of
temperature and humidity data. It
is an ideal solution for environ-
ments where accurate ambient
temperature and humidity must be
monitored and recorded, including
calibration, research and medical
testing laboratories, or pharmaceu-
tical and food storage applications.
The 5020A also replaces paper-
based humidity chart recorders,
eliminating the associated problems
with paper, ink, records storage,
and accuracy.
Key features:
Dual inputs provide
exceptional accuracy
The Fluke 5020A has two inputs
with removable sensing probes.
Each probe stores its own calibra-
tion constants, allowing probes to
be used interchangeably between
channels and between 5020A
units while retaining full calibration
integrity.
Two types of probes are avail-
able. The “S” model provides
standard accuracies of ± 0.25 °C/
± 2 % RH, while the “H” model
provides accuracy of ± 0.125 °C/
± 1.5 % RH. Both probes can be
connected to optional extension
cables and mounted in remote
locations up to 50 feet away from
the 5020A mainframe using the
optional probe wall mount bracket.
Alternatively, one probe can be
mounted directly to the top of
the 5020A.
•
•
•
•
•
•
•
•
•
•
•
Temperature to ± 0.125 °C and
RH to ± 1.5%
Large LCD for clear display of
trend charts, statistics, real-
time and historical data
Two probe inputs for local
and remote monitoring
Two probe models to choose
from for each input – the “S”
(± 0.25 °C / ± 2 % RH) and the
“H” (± 0.125 °C / ± 1.5 % RH)
Probes contain their own
calibration data for convenient,
easy recalibrations
Calculates and displays
statistics, dew point, heat
index, and rate of change
On-board memory holds 400 K
time / date-stamped readings;
optional PC card holds millions
more
Visual and audio alarms for
numerous alarm or fault
conditions
IrDA and RS-232 for easy
computer and printer interface
Optional 5020A-LW3 software
logs in real time or shows
graphical / statistical data from
PC card
Interfaces with Fluke
MET/CAL
®
Plus
Calibration
Management Software
Temperature and humidity display
Trending display
Wide variety of display con-
figurations and parameters
The 5020A calculates dew point,
heat index, and rates of change for
temperature and humidity. Min,
max, and a variety of other statis-
tics are calculated and can be
shown in more than 16 different
user configurable display formats
and more than 12 display parame-
ters. Daily summary statistics,
including min, max, and maximum
rates of change are stored for the
most recent 60 days.
User selectable display parameters
Alarms
Alarms may be set based on tem-
perature, RH, or on rate of change
of either parameter with the Fluke
5020A. Alarms are recorded to
the data file as well as giving the
user the option of a visual alarm
(display flashing), audible alarm
(beep) enunciation, or both. In
addition to the setting of alarm
points from the easy-to-use
keyboard and menu system of the
5020A, alarms can be set using
the 5020A-LW3 configuration,
logging and trending software.
viewed from any MET/CAL soft-
ware station in your system. This
unique number also provides iden-
tification required for traceability in
quality and regulatory records.
Optional software retrieves,
stores, analyzes data
5020A-LW3 for Fluke software is a
versatile application that retrieves
data from the Fluke 5020A and
stores it in a single database, to
provide flexible, real-time and his-
torical data management. You can
view data in easily customized
graphical and statistical formats for
one or both sensors at user-
defined time intervals. View real-
time data as it streams into a chart
format customized for your particu-
lar application.
Compatible with MET/CAL 7.0 > software:
Yes
(requires 5020A-LW3 software)
Power:
12 V dc (9V backup battery included)
Software:
5020A-LW3
PC card interface:
Compatible with flash
memory PC cards (optional)
Mounting:
Wall or table top, (wall mount
hardware include)
Operating temperature range:
0 °C to 50 °C
Size (5020A):
4.9" H x 8.3" W x 2.0" D
(125 x 211 x 51 mm)
Size (probe):
3.1" H x 0.75" D (79 x 19 mm)
Weight:
1.5 lb. (0.7 kg)
Calibration:
NIST-traceable, three-point
temperature cal and 3 Point RHCAL with
data and uncertainties provided
Memory
The 5020A has internal memory
which can store up to 400,000
time-stamped data points. An
optional 64 MB flash PC memory
card is available that allows the
5020A to store years of data. Data
from the PC memory card or inter-
nal memory may be displayed on
the 5020A display using the con-
venient push-button menu system
or downloaded to a PC.
Ordering Information
5020A-H:
Fluke High Accuracy
Thermo-Hygrometer (includes
high-accuracy probe, 5020A wall
mount bracket and RS-232
cable)
5020A-HKIT:
Fluke Thermo-
Hygrometer, High Accuracy
includes high-accuracy probe,
5026A wall mount bracket and
RS-232 cable. High accuracy
spare probe kit (5027A-H) and
5020A-LW3 software, single-PC
license
5020A-S:
Fluke Thermo-
Hygrometer, Standard Accuracy
(includes probe, 5020A wall
mount bracket and RS-232 cable)
5020A-SKIT:
Fluke Thermo-
Hygrometer Standard Accuracy
Kit, includes standard-accuracy
5020A-S with standard probe,
wall mount bracket and RS-232
cable. Also includes one standard
accuracy spare probe kit
(model 5027A-S) and 5020A-
LW3 software
5026A-H:
Spare probe, 5020A-H
5026A-S:
Spare probe, 5020A-S
5027A-S:
Spare probe kit,
5020A-S (includes standard-
accuracy probe, probe case,
wall mount bracket, and 25-foot
[7.6 m] extension cable)
5027A-H:
Spare Probe Kit,
5020A-H (includes high-
accuracy probe, probe case,
wall mount bracket, and 25-foot
[7.6 m] extension cable)
Y5028:
Cable, 25-foot (7.6 m)
probe extension cable
Y5029:
Cable, 50-foot (15.2 m)
probe extension cable
5032A-64MB:
PC card
(PCMCIA), 64 MB
5026A-CASE:
Protective
case, spare probe
5020A-CASE:
Protective case,
(includes space for the 5020A,
two probes, an extra PC card,
RS-232 cable and power cord)
5020A-PS:
Spare power supply,
100/240 V ac
5020A-LW3:
5020A software,
single-PC license
5020A-LW3LIC:
5020A-LW3
license (for additional PCs)
5030A-MNT:
Bracket wall
mount for 5026A probe
5020A-LW3 lets you perform
a variety of tasks:
•
•
•
•
•
•
•
•
Security
The 5020A satisfies many regula-
tory requirements for security with
its ability to respond to user name
and password to ensure secure
data. Password access to sensor
information, data records, statistics,
alarms and time are all built into
the 5020A.
Customize multi-graph displays
Review critical statistics at a
glance
Export data to popular spread-
sheet programs
Easily import data from your PC
card or from the 5020A’s
onboard memory
Control and trigger alarm events
Configure multiple user accounts
and security access
Assign or change sensor names
Store setup files
MET/CAL
®
Plus
Calibration
Software interface
The Fluke 5020A is easily inter-
faced to Fluke’s MET/CAL
®
Plus,
using 5020A-LW3 software. This
unique feature allows MET/CAL
Plus
software (versions 7 or higher)
to read temperature and humidity
from the 5020A directly into a cal-
ibration record as you start to run
a procedure. All the environmental
information required for your cali-
bration becomes a permanent part
of the calibration record – without
requiring you to enter the data
manually or add it later when you
create a report. And using the
5020A with MET/CAL
Plus
software
is easy, allowing you even greater
automation and convenience.
Specifications
Temperature range:
0 °C to 50 °C
Temperature accuracy:
16–24 °C ± 0.125 °C (H model)
15–35 °C ± 0.25 °C (S model)
[Other temps from 0–50 °C: ± 0.5 °C]
Temperature resolution:
User selectable
0.001 °C
RH range:
0 % to 100 %
RH accuracy:
20 % to 70 % RH: ± 1.5 % (H model)
20 % to 70 % RH: ± 2 % (S model)
0 % to 20 % RH, 70 % to 100 % ± 3 %
(uncalibrated, typical)
RH resolution:
User selectable to 0.01 %
Probe/sensor:
Each probe measures RH and
temperature with self-contained calibration
data making probes interchangeable to any
5020A. Probes may be assigned digital serial
number by the user to satisfy regulatory
requirements. May be remoted to 50 feet
with optional cable. One probe included with
mainframe. Polymere / capacitive RH sensor
type and thermistor temperature sensor
Display:
LCD, monochrome
Security:
Assignable user name and
password
User-defined display content:
Yes (up to 16
different display setups may be stored for
easy recall)
Memory:
400 K readings
Alarms:
Limit, rate of change, system fault
Data logging interval:
1 sample / sec. to
1 sample / hr., user selectable
Communications:
RS-232 /IRDA
Fluke.
Keeping your world
up and running.
Fluke Corporation
PO Box 9090, Everett, WA USA 98206
Fluke Europe B.V.
PO Box 1186, 5602 BD
Eindhoven, The Netherlands
For more information call:
In the U.S.A. (800) 443-5853 or
Fax (425) 446-5116
In Europe/M-East/Africa (31 40) 2 675 200 or
Fax (31 40) 2 675 222
In Canada (800)-36-FLUKE or
Fax (905) 890-6866
From other countries +1 (425) 446-5500 or
Fax +1 (425) 446-5116
Web access: http://www.fluke.com/
©2004 Fluke Corporation. All rights reserved.
MET/CAL is a registered trademark of Fluke Corporation.
Specifications subject to change without notice.
Printed in U.S.A. 7/2004 2117320 D-ENG-N Rev B
Multi-station, multi-room
capability
MET/CAL
Plus
software can read
multiple 5020As located in differ-
ent calibration areas, providing a
perfect solution for large calibra-
tion labs with multiple rooms or
MET/CAL
Plus
software stations.
Because each 5020A is assigned a
unique asset number, it can be
RF/Wirelessly
