Pomona
®
Model 5699, 5700 & 5701

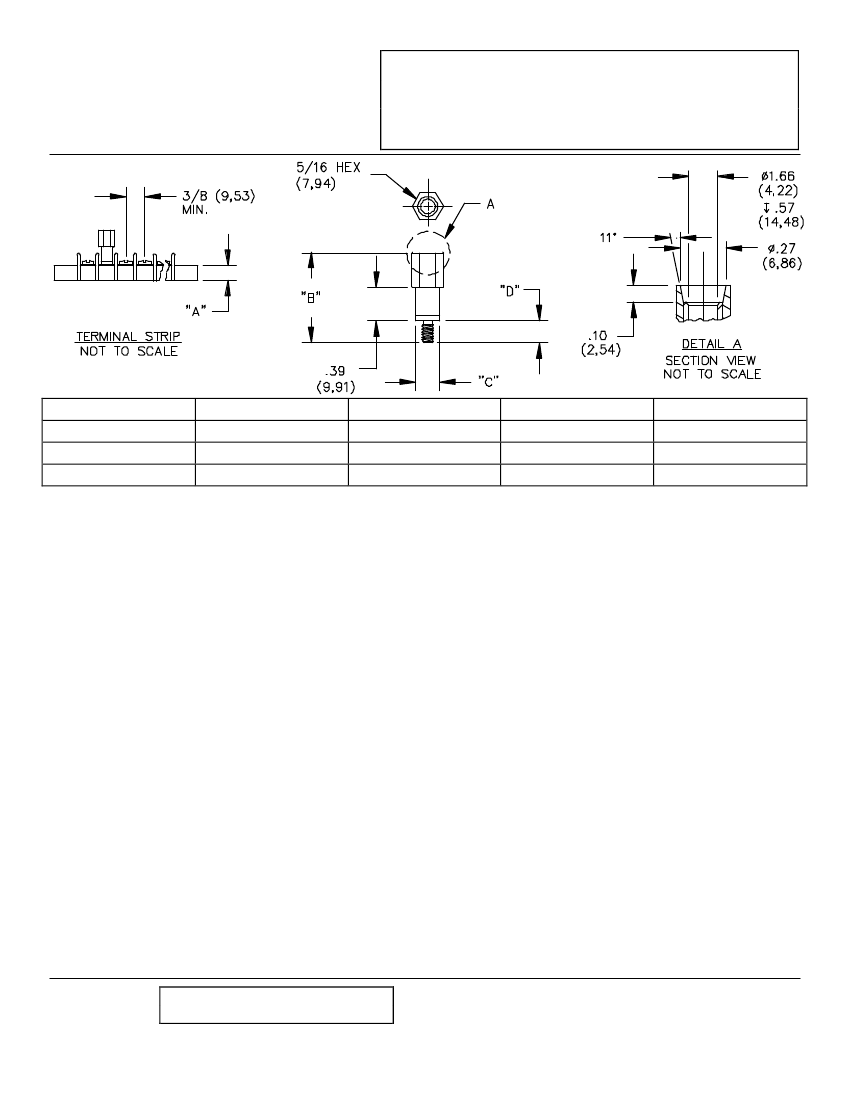

Terminal Strip Banana Jack Adapter,
6-32, 8-32 & 10-32 Threaded Stud
Model
Dim "A"
Dim "B"
Dim "C"
Dim "D"
5699
.35 min (8,89)
1.04 (26,42)
Ø .28 (7,11)
.25 (6,35)
5700
.44 min (11,18)
1.13 (28,70)
Ø .38 (9,65)
.32 (8,13)
5701
.50 min (12,70)
1.13 (28,70)
Ø .38 (9,65)
.32 (8,13)
FEATURES:
•
This adapter provides a banana jack connection by replacing the screw in a terminal strip.
•
Secure connections can be made with standard banana plug patch cords without breaking the connection to
the terminal strip.
•
Banana jack .166 dia.
MATERIALS:
Banana Jack with 6-32 (Model 5699) Binding Head, threaded stud – Brass, Alloy 360, ½ Hard
8-32 (Model 5700)
10-32 (Model 5701)
Electroless nickel plate per MIL-C-26074, Class 1 200/300 microinches
Insulation – Nylon 6, 20% glass filled
RATINGS:
Operating Temperature: +102°C. (+216°F.) Max.
Operating Voltage: 1100 VRMS Max. (Model 5699)
1600 VRMS Max (Model 5700)
1700 VRMS Max. (Model 5701)
Current: 25 Amperes Max.
Power: 7500 Watts Max.
ORDERING INFORMATION:
Model 5699-*
*=Color Code, -0 Black, -2 Red, -3 Orange, -4 Yellow, -5 Green, -6 Blue, -9 White
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90357
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
C:\Laura Goldberg\FlukeDataSheet\d5699_5700_5701_2_01.doc
