88950109 Overview

Analog Panel Meters 1227 0-15 DCV 2.5

88950109 Parametric

Parameter Name	Attribute value
Product Category	Analog Panel Meters
Manufacturer	Crouzet
RoHS	Details
Equipment Type	Analog Panel Meters
Size	22 mm
Length	43.5 mm
Mounting Style	Panel
Power Rating	150 mW
Primary Voltage Rating	30 VDC
Resistance Range	4700 Ohms
Factory Pack Quantity	1
Termination Style	Screw
Width	29 mm

Preview

Download Datasheet

View All

02/11/2015

www.crouzet.com

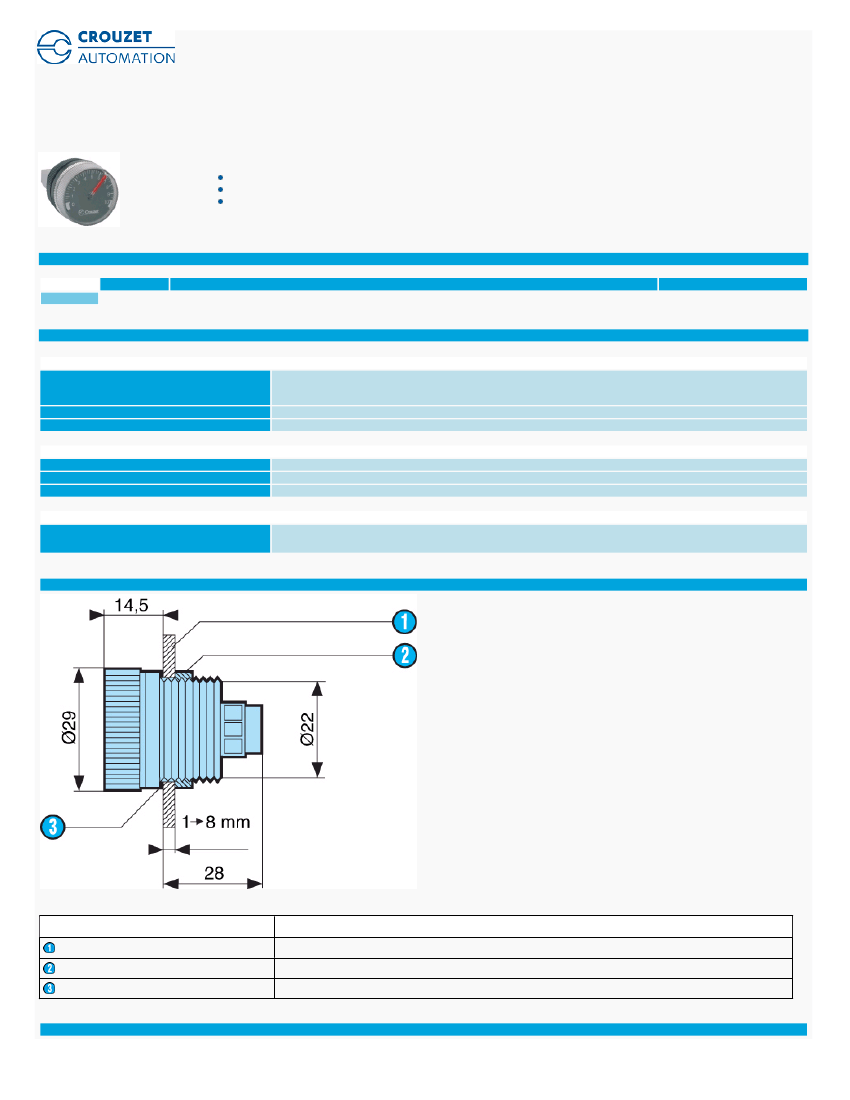

Potentiometer Ø 22 mm EP Part number 88950109

Direct-read potentiometer (controlled externally) Ø 22 mm

IP65 degree of protection on front panel

Directly compatible with the "Potentiometer" parameter of an analogue input on the Millenium 3

Part numbers

Type

88950109

EP

Description

External potentiometer for value adjustment

Supply

30 V DC max

Specifications

Environmental characteristics

Protection rating

In accordance with IEC/EN 60529 :

IP65 on front panel

IP10 on terminal block

-20 →+60 °C

-20 →+70 °C

Operating temperature

Storage temperature

Electrical characteristics

Ohmic value

Tolerance

Power

4700

Ω

± 20 %

150 mW

Mechanical characteristics

Screw terminals connection capacity

1 x 4 mm

2

rigid

1 x 2.5 mm

2

flexible

Dimensions (mm)

N

o

Legend

Panel

Nut

Seal

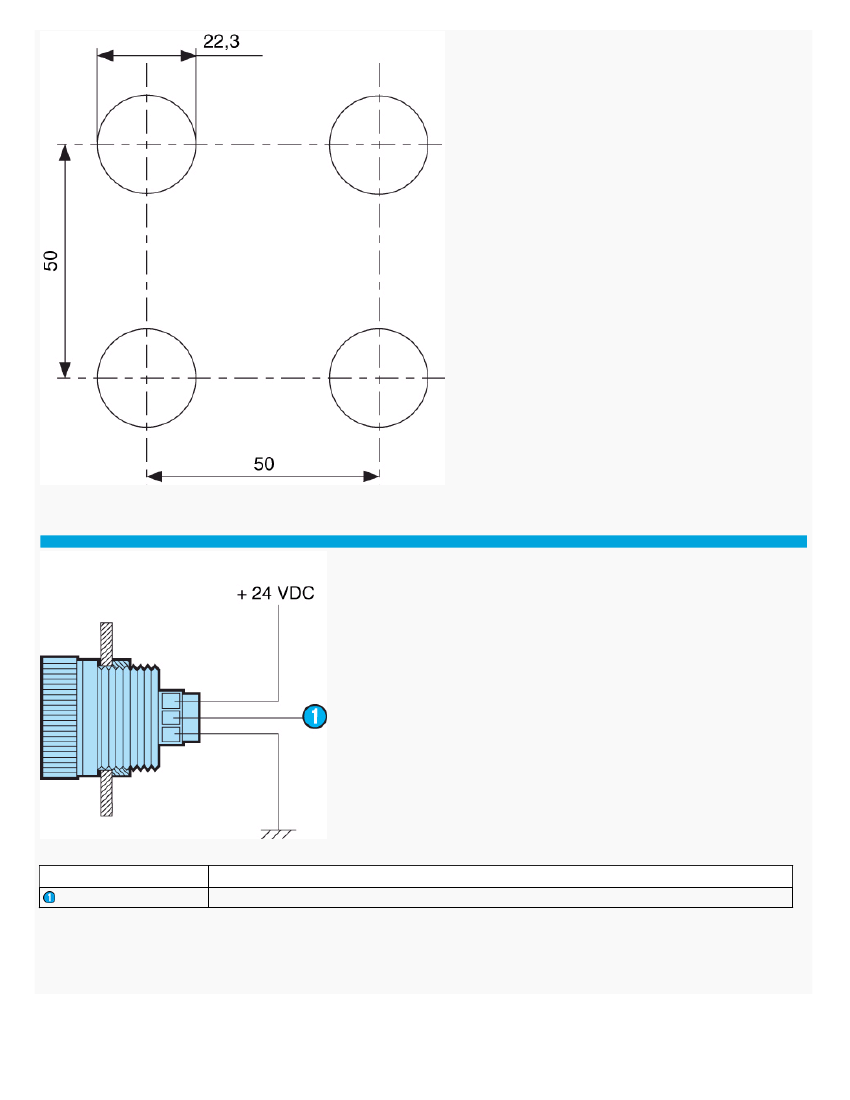

Dimensions (mm)

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
