Data Sheet
5XP-A
Digital Multimeter
A compact full-purpose multimeter.

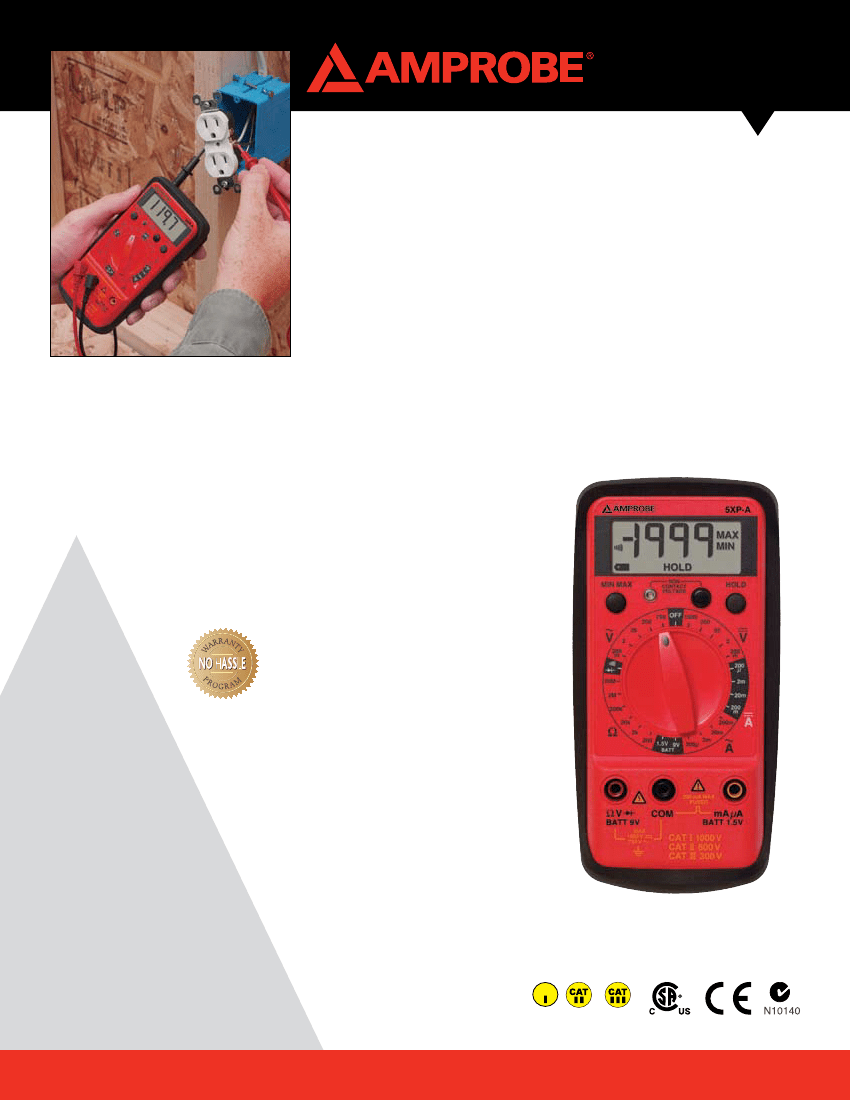

The Amprobe 5XP-A digital multimeter provides superior features
and accuracy in a smaller form factor. The 5XP-A has unique features
such as VolTect™ non-contact voltage (NVC) detection and our exclu-
sive Magne-Grip™ holster that frees both hands for work. The 5XP-A
is the right choice for residential, commercial and general trouble-
shooting applications.
■
■
■
■
No hassle
warranty
No waiting.
No shipping
charges.
Our commitment to
high-quality products
and customer service
is demonstrated by
our industry exclusive
“No Hassle” warranty.
In the unlikely event
that an Amprobe Test
Tool requires warranty
service, any of our
local dealers are
authorized to replace
it, on the spot.
(note: $500 MSLP limit)
27 ranges/10 functions
Battery load test with
1.5 V and 9 V capabilities
MinMax record minimum
and maximum values
Triple safety rating
5XP-A
CAT
1000V
600V
300V
Amprobe® Test Tools
www.Amprobe.com
5XP-A Digital Multimeter
General Specifications
Display
Polarity
Overrange
Low Battery Indication
Measurement Rate
Operating Environment
Storage Temperature
Accuracy
Temperature Coefficient
Altitude
Power
Battery Life
Dimensions (H x W x D)
Weight
Warranty
3-1/2 digit liquid crystal display (LCD) with a maximum reading of 1999
Automatic, positive implied, negative polarity indication
(OL) or (-OL) is displayed
The “M” is displayed when the battery voltage drops below the operating level
2.5 times per second, nominal
0 °C to 50 °C at <70 % R.H.
-20 °C to 60 °C, 0 to 80 % R.H. with battery removed from meter
Stated accuracy at 23 °C ± 5 °C, <75 % relative humidity
0.1 x (specified accuracy) per °C (0 °C to 18 °C, 28 °C to 50 °C)
2000 m (6561.7 ft)
Single standard 9 volt battery, NEDA 1604, JIS 006P, IEC 6F22
200 hours typical with carbon-zinc
155 mm x 72 mm x 32 mm (6.1 in x 2.8 in x 1.3 in)
Approx. 210 g (7.4 oz) including battery
One-year
Data Sheet
Specifications
Function
Voltage
DC Volts
Ranges
AC Volts (45 Hz to 500 Hz)
Ranges
Resolution
Input Impedance
Overload Protection
Current
DC Current
Ranges
AC Current (45 Hz to 500 Hz)
Ranges
Resolution
Input Protection
Burden Voltage
Resistance
Range
Accuracy
200 mV, 2 V, 20 V, 200 V, 1000 V
200 mV, 2 V, 20 V, 200 V, 750 V
100 μV
10 MW
200 mV: 1000 V DC or 750 V AC RMS (3 minutes)
All other ranges: 1000 V DC or 750 V AC RMS
± (1.0 % rdg + 1 dgt)
± (1.5 % rdg + 5 dgts)
200 μA, 2 mA, 20 mA, 200 mA
± (1.5 % rdg + 1 dgt)
Resolution
Open Circuit Voltage
Overload Protection
Continuity
Audible Indication
Response Time
Overload Protection
200 μA, 2 mA, 20 mA, 200 mA
± (2.0 % rdg + 5 dgts)
0.1 μA
315 mA/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on mA input
300 mV max. (1 V max. on 200 mA range)
200
W,
2 kW, 20 kW, 200 kW
± (1.0 % rdg + 4 dgts)
2 MW
± (1.5 % rdg + 4 dgts)
20 MW
± (2.0 % rdg + 5 dgts)
100 mW
0.3 V DC typical, (3.0 V DC on 200
W
range)
1000 V DC or 750 V AC RMS
75
W
100 ms
1000 V DC or 750 V AC RMS
± 25
W
Amprobe® Test Tools
www.Amprobe.com
5XP-A Digital Multimeter
Specifications, cont.
Function
Diode Test
Test Current
Resolution
Open Circuit Voltage
Overload Protection
Battery Test
Resolution
Loaded Current
Overload Protection
Range
Accuracy
Data Sheet
1.0 mA (approximate)
±(1.5 % rdg + 3 dgts)
1 mV
3.0 V DC typical
1000 V DC or 750 V AC RMS
1000 V 600 V 300 V
1.5 V, 9 V
± (3.5 % rdg + 2 dgts)
1 mV, 10 mV
150 mA typical for 1.5 V range, 5 mA typical for 9 V range
1000 V DC or 750 V AC RMS on 9 V range, on VW input
315 mA/1000 V fast blow ceramic fuse on 1.5 V range, on mA input
Non-Contact Voltage Indicator
Sense voltage 70 V to 600 V AC; beeper chirps and bright red LED comes on, works on all ranges
www.Amprobe.com
5XP-A Digital Multimeter
Data Sheet

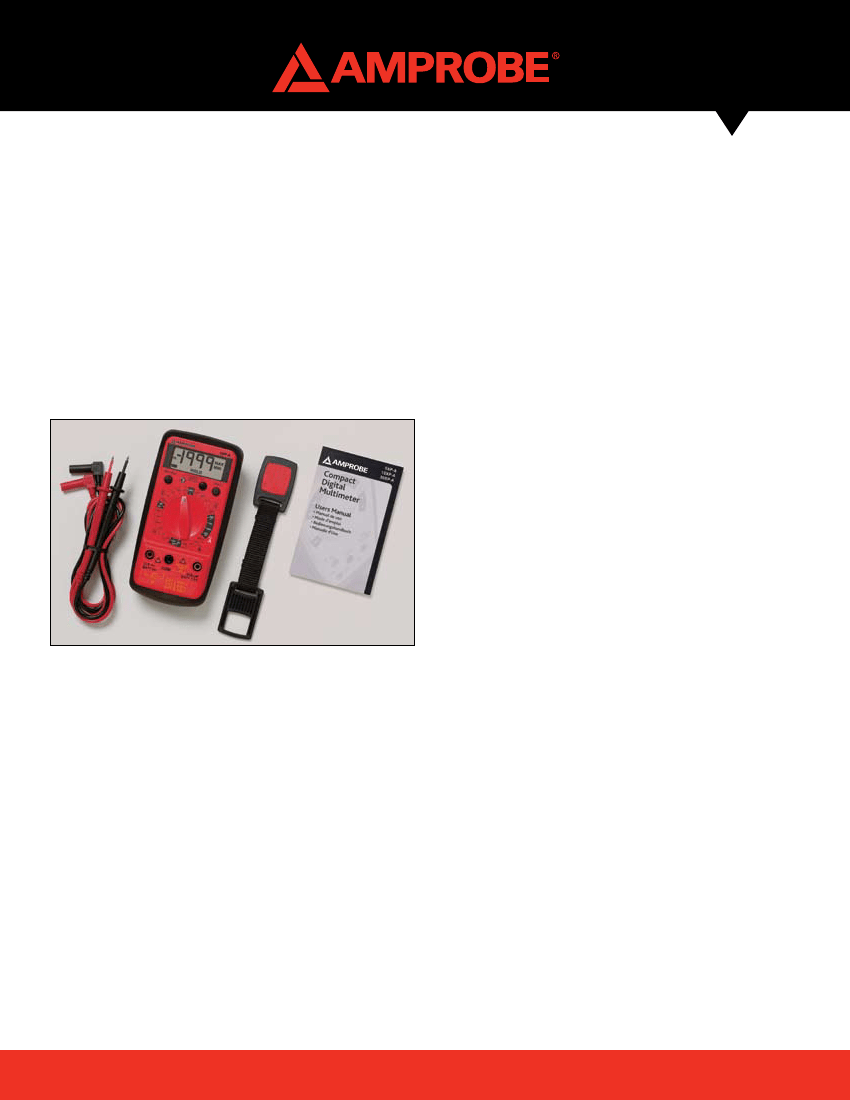

Included Accessories
Pair of test leads (TL245A), fuse 315 mA/1000 V P/N FP300,
9 V battery (installed), Magne-Grip™ Holster with
magnetic hanging strap and users manual.
Optional Accessories
VC30A
DL243D
TC253B
TL36A
Carrying Case
Test Lead Kit
Temperature Converter
Test Lead Set with alligator clips
Amprobe® Test Tools
website: www.Amprobe.com
email: info@amprobe.com
Everett, WA 98203
Tel: 877-AMPROBE
Amprobe® Test Tools Europe
In den Engematten 14
79286 Glottertal, Germany
Tel.: +49 (0) 7684 8009 - 0
©2007 Amprobe Test Tools. All rights reserved.
9/2007 2124133 D-US-N Rev C
Amprobe® Test Tools
www.Amprobe.com
