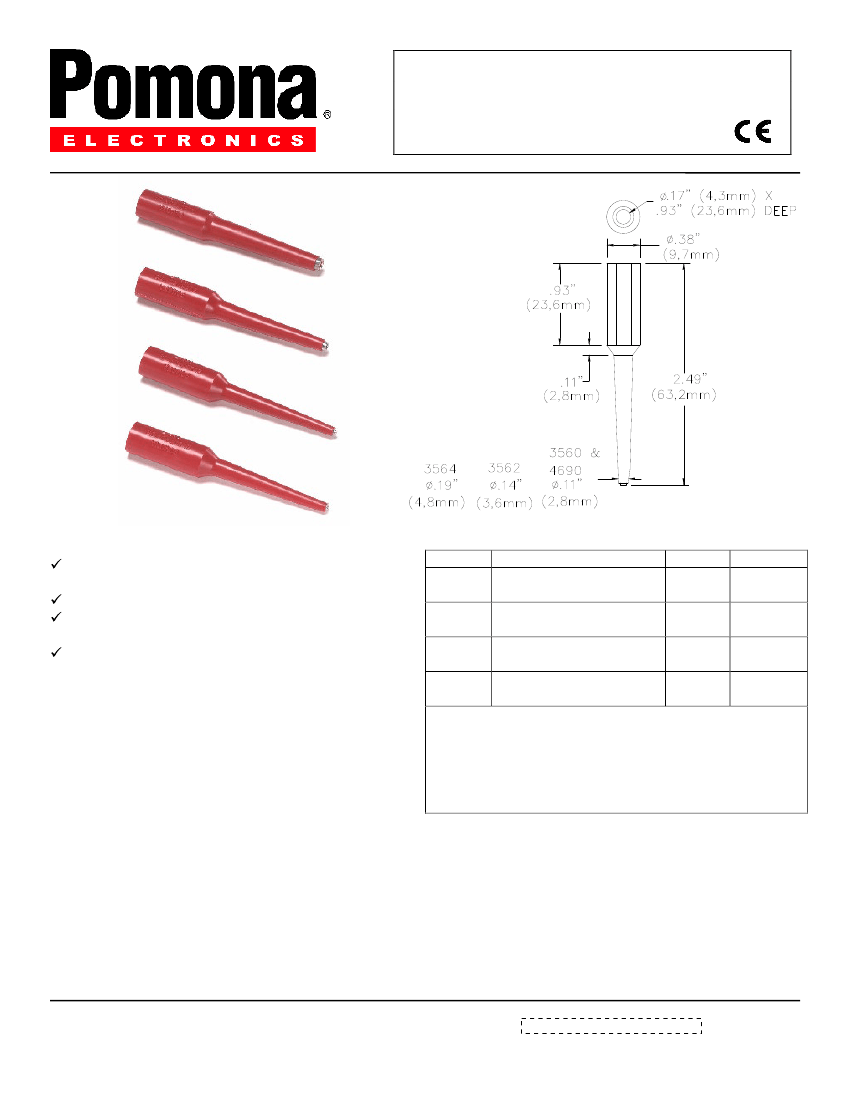

Model 3560, 3562, 3564, 4690
Banana Jack To #12, 16, 20 & 22
Socket
FEATURES:
Ideal test adapters for rapid testing of the hard-to-get
to pins of multi-pin connectors.
Flexible tip allows testing of adjacent contacts.
Full insulation protects against shorting or contact
damage.
Model 4690 will also slip over 0.025” (0.63mm)
square pins.
MATERIALS:
Insulation: Polyvinyl chloride (PVC)
Banana Jack Body (upper connector)
Material:
Brass.
Finish:
Bright Tin plated
Socket (lower connector):
Material:
Copper Alloy
Finish:
Gold over copper plate
Model
4690
3560
3562
3564
Contact Size
22 AWG .030” (.76mm)
20 AWG .040” (1.02mm)
16 AWG .063” (1.60mm)
12 AWG .093” (2.36mm)
Type
Socket
Socket
Socket
Socket
Current
5 Amps
7.5 Amps
13 Amps
24 Amps
Ratings:
Hands free testing in controlled voltage environments:
2500 Vrms Max.
For CE compliance:
not intended for
hand-held use at voltages above 33 Vrms/70 Vdc.
Operating Temperature: +131F (+55C) Max.
ORDERING INFORMATION:
Model:
3560-*, 3562-*, 3564-*, 4690-*
*=Color, -0 Black, -2 Red
Ordering Example: 3560-2 (red adapter)
Test Kit 6481:
contains 18 pieces, one red and one black adapter of each adapter; 3560, 3561, 3562, 3563, 3564, 3565,
4690, 4691 and one set of model 6358 test leads.
For banana jack to test pins, see models: 3561, 3562, 3565, 4691
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1093952, D1093954, D1093956, D1094166
Page 1 of 2

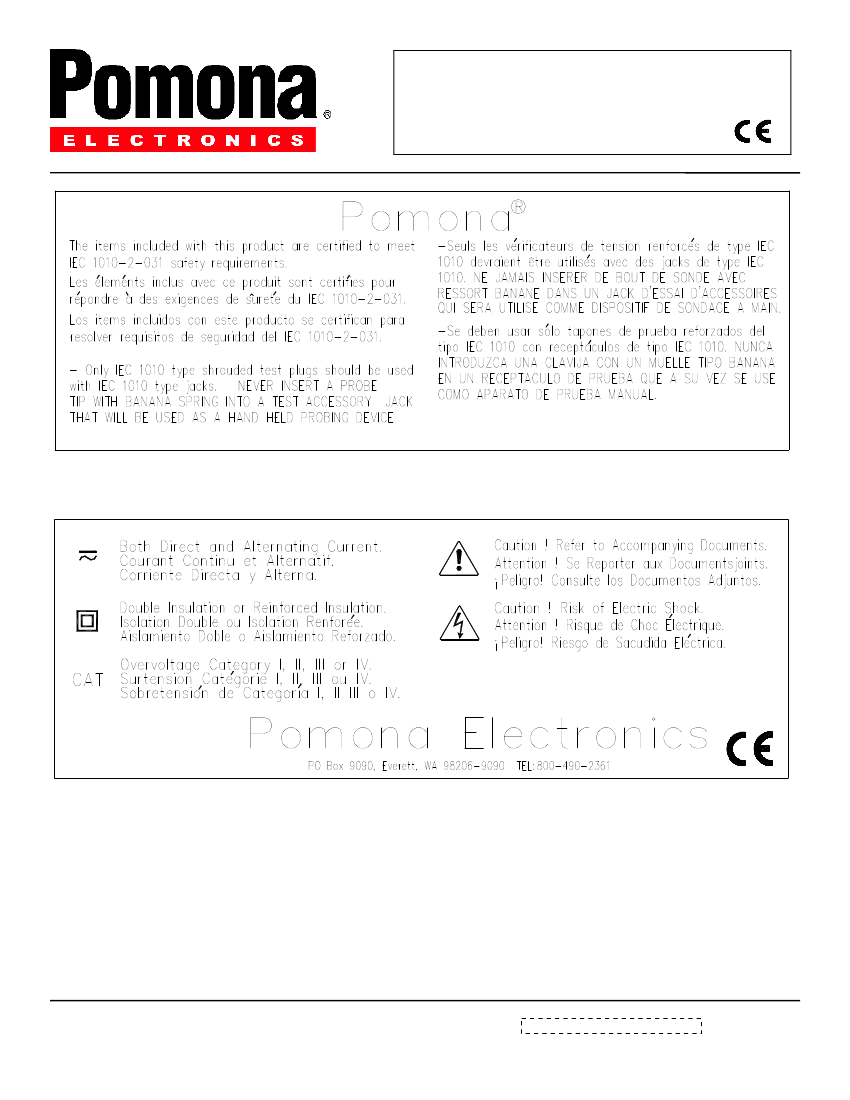

Model 3560, 3562, 3564, 4690
Banana Jack To #12, 16, 20 & 22
Socket
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1093952, D1093954, D1093956, D1094166
Page 2 of 2
