ND-6024 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Test and measurement> ND-6024

ND-6024: DescriptionDatalogging u0026 Acquisition 4CH ANALOG OUTPUT MODULE; CategoryTopical application Test and measurement; File Size323KB，1 Pages; ManufacturerADLINK; Websitehttps://www.adlinktech.com/en/AboutUs.aspx

Download Datasheet Parametric Compare View All

ND-6024 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ND-6024	-	-	View	Buy Now

ND-6024 Overview

Datalogging u0026 Acquisition 4CH ANALOG OUTPUT MODULE

ND-6024 Parametric

Parameter Name	Attribute value
Product Category	Datalogging & Acquisition
Manufacturer	ADLINK
RoHS	Details
Product	RTD Modules
Type	Input
Analog / Digital	Analog
Connection Method	Terminal
Packaging	Bulk
Factory Pack Quantity	1

Preview

Download Datasheet

View All

NuDAM

Analog Modules

ND-6013

3-CH RTD Input Module

Analog Input

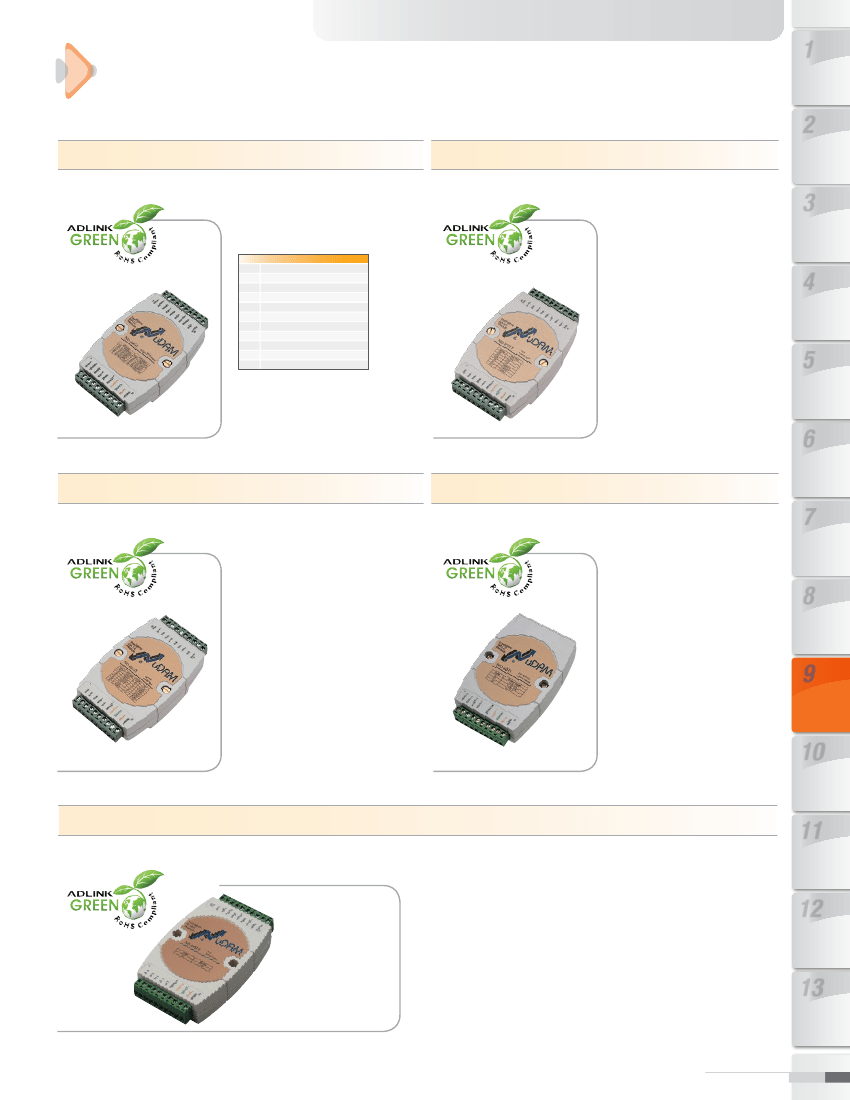

■ Channels:

■ Input

ype: Pt-100, Ni-100, Ni 120 RTD or Ohm

RTD

Type Temperature Range

-100˚C to +100˚C = 0.00385

0˚C to +100˚C = 0.00385

0˚C to +200˚C = 0.00385

0˚C to +600˚C = 0.00385

-100˚C to +100˚C = 0.003916

0˚C to +100˚C = 0.003916

0˚C to +200˚C = 0.003916

0˚C to +600˚C = 0.003916

-100 0˚C to +100˚C

-120 0˚C to +100˚C

0 Ω to +60 Ω

Software &

Utilities

ND-6017

8-CH Analog Input Module

Analog Input

■ Channels:

6 differential & 2 singled-ended

■ Input

Type: mV, V, and mA

■ Input

Range: ±150 mV, ±500 mV, ±1 V,

±5 V, ±10 V

■ Current

Range: 0 to 20 mA

(with external 125 Ω resistor)

■ Isolated

Voltage: 2500 V

RMS

■ Sampling

Rate: 20 samples/sec

Power

■ Requirement:

unregulated +10 V to

+30 V

■ Power

Consumption:1.2 W typical

DAQ

PXI

Modular

Instruments

■ Isolation

Voltage: 2500 V

RMS

■ Sampling

Rate: 3 samples/sec

■ Input

Wiring: 2, 3, or 4 wires

Power

■ Requirement:

unregulated +10 V to

+30 V

■ Power

Consumption: 0.696 W typical

GPIB & Bus

Expansion

ND-6018

8-CH Thermocouple Input Module

Analog Input

■ Channels:

6 differential & 2 singled-ended

■ Input

Type: Thermocouple, mV, V, or mA

■

Thermocouple T

ype: J, K, T, E, R, S, B, N, C

■ Thermocouple

Input Range

•

J: 0°C to 760°C

• K:

0°C to 1,370°C

• T:

-100°C to +400°C

• E:

0°C to 1,000°C

• R:

500°C to 1,750°C

• S:

500°C to 1,750°C

• B:

500°C to 1,800°C

• N:

- 270°C to 1,300°C

• C:

0°C to 2,320°C

• Internal

CJC can be enable/disable

■ Voltage

Range: ±15 mV, ±50 mV,

±100 mV, ±500 mV, ±1 V, ±2.5 V

■ Current

Range: 0 to 20 mA (with external

125 Ω resistor)

■ Isolated

Voltage: 2500 V

RMS

■ Sampling

Rate: 10 samples/sec

Power

■

Requirement: unregulated +10 V to +30 V

■ Power

Consumption: 0.96 W typical

ND-6021

Analog Output Module

Single Channel Analog Output

■ Voltage

Output: 0 to +10 V

■ Current

Output: 0 to +20 mA, +4 to +20 mA

■ Output

Isolation: 5000 V

RMS

■ Resolution:

12-bit output resolution

accuracy

■ Programmable

Output Slope:

• 0.125

to 128 mA/sec

• 0.0625 to 64 V/sec

■ Current Load Resister: 0 to 500 Ω

Power

■ Requirement:

unregulated +10 V to +30 V

■ Power

Consumption: 1.32 W typical

Motion

Control

Real-time

Distributed

I/O

PAC

Remote I/O

Communi-

cations

ND-6024

4-CH Analog Output Module

Analog Output

■ Channels:

■ Voltage

Output -10 V to +10 V

■ Resolution:

12-bit

■ Accuracy:

±0.02% of FSR

■ Maximum

current output: ±10 μA

■ Gain Drift: 10 ppm FSR/˚C

Digital Input

■ Channels:

■ Switching

Levels: TTL

Power

■ Requirement:

unregulated +10 V to +30 V

■ Power

Consumption: 1.848 W typical

Vision

Fanless

Embedded

Computers

cPCI &

Industrial

Computers

www.adlinktech.com 9-4

ND-6024 Related Products

	ND-6024	ND-6021	ND-6013
Description	Datalogging u0026 Acquisition 4CH ANALOG OUTPUT MODULE	Headers u0026 Wire Housings HSG 2P SINGLE ROW POSITIVE LATCH	Datalogging u0026 Acquisition 3-CH RTD Mod
Product Category	Datalogging & Acquisition	Datalogging & Acquisition	Datalogging & Acquisition
Manufacturer	ADLINK	ADLINK	ADLINK
RoHS	Details	Details	Details
Product	RTD Modules	RTD Modules	RTD Modules
Type	Input	Input	Input
Analog / Digital	Analog	Analog	Analog
Connection Method	Terminal	Terminal	Terminal
Packaging	Bulk	Bulk	Bulk
Factory Pack Quantity	1	1	1
