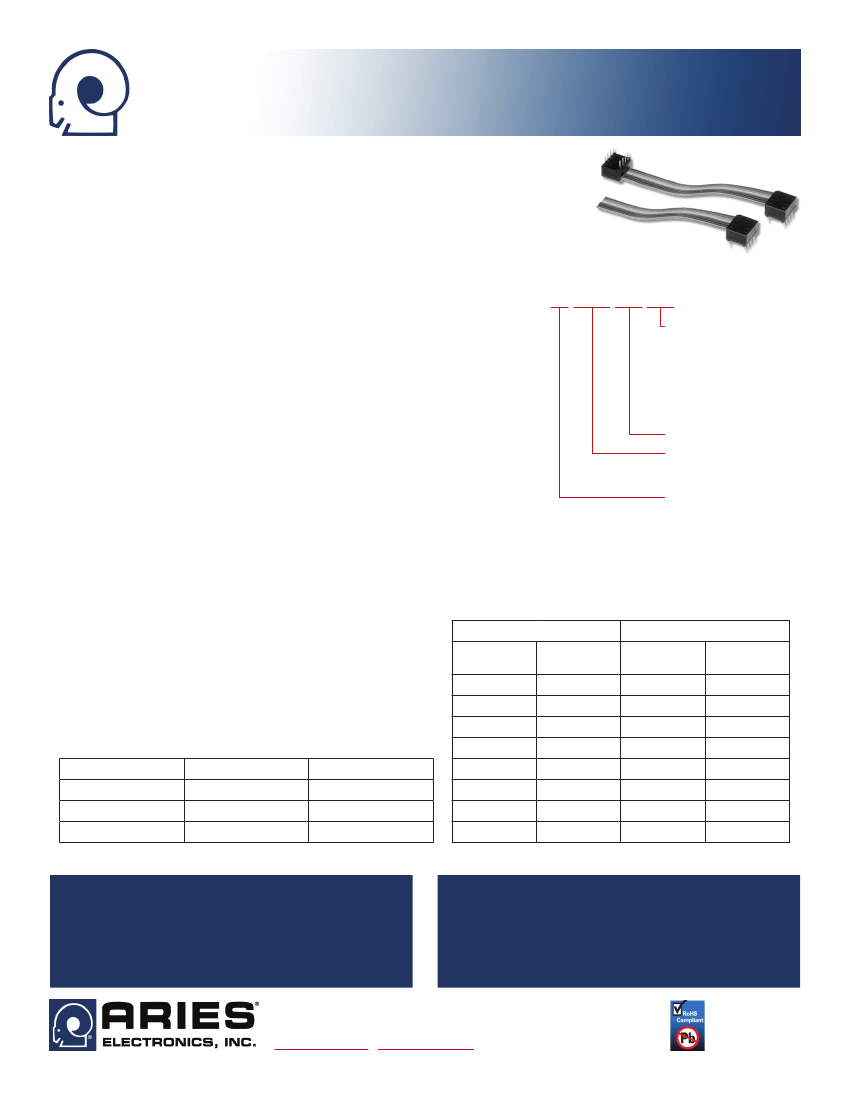

Series 100 thru 111
DIP Jumpers
FEATURES
•
•
•
•
Wide Array of DIP Jumper Configurations and Wiring Possibilities
Reliable, Electronically-tested Solder Connections
Protective Covers Ultrasonically-welded with Strain Relief
Easy Identification and Tracing with 10-color Cable
GENERAL SPECIFICATIONS
•
HEADER BODY AND COVER:
black UL 94V-0 4/6 Nylon
ORDERING INFORMATION
• HEADER PINS:
Brass 1/2-hard
XX-XXXX-XXX XXX
• STANDARD PIN PLATING:
10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min.
Ni per QQ-N-290
Optional Header Pin Plating
• OPTIONAL PLATING:
200µ [5.08µ] min. matte Sn per ASTM B545-97(2004)e1 over 50µ
T = Sn
TL = Sn/Pb
[1.27mm] min. Ni per QQ-N-290;
–OR–
200µ [5.08µ] 90/10 Sn/Pb per MIL-T-10727 Type I
ST = Stripped, Sn-dipped
over 50µ [1.27µ] min. Ni per QQ-N-290
(106-111 Series)
• CABLE INSULATION:
UL style 2697 Polyvinyl Chloride (PVC)
STL = Stripped & Sn/Pb
• CABLE LAMINATE:
clear PVC, self-extinguishing*
dipped ends
• 0.050 [1.27] PITCH CONDUCTORS:
28-AWG, 7/36-strand, tinned Cu per ASTM B 33
(Series 106-111)
• 0.039 [0.99] PITCH CONDUCTORS:
26-AWG, 7/34-strand)
Jumper Series
• CABLE CURRENT RATING:
1 amp at 10°C [50°F] above ambient
Cable Length
(inches)
• CABLE VOLTAGE RATING:
300V
2" = .002 (min.) [50.88]
• CABLE TEMPERATURE RATING:
176°F [80°C]
2.5" = 002.5
• CABLE CAPACITANCE:
13.0pF/ft. [42.7pF/meter] nominal at 1MHz*
No. of Conductors
• CROSSTALK:
10-ft sample, 5ns rise time with 2 lines driven; near end 4.7%; far end
(see Table)
4.3% nominal*
• PROPAGATION DELAY:
1.5ns/ft. [4.9ns/meter] nominal*
• INSULATION RESISTANCE:
1010Ω (10 ft. [3 meters] min.)
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE:
0.033 ±0.002 [0.86 ±0.05] dia.
* Applies to 0.050 [1.27] Pitch Cable Only
SINGLE-END DIP JUMPER WIRE LIST
Series 106, 108, 110
Wire
Number
1
2
3
Header Pin
Number
1
8
2
7
3
6
4
5
Series 107, 109, 111
Wire
Number
1
2
3
4
5
6
7
8
Header Pin
Number
1
2
3
4
5
6
7
8
NUMBER OF CONDUCTORS
Available Sizes
4 thru 20
22
24, 28, 40
Centers “C”
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
Dim. “D”
0.395 [10.03]
0.495 [12.57]
0.695 [17.65]
4
5
6
7
8
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11006
Rev. 8.4
1 of 2

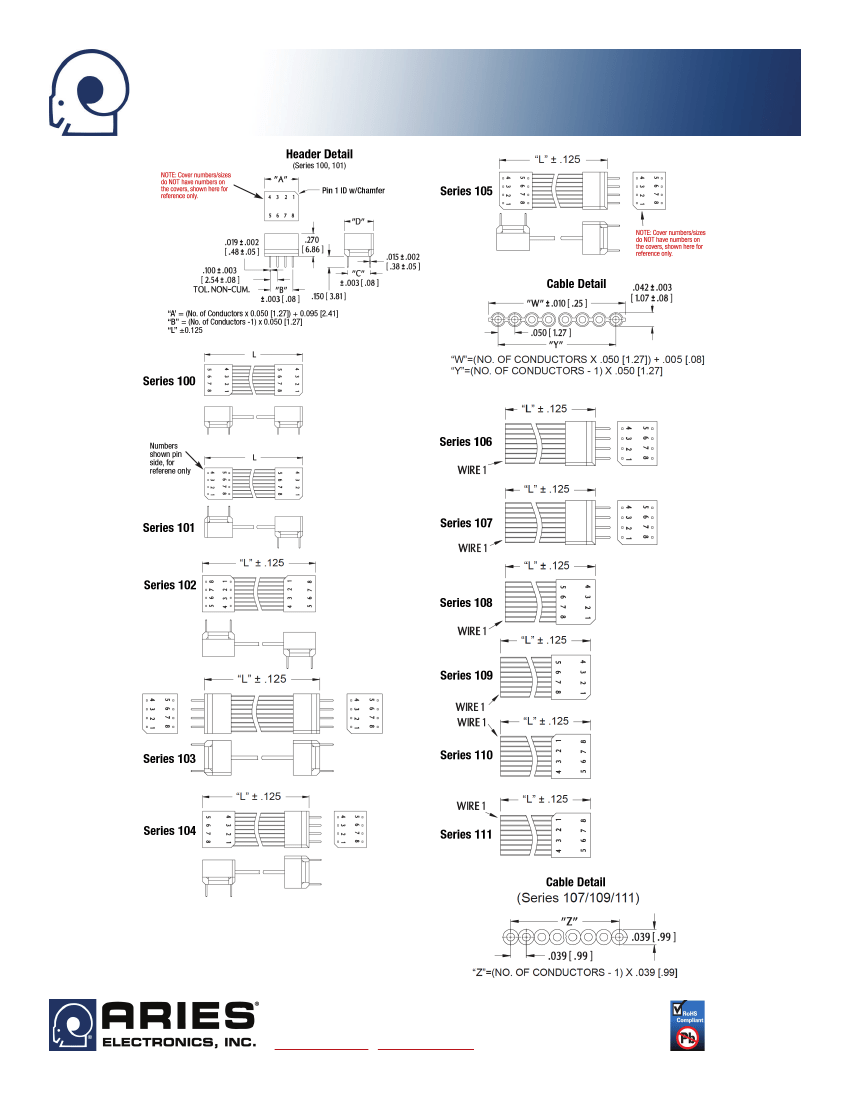

Series 100 thru 111
DIP Jumpers
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11006
Rev. 8.4
2 of 2
