0.28"
(7mm)
B
Made in the
United States of America
C
D
E
F
D
G
H
A
0.11"
(3mm)
0.83"
(21mm)
I
Y
NON-RESISTOR
END
X
RESISTOR
END
A. Underwriters Laboratory Listing 90P1C.
B. Compatible with
Desco Dual-Wire Continuous Monitors
and other brands
that accept a
3.5mm phono plug.
C. Desco logo molded in compliance with ANSI/ESD S1.1.
D. Thermoplastic elastomer strain relief
molded
on.
E. Relaxed retraction coil cord reduces tug on wearer’s wrist. Black PVC
insulation. Break load average 30 pounds.
Item
19880
19881
19882
19877
19878
19879
Mold
Color
Black
Black
Black
Grey
Grey
Grey
Mono Plug Tip
Diameter
0.132"
0.132"
0.132"
0.116"
0.116"
0.116"
Retracted Length Extended Length
X
12"
24"
30"
12"
24"
30"
Y
20"
32"
38"
20"
32"
38"
Nominal
6'
12'
15'
6'
12'
20'
Max
8.5'
17'
22'
8.5'
17'
22'
F.
Dual T-3067 tinsel conductor. Consists of stranded polyester wrapped in
copper. Equivalent to 29 gauge (cir mil and/or ohms).
G. 1 megohm (±5%) current limiting resistors on both conductors.
H. Unique dual contact design is to be paired with a
Desco MagSnap
360™ Wristband
(not included) for a superior electrical connection. The
magnetic connection made with the wristband maintains a 1-5 pound
perpendicular breakaway force to prevent accidental disconnects. Spring
loaded center contact rated to 1 million cycles.
I.
Date coded with date of manufacture in compliance with ANSI/ESD S1.1.
Meets required limits of ANSI/ESD S20.20 and requirements of ANSI/ESD
S1.1.
Unless otherwise noted, tolerance ±10%
Specifications and procedures subject to change without notice.
U.S. Patent Pending

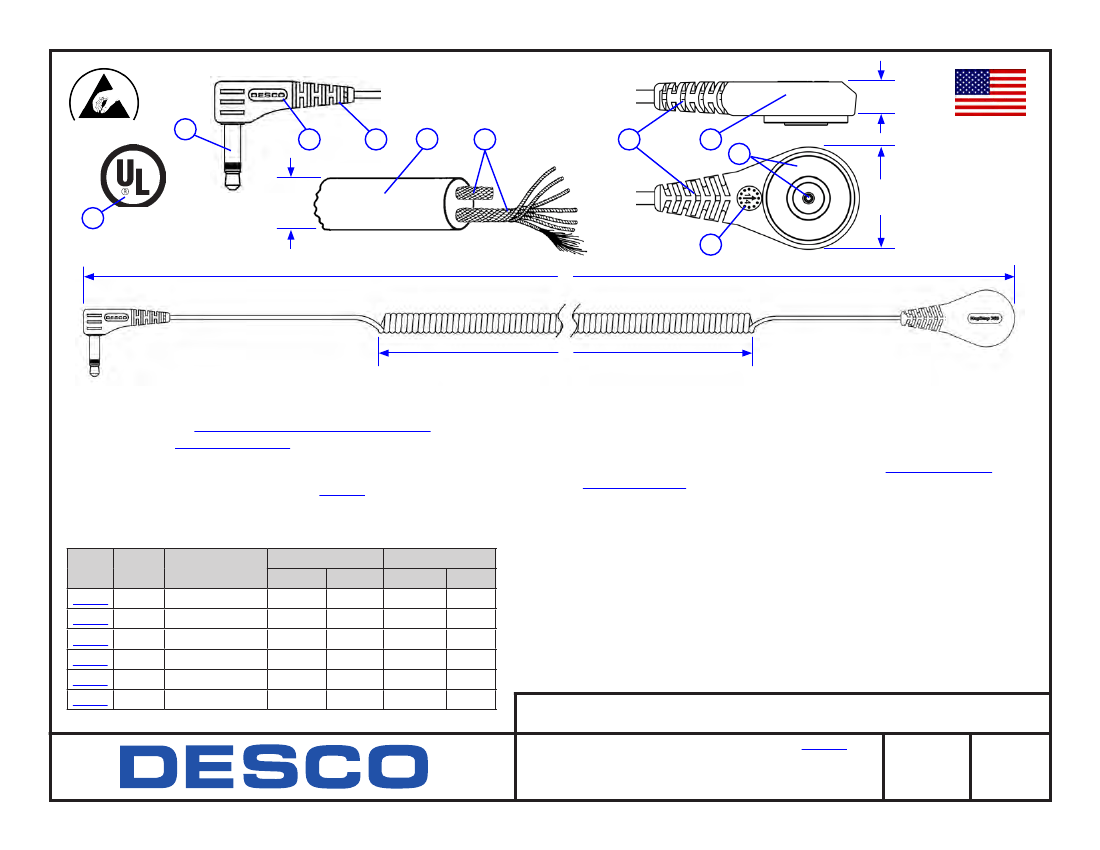

MAGSNAP 360™ DUAL-WIRE COIL CORD
DESCO WEST:
3651 WALNUT AVE, CHINO, CA 91710 WEBSITE:
Desco.com
PHONE: (909) 627-8178
DESCO EAST:
ONE COLGATE WAY, CANTON, MA 02021-1407
PHONE: (781) 821-8370
DRAWING
NUMBER
19880
DATE
January
2015
© 2015 DESCO INDUSTRIES INC.
Employee Owned
