AdapterBoard SOIC32+SSOP32
Adapter Board for SOIC and SSOP ICs, Up to 32 Pins
Features
This AdapterBoard connect COIC or SSOP
integrated circuits to DIP-32 pins to allow them
to be used with solderless breadboards or thru-
hole prototyping boards.
The boards has a SOIC-32 footprint on the top
(0.050” pin pitch) that can be used for narrow or
wide packages (up to 0.500”). Multiple smaller
SOICs can be installed.
The dual-usage adapter has a SSOP-32 (0.65mm
pin pitch) footprint on the bottom.
Bonus SMT pads allow other components to be
added on square 0.050” pads. Vias allow
connection to SMT pads on other side. Tracks
under SOIC-32 connect left and right SMT pads
to carry signals. These can be used to add
decoupling capacitors to the IC when the power
and ground pins are at opposite ends.
Photos
Specifications
Dual usage SOIC-32 (0.050” pin pitch) or
SSOP-32 (0.65mm pin pitch) adapter

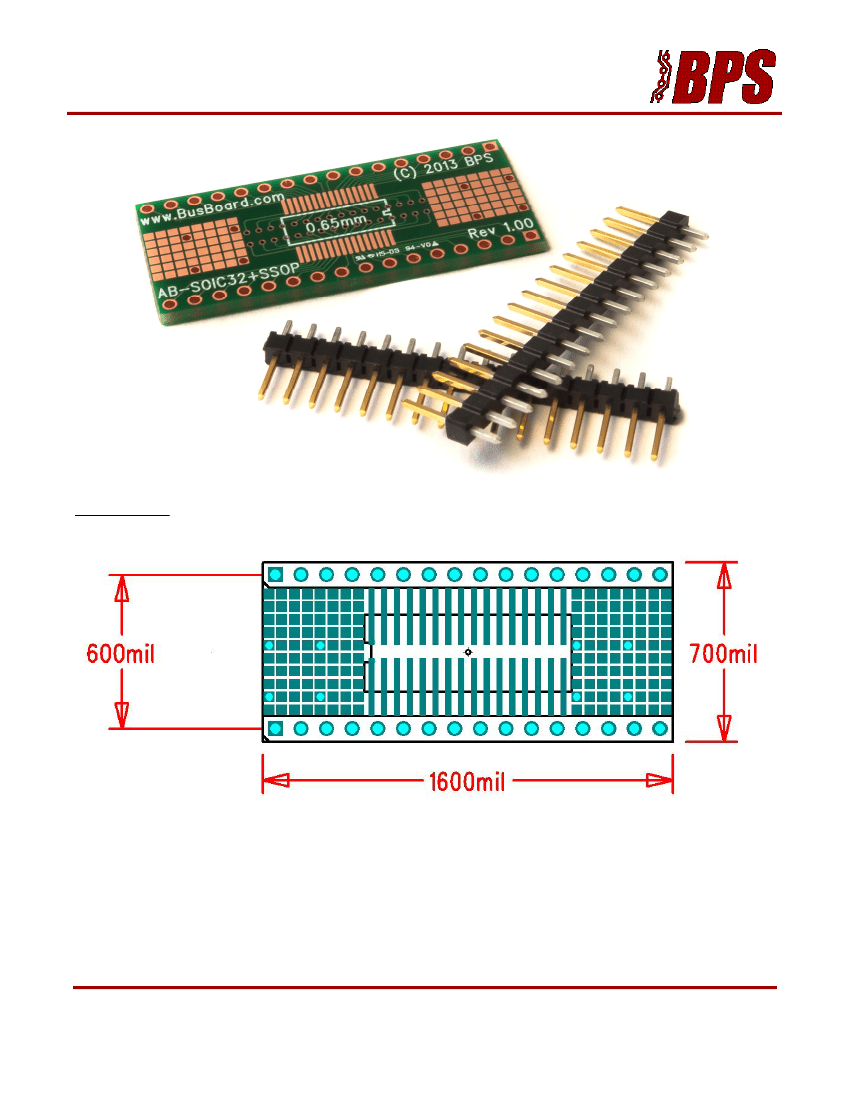

Two 1x16 headers provided (not soldered).
DIP-32 rows are 0.6” apart.
DIP-32 holes are drilled on 0.1" (2.54mm)
centers. 0.037" (0.94mm) holes sized for
square post headers.
Size = 0.700 x 1.600in, 1/16" thick (1.6mm)
Etched FR4 glass-epoxy circuit board.
Solder mask to prevent solder bridges.
Double-sided, 1oz/ft2 copper, anti-tarnish
coating for easy soldering. Lead free and
RoHS compatible.
Order Part# AB-SOIC32+SSOP

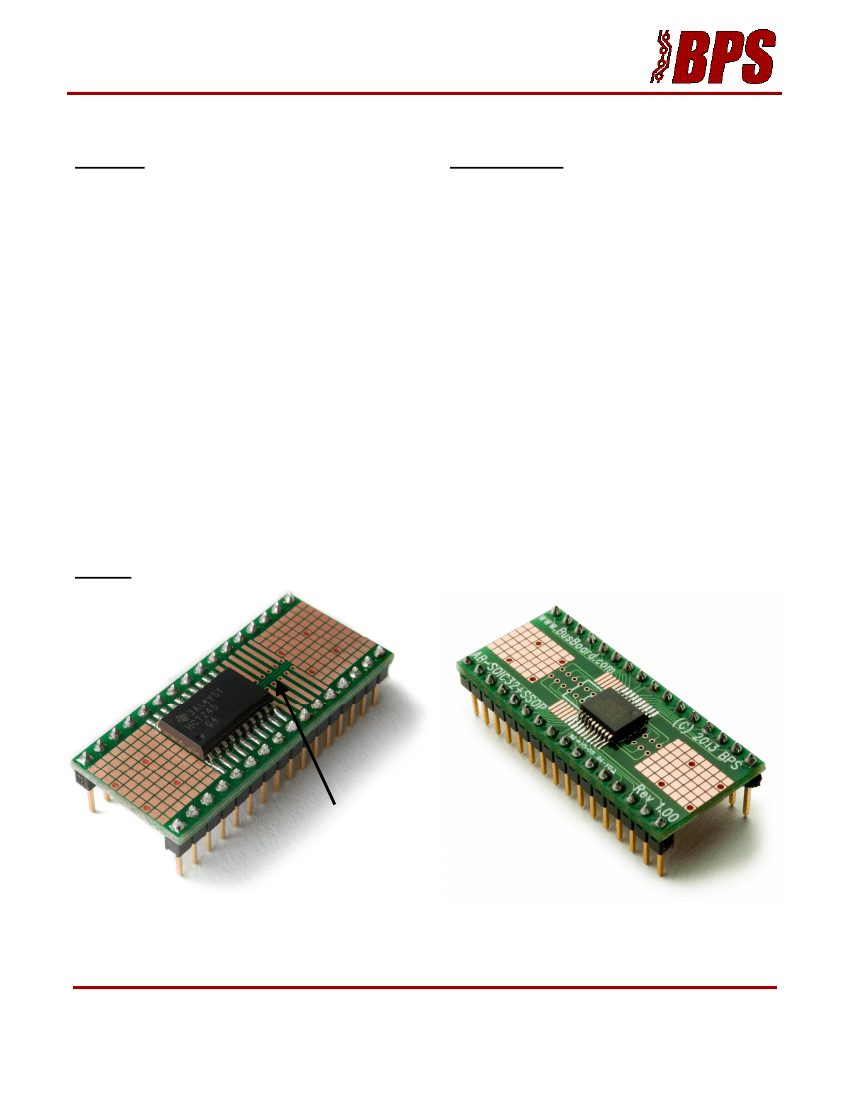

SOIC Side
SSOP Side
Tracks Connecting
SMT Bonus Pads
BusBoard Prototype Systems
-
Built for designers
www.BusBoard.com
sales@busboard.com
BPS-DAT-(BB2)-001 Rev 4.00
