GBPC 12, 15, 25, 35 SERIES — Bridge Rectifiers (Glass Passivated)
October 2013
GBPC 12, 15, 25, 35 SERIES
Bridge Rectifiers (Glass Passivated)

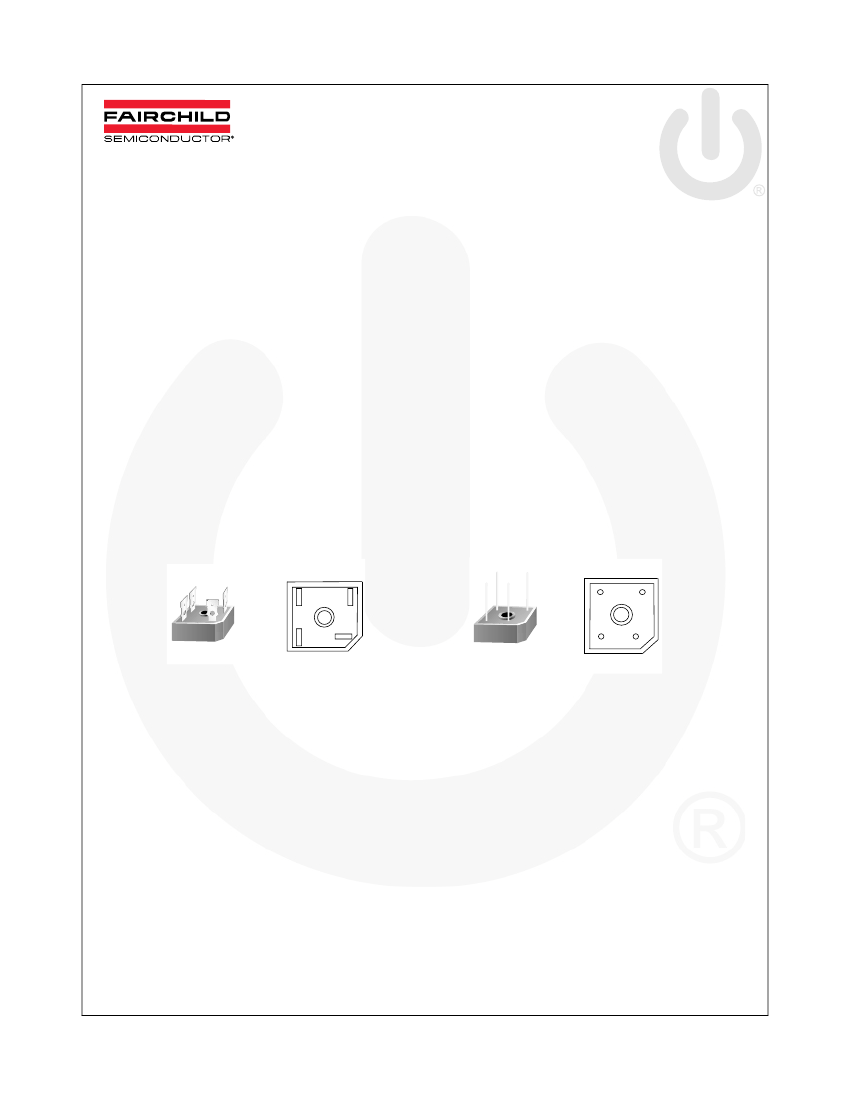

Features
• Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation.
• Surge Overload Ratings from 300 A to 400 A.
• Isolated voltage from case to lead over 2500 V.
• UL certified, UL #E258596
• Terminals Finish Material - Silver (Solderable per MIL-STD-202, Method 208 for the wire type GBPC-W package)
- Nickel for GBPC package.
Suffix “W”
• Wire Lead Structure
Suffix “M”
• Terminal Location Face to Face
–
~
+
GBPC
© 2010 Fairchild Semiconductor Corporation
GBPC 12, 15, 25, 35 SERIES Rev. 1.3.2
+
GBPC-W
1
~
–
~
~
www.fairchildsemi.com
GBPC 12, 15, 25, 35 SERIES — Bridge Rectifiers (Glass Passivated)
Ordering Informations
Part Number
GBPC12005
GBPC1201
GBPC1202
GBPC1204
GBPC1206
GBPC1208
GBPC1210
GBPC15005
GBPC1501
GBPC1502
GBPC1504
GBPC1506
GBPC1508
GBPC1510
GBPC25005
GBPC2501
GBPC2502
GBPC2504
GBPC2506
GBPC2508
GBPC2510
GBPC35005
GBPC3501
GBPC3502
GBPC3504
GBPC3506
GBPC3508
GBPC3510
GBPC1201W
GBPC1202W
GBPC1204W
GBPC1206W
GBPC1208W
GBPC1210W
GBPC15005W
GBPC1501W
GBPC1502W
GBPC1504W
GBPC1506W
GBPC1508W
Marking
GBPC12005
GBPC1201
GBPC1202
GBPC1204
GBPC1206
GBPC1208
GBPC1210
GBPC15005
GBPC1501
GBPC1502
GBPC1504
GBPC1506
GBPC1508
GBPC1510
GBPC25005
GBPC2501
GBPC2502
GBPC2504
GBPC2506
GBPC2508
GBPC2510
GBPC35005
GBPC3501
GBPC3502
GBPC3504
GBPC3506
GBPC3508
GBPC3510
GBPC1201W
GBPC1202W
GBPC1204W
GBPC1206W
GBPC1208W
GBPC1210W
GBPC15005W
GBPC1501W
GBPC1502W
GBPC1504W
GBPC1506W
GBPC1508W
Package
Packing Method
GBPC 4L
Bulk
GBPC-W 4L
© 2010 Fairchild Semiconductor Corporation
GBPC 12, 15, 25, 35 SERIES Rev. 1.3.2
www.fairchildsemi.com
2
GBPC 12, 15, 25, 35 SERIES — Bridge Rectifiers (Glass Passivated)
Ordering Informations
(continued)
Part Number
GBPC1510W
GBPC25005W
GBPC2501W
GBPC2502W
GBPC2504W
GBPC2506W
GBPC2508W
GBPC2510W
GBPC35005W
GBPC3501W
GBPC3502W
GBPC3504W
GBPC3506W
GBPC3508W
GBPC3510W
Marking
GBPC1510W
GBPC25005W
GBPC2501W
GBPC2502W
GBPC2504W
GBPC2506W
GBPC2508W
GBPC2510W
GBPC35005W
GBPC3501W
GBPC3502W
GBPC3504W
GBPC3506W
GBPC3508W
GBPC3510W
Package
Packing Method
GBPC-W 4L
Bulk
Absolute Maximum Ratings
(1)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Symbol
V
RRM
V
RMS
V
R
Parameter
Maximum Repetitive Reverse Voltage
Maximum RMS Bridge Input Voltage
DC Reverse Voltage (Rated V
R
)
GBPC12
Average Rectified Forward
Current at T
C
= 55°C
Non-Repetitive
Surge Current
Peak
GBPC15
GBPC25
GBPC35
Value
005
50
35
50
01
100
70
100
02
200
140
200
04
400
280
400
12
15
25
35
300
400
06
600
420
600
08
800
560
800
10
1000
700
1000
Units
V
V
V
I
F(AV)
A
I
FSM
T
STG
T
J
Forward GBPC12,
15, 25
GBPC35
A
A
°C
°C
8.3ms Single Half-Sine-Wave
Storage Temperature Range
Operating Junction Temperature
-55 to +150
-55 to +150
Note:
1. These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.
© 2010 Fairchild Semiconductor Corporation
GBPC 12, 15, 25, 35 SERIES Rev. 1.3.2
www.fairchildsemi.com
3
GBPC 12, 15, 25, 35 SERIES — Bridge Rectifiers (Glass Passivated)
Thermal Characteristics
Values are at T
A
= 25°C unless otherwise noted.
Symbol
P
D
Power Dissipation
Parameter
Value
83.3
1.5
Units
W
°C/W
Thermal Resistance, Junction to Case
(2)
R
θJC
Note:
2. With Heatsink.
Electrical Characteristics
Values are at T
A
= 25°C unless otherwise noted.
Symbol
Parameter
Test Conditions
6.0 A
GBPC12
GBPC15
GBPC25
GBPC35
7.5 A
12.5 A
17.5 A
T
A
= 25°C
T
A
= 125°C
GBPC12, 15, 25
GBPC35
GBPC12, 15, 25
GBPC35
Value
Units
V
F
Forward Voltage Drop, per bridge
1.1 (Max)
V
I
R
I
2
t
Reverse Current, per element at Rated V
R
Rating for Fusing t < 8.35 ms
Total Capacitance, per leg
V
R
= 4.0 V
f = 1.0 MHz
5.0 (Max)
500 (Max)
375
660
180
200
μA
μA
A Sec
A
2
Sec
pF
pF
2
C
T
© 2010 Fairchild Semiconductor Corporation
GBPC 12, 15, 25, 35 SERIES Rev. 1.3.2
www.fairchildsemi.com
4
GBPC 12, 15, 25, 35 SERIES — Bridge Rectifiers (Glass Passivated)

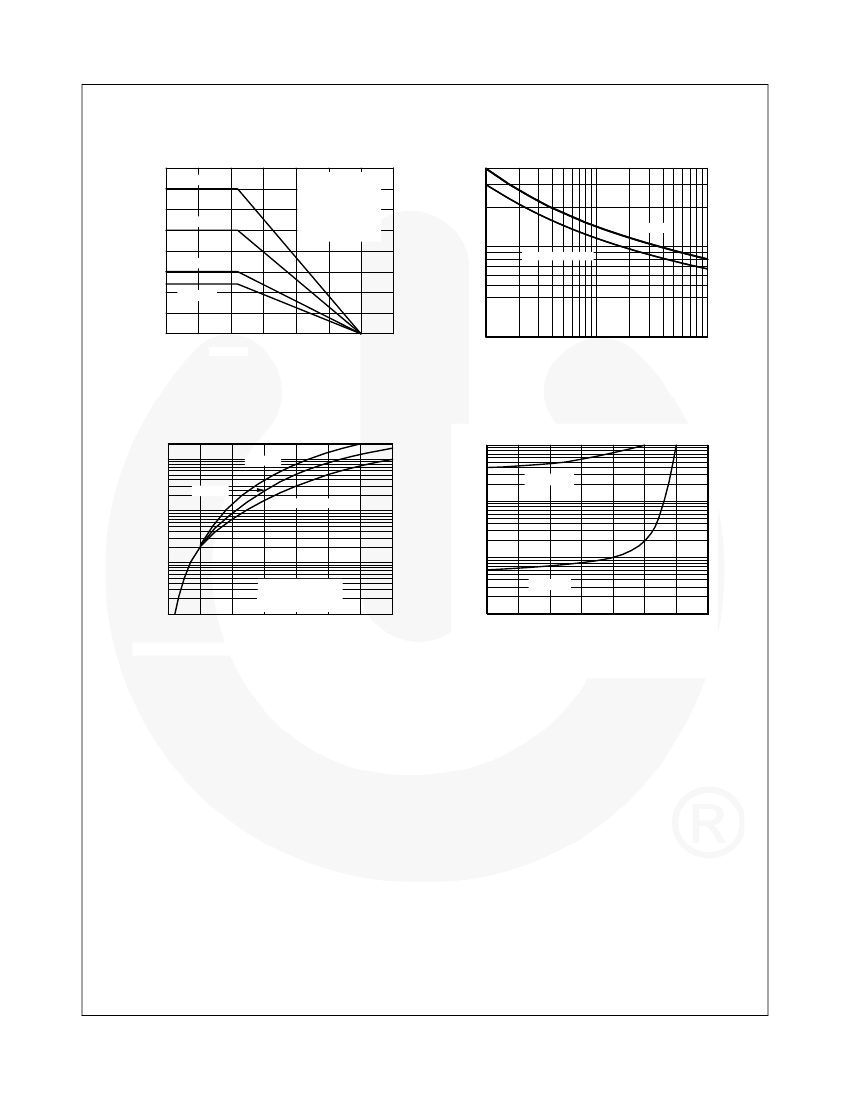

Typical Performance Characteristics
Average Rectified Forward Current, I
F
[A]
40
GBPC35
30
GBPC25
20
SINGLE PHASE
HALF WAVE
60Hz
RESISTIVE OR
INDUCTIVE LOAD
LENGTHS
Peak Forward Surge Current, I
FSM
[A]
400
200
GBPC35
GBPC12-GBPC25
100
GBPC15
10
50
GBPC12
0
0
25
Case
Ambient Temperature [ºC]
50
75
100
125
150
175
20
1
2
5
10
20
Number of Cycles at 60Hz
50
100
Figure 1. Forward Current Derating Curve
200
100
Forward Current, I
F
[A]
GBPC25
GBPC35
Figure 2. Non-Repetitive Surge Current
100
T
A
= 125
º
C
I
R
[mA]
Reverse Current, IR
[μA]
10
GBPC12-GBPC15
10
1
T
A
= 25
º
C
Pulse Width = 300μs
μ
2% Duty Cycle
1
T
A
= 25
º
C
0.1
0.6
0.8
Fi
3 F
1
1.2
1.4
1.6
Forward Voltage, V
F
[V]
1.8
2
0.1
dV l
Ch
i i
Fi
0
20
40
60
80
100
120
140
Percent of Rated Peak Reverse Voltage [%]
[%]
Percent of Rated Peak Reverse Voltage (per leg)
4 R
C
R
V l
Figure 3. Forward Voltage Characteristics
Figure 4. Reverse Current vs. Reverse Voltage
© 2010 Fairchild Semiconductor Corporation
GBPC 12, 15, 25, 35 SERIES Rev. 1.3.2
www.fairchildsemi.com
5
