667-117XW25N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 667-117XW25N

667-117XW25N: DescriptionCircular MIL Spec Tools, Hardware u0026 Accessories; CategoryThe connector; File Size176KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

667-117XW25N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	667-117XW25N	-	-	View	Buy Now

667-117XW25N Overview

Circular MIL Spec Tools, Hardware u0026 Accessories

667-117XW25N Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Tools, Hardware & Accessories
Manufacturer	Glenair
Factory Pack Quantity	1

Preview

Download Datasheet

View All

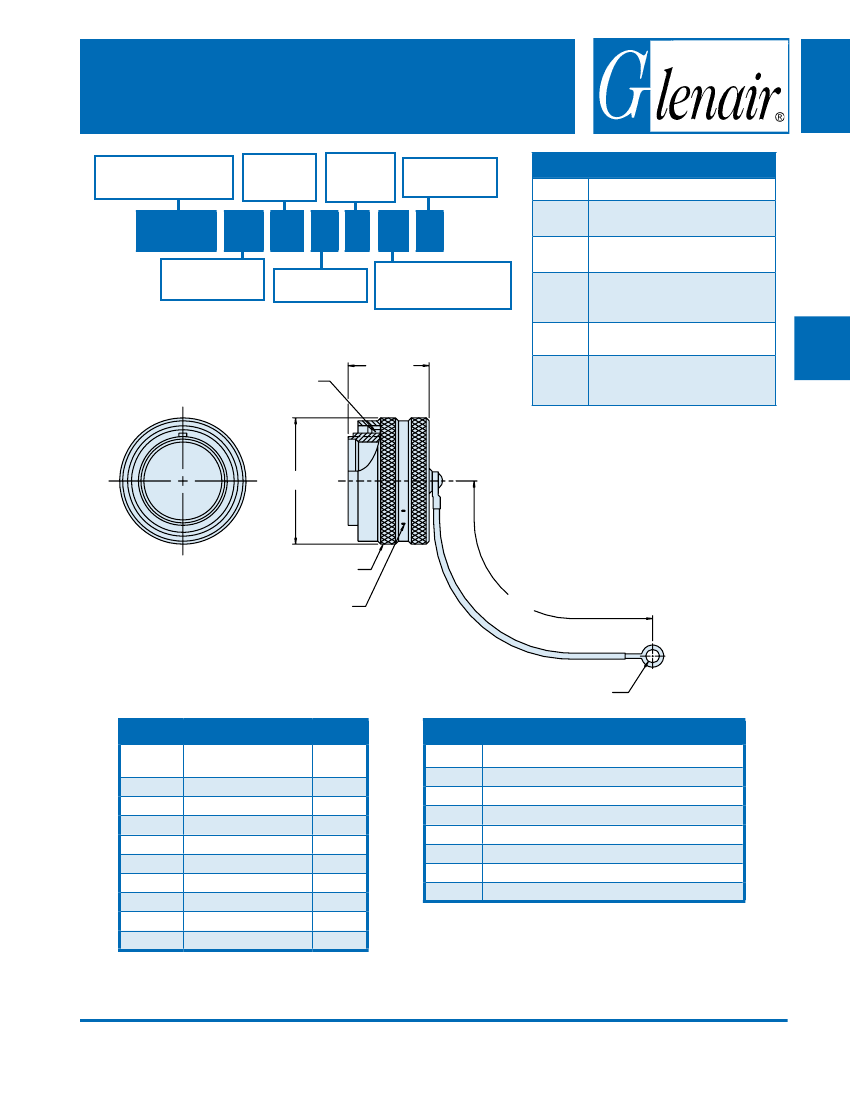

for MIL-DTL-38999 Series III Connectors

with Anti-Decoupling Device

Basic Part Number

667-117

- Protective Cover

Connector

Shell Size

(See

Table I)

Attachment

Length

(In

Inches)

Ground Spring

(Omit

for None)

TABLE III

Symbol

Finish Description

No Plating - Black Color

(Non-Conductive Finish)

2000 Hour Corrosion Resistant

Electroless Nickel

2000 Hour Corrosion Resistant

Ni-PTFE, Nickel-Fluorocarbon

Polymer.

1000 Hour Grey

No Plating - Brown Color

(Non-Conductive Finish)

2000 Hour Corrosion Resistant

Cadmium/Olive Drab over

Electroless Nickel

667-117

Finish Symbol

(See

Table III)

Attachment Type

See Table II

Ring Style Dash Number

See Tables IV, V, VI and VII

on Page B-2

XMT

.98 Max

A Thread

REF

Anti-Decoupling Device

Knurl Style Mfr.

Option - TYP

Length

.25

F Diameter

TABLE I: CONNECTOR SHELL SIZE

Shell

Size

A Thread

.6250-0.1P-0.3L-TS

.7500-0.1P-0.3L-TS

.8750-0.1P-0.3L-TS

1.0000-0.1P-0.3L-TS

1.1875-0.1P-0.3L-TS

1.2500-0.1P-0.3L-TS

1.3750-0.1P-0.3L-TS

1.5000-0.1P-0.3L-TS

1.6250-0.1P-0.3L-TS

B Max

.858

.984

1.157

1.279

1.405

1.515

1.641

1.767

1.889

Symbol

TABLE II: ATTACHMENT

Attachment

Wire Rope, Nylon Jacket w/ Terminal

.094 Diameter Nylon Cord (black) w/ Loop Ends

Wire Rope, Teflon Jacket w/ Terminal

Attachment Omitted

Wire Rope, PVC Jacket w/ Terminal

Wire Rope, NO Jacket, w/ Terminal

Nylon Rope

Metric dimensions (mm) are in parentheses

and are for reference only.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

B-9

Protective

Covers

667-117

Composite Receptacle Cover

667-117XW25N Related Products

	667-117XW25N	667-117-17NG	667-117-17T4-01	667-117XW25NG	667-117-11H4-01	667-117-15F3-01
Description	Circular MIL Spec Tools, Hardware u0026 Accessories	Circular MIL Spec Tools, Hardware u0026 Accessories	Circular MIL Spec Tools, Hardware u0026 Accessories	Circular MIL Spec Tools, Hardware u0026 Accessories	Circular MIL Spec Tools, Hardware u0026 Accessories	Circular MIL Spec Tools, Hardware u0026 Accessories
Product Category	Circular MIL Spec Tools, Hardware & Accessories	Circular MIL Spec Tools, Hardware & Accessories	Circular MIL Spec Tools, Hardware & Accessories	Circular MIL Spec Tools, Hardware & Accessories	Circular MIL Spec Tools, Hardware & Accessories	Circular MIL Spec Tools, Hardware & Accessories
Manufacturer	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair
Factory Pack Quantity	1	1	1	1	1	1
