ZVN4306GVTC: DescriptionMOSFET Avalanche; Categorysemiconductor Discrete semiconductor; File Size495KB，6 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

ZVN4306GVTC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZVN4306GVTC	-	-	View	Buy Now

ZVN4306GVTC Overview

MOSFET Avalanche

ZVN4306GVTC Parametric

Parameter Name	Attribute value
Product Category	MOSFET
Manufacturer	Diodes
RoHS	Details
Technology	Si
Mounting Style	SMD/SMT
Package / Case	SOT-223-3
Number of Channels	1 Channel
Transistor Polarity	N-Channel
Vds - Drain-Source Breakdown Voltage	60 V
Id - Continuous Drain Current	2.1 A
Rds On - Drain-Source Resistance	450 mOhms
Vgs - Gate-Source Voltage	20 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Configuration	Single
Channel Mode	Enhancement
Packaging	Reel
Packaging	MouseReel
Packaging	Cut Tape
Fall Time	16 ns
Height	1.65 mm
Length	6.7 mm
Pd - Power Dissipation	3 W
Rise Time	25 ns
Factory Pack Quantity	4000
Transistor Type	1 N-Channel
Type	FET
Typical Turn-Off Delay Time	30 ns
Typical Turn-On Delay Time	8 ns
Width	3.7 mm
Unit Weight	0.003951 oz

Preview

Download Datasheet

View All

ZVN4306GV

V_R2

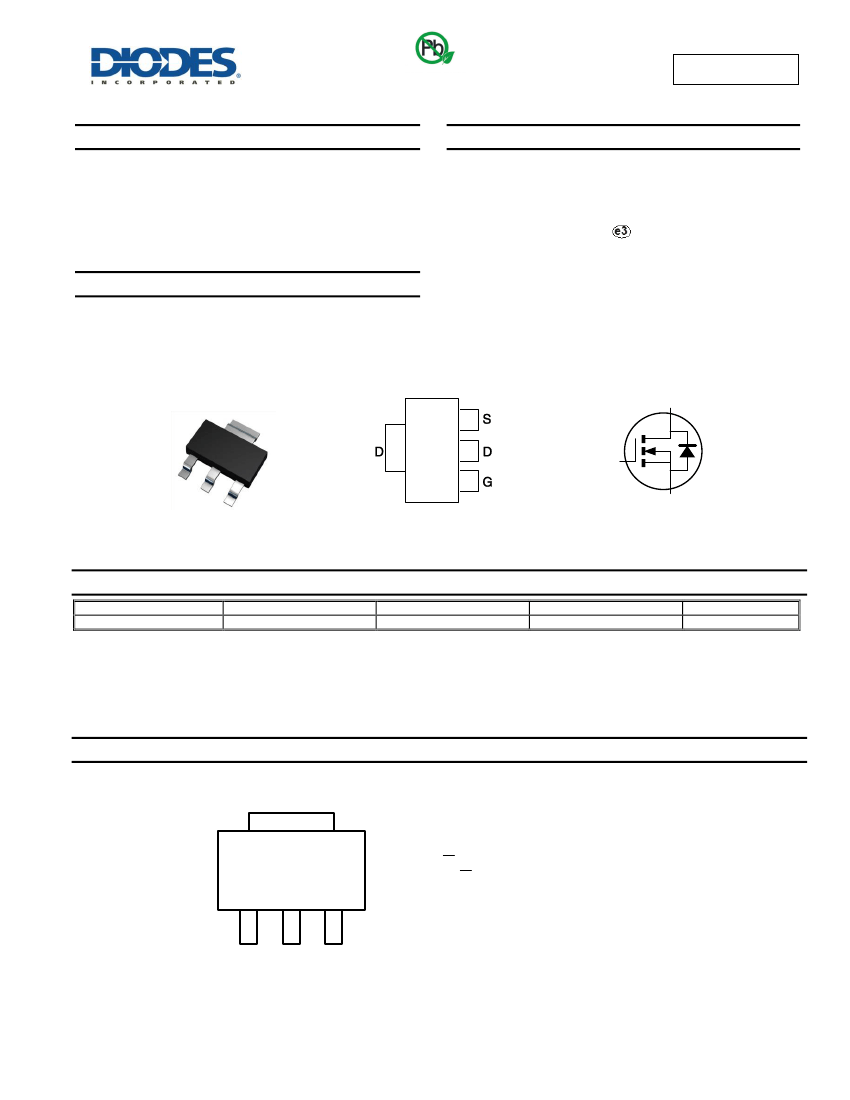

SOT223 N-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET

Green

Features and Benefits



DSS

=60V

DS(ON)

= 0.33Ω

Repetitive Avalanche Rating

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SOT223

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish

Weight: 0.112 grams (Approximate)

Applications



DC-DC Converters

Solenoids / Relay Driver for Automotive

Stepper Motor Drivers

SOT223

Top View

Pin Out - Top

View

Equivalent Circuit

Ordering Information

(Note 4)

Part Number

ZVN4306GVTA

Notes:

Marking

ZVN4306V

Reel size (inches)

Tape width (mm)

Quantity per reel

1,000

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT223

ZVN

4306V

YWW

ZVN4306V = Product Type Marking Code

YWW = Date Code Marking

Y or Y = Last Digit of Year (ex: 5= 2015)

WW or WW = Week Code (01~53)

ZVN4306GV

Document number: DS33370 Rev. 2 - 2

1 of 6

www.diodes.com

February 2015
