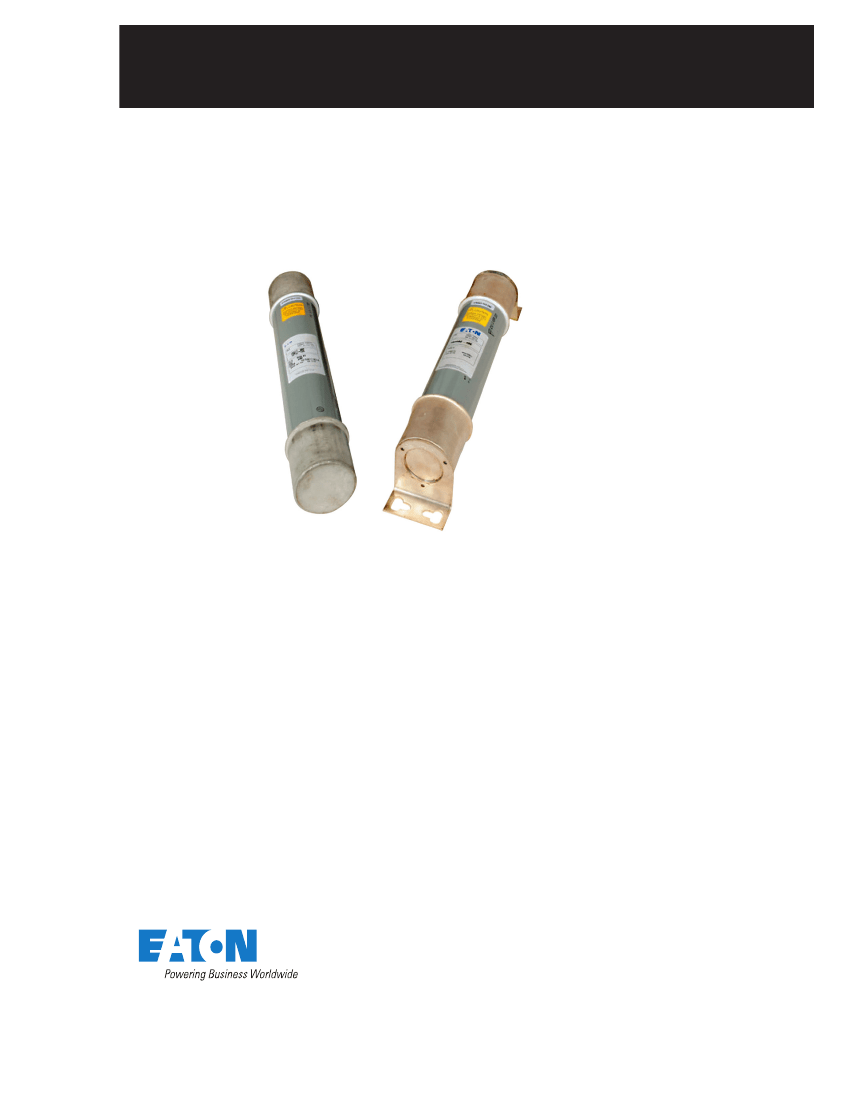

Technical Data 10353
Effective September 2018
Supersedes July 2018
BUSSMANN
SERIES
15.5kV E-Rated medium voltage fuses for feeder
circuit, switchgear and transformer protection
Features and benefits
•

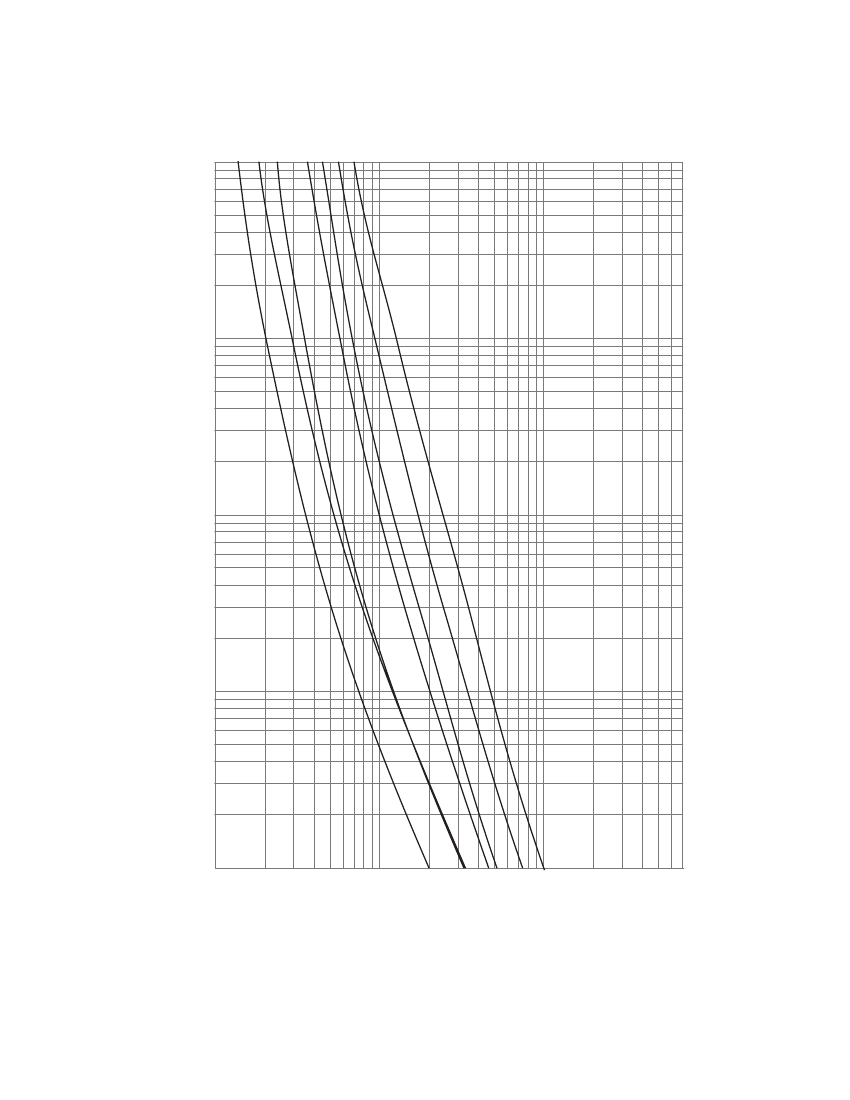

Current-limiting E-Rated medium voltage
fuses are defined by their melting time-current
characteristic that permit their electrical
interchangeability with other fuses of the same
E Rating.
E-Rated fuses must have a defined current
response time specified by ANSI C37
.46.
E-Rated fuse of 100 amps and below must
melt in 300 seconds at an RMS current within
the range of 200% to 240% of the fuse’s
nameplate current rating. E-Rated fuses greater
than 100 amps must melt in 600 seconds at an
RMS current within the range of 220% to 264%
of the fuse’s nameplate current rating.
E-Rated fuses are physically dimensioned for
easy installation in existing hardware.
Current-limiting fuses provide positive
interruption even on low fault currents. The
fuse limits the magnitude of electromechanical
stresses in the protected apparatus.
Constructions available in ferrule, bolt-on
and clip-lock, and specialty mount fuses for
AMPGARD motor starters
Outdoor rating available on select catalog
numbers (requires installation in a suitable
enclosure).
Open fuse indicator easily integrates
into automation schemes and speeds
troubleshooting by providing a positive visual
indication of fuse operation.
Optional remote contact signaling microswitch
available.
50/60Hz operating frequency for worldwide
application.
Mountings are available in disconnect and non-
disconnect versions with porcelain or glass poly-
ester insulators.
Live parts and end fittings available.
•
•
•
Description:
•
Bussmann
™
series of E-Rated, current-limiting,
medium voltage fuses are for feeder circuit,
switchgear and transformer protection.
•
•
•
•
•
•
•
Typical applications:
•
Medium voltage transformer primary
protection
Medium voltage feeder circuit protection
Medium voltage switches
Medium voltage metal-enclosed switchgear
•
•
•
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection

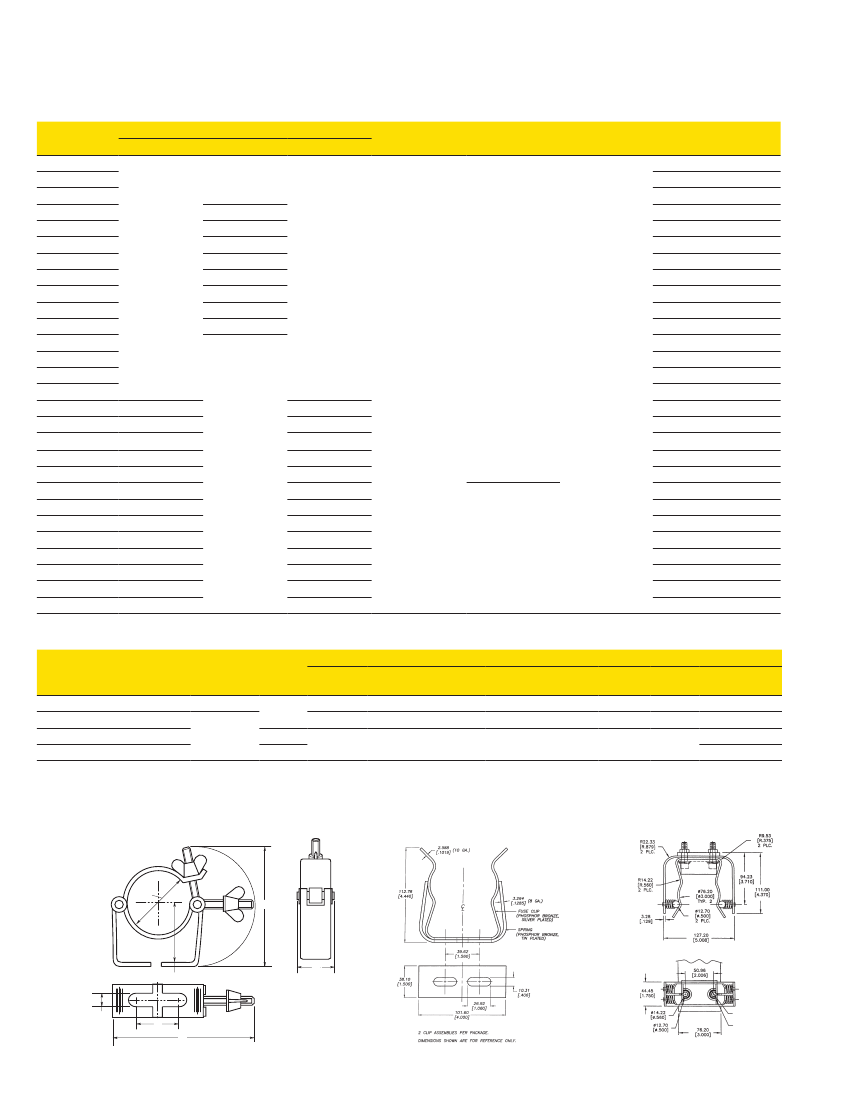

Dimensions (see catalog number tables for values)
E-Rated medium voltage ferrule fuses
Catalog symbols:
•
C
B
General purpose
•
•
•
•
15CLE-_E-D (long construction, 10-25A)
15CLE-_E (long construction, 15-300A)
15HLE-_E (short construction, 10-250A)
15LHLE-_E (intermediate construction, 65-300A)
MV155F_
•
Full range (per ANSI C37
.40)
•
3.31
(84.1)
Ratings*:
•
•
•
B
A
Volts — 15.5kV
Amps — 10 to 300A
Interrupting ratings — 31.5 to 63kA RMS Sym.
* See catalog number tables for voltages, ampacities and interrupting ratings by
catalog number.
Agency information:
•
E-Rated fuses meet the performance characteristics of
ANSI C37
.46
UL Listed, Guide JEEG, File E240398. See catalog numbers.
•
Recommended fuseclips and holders:
Catalog number
Fuse
mounting
type*
Approximate dimensions - in (mm)
Voltage
BIL (kV)
95
110
95
110
95
110
95
110
110
110
95
95
95
95
—
—
—
—
3 (76)
20 (508)
23.9 (607)
3 (76)
20 (508)
23.9 (607)
2 (51)
20 (508)
21.5 (546)
Diameter
Clip center
Length
Mounting
(including live parts, end fittings)**
Porcelain insulator
Glass-polyester
insulator
15CLE-GNM-C
—
15CLE-GDM-C
—
15CLE-GNM-D
—
15CLE-GNM-D
—
—
—
15HLE-GNM-D
15HLE-GDM-D
—
—
Not available
Not available
Not available
Not available
Live parts
(including
end fittings)
CLE-NL-C
CLE-NL-C
CLE-DL-C
CLE-DL-C
CLE-NL-D
CLE-NL-D
CLE-DL-D
CLE-DL-D
CLE-NL-E
CLE-DL-E
CLE-NL-D
CLE-DL-D
CLE-NL-E
CLE-DL-E
CLE-NL-D
CLE-DL-D
CLE-NL-E
CLE-DL-E
End fittings
(disconnect
only)
—
—
CLE-DF-C
CLE-DF-C
—
—
CLE-DF-D
CLE-DF-D
—
CLE-DF-E
—
CLE-DF-D
—
CLE-DF-E
Amp rating
CLE
15E–25E
Single barrel
Non-disconnect
Disconnect
†
Non-disconnect
Disconnect
†
Non-disconnect
Disconnect
†
15CLE-PNM-C
15CLE-HPNM-C
15CLE-PDM-C
15CLE-HPDM-C
15CLE-PNM-D
15CLE-HPM-D
15CLE-PDM-D
15CLE-HPDM-D
15CLE-PNM-E
15CLE-PDM-E
15HLE-PNM-D
15HLE-PDM-D
15HLE-PNM-E
15HLE-PDM-E
Not available
Not available
Not available
Not available
10E-D–25E-D
30E–150E
Single barrel
175E–300E
Double barrel
HLE
10E-125E
Single barrel
150E–250E
Double barrel
Non-disconnect
Disconnect
Disconnect
†
3 (76)
3 (76)
15 (381)
15 (381)
18.9 (480)
18.9 (480)
Non-disconnect
†
LHLE
65E–150E
Single barrel
175E–300E
Double barrel
Non-disconnect
Disconnect
Disconnect
†
3 (76)
3 (76)
18 (457)
18 (457)
20.53 (521)
20.53 (521)
—
CLE-DF-D
—
CLE-DF-E
Non-disconnect
†
* See page 10 for illustrations and dimensions
** End fittings supplied only when required.
† Disconnect mountings provide a means for fuse extraction only. Do not use a disconnect mounting for load switching or fuse removal while energized.
2
