BK1-TDC11-15-R: DescriptionCartridge Fuses 1.5A 250V Time Delay; CategoryCircuit protection; File Size355KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK1-TDC11-15-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BK1-TDC11-15-R	-	-	View	Buy Now

BK1-TDC11-15-R Overview

Cartridge Fuses 1.5A 250V Time Delay

BK1-TDC11-15-R Parametric

Parameter Name	Attribute value
Product Category	Cartridge Fuses
Manufacturer	Eaton
RoHS	Details
Product	Glass Fuse
Current Rating	1.5 A
Fuse Type	Time Delay / Slow Blow
Fuse Size / Group	3AG (6.3 mm x 32 mm)
Voltage Rating AC	250 VAC
Mounting Style	Holder / Clip
Packaging	Bulk
Body Style	Cylindrical
Diameter	6.35 mm
Indicator Style	Without Indicator
Interrupt Rating	15 A at 250 V
Length	31.8 mm
Factory Pack Quantity	1000
Termination Style	Clip
Unit Weight	0.098767 oz

Preview

Download Datasheet

View All

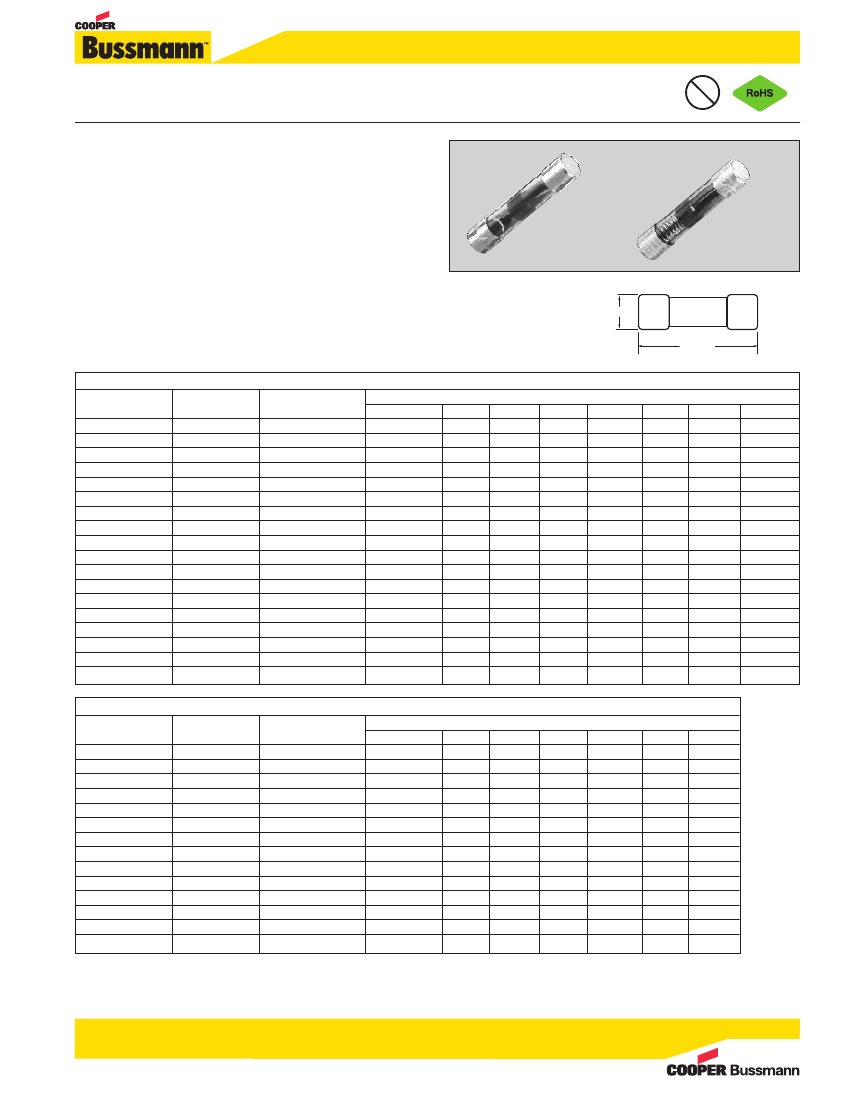

1

⁄

4

” x 1

1

⁄

4

” Glass Tube Fuses

TDC10 Series (Fast-Acting) & TDC11 Series (Time-Delay)

Description

• TDC10 Series fast-acting

• TDC11 Series time-delay

• Lead free and RoHS compliant

•

1

⁄

4

" x 1

1

⁄

4

" physical size

• Glass tube, electroplated brass endcap construction

• Interrupting rating equals 10 times rated current

• TDC10 Series designed to British Standard BS2950A

Ordering

Specify part number and product code prefix,

e.g.: BK/TDC10-20-R

Pb

Drawing Not to Scale

Dimensions - mm

6.35

31.8

Part

Number

TDC10-50-R

TDC10-60-R

TDC10-100-R

TDC10-150-R

TDC10-250-R

TDC10-500-R

TDC10-750-R

TDC10-1-R

TDC10-1.5-R

TDC10-2-R

TDC10-3-R

TDC10-5-R

TDC10-7-R

TDC10-10-R

TDC10-12-R

TDC10-15-R

TDC10-20-R

TDC10-25-R

Amps

50mA

60mA

100mA

150mA

250mA

500mA

750mA

1

1.5

2

3

5

7

10

12

15

20

25

F

AST

-A

CTING

Voltage Rating

(Vac)

1000

750

500

350

250

150

100

32

TDC10 S

ERIES

S

PECIFICATIONS

Interrupting Rating (amps @ rated voltage) *

1000V

750V

500V

350V

250V

150V

100V

500mA

—

600mA

—

1

—

1.5

—

2.5

—

5

—

7.5

—

10

—

15

—

20

—

30

—

50

—

70

—

100

—

32V

—

120

150

200

250

Part

Number

TDC11-50-R

TDC11-60-R

TDC11-100-R

TDC11-150-R

TDC11-250-R

TDC11-500-R

TDC11-750-R

TDC11-1-R

TDC11-1.5-R

TDC11-2-R

TDC11-3-R

TDC11-5-R

TDC11-7-R

TDC11-10-R

Amps

50mA

60mA

100mA

150mA

250mA

500mA

750mA

1

1.5

2

3

5

7

10

T

IME

-D

ELAY

TDC11 S

ERIES

S

PECIFICATIONS

Voltage Rating

Interrupting Rating (amps @ rated voltage) *

(Vac)

1000V

750V

500V

350V

250V

150V

100V

1000

500mA

—

1000

600mA

—

1000

1

—

1000

1.5

—

1000

2.5

—

750

—

5

—

500

—

7.5

—

350

—

10

—

250

—

15

—

250

—

20

—

250

—

30

—

250

—

50

—

150

—

70

—

100

—

100

* Interrupting Rating: Interrupting rating is 10 times the rated current.

** DC Cold Resistance (Measured at <10% of rated current)

0313

BU?SB13328

Page 1 of 2

Data Sheet OC?2602
