380-018

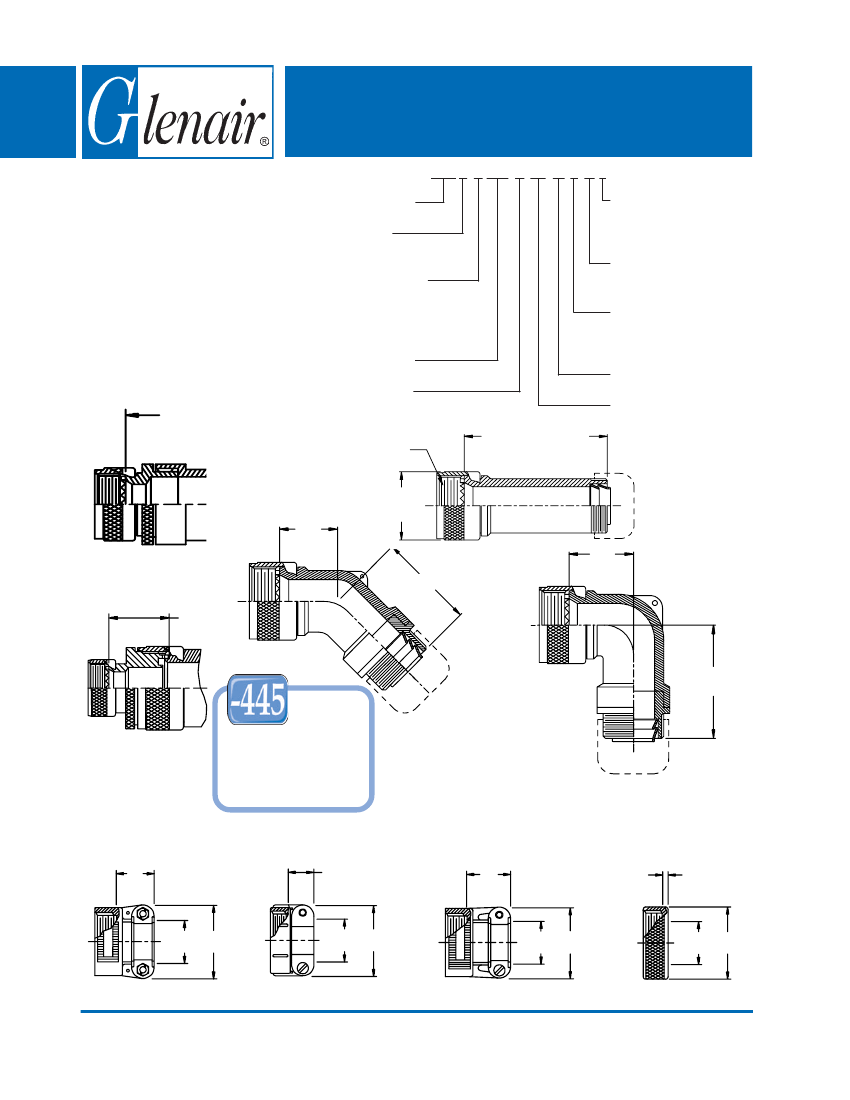

EMI/RFI Non-Environmental Backshell
with Strain Relief
Type E - Rotatable Coupling - Low Profile
380 F S 018 M 24 12 D A 6
38
CONNECTOR
DESIGNATORS
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
A-F-H-L-S
ROTATABLE
COUPLING
TYPE E INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style
(H, A, M, D)
Termination (Note 5)
D = 2 Rings
T = 3 Rings
Cable Entry (Table X, XI)
Finish (Table II)
Shell Size (Table I)
A Thread
(Table I)
Length ± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)
C Typ.
(Table I)
E
(Table III)
STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
F (Table III)
G
(Table III)
H (Table III)
Now Available
with the “NESTOR”
STYLE 2
(45° & 90°
See Note 1)
STYLE H
Heavy Duty
(Table X)
T
Glenair’s Non-Detent, Spring-
Loaded, Self- Locking Coupling.
Add “-445” to Specify This
AS85049 Style “N” Coupling
Interface.
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 84
with Strain Relief
Type E - Rotatable Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
Shell Size
Conn. Desig.
A-F-L-S
H
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
TABLE III: ELBOW DIMENSIONS
E
Max
.520 (13.2)
.615 (15.6)
.630 (16.0)
.720 (18.3)
.905 (23.0)
.995 (25.3)
.995 (25.3)
1.145 (29.1)
1.145 (29.1)
F
Max
1.680 (47.2)
1.800 (45.7)
1.820 (46.2)
1.890 (48.0)
1.980 (50.3)
2.150 (54.6)
2.150 (54.6)
2.260 (57.4)
2.260 (57.4)
G
Max
.477 (12.7)
.540 (13.7)
.602 (15.3)
.665 (19.6)
.758 (19.2)
.946 (24.0)
.946 (24.0)
1.040 (26.4)
1.040 (26.4)
H
Max
1.730 (43.9)
1.730 (43.9)
1.790 (45.5)
1.880 (47.8)
1.990 (50.5)
2.180 (55.4)
2.180 (55.4)
2.330 (59.2)
2.330 (59.2)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
Dash
No.
04
06
08
10
12
16
20
24
28
32
TABLE X: CABLE ENTRY
T
V
Cable Range
Max
Max
Min
Max
.780 (19.8)
.957 (24.3)
.125 (3.2) .312 (7.9)
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
.780 (19.8) 1.332 (33.8)
.312 (7.9) .562 (14.3)
.350 (8.9) .625 (15.9)
.780 (19.8) 1.332 (33.8)
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
.875 (22.2) 1.250 (31.8)
1.092 (27.7) 2.113 (53.7)
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
1. When maximum cable entry (page 21) is
exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are indicated in
parentheses.
3. Cable range is defined as the accommo-
dations range for the wire bundle or
cable. Dimensions shown are not
intended for inspection criteria.
4. Consult factory for shorter lengths on
straight backshells.
5. Designate Symbol T for 3 ring termina-
tion of individual and overall braid.
Designate D for standard 2 ring termina-
tion of individual or overall braid.
TABLE XI: CABLE ENTRY
Dash
Z
X
Y
W
Cable Range
No.
Max
Max
Max
Min **
Max
Max
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9) .281 (7.1) .438 (11.1)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp.
** Not Applicable Style D
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 85
38
380-018
EMI/RFI Non-Environmental Backshell
