20468-0000-11 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 20468-0000-11

Preview

20468-0000-11: DescriptionMemory Card Connectors CF CARD TO PC CARD ADAPTER; CategoryThe connector The connector; File Size20KB，1 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

20468-0000-11 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	20468-0000-11	-	-	View	Buy Now

20468-0000-11 Overview

Memory Card Connectors CF CARD TO PC CARD ADAPTER

20468-0000-11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	3M
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	BOARD CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE-FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	468
Mixed contacts	NO
触点数量:侧 1	68
触点数量:侧 2	50
Number of rows loaded	2
Options	GENERAL PURPOSE
direct connection	YES
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

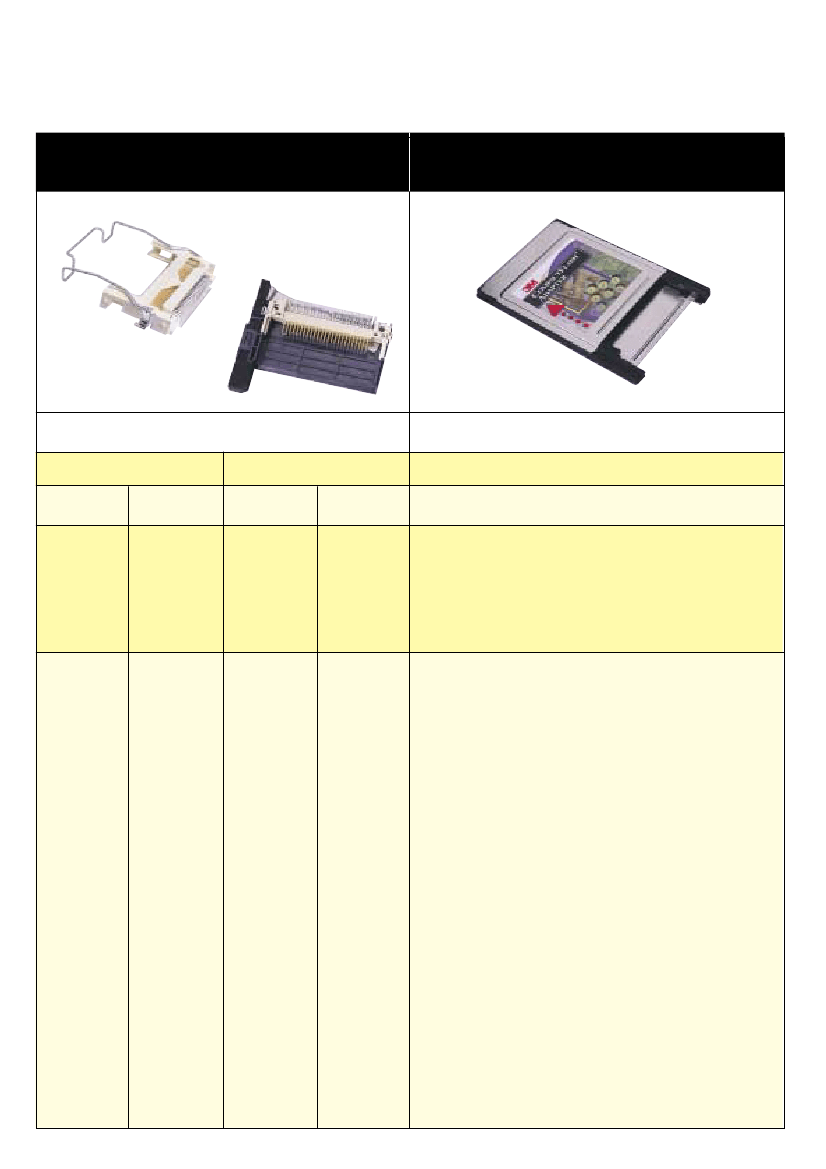

Memory Card Connectors (50/68 pos)

Surface Mount Headers • Memory Card Adapter

HEADER

ADAPTER

SURFACE MOUNT HEADERS

Type 1 Compact Flash Card

Standard Profile

(6.4 mm)

Low Profile

(4.0 mm)

Type 2 Compact Flash Card

With

Standoffs

Without

Standoffs

ADAPTER (COMPLETE CARD)

N7E50 -

7516

VY - 20 N7E50 -

E516

VY - 30 N7E50 -

7516

HG - 50

20468 - 0000 -

00

N7E50 -

A516

VY - 20 N7E50 -

A516

VY - 30 N7E50 -

A516

HG - 50

20468 - 0000 -

11

7 : Normal polarisation E : Normal polarisation 7 : Normal polarisation

A : Inverse polarisation A : Inverse polarisation

A : Inverse polarisation

00 : No label

11 : 3M label

Ejector :

D7E50 - 7316 - 03

Ejector :

D7E50 - 8316 - 03

Ejector :

7E50 - 9316 - 04

(for normal version)

Retainer Clip :

3505 - 34

7E50 - A316 - 04

(for inverse version)

Only for C/F type 1 memory card
