M29504-4-4040 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M29504-4-4040

M29504-4-4040: DescriptionHand Tools; CategoryThe connector; File Size222KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

M29504-4-4040 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M29504-4-4040	-	-	View	Buy Now

M29504-4-4040 Overview

Hand Tools

M29504-4-4040 Parametric

Parameter Name	Attribute value
Product Category	Fiber Optic Connectors
Manufacturer	Glenair
RoHS	Details
Product	Terminus
Mode	Multimode
Fiber Diameter	50 um, 125 um
Color	Silver
Number of Positions	16 Position
Packaging	Tray
Body Material	Aluminum
Features	Military approved
Factory Pack Quantity	1

Preview

Download Datasheet

View All

.300 (7.6)

.262 (6.7) Min.

.062 (1.6)

Ø.130

Max

Fiber Optic

D38999

Series III

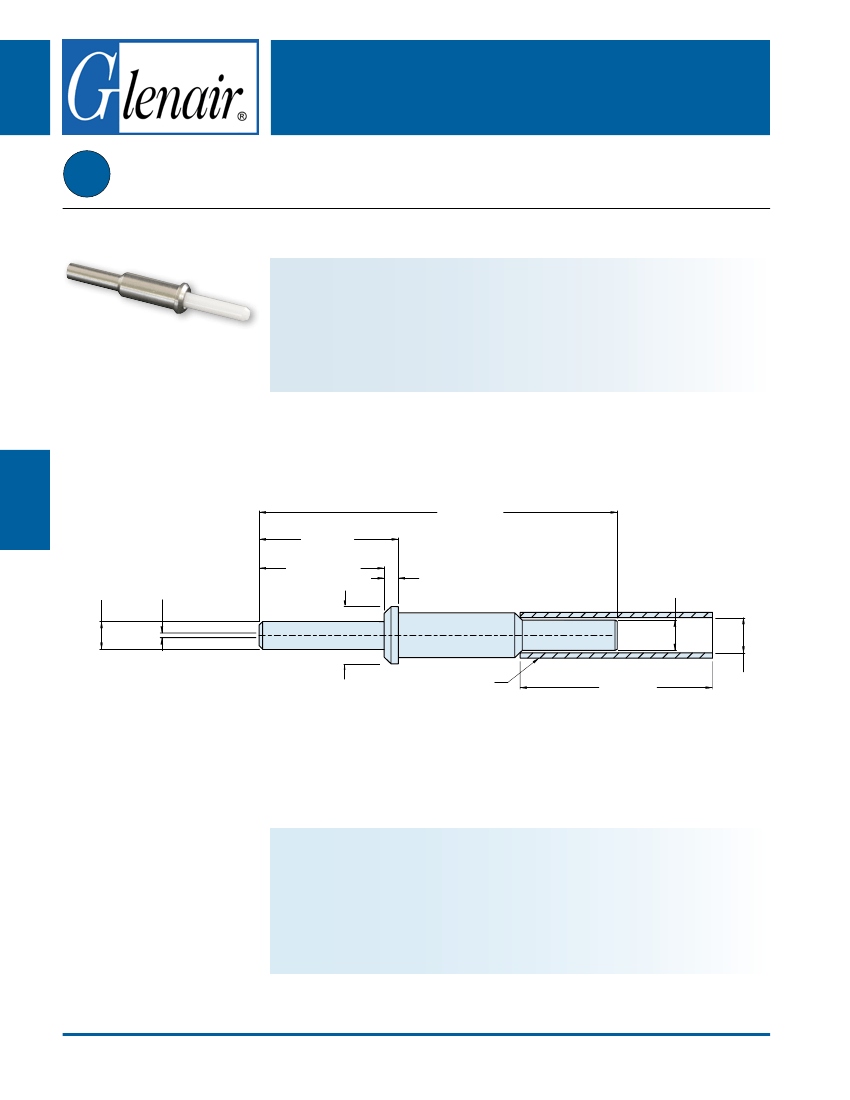

Size 16 MIL-DTL-38999 Type Fiber Optic Pin Terminus

M29504/4

181-002

Ultra Low dB loss QPL’d Pin Terminus for MIL-DTL-38999

Glenair’s unique alignment techniques maximize optical performance and provide reliable,

repeatable interconnection of optical fibers. Ferrule design, critical to the performance of

the termini, has traditionally relied on a machined stainless steel ferrule incorporating a

precision micro drilled hole. Glenair’s unique precision ceramic ferrules, with concentricity

and diametric tolerances controlled within a micron (.00004 of an inch) meet the needs of

high bandwidth and low allowable insertion loss applications. In fact, Glenair’s ferrules are

approximately 10 times more accurate than alternative designs, and have reduced insertion

loss values from 1.5dB to less than .5dB (typical loss for Glenair termini is .3 dB).

.783 (19.9)

.031 (0.8)

.069 (1.8)

Shrink Tube

.500 (12.7)

.080 (2.0)

Max Dia

Cable

Material and Finish

Ferrule: Zirconia Ceramic

Terminus Assembly: Stainless Steel/Passivate

Shrink Tube: Kynar

Assembly

Recommended insertion/Extraction tool: P/N: M81969/14-03 or equivalent

See Glenair assembly procedure GAP-015 for complete termination instructions.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
