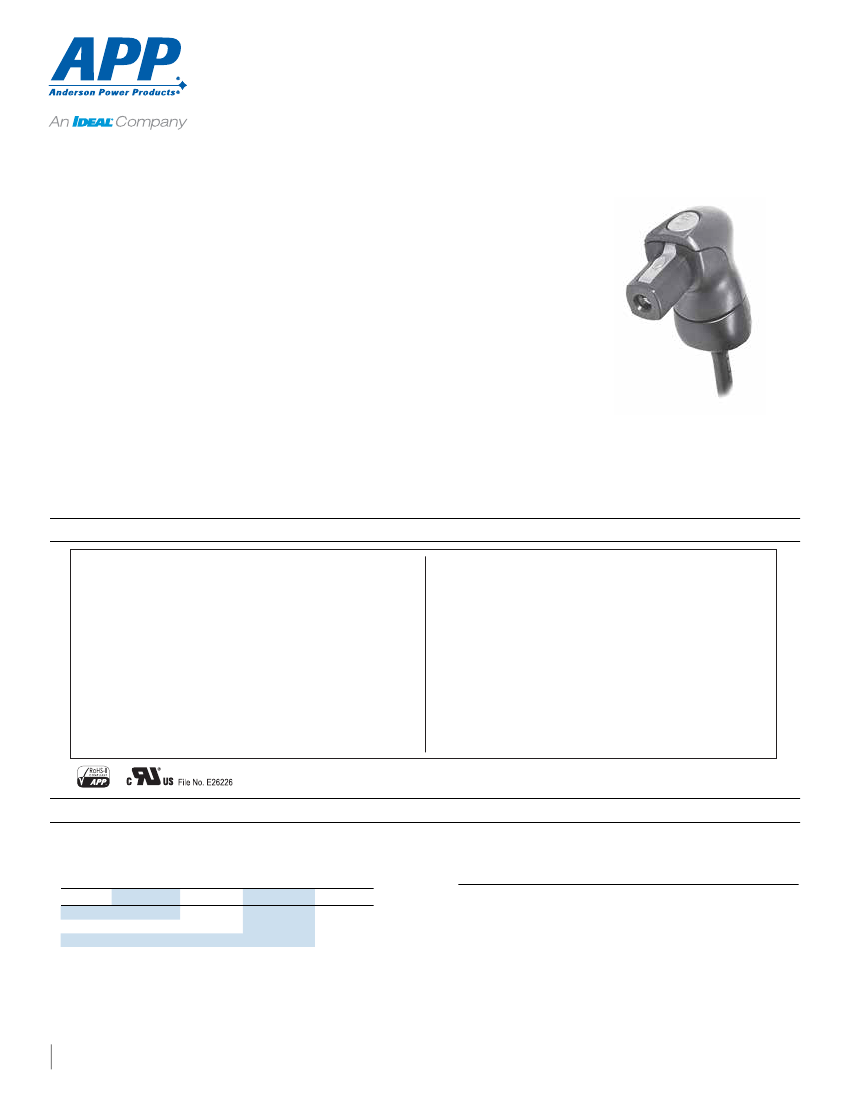

Single Pole Right Angle Female - Series B
PowerMod HP connectors, developed by
Anderson Power Products, are the innovative
New Generation of High Power
Interconnections for the Electronics Industry.
The touch-safe, positive latching, PowerMod
HP female connector design presents a new
standard for high power connector safety. The
ergonomic latch release is simple to operate
and is colored blue for clear identification.
Housings are a black UL94 V-0 flame retardant
material.
PowerMod HP contacts are durable and rated
for circuit interruption (true hot-pluggable).
Series B contacts are available in 1/0 to 4/0
American wire gauge and 50mm
2
to 95mm
2
metric wire sizes for global design freedom.
Our *strain relief ensures superior contact
reliability under adverse operating conditions.
The PowerMod HP connectors embody the
highest quality in the industry and meet all
applicable industry standards.
* Strain relief not optional on right angle
PowerMod HP
®
Features
Offers short mated length for tight wiring
applications
•
Right angle connector
•
Positive latching
Integral Latches with ergonomic release provide
over 50 lbs retention
Provides IP20 protection for safe, energized use
outside the electronics cabinet
•
Touch safe female connectors
•
High performance, hot pluggable
female contacts
Our patented design provides greater longevity for
high power, elevated temperature applications
•
Low connector mating forces
Connectors are easily mated and un-mated
SPECIFICATIONS
Electrical
Current Rating (Amperes)
UL
CSA (30°C Rise)
UL / CSA Voltage Rating
Wire Size (AWG)
(mm²)
Dielectric Withstanding Voltage (AC)
Operating Temperature (°C)
(°F)
Ambient Temperature (°C)
(°F)
450
280
6 00
1/0 to 4/0
50 to 95
2200
-40° to 130°
-40° to 266°
-40° to 85°
-40° to 185°
Mechanical
Mating Force
Latch Retention Force
Contact Retention Force
Mating
a. No Load (mating cycles)
b. Under Load (Hot Plug 250 mating cycles @ 120V)
Materials
Housing & Cable Clamp
Latch
Contacts
Hardware
16.5 lbs. (74N) avg
50 lbs. (222N) min
150 lbs. (667N) min
500
150A
PBT UL94 V-0
PEI UL94 V-0
Copper alloy silver plate
Steel zinc chromate
ORDERING INFORMATION
PowerMod HP Part Number Plan - Single Pole
Right Angle Female
Series
PMHP
Series
B
Gender
F
Model
03
Wire Size
S09
B*
F - Female
03 - Single Pole R/A with cable clamp
S09 - 1/0 AWG to 50mm²
S08 - 2/0 AWG to 70mm²
S07 - 95mm²
S06 - 4/0 AWG
* Maximum wire size 4/0 AWG
Components
Part
Number
PMHPBF03
PMHPBS09
PMHPBS08
PMHPBS07
PMHPBS06
Description
Housing Kit with Cable Clamp, Female, Single Pole, R/A
Socket, Series B, Crimp for 1/0 AWG to 50mm² wire
Socket, Series B, Crimp for 2/0 AWG to 70mm² wire
Socket, Series B, Crimp for 95mm² wire
Socket, Series B, Crimp for 4/0 AWG wire
www.andersonpower.com
All Data Subject To Change Without Notice
Single Pole
Right Angle Female - Series B
ORDERING INFORMATION
Tooling
Pneumatic Production Tool
Wire Size
4/0
95mm²
2/0-70mm²
1/0-50mm²
Part
Number
1387G 2
1387G 2
1387G 2
1387G 2
Die P/N
1303G 3
1303G17
1303G16
1303G 8
Hand Tool
Wire Size
4/0
95mm ²
2/0-70mm²
1/0-50mm²
Hydraulic
1387G3
1387G3
1387G3
1387G3
Battery
1370G1
1370G1
1370G1
1370G1
Die P/N
1322G14
1322G1
1322G3
1322G13
Number of
Crimps
2
2
2
2
Locator P/N
1304G25
1304G25
1304G23
1304G23
Number of
Crimps
2
2
2
2

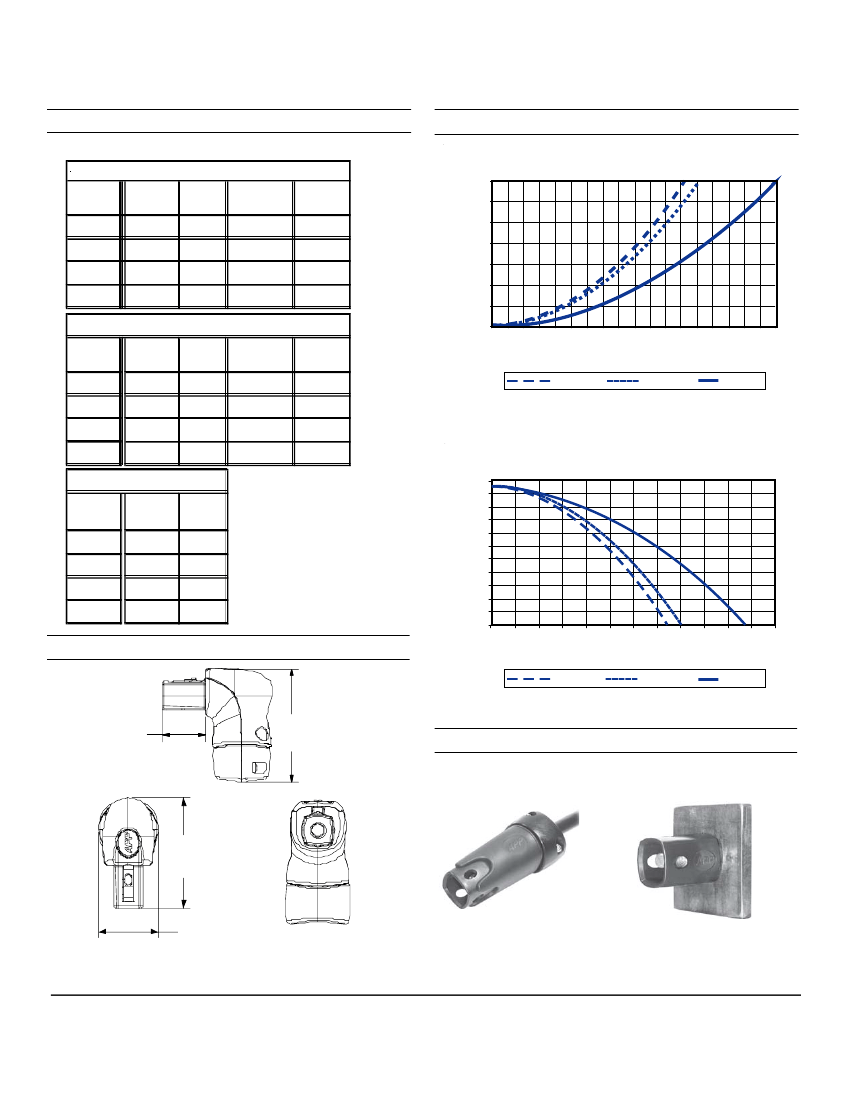

TEMPERATURE CHART
70
60
PowerMod®HP Single Pole Series “B”
Temperature Rise
Temperature (°C)
50
40
30
20
10
0
0
50
100
150
200
250
300
350
400
4/0 cable
450
Current (A)
1/0 cable
2/0 cable
* Double crimp is required to achieve stated electrical specifications
Wire Size
4/0
95mm²
2/0-70mm²
1/0-50mm²
Part
Number
1368
1368
1368
1368
Number
of Crimps
2
2
2
2
Ambient T emperature (°C)
Hydraulic Tool
110
100
90
80
70
60
50
40
30
20
10
0
PowerMod®HP Single Pole De-rating Curve Series “B”
Per IEC 60512-5
Side
[ 34.5 ]
1.36
DIMENSIONS
0
50 100 150 200 250 300 350 400 450 500 550 600
Current (A)
2/0 cable
1/0 cable
4/0 cable
* Double crimp is required to achieve stated electrical specifications
[ 85.6 ]
3.37
MATING CONNECTORS
Single Pole Male
Single Pole Bus Bar Male
Top
[ 87.6 ]
3.45
Front
[ 49.5 ]
1.95
All Data Subject To Change Without Notice
2017-0070
DS-BSPRAF REV 6
