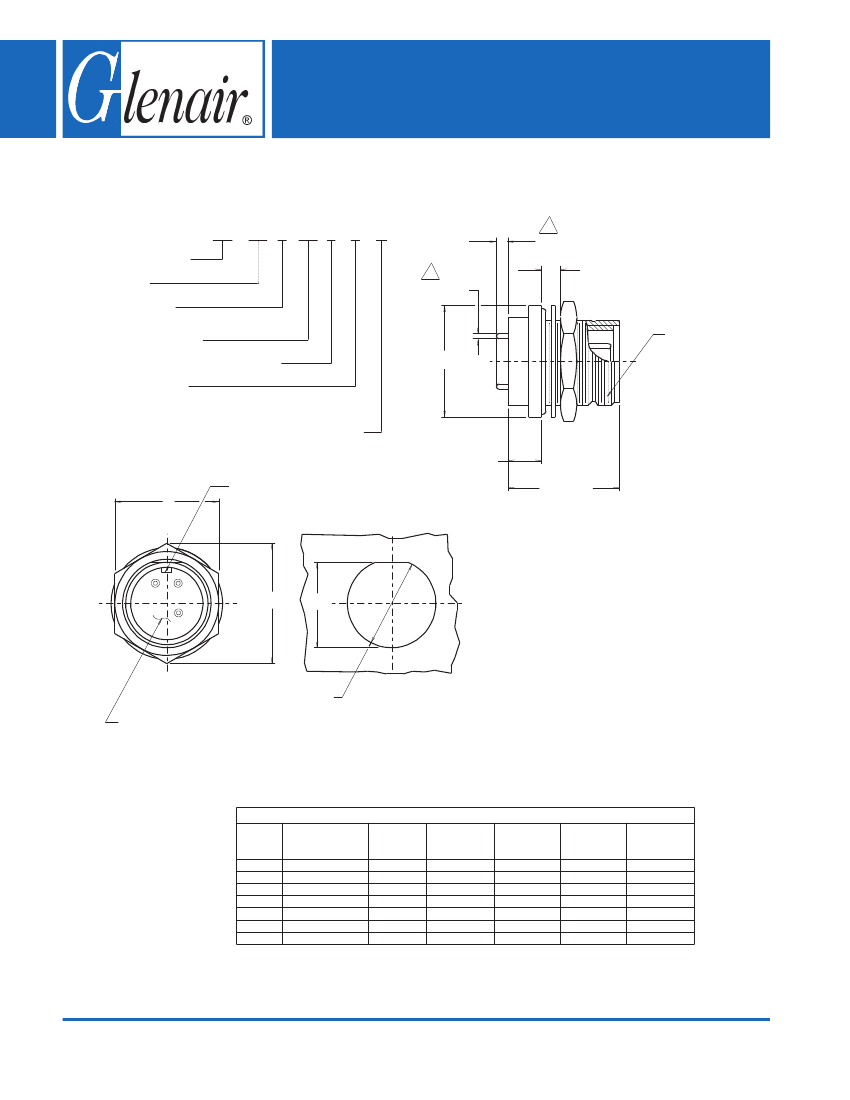

257-005

Stainless Steel Environmental Receptacle

CONNECTOR, RECEPTACLE,

ENVIRONMENT RESISTANT

WITH PRINTED CIRCUIT CONTACTS

MIL-DTL-5015

HOW TO ORDER:

EXAMPLE:

PRODUCT SERIES

BASIC NO

H = HERMETIC

OMIT FOR STD, SUBSTITUTE DASH

SHELL SIZE, TABLE I

INSERT ARRANGEMENT DASH NO.

CONTACT STYLE :

P = PIN

S = SOCKET (NON HERMETIC ONLY)

E

C

L

POLARIZING KEY

F

D

SHELL

SIZE

10SL

12

14S

18

20

24

28

www.glenair.com

257-005

with Printed Circuit Contacts

MIL-DTL-5015 Type

257 - 005 H 14S - 5

P

W

4

.170

4

.065/.060 DIA

.50 MAX. PANEL

A THREAD TYP.

B DIA

ALTERNATE INSERT POSITION, OMIT FOR NORMAL

.450/.440

1.82 MAX

C

L

C

RECOMMENDED

PANEL CUTOUT

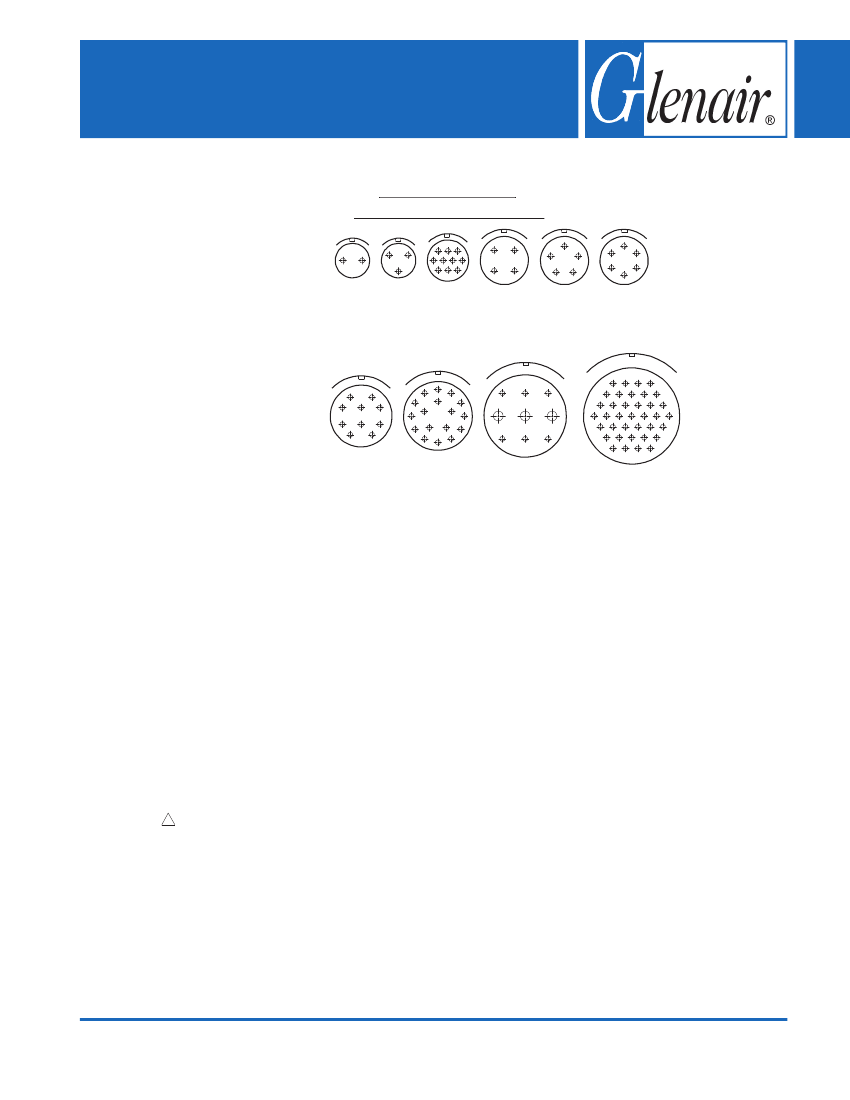

INSERT ARRANGEMENT WITH SOLDER POT

CONTACTS, SEE FACE VIEWS & P/N DEVELOPMENT

A THREAD

CLASS 2A

TABLE I: CONNECTOR DIMENSIONS

B DIA

MAX

1.03 (26.2)

1.16 (29.5)

1.28 (32.5)

1.66 (42.2)

1.78 (45.2)

2.03 (51.6)

2.28 (57.9)

C DIA

+.010 - .000

(+0.3 - 0)

.635 (16.1)

.760 (19.3)

.885 (22.5)

1.135 (28.8)

1.260 (32.0)

1.510 (38.4)

1.760 (44.7)

D

+.010 - .000

(+0.3 - 0)

.585 (14.9)

.710 (18.0)

.835 (21.2)

1.085 (27.6)

1.210 (30.7)

1.460 (37.1)

1.710 (43.4)

E

FLATS

F

REF

1.000 (25.4)

1.125 (28.6)

1.250 (31.8)

1.730 (43.9)

1.870 (47.5)

2.165 (55.0)

2.448 (62.2)

5/8 -24 UNEF

3/4 -20 UNEF

7/8 -20 UNEF

1 1/8 -18 UNEF

1 1/4 -18 UNEF

1 1/2 -18 UNEF

1 3/4 -18 UNEF

.870 (22.1)

.995 (25.3)

1.120 (28.4)

1.495 (38.0)

1.620 (41.1)

1.870 (47.5)

2.120 (53.8)

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

C-14
