M80-4D12642S1-00-000-00-000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M80-4D12642S1-00-000-00-000

M80-4D12642S1-00-000-00-000: DescriptionPower to the Board 13+13 WAY F CRIMP WITH BACKSHELL; CategoryThe connector The connector; File Size3MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-4D12642S1-00-000-00-000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-4D12642S1-00-000-00-000	-	-	View	Buy Now

M80-4D12642S1-00-000-00-000 Overview

Power to the Board 13+13 WAY F CRIMP WITH BACKSHELL

M80-4D12642S1-00-000-00-000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.421 inch
subject depth	0.724 inch
body length	1.583 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M80-4D1
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	M2
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	26
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

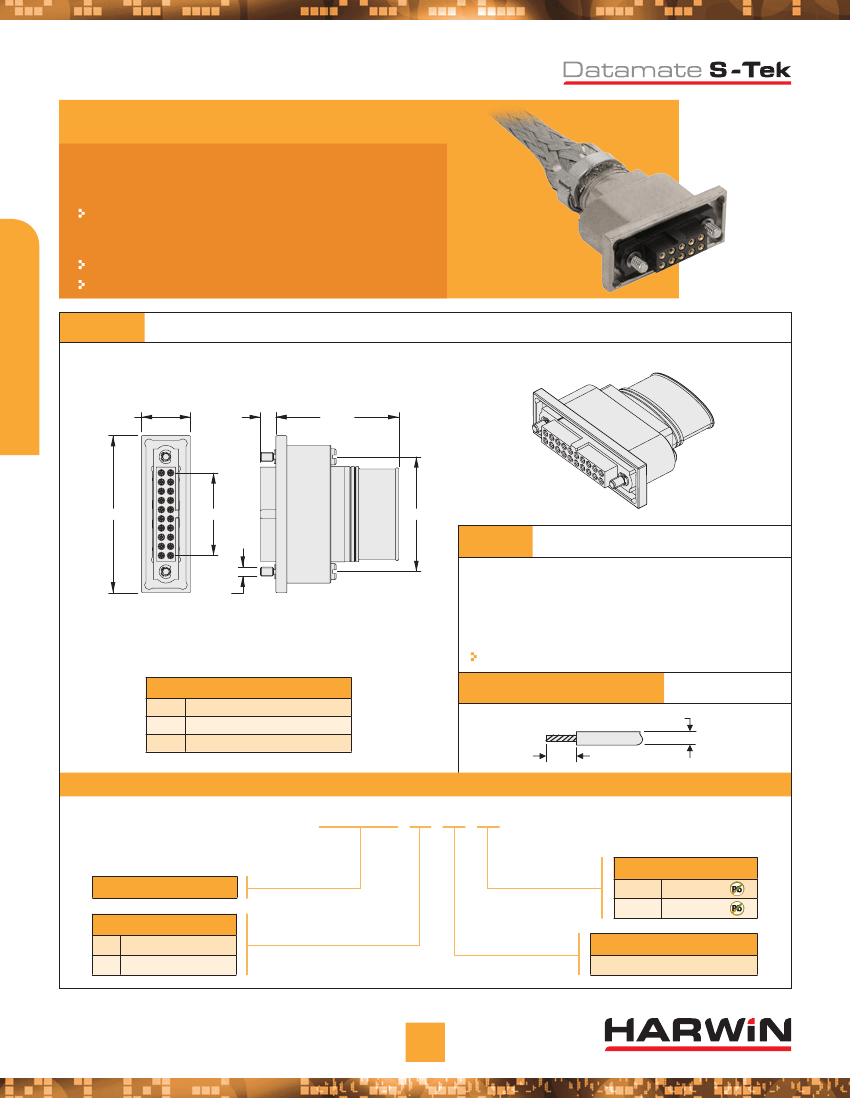

Datamate Connectors

Female Crimp with Metal Backshell

A range of shielded Datamate connectors, performing to the same

high-reliability standards, with the added feature of aluminium

backshells compatible with full 360° securing to braiding.

Supplied as a kit, including backshell, tie-band (not shown),

e-clips, Jackscrews, connector housing and contacts

(braiding not included).

For spare crimp contacts, see page 51.

Mates with male connectors shown on pages 73 and 74.

DATAMATE S-TEK

FEMALE

10.70

3.40

26.75

TOOLS

Recommended Crimp tool

– M22520/2-01

Positioner

– T5747

Contact insertion/Removal tool

– Z80-280

e-Clip Assembly tool

– Z80-300

See pages 87 to 89

Instruction sheets available at www.harwin.com/downloads/instructions

CALCULAtion

B + 16.20

Total no. of contacts - 2

B+7

wIrE STrIPPINg DETAILS

1.10 max

2.00 nominal

HOw TO OrDEr

M80 - 4 X1 XX XX s1

Finish

seRies CoDe

tyPe

Small Bore 24-28 AWG

Large Bore 22 AWG

All dimensions in mm.

Gold

Gold + Tin

totAL no. oF ContACts

06, 10, 14, 20, 26

www.harwin.com

M80-4D12642S1-00-000-00-000 Related Products

	M80-4D12642S1-00-000-00-000	M80-4D12042S1-00-000-00-000
Description	Power to the Board 13+13 WAY F CRIMP WITH BACKSHELL	Power to the Board 10+10 WAY F CRIMP WITH BACKSHELL
Is it Rohs certified?	conform to	conform to
Maker	Harwin	Harwin
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
body width	0.421 inch	0.421 inch
subject depth	0.724 inch	0.724 inch
body length	1.583 inch	1.346 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	GOLD (12)	GOLD (12)
Contact completed and terminated	Matte Tin (Sn)	Matte Tin (Sn)
Contact point gender	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO
Durability	500 Cycles	500 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3	e3
MIL compliance	NO	NO
Manufacturer's serial number	M80-4D1	M80-4D1
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch
Mixed contacts	NO	NO
Installation option 1	M2	M2
Installation option 2	JACKSCREW	JACKSCREW
Installation type	CABLE	CABLE
Number of rows loaded	2	2
Maximum operating temperature	120 °C	120 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	12u inch	12u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP
Total number of contacts	26	20
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.1946 N	.1946 N
