2-1445050-6 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2-1445050-6

Preview

2-1445050-6: DescriptionMICRO MNL HDR ASSY S/ROW LF; CategoryThe connector The connector; File Size179KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-1445050-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1445050-6	-	-	View	Buy Now

2-1445050-6 Overview

MICRO MNL HDR ASSY S/ROW LF

2-1445050-6 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	1809998
Samacsys Pin Count	6
Samacsys Part Category	Connector
Samacsys Package Category	Other
Samacsys Footprint Name	2-1445050-6-1
Samacsys Released Date	2019-03-27 14:25:21
Is Samacsys	N
Other features	MATE-N-LOK, POLARIZED
Board mount options	PEG
body width	0.223 inch
subject depth	0.364 inch
body length	0.748 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1445022-6
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.125 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

4

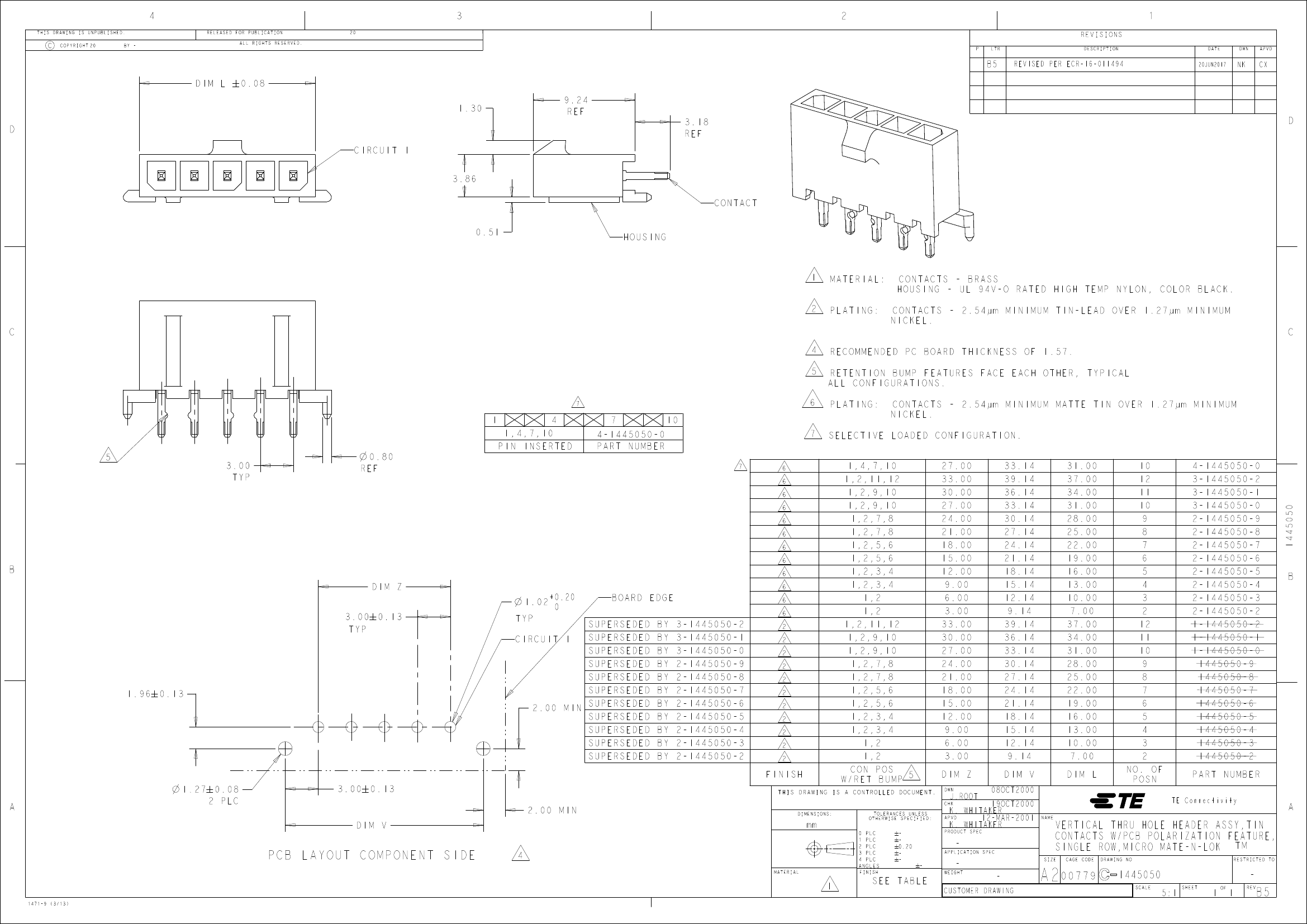

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

B5

DIM L

# 0.08

1.30

9.24

REF

REVISED PER ECR-16-011494

20JUN2017

NK

CX

D

CIRCUIT 1

3.86

3.18

REF

D

CONTACT

0.51

HOUSING

1

2

MATERIAL:

PLATING:

CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

C

4

5

7

CONTACTS - 2.54µm MINIMUM TIN-LEAD OVER 1.27µm MINIMUM

NICKEL.

C

RECOMMENDED PC BOARD THICKNESS OF 1.57.

RETENTION BUMP FEATURES FACE EACH OTHER, TYPICAL

ALL CONFIGURATIONS.

PLATING:

CONTACTS - 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

6

4-1445050-0

PART NUMBER

7

10

7

1

5

3.00

TYP

0.80

REF

PIN INSERTED

1,4,7,10

4

SELECTIVE LOADED CONFIGURATION.

1,4,7,10

27.00

33.14

31.00

10

4-1445050-0

6

1,2,11,12

1,2,9,10

1,2,7,8

1,2,5,6

1,2,3,4

1,2

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

39.14

36.14

33.14

30.14

27.14

24.14

21.14

18.14

15.14

12.14

39.14

36.14

33.14

30.14

27.14

24.14

21.14

18.14

15.14

12.14

9.14

DIM V

9.14

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

37.00

34.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM L

31.00

7.00

12

11

10

9

8

7

6

5

4

3

12

11

10

9

8

7

6

5

4

3

2

3-1445050-2

3-1445050-1

2-1445050-9

2-1445050-8

2-1445050-7

2-1445050-6

2-1445050-5

2-1445050-4

2-1445050-3

2-1445050-2

1-1445050-2

1-1445050-1

1-1445050-0

1445050-9

1445050-8

1445050-7

1445050-6

1445050-5

1445050-4

1445050-3

1445050-2

PART NUMBER

1445050

3-1445050-0

B

DIM Z

1.02

3.00

TYP

0.13

TYP

+0.20

0

BOARD EDGE

SUPERSEDED BY 3-1445050-2

SUPERSEDED BY 3-1445050-1

SUPERSEDED BY 3-1445050-0

SUPERSEDED BY 2-1445050-9

SUPERSEDED BY 2-1445050-8

1.96

0.13

SUPERSEDED BY 2-1445050-7

2.00

MIN

SUPERSEDED BY 2-1445050-6

SUPERSEDED BY 2-1445050-5

SUPERSEDED BY 2-1445050-4

SUPERSEDED BY 2-1445050-3

SUPERSEDED BY 2-1445050-2

1.27

0.08

2 PLC

3.00

0.13

2.00

DIM V

MIN

6

2

B

1,2,11,12

1,2,9,10

1,2,7,8

1,2,5,6

1,2,3,4

1,2

1,2,9,10

1,2,7,8

1,2,5,6

1,2,3,4

CIRCUIT 1

FINISH

CON POS

W/RET BUMP

5

DIM Z

DWN

CHK

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

mm

PCB LAYOUT COMPONENT SIDE

4

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.20

-

19OCT2000

K. WHITAKER

APVD

12-MAR-2001

K. WHITAKER

PRODUCT SPEC

APPLICATION SPEC

J.ROOT

08OCT2000

NAME

NO. OF

POSN

TE Connectivity

A

-

1

1471-9 (3/13)

SEE TABLE

WEIGHT

-

CUSTOMER DRAWING

A2

00779

SIZE

VERTICAL THRU HOLE HEADER ASSY,TIN

CONTACTS W/PCB POLARIZATION FEATURE,

TM

SINGLE ROW,MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

RESTRICTED TO

1445050

SCALE

5:1

SHEET

1

OF

1

REV

-

B5
