851-43-002-20-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 851-43-002-20-001000

851-43-002-20-001000: DescriptionIC u0026 Component Sockets; CategoryThe connector The connector; File Size535KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

851-43-002-20-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	851-43-002-20-001000	-	-	View	Buy Now

851-43-002-20-001000 Overview

IC u0026 Component Sockets

851-43-002-20-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.087 inch
subject depth	0.209 inch
body length	0.115 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	851
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	2

Preview

Download Datasheet

View All

INTERCONNECTS

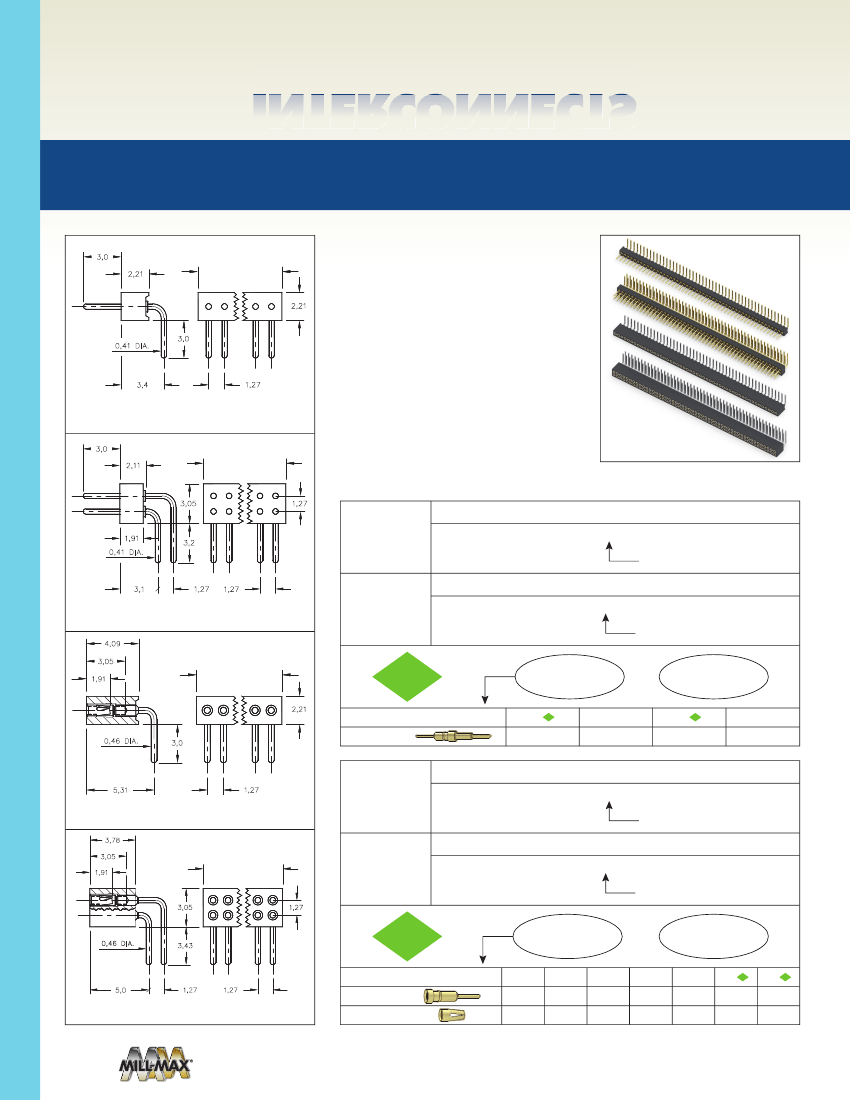

SERIES 850, 851, 852, 853 • 1,27 GRID RIGHT ANGLE

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

•

Series 850 and 851 interconnects are available

3,0

2,21

(Number of Pins

X 1,27) + 0,38

2,21

in single and double row form

•

Series 850 & 852 headers use MM #4006-1 and

#4006-2 pins. See page 208 for details

•

Series 851 & 853 sockets use MM #4890-1 and

0,41 DIA.

3,0

#4890-2 receptacles that accept pin diameters

from 0,38 - 0,53. See page 160 for details

1,27

3,4

•

Receptacles use Hi-Rel, 3- nger BeCu #11

contact rated at 3 amps. See page 251 for

details

FIG. 1

3,0

2,11

•

Insulators are high temperature thermoplastic,

(Number of Pins

X 1,27/2) + 0,38

suitable for all soldering operations

ORDERING INFORMATION

1,27

3,05

Series 850...001

Single Row Right Angle Pin Header

850 XX 0_ _ 20 001000

01-50

1,91

0,41 DIA.

3,2

FIG. 1

1,27

Specify number of pins

1,27

3,1

Series 852...001

Double Row Right Angle Pin Header

852 XX _ _ _ 20 001000

002-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

4,09

3,05

1,91

FIG. 2

RoHS - 2

Specify number of pins

XX=Plating Code

See Below

0,25µm Au

(Number of Pins

X 1,27) + 0,38

2,21

2011/65/EU

SPECIFY PLATING CODE XX=

Pin Plating

5,08µm Sn/Pb

5,08µm Sn

0,46 DIA.

3,0

Series 851...001

5,31

1,27

Single Row Right Angle Socket

851 XX 0_ _ 20 001000

01-50

FIG. 3

3,78

3,05

FIG. 3

Series 853...001

Specify number of pins

(Number of Pins

X 1,27/2) + 0,38

Double Row Right Angle Socket

853 XX _ _ _ 20 001000

002-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 36 | INTERCONNECTS

1,91

FIG. 4

1,27

Specify number of pins

3,05

0,46 DIA.

3,43

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

5,0

1,27

0,76µm Au

Au Flash

FIG. 4

Sleeve (Pin)

Contact (Clip)

5,08µm Sn/Pb 5,08µm Sn/Pb

5,08µm Sn 5,08µm Sn

0,76µm Au

2,54µm Sn/Pb

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

851-43-002-20-001000 Related Products

	851-43-002-20-001000	851-43-018-20-001000
Description	IC u0026 Component Sockets	IC u0026 Component Sockets
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Mill-Max	Mill-Max
package instruction	ROHS COMPLIANT	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant	compliant
body width	0.087 inch	0.087 inch
subject depth	0.209 inch	0.209 inch
body length	0.115 inch	0.915 inch
Body/casing type	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)	Tin (Sn)
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insulator color	BLACK	BLACK
insulator material	NYLON	NYLON
JESD-609 code	e3	e3
MIL compliance	NO	NO
Plug contact pitch	0.05 inch	0.05 inch
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	30u inch
Rated current (signal)	3 A	3 A
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch
Terminal pitch	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER
Total number of contacts	2	18
