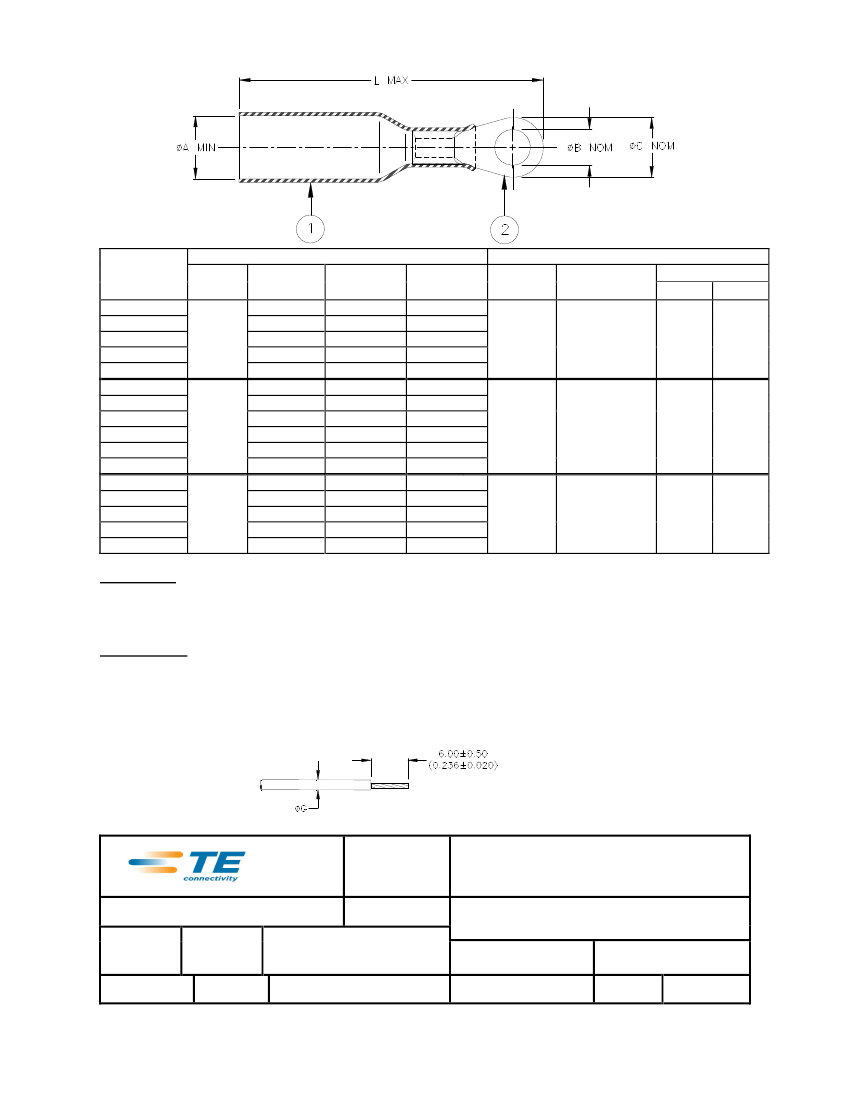

CUSTOMER DRAWING
Product
Name
B-106-1401
B-106-1501
B-106-1601
B-106-1801
B-106-1991
B-106-1402
B-106-1502
B-106-1502-S
B-106-1602
B-106-1802
B-106-1992
B-106-1403
B-106-1503
B-106-1603
B-106-1803
B-106-1993
øA
min
Product Dimensions
øB
øC
nom
nom
4.3 [0.170]
5.3 [0.210]
6.5 [0.255]
8.4 [0.330]
10.5 [0.415]
4.3 [0.170]
5.3 [0.210]
5.3 [0.210]
6.5 [0.255]
8.4 [0.330]
10.5 [0.415]
4.3 [0.170]
5.3 [0.210]
6.5 [0.255]
8.4 [0.330]
10.5 [0.415]
8.0 [0.315]
10.0 [0.395]
10.0 [0.395]
14.0 [0.550]
18.0 [0.710]
8.0 [0.315]
10.0 [0.395]
8.0 [0.315]
11.0 [0.435]
14.0 [0.550]
18.0 [0.710]
8.0 [0.315]
10.0 [0.395]
11.0 [0.435]
14.0 [0.550]
18.0 [0.710]
L
max
32.0 [1.260]
34.0 [1.340]
36.0 [1.420]
39.0 [1.535]
43.0 [1.695]
33.0 [1.300]
33.0 [1.300]
32.0 [1.260]
36.5 [1.440]
40.0 [1.575]
44.0 [1.735]
38.0 [1.495]
40.0 [1.575]
41.5 [1.635]
45.0 [1.770]
47.0 [1.850]
Color
(1)
Wire Dimensions
øG
Conductor
mm
2
(AWG)
min
max
0.5 - 1.0
(AWG 22-18)
1.4
[0.055]
4.0
[0.160]
4.0
[0.160)
Red
4.6
[0.180)
Blue
1.5 - 2.5
(AWG 16-14)
2.0
[0.080]
4.6
[0.180]
6.5
[0.255)
Yellow
3.0 – 6.0
(AWG 12-10)
2.8
[0.110]
6.5
[0.255]
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent color (1), radiation cross-linked modified polyamide with
thermoplastic adhesive coating inside.
2. RING TERMINAL: Tin plated copper alloy.
APPLICATION
1. These controlled crimp devices are designed to terminate a tin plated or bare copper stranded wire having an insulation rated
for at least 75C to a ring terminal. It will provide a splash proof and strain relief connection.
UL listed wire connection 91J4.
2. Temperature range: -55C to +125C.
3. For application tooling and installation, see RPIP-684-00.
For best results, prepare
the wire as shown:
300 Constitution Dr
Menlo Park, CA
94025, U.S.A.
TITLE:
DURASEAL RING TERMINAL
DOCUMENT NO.:
Unless otherwise specified dimensions are in millimeters.
[Inches dimensions are shown in brackets]
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
REVISED BY:
ANGLES: N/A
ROUGHNESS
IN MICRON
CAGE CODE:
Raychem
Devices
B-106-1XXX
REV:
DATE:
TE Connectivity reserves the right to amend
this drawing at any time. Users should
evaluate the suitability of the product for
their application.
ECO NUMBER:
B1
SCALE:
SIZE:
April 15, 2011
SHEET:
HMR
06090
ECO-11-005139
NTS
© 2006.2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company. All Rights Reserved.
If this document is printed it becomes uncontrolled. Check for the latest revision.
A
1 of 1
