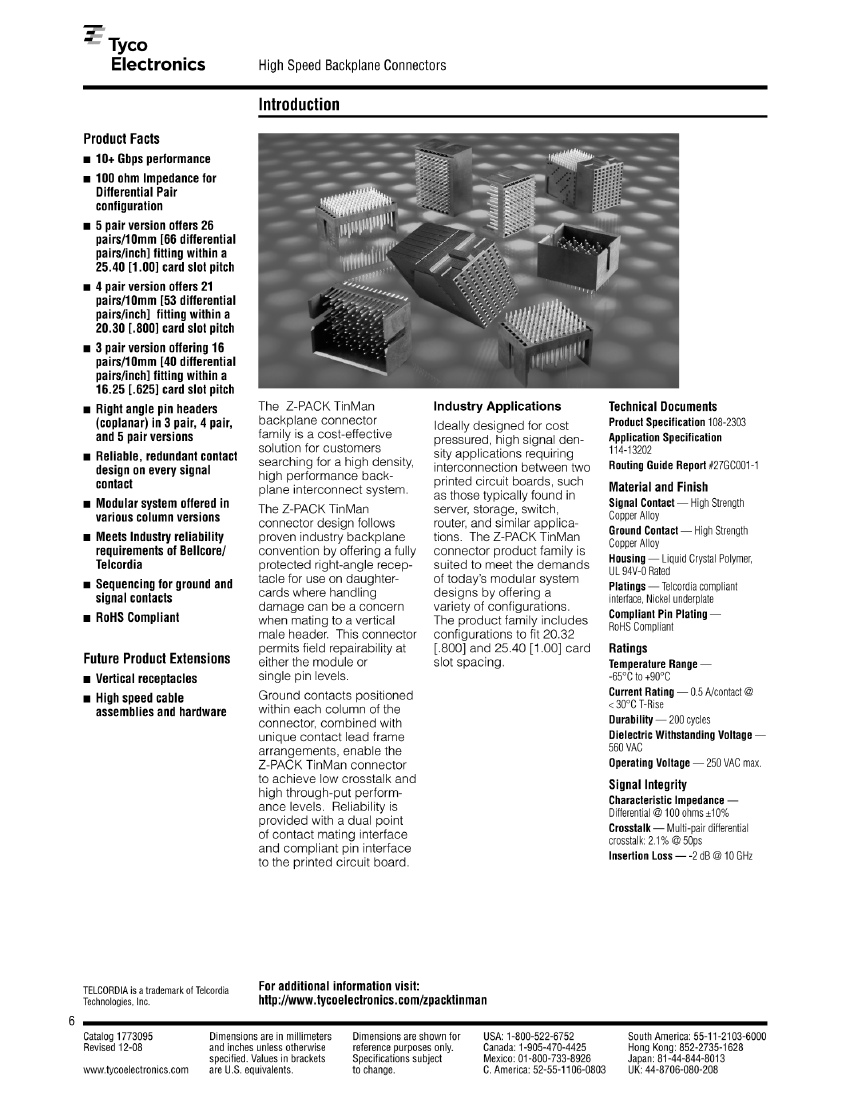

TinMan R/A Header Assy 5x8 Dou

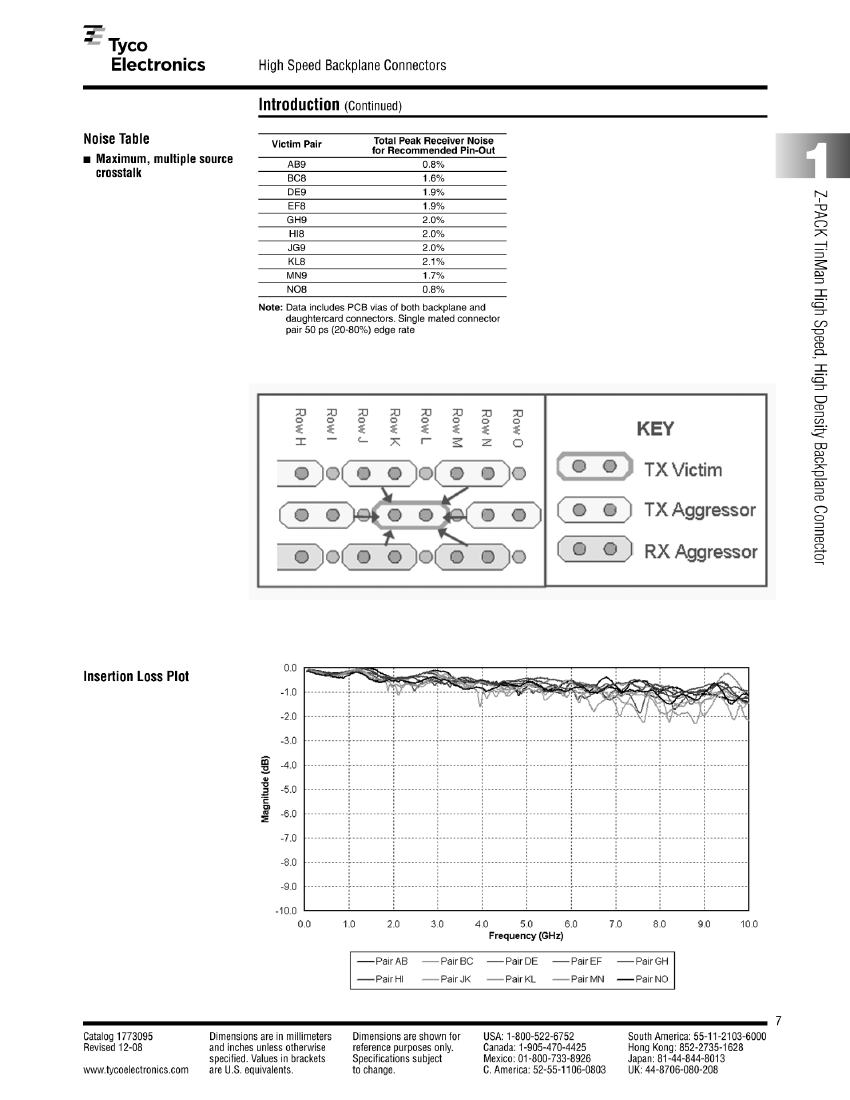

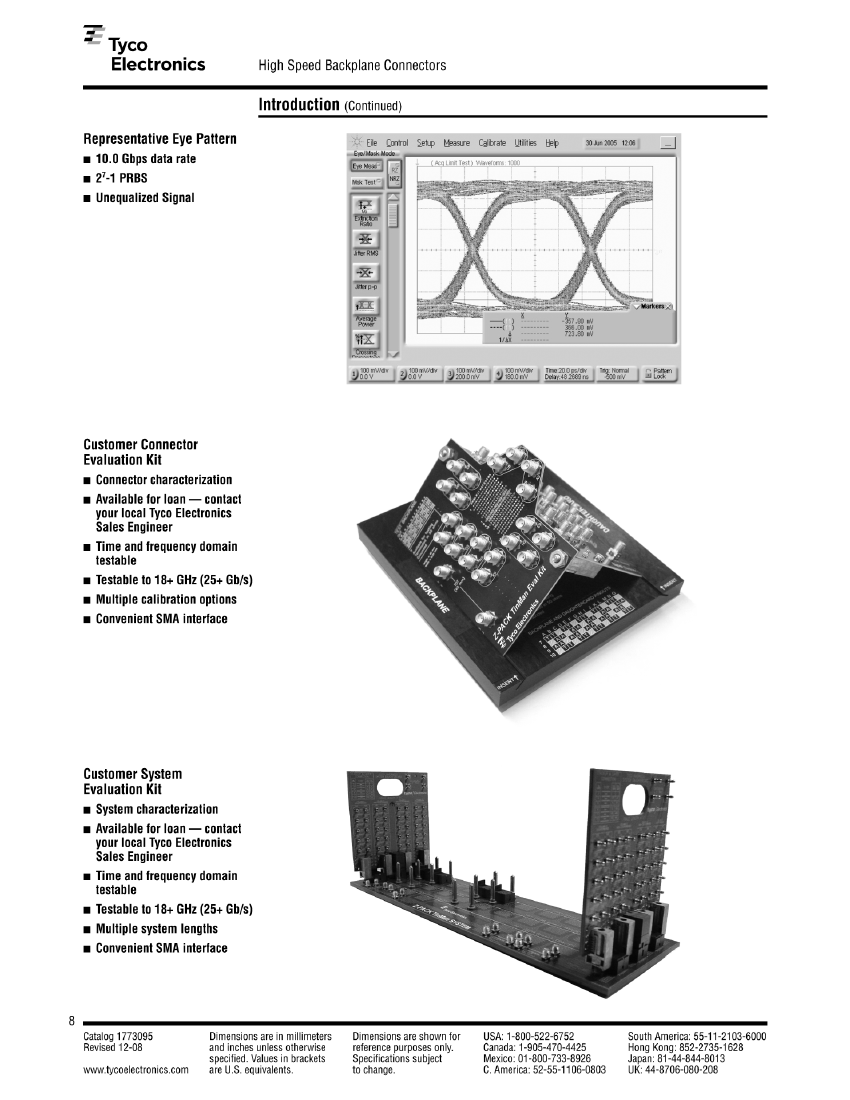

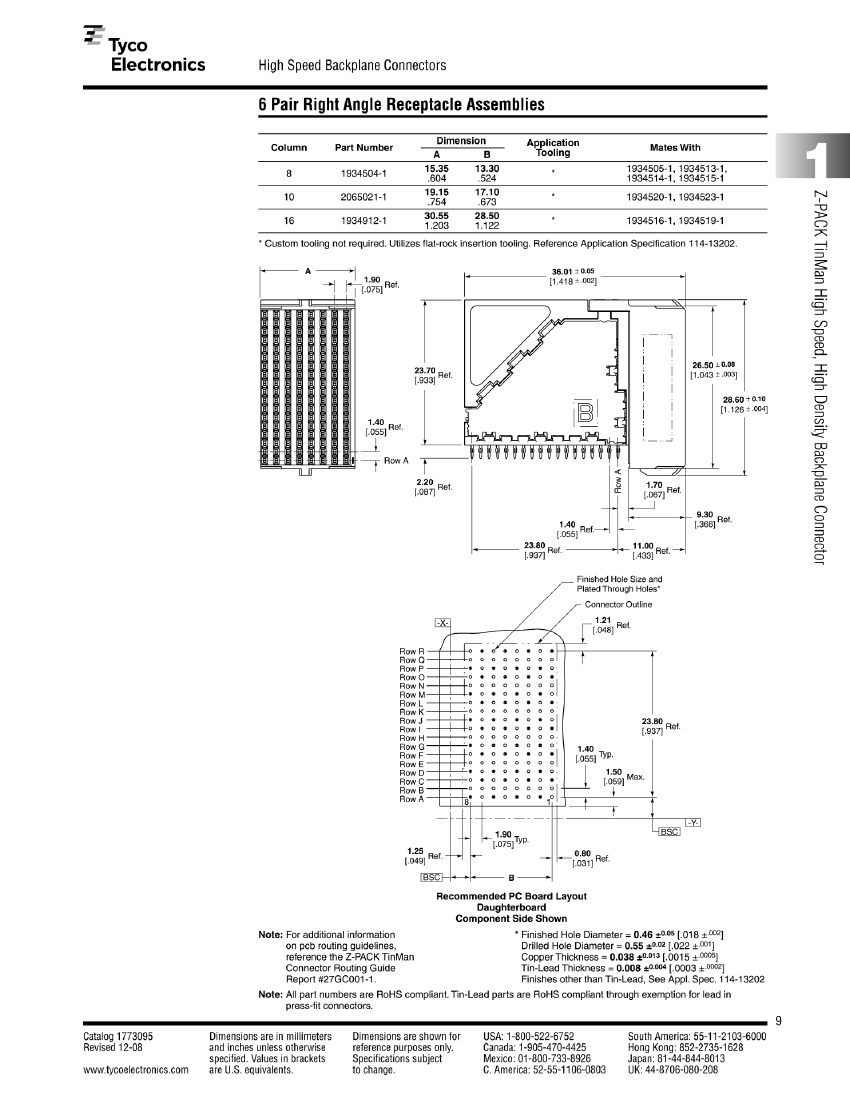

| Parameter Name | Attribute value |
| Connector System | Board to Board |
| Line spacing | 1.4 mm [ 0.055 in ] |
| Connector type | plug |
| with hood | All hooded |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Connector type | head |
| Signal arrangement | difference |
| Make first/break last | no |
| Number of signal positions | 80 |
| Stackable | no |
| Number of pairs | 40 |
| Number of Positions | 120 |
| Rows | 15 |
| Number of columns | 8 |
| Board-to-board configuration | Coplanar |
| PCB mounting direction | right angle |
| logarithm of each column | 5 |
| Impedance (Ω) | 100 |
| UL Voltage Rating (VAC) | 250 |
| Operating voltage (VAC) | 250 |
| Data rate (Gb/s) | 10 |
| Number of differential pairs per column | 5 |
| Differential impedance (Ω) | 100 |
| shielding material | Phosphor bronze |
| Terminal base material | Phosphor bronze |
| Terminal length (mm) | 6 |
| Contact Current Rating (Max) (A) | .5 |
| PCB terminal termination area plating material surface coating | matte |
| Terminal termination area plating material | tin |
| Terminal design | rectangular column |
| Terminal contact plating material | gold |
| Terminal type | Press fit |
| PCB terminal termination area plating thickness | .5 µm [ 20 µin ] |
| Terminal conduction (typ.) | signal (data) |
| Terminal type | Pin |
| PCB Termination Methods | Through hole - solderless connection |
| PCB mounting fixation type | Function/Standard-compliant tail |
| PCB installation and fixation | with |
| rail hardware | Without |
| PCB mounting alignment | Without |
| joint alignment | with |
| Joint alignment type | The guide groove |
| Connector mounting type | board mounting |
| joint fixation | Without |
| Centerline (Pitch) | 1.9 mm [ .075 in ] |
| End wall position | pair |
| Shell color | black |
| Shell material | LCP (Liquid Crystal Polymer) |
| PCB Hole Diameter (mm) | .47 |
| PCB thickness (recommended) | 1.57 mm [ .062 in ] |
| Length (mm) | 18.05 |
| tail length | 2.2 mm [ .087 in ] |
| Height (mm) | 24.4 |
| Width (mm) | 36.61 |
| Working group temperature range | -65 – 90 °C [ -85 – 194 °F ] |
| Circuit Application | Signal |
| Applicable to | Female components |
| Agencies/Standards | UL |
| UL rating | Recognized |
| UL file number | E28476 |
| UL flammability rating | UL 94V-0 |
| Encapsulation method | box and tube, tube |
