1.25mm Pitch Super Low profile Crimping Connector
DF14 Series
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
sFeatures

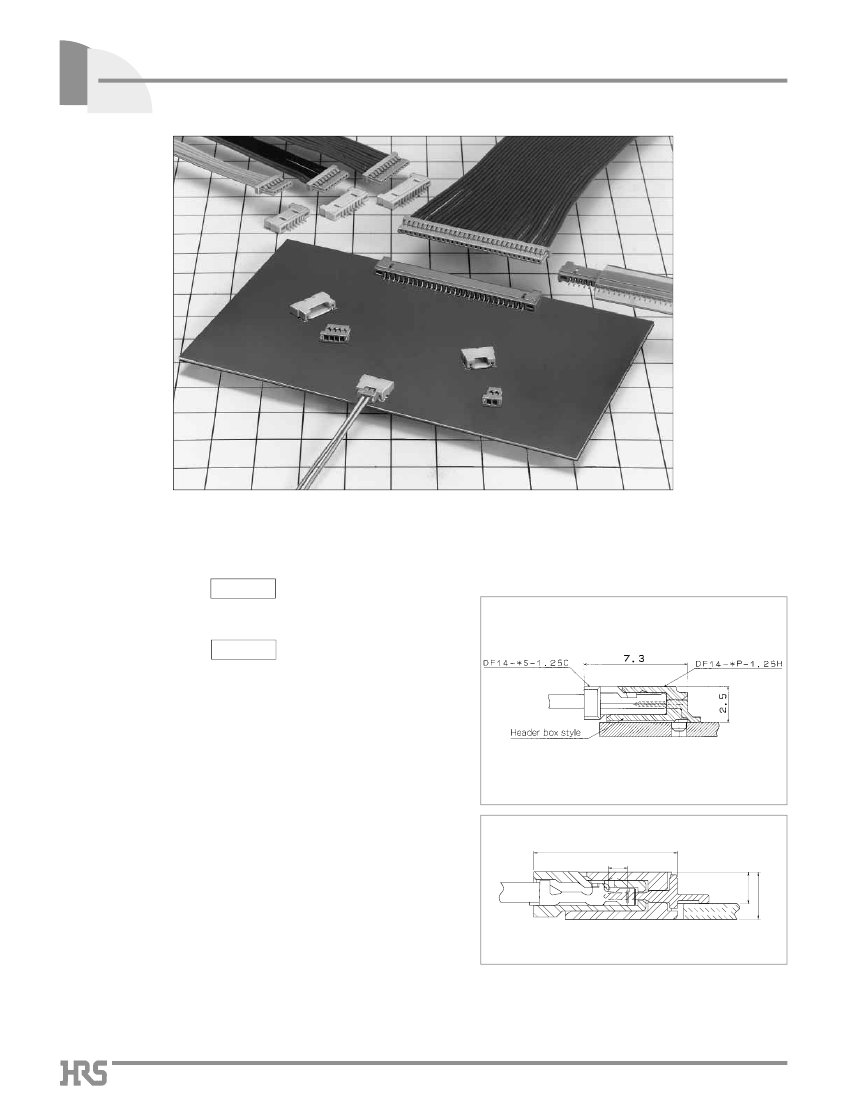

1. Super Low Profile
This is a connector special for right angle which has pursued a low
profile on the board.
Board mounting height:
2.5mm
A signal can be fetched from the area where there is no board to
board space. (Refer to fig.1)
Offset type is available.
Board mounting height:
1.6mm
(Refer to fig.2)
Board Mounting Figure
2. Correspond to Automatic Mounting
The header has the vacuum mount face which enables the vacuum
absorption and the automatic mounting by the embossed tape
packaging.In addition, the tube packaging can be selected.
3. Four Wall Type Without Friction to Board by Socket
The header has the box structure to prevent from being twisted and
has the perfect mis-insertion prevention method. Moreover the
header has the wall on the board side and doesn't have any trouble
resulted from the friction to board by socket.
In addition, the metal fitting is attached to prevent the solder peel.
fig.1
DF14(A)
Board Mounting Figure
(7.3)
(1)
(1.6)
sApplications
LCD, Note PC, Mobile Terminal Small business equipment, Video
camera
DF14H
B234
(2.4)
fig.2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose
Connector
DF14 Seriesq1.25mm Pitch Super Low profile Crimping
sales representative.
sProduct
Specifications
Rating
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
500M
ohms
Min
No flashover or insulation breakdown.
30m
ohms
Max
No electrical discontinuity of 1µs or more
Current rating
1A
Operating Temperature Range -35 to +85ç (Note 1) Storage Temperature Range -10 to +60ç (Note 2)
40 to 80%
Storage Moisture Range
Condition
100V DC
500V AC/1 minute
100mA
Measure at the square steel pin of 0.3±0.002mm
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-25ç: 30 minutes➝5 to 35ç: 10 minutes➝85ç: 30 minutes➝
5 to 35ç: 10 minutes) 5 cycles
Tin plating: 30 cycles Gold plating: 50 cycles
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
40 to 70% (Note 2)
Voltage rating 150V AC Operating Moisture Range
Specification
4. Insertion/Extraction Force MIN0.15N (15gf), MAX3N (300gf)
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
6.
Humidity (Steady state)
Contact resistance: 30m ohms Max Insulation resistance:500M
No deformation of components affecting performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
sMaterial
Product
Crimping Socket
Crimping Contact for Socket
Pin Header
Part
Insulator
Contact
Insulator
Contact
Fitting
Material
Polyamide
Phosphor Copper
Polyamide
Brass
Phosphor copper
Finish
Beige
Tin-copper plated or gold plated
Beige
Tin-copper plated or gold plated
Tin-copper plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
–––––––
sOrdering
Information
qConnector
DF 14 # -
*
S - 1.25 C
1
1
2
Series Name: DF14
Blank: Standard, with boss
A: on-board, without boss
H: offset
2
3
4
4
5
Connector Type
6
S: Single row socket
P: Single row pin header
5
6
Contact Pitch: 1.25mm
Contact Type
C: Crimping socket
H: Right angle SMT
3
Number of Contacts: 2 to 10, 15, 20, 25, 30
qContact
DF14 - 2628 SCF A
1
1
Applicable cable size
2628: AWG26 to 28
3032: AWG30 to 32
2
2
3
3
Packaging Type
SCF: Socket contact/reel
Plating Type
Blank: Tin plated
A: Gold plated
B235
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued
profile Crimping
products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF14 Seriesq1.25mm Pitch Super Low
soon. Please check the
Connector
sCrimping
Socket
Photo: Contact insertion state
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit: mm
Part Number
DF14- 2S-1.25C
DF14- 3S-1.25C
DF14- 4S-1.25C
DF14- 5S-1.25C
DF14- 6S-1.25C
DF14- 7S-1.25C
DF14- 8S-1.25C
DF14- 9S-1.25C
DF14-10S-1.25C
DF14-15S-1.25C
DF14-20S-1.25C
DF14-25S-1.25C
DF14-30S-1.25C
CL No.
538-0005-8
538-0006-0
538-0007-3
538-0008-6
538-0009-9
538-0010-8
538-0011-0
538-0013-6
538-0014-9
538-0054-3
538-0059-7
538-0064-7
538-0012-3
Number of Contacts
2
3
4
5
6
7
8
9
10
15
20
25
30
A
4.45
5.70
6.95
8.20
9.45
10.70
11.95
13.20
14.45
20.70
26.95
33.20
39.45
B
1.25
2.50
3.75
5.00
6.25
7.50
8.75
10.00
11.25
17.50
23.75
30.00
36.25
RoHS
Yes
Note 1.The quantity is delivered per bag(100 pcs). If needed, please order the products per bag.
Note:If other cables are used instead of the applicable cable, contact Hirose
sales department.
B
Applicable Crimping Tool
Type
Applicator
Press Main Unit
Manual Crimping Tool
Part Number
AP105-DF14-2628S
AP105-DF14-3032S
CM-105
DF14-2628/CR-HT
DF14-3032/CR-HT
CL No.
901-4548-1
901-4544-0
901-0005-4
550-0261-1
550-0262-4
Applicable Contact
DF14-2628SCF/SCFA
DF14-3032SCF/SCFA
---------------------------------------------
DF14-2628SCF/SCFA
DF14-3032SCF/SCFA
Note 1.If a trouble has occurred due to tools, which are not designated by Hirose, Hirose won't guarantee any product.
Note 2.Use the reel contact sequentially cut for manual crimping tool.
B236
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose
Connector
DF14 Seriesq1.25mm Pitch Super Low profile Crimping
sales representative.
sRight
Angle Pin Header (SMT)
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Note 1."Without boss" indicates the style with no boss.
BPCB
mounting pattern
BTube
Packaging Dimensions
Note 2."Without boss" indicates that no hole is needed.
[Specific No.]–**,(**)
(25): Tin-copper plated tube packaging
(26): Tin-copper plated embossed tape packaging
(55): Gold plated tube packaging
(56): Gold plated embossed tape packaging
Unit: mm
With boss
Part Number
DF14- 2P-1.25H(**)
DF14- 3P-1.25H(**)
DF14- 4P-1.25H(**)
DF14- 5P-1.25H(**)
DF14- 6P-1.25H(**)
DF14- 7P-1.25H(**)
DF14- 8P-1.25H(**)
DF14- 9P-1.25H(**)
DF14-10P-1.25H(**)
DF14-15P-1.25H(**)
DF14-20P-1.25H(**)
DF14-25P-1.25H(**)
DF14-30P-1.25H(**)
CL No.
Without boss
Part Number
CL No.
Number
of
Contacts
2
3
4
5
6
7
8
9
10
15
20
25
30
A
7.45
8.70
9.95
11.20
12.45
13.70
14.95
16.20
17.45
23.70
29.95
36.20
42.45
B
1.25
2.50
3.75
5.00
6.25
7.50
8.75
10.00
11.25
17.50
23.75
30.00
36.25
C
6.45
7.70
8.95
10.20
11.45
12.70
13.95
15.20
16.45
22.70
28.95
35.20
41.45
D
8.05
9.30
10.55
11.80
13.05
14.30
15.55
16.80
18.05
24.30
30.55
36.80
43.05
Tube
Packaging
Quantity
66
56
49
44
39
36
32
30
28
20
16
13
11
RoHS
538-0021-4-** DF14A- 2P-1.25H(**) 538-0033-3-**
538-0022-7-** DF14A- 3P-1.25H(**) 538-0034-6-**
538-0023-0-** DF14A- 4P-1.25H(**) 538-0035-9-**
538-0024-2-** DF14A- 5P-1.25H(**) 538-0036-1-**
538-0025-5-** DF14A- 6P-1.25H(**) 538-0037-4-**
538-0026-8-** DF14A- 7P-1.25H(**) 538-0038-7-**
538-0027-0-** DF14A- 8P-1.25H(**) 538-0039-0-**
538-0028-3-** DF14A- 9P-1.25H(**) 538-0040-9-**
538-0029-6-** DF14A-10P-1.25H(**) 538-0041-1-**
538-0084-4-** DF14A-15P-1.25H(**) 538-0114-3-**
538-0089-8-** DF14A-20P-1.25H(**) 538-0119-7-**
538-0094-8-** DF14A-25P-1.25H(**) 538-0124-7-**
538-0020-1-** DF14A-30P-1.25H(**) 538-0045-2-**
Yes
Note 1.Please order the tube packaging product, multiplying the packaging quantity (pcs.).
Note 2.Please order the embossed tape packaging product according to reel number. (1000 pcs./reel)
B237
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued
profile Crimping
products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF14 Seriesq1.25mm Pitch Super Low
soon. Please check the
Connector
sRight
Angle Pin Header (Offset, SMT)
Contact No. 1
1.6
A
P=1.25
0.3
5.7
B
C
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2.4
BPCB
mounting pattern
(0.5)
1.4±0.1
(0.4)
D
+0.2
0
A±0.05
P=1.25±0.05
0.7±0.05
0.8
(0.5)
6.7±0.1
(0.3)
3.6±0.1
[Specific No.]–**,(**)
(56): Gold plated embossed tape packaging
1.3
+0.2
0
Unit: mm
Part Number
DF14H-02P-1.25H(**)
DF14H-20P-1.25H(**)
DF14H-30P-1.25H(**)
CL No.
538-0177-3-**
538-0167-0-**
538-0188-0-**
Number of Contacts
2
30
30
A
1.25
23.75
36.25
B
6.8
29.3
41.8
C
10.1
32.6
45.1
D
7.2
29.7
42.2
RoHS
Yes
Note 1.Please order the embossed tape packaging product according to reel number. (1000 pcs./reel)
