231-104-00

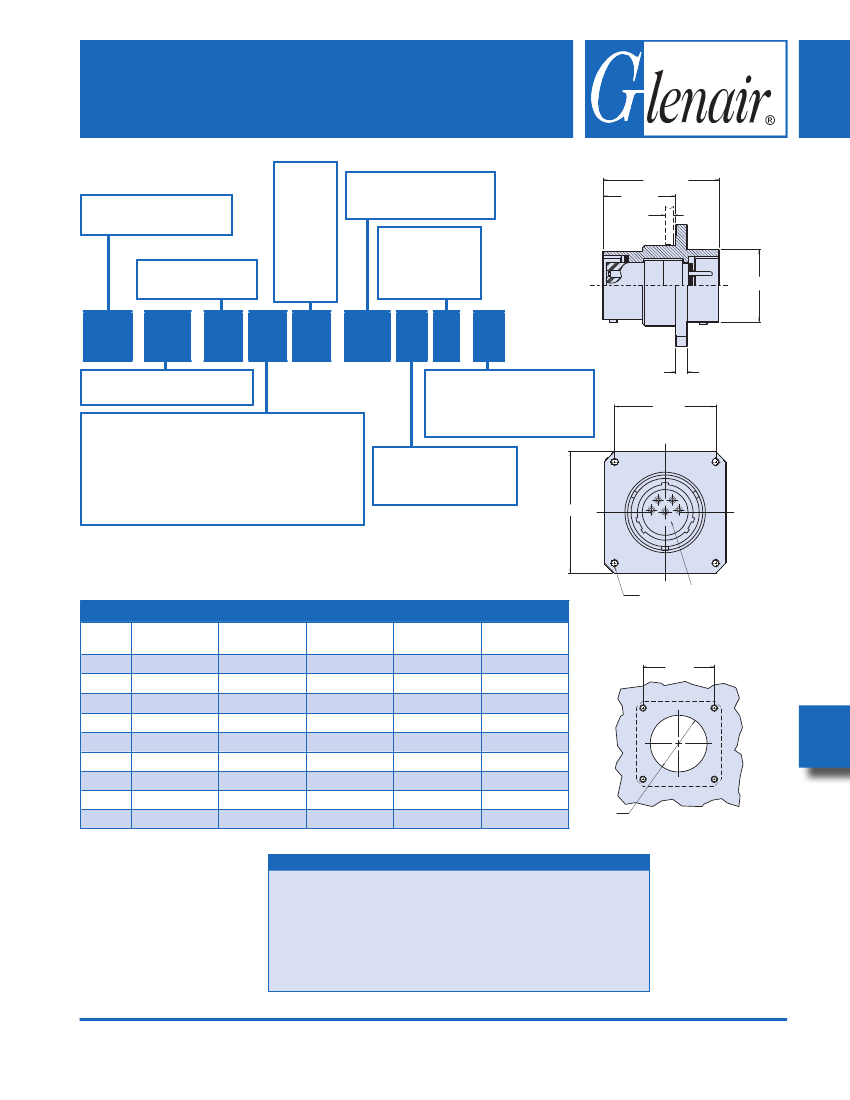

Wall Mount Environmental Bulkhead Feed-Thru
MIL-DTL-38999 Series I Type
Connector Series
231
-
D38999 Series I Type
Shell Style
00
- Wall Mount
Shell Size
09
11
13
15
17
19
21
23
25
Insert Arrangement
Per MIL-DTL-38999 Series I
MIL-STD-1560
Alternate Key
Position
A, B, C, D
(N = Normal)
1.56 Max
.84 Ref
Panel
Accom.
Flange Side
Ref
A TYP
231
-
104
-
00 M 11
-
35
Connector Type
104
-
Env. Bulkhead Feed-Thru
Connector Material and Finish
M
- Aluminum / Electroless Nickel
NC
- Aluminum / Zinc-Cobalt
NF
- Cad / O.D. Over Electroless Nickel (1000hr Salt Spray)
ZN
- Aluminum Zinc-Nickel Olive Drab
MT
- Aluminum / Ni-PTFE 1000 Hour Grey
TM
AL
- Aluminum / Pure Electrodeposited Aluminum
P N
-
01
Panel Accomodation
01
- .0625″ (Min) .125″ (Max)
02
- .0625″ (Min) .250″ (Max)
03
- .0625″ (Min) .500″ (Max)
.150 Max
B Typ
Contact Termination
P
- Pin on Flange Side
S
- Socket on Flange Side
C
TABLE I: CONNECTOR DIMENSIONS
SHELL
SIZE
09
11
13
15
17
19
21
23
25
A
MAX
.573(14.6)
.701(17.8)
.851(21.6)
.976(24.8)
1.101(28.0)
1.208(30.7)
1.333(33.9)
1.458(37.0)
1.583(40.2)
B
SQ
.719(18.3)
.812(20.6)
.906(23.0)
.969(24.6)
1.062(27.0)
1.156(29.4)
1.250(31.8)
1.375(34.9)
1.500(38.1)
C
SQ
.938(23.8)
1.031(26.2)
1.125(28.8)
1.219(31.0)
1.312(33.3)
1.438(36.5)
1.562(39.7)
1.688(42.9)
1.812(46.0)
D
DIA
.125(3.2)
.125(3.2)
.125(3.2)
.125(3.2)
.125(3.2)
.125(3.2)
.125(3.2)
.156(4.0)
.156(4.0)
E
±.005(0.1)
.703(17.9)
.827(21.0)
1.015(25.8)
1.140(29.0)
1.265(32.1)
1.390(35.3)
1.515(38.5)
1.640(41.7)
1.765(44.8)
E
DIA
D DIA
TYP
Insert Arrangement per
MIL-DTL-38999, Series l
MIL-STD-1560
B Ref
Recommended Panel Cutout
APPLICATION NOTES
1.
Material/finish:
Shells and nuts – Al alloy, 6061-T6, QQ-A-225/8, see Table I (D5)
Contacts – Leaded nickel copper/gold plate MIL-G-45204, Type II, Class I
Bayonet pins – AISI 300 series stainless steel/passivate, QQ-P-35
Hoods – AISI 305 series stainless steel/passivate, QQ-P-35
Inserts – Epiall 1908
Seals – Silicone per ZZ-R-765
Metric Dimensions (mm) are indicated in parentheses.
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
2.
© 2010 Glenair, Inc.
www.glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
F-3
