1596360 Overview

Circular Metric Connectors RC-09S1N8A80NY

1596360 Parametric

Parameter Name	Attribute value
Product Category	Circular Metric Connectors
Manufacturer	PHOENIX CONTACT
Factory Pack Quantity	1
Unit Weight	2.409917 oz

Preview

Download Datasheet

View All

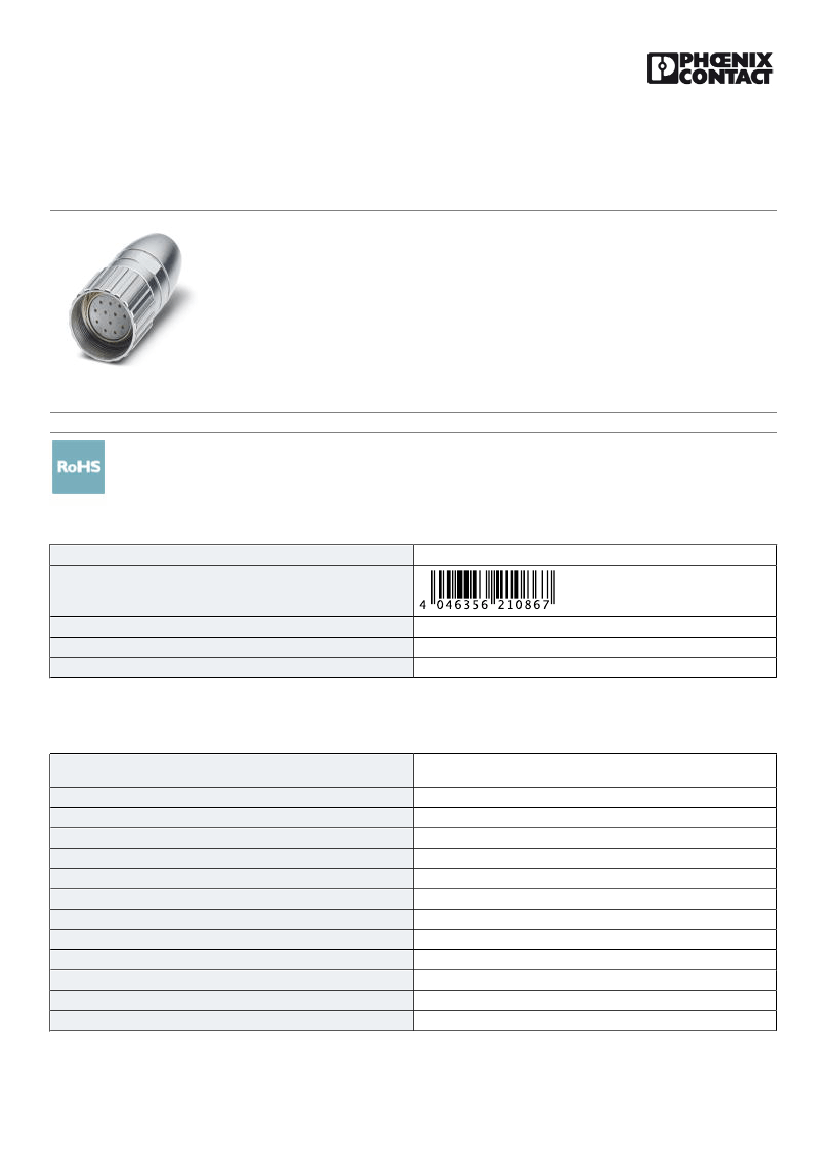

https://www.phoenixcontact.com/hq/products/1596360

Cable connector - RC-09S1N8A80NY - 1596360

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Cable connector, straight, shielded: yes, Screw locking, M23, Number of positions: 8+1, Type of contact:

Socket, Crimp connection, Cable diameter: 7.5 mm ... 9.5 mm

The figure shows the 12-pos.

product version

Key Commercial Data

Packing unit

GTIN

Custom tariff number

Note

4046356210867

85366990

Made to Order (non-returnable)

20 STK

Technical data

Data of the insulating body

Note

Coding

Contact connection method

Type of contacts

Number of positions

Contact diameter of power contacts

Nominal current per power contact at 25°C

Nominal voltage, power contact

Rated surge voltage

Contact diameter of signal contacts

Nominal current per signal contact at 25°C

Nominal voltage, signal contact

Overvoltage category

Order information: Order crimp contacts 8 x Ø 1 mm, 1 x Ø 2 mm

separately

N

Crimp connection

Socket

9

2 mm

20 A

300 V

2.5 kV

1 mm

8A

300 V

II

11/14/2016 Page 1 / 3
