MS27469Y15E35P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS27469Y15E35P

Preview

MS27469Y15E35P: DescriptionCircular MIL Spec Connector; CategoryThe connector The connector; File Size210KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

MS27469Y15E35P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS27469Y15E35P	-	-	View	Buy Now

MS27469Y15E35P Overview

Circular MIL Spec Connector

MS27469Y15E35P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Glenair
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	17 weeks
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/FLUID/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	NOT SPECIFIED
Shell material	STAINLESS STEEL
Housing size	15
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

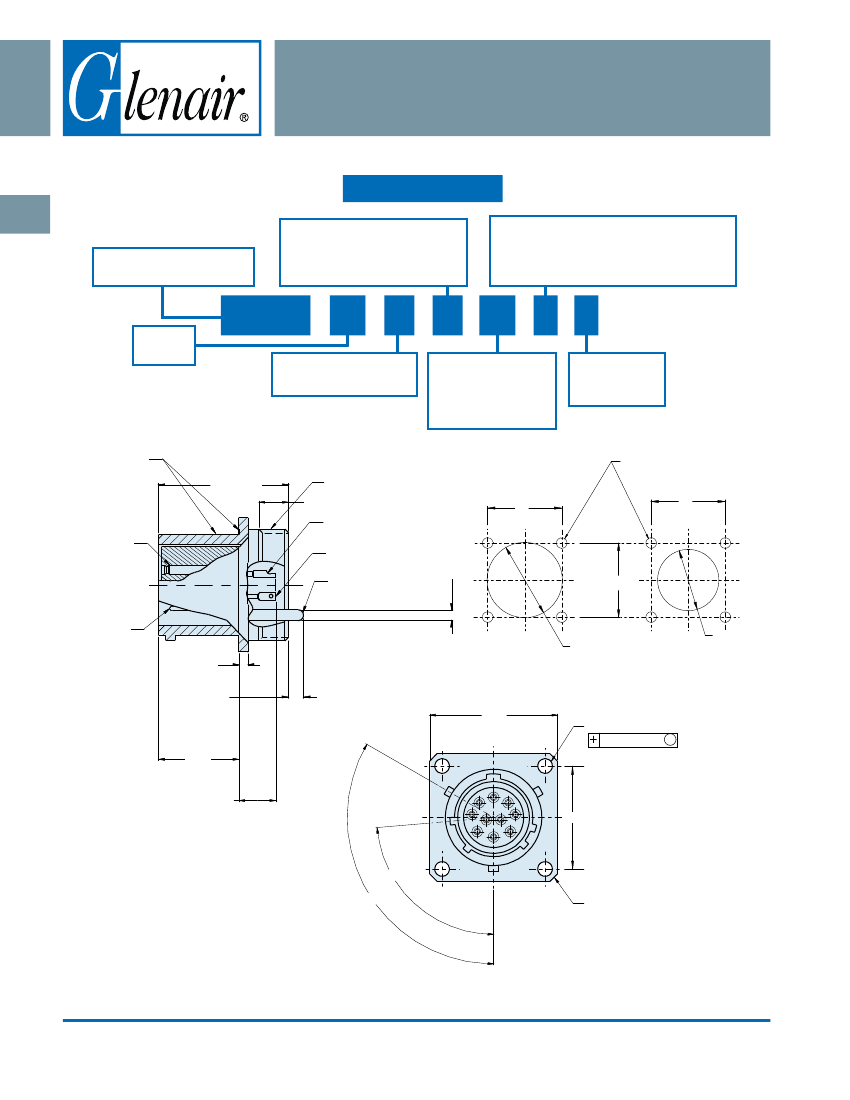

MIL-DTL-38999

Hermetic Connectors

MS27469

Wall Mount Hermetic Receptacle

MIL-DTL-38999 Series I

ø

How To Order:

MS

B

Shell Style

MS27469

-

Wall Mount, Series I

H

Connector Material / Finish

D

- Carbon Steel - Fused Tin Finish

E

- Stainless Steel - Passivate Finish

N

- Stainless Steel - Nickel Finish

G

F

K

E

B

Contact Termination

P

J

- Pin, Solder Cup

S

- Socket, Solder Cup

ø

C

X

- Pin, Eyelet

Z

- Socket, Eyelet

C

D

Pin, PCB

-

D

- Socket, PCB

Flex Feedthrough

A

MS27469

Class

Y-

Hermetic

Y

11

N

35

G

F

H

K

A

J

P

B

C

A

Alternate Key

Position

A, B, C, D

(Omit for Normal)

Shell Size

9,11,13,15,17,19,21,23,25

D

Insert Arrangement

E

MIL-DTL-38999 Series I

Hermetic Inserts Per

MIL-STD-1560;

See Pages B-2 - B-4

Marking Location

(Either Location)

1.093 Max

D Thread

.250 Min Full THD

Solder Cup

Contact (P & S)

Eyelet

Contact (X & Z)

Feedthrough

Contact (C & D)

Pin Face

.093

.062

.175/.125

B SQ

4X G Holes

K

Socket Face

P

K

ø

J Min.

Front Panel Mounting

ø

H Min.

Back Panel Mounting

.690

.659

.312 Max (P & X)

.344 Max (S & Z)

H

G

F

E

D

K

A

J

B

C

4X

ø

Holes

C

O Ø .005 (0.13) M

2X A BSC

85° BSC

2X 120° BSC

4X Chamfered

or Round

Dimensions in Inches (millimeters) are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-16

E-Mail: sales@glenair.com
