Part Number

Search

5-353183-9

Description
HEADER CONNECTOR,PCB MNT,PLUG,120 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL
CategoryThe connector    The connector
File Size66KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

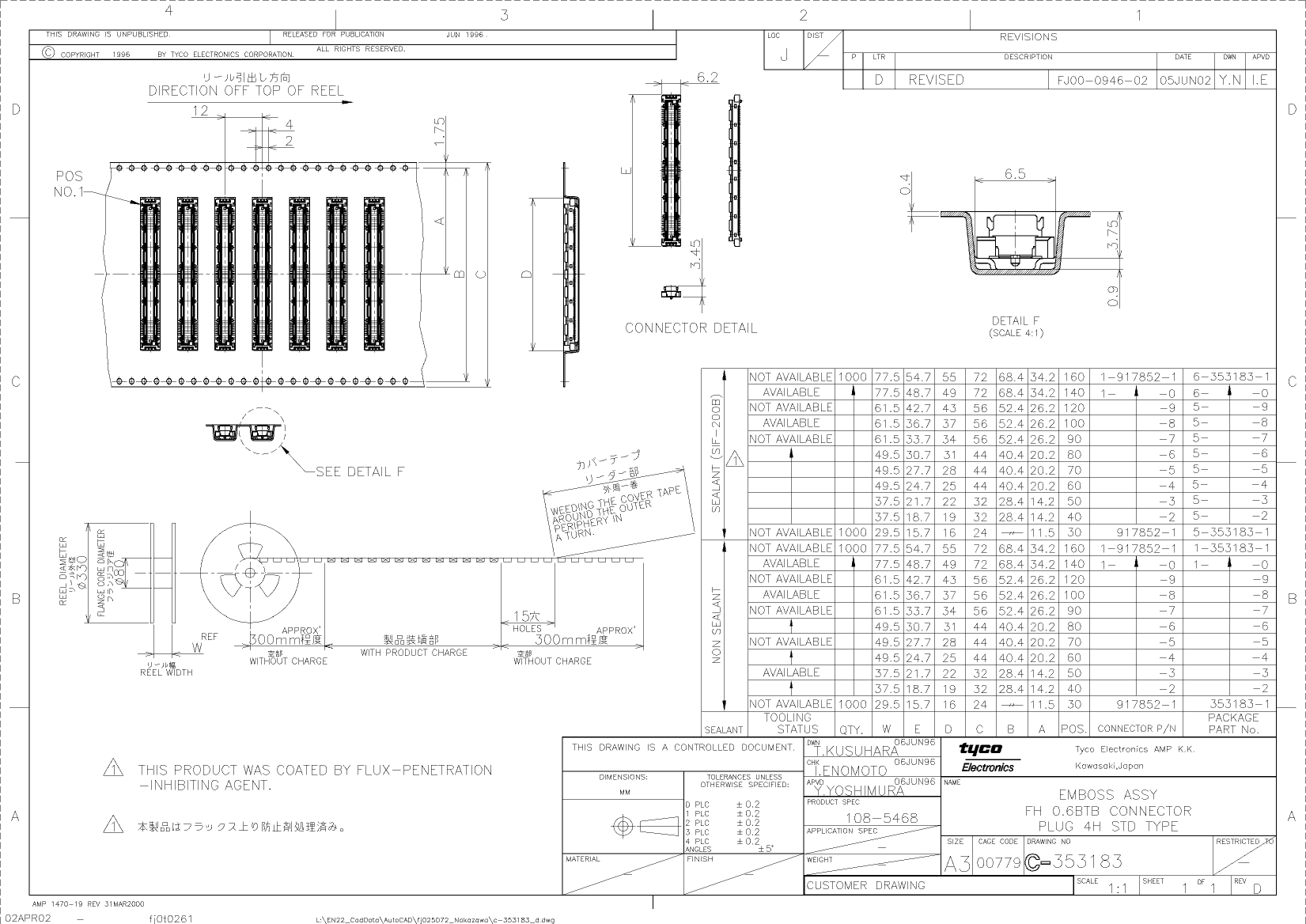

5-353183-9 Overview

HEADER CONNECTOR,PCB MNT,PLUG,120 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL

5-353183-9 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
Board mount optionsPEG
body width0.244 inch
subject depth0.136 inch
body length1.681 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Dielectric withstand voltage200VAC V
Durability50 Cycles
maximum insertion force.8896 N
Insulation resistance100000000 Ω
Insulator colorNATURAL
insulator materialTHERMOPLASTIC
Manufacturer's serial number5353183
Plug contact pitch0.024 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing4.2418 mm
Plating thickness8u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.6096 mm
Termination typeSURFACE MOUNT
Total number of contacts120
Evacuation force-minimum value.0973 N
Base Number Matches1
