500-38-004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 500-38-004

500-38-004: DescriptionRF Adapters - In Series SMPS F to F Bullet; CategoryThe connector; File Size64KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

500-38-004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	500-38-004	-	-	View	Buy Now

500-38-004 Overview

RF Adapters - In Series SMPS F to F Bullet

500-38-004 Parametric

Parameter Name	Attribute value
Product Category	RF Connector Tools
Manufacturer	Amphenol
RoHS	Details
Type	Extraction Tool
RF Series	SMPS
Packaging	Bag
For Use With	SMPS Female Connectors
Material	Stainless Steel
Factory Pack Quantity	10

Preview

Download Datasheet

View All

ROHS COMPLIANT

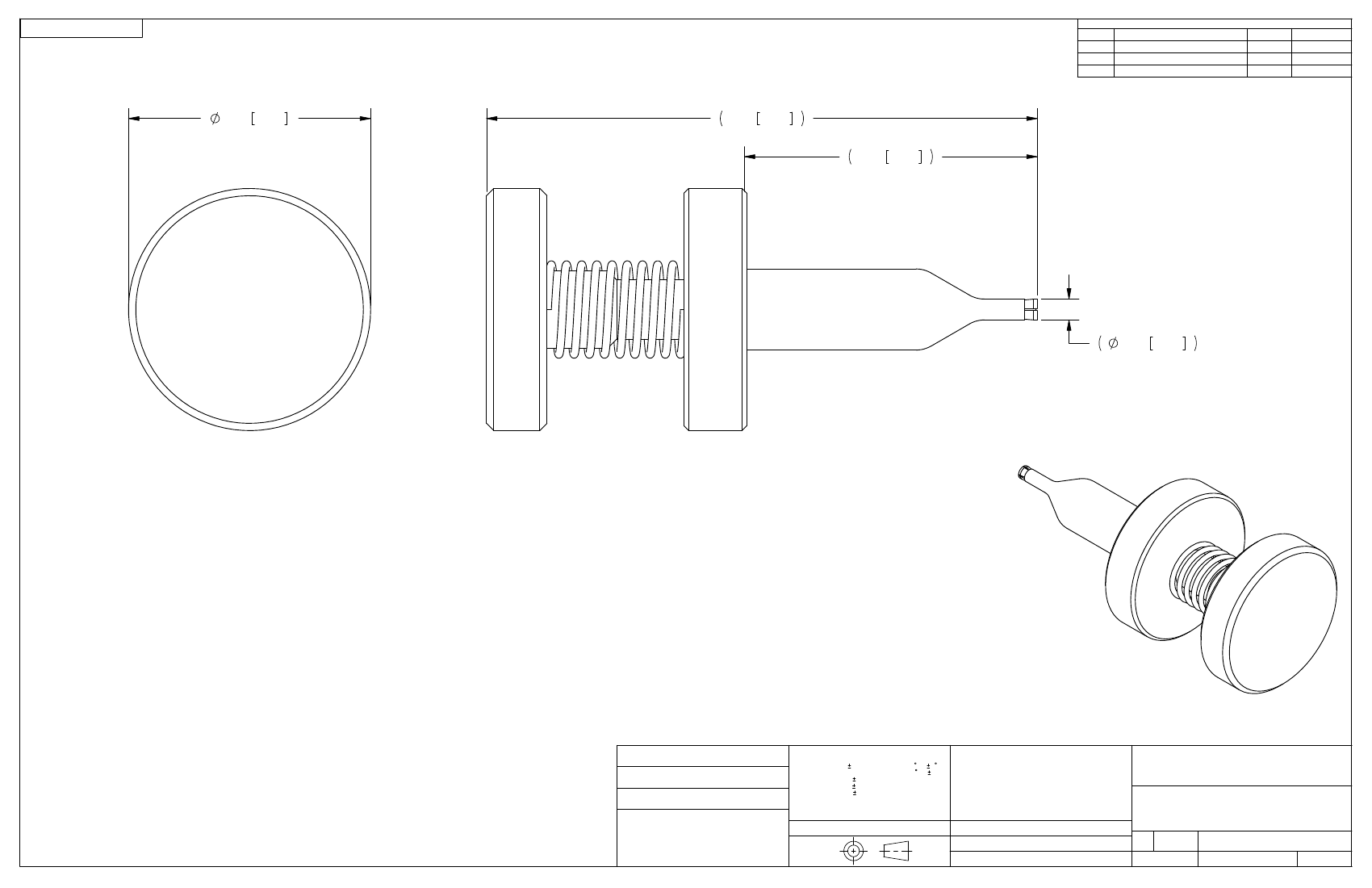

PRODUCT DATA DRAWING

1.00 25.4

2.27 57.8

1.10 27.9

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

REL. NRN 36721

04/20/11

STW

SV MICROWAVE

SMPS

500-38-004

.086 2.19

MATERIAL:

BODIES:

STAINLESS STEEL PER AMS-5640,

ALLOY UNS S30300, TYPE 1

AND

STAINLESS STEEL PER ASTM A564

GRADE 630 ALLOY UNS S17400 COND. A

BERYLLIUM COPPER PER ASTM B196,

ALLOY No. UNS C17300, TD04

STAINLESS STEEL PER ASTM A313, TYPE 302

MATERIAL:

FINISH:

COLLET:

SPRING:

NOTES:

COMPRESS TO OPEN COLLET, RELEASE TO CLOSE COLLET AND PULL TO REMOVE .

FINISH:

BODIES:

COLLET:

PASSIVATED PER AMS-2700 &

ELECTROLESS NICKEL PER AMS 2404 CLASS 1

ELECTROLESS NICKEL PER AMS 2404 CLASS1

SEE NOTES

N/A

PROPRIETARY

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

JMC 04/20/11

STW 04/20/11

SMPS BULLET

REMOVAL TOOL

95077

SIZE CAGE CODE DWG. NO.

500-38-004

SHEET 1 OF 1

SCALE: 3:1
