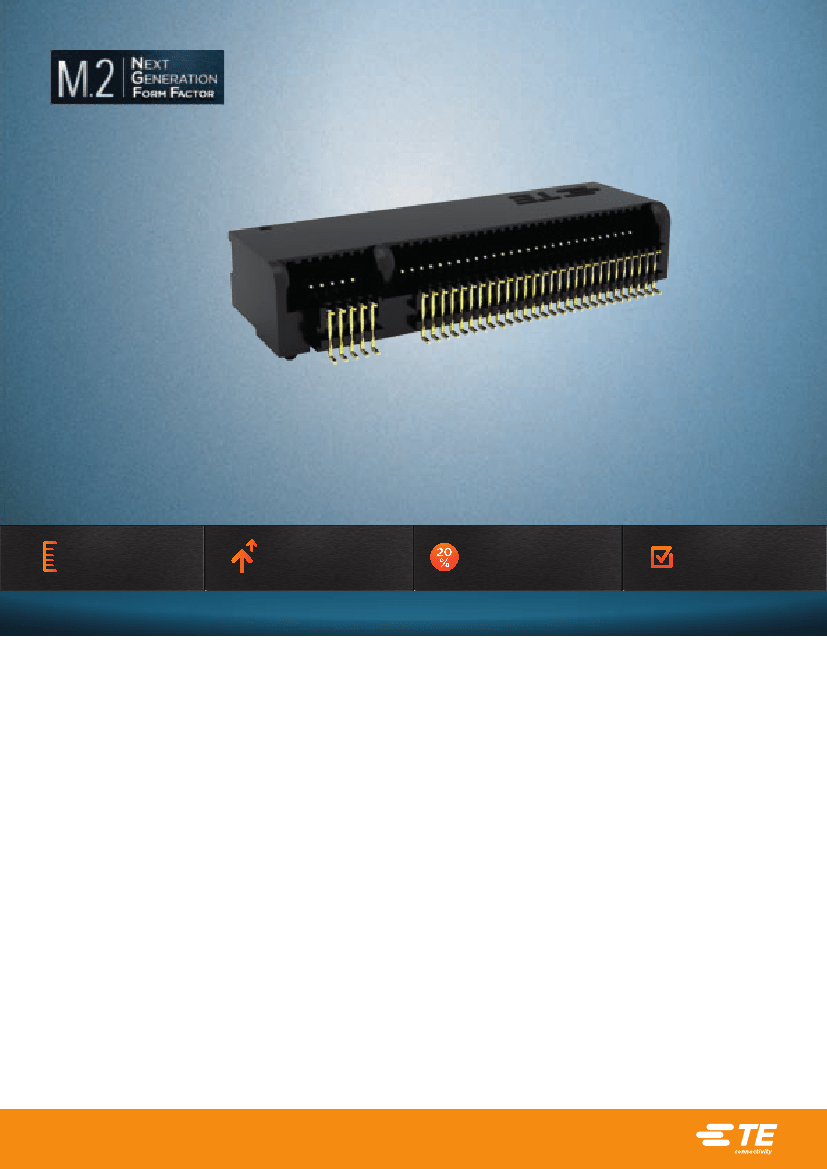

natural transition from the Mini Card and Half Mini Card to
M.2 is the only NGFF connector
product
the
is a
for faster data
rates and higher performance in a smaller
supports
a smaller form factor in both size and volume. It
form factor.
multiple function add-in cards / modules including: WiFi,
Tablets, notebooks,
Satellite
and gaming devices are just some of
Bluetooth, Global Navigation
ultrabooks
Systems, Near Field Communication, Hybrid Digital Radio, Wireless Gigabit
the applications
Alliance (WiGig), Wireless
that are
Area Network and Solid-State Storage Devices. It also adds functionality to PCIe Gen
Wide
supported by the pioneering M.2 product
Brought to the global market for the first time by TE Connectivity,
3, SATA 3, SATA I/O and USB 3. The new smaller form factor is suitable for applications in new thin platforms.
Visit
ngff.slim-solutions.com
today to find out more.
range – but the list goes on and on…
Features
• Available in various heights
• 0.5mm pitch with 67 positions
• Designed for both single and
double-sided modules
• Available in various keying
options for module cards
• Support PCI Express 3.0, USB 3.0,
& SATA 3.0
Benefits
• Wide product offering to meet
customers’ design needs
• Save more than 20% PCB
real estate compared to
PCIe Mini Card
• Reduces connector height
by 15%
• Ensures proper mating with
various module cards
• Supports higher data rates
Applications
• Notebooks, Ultrabooks &
Desktops
• Tablets
• Servers
• Portable Gaming Devices
• Devices that require SSDs
• Portable Mobile Devices
te.com/products/ngff
1
TE Connectivity
M.2 (NGFF) Connector

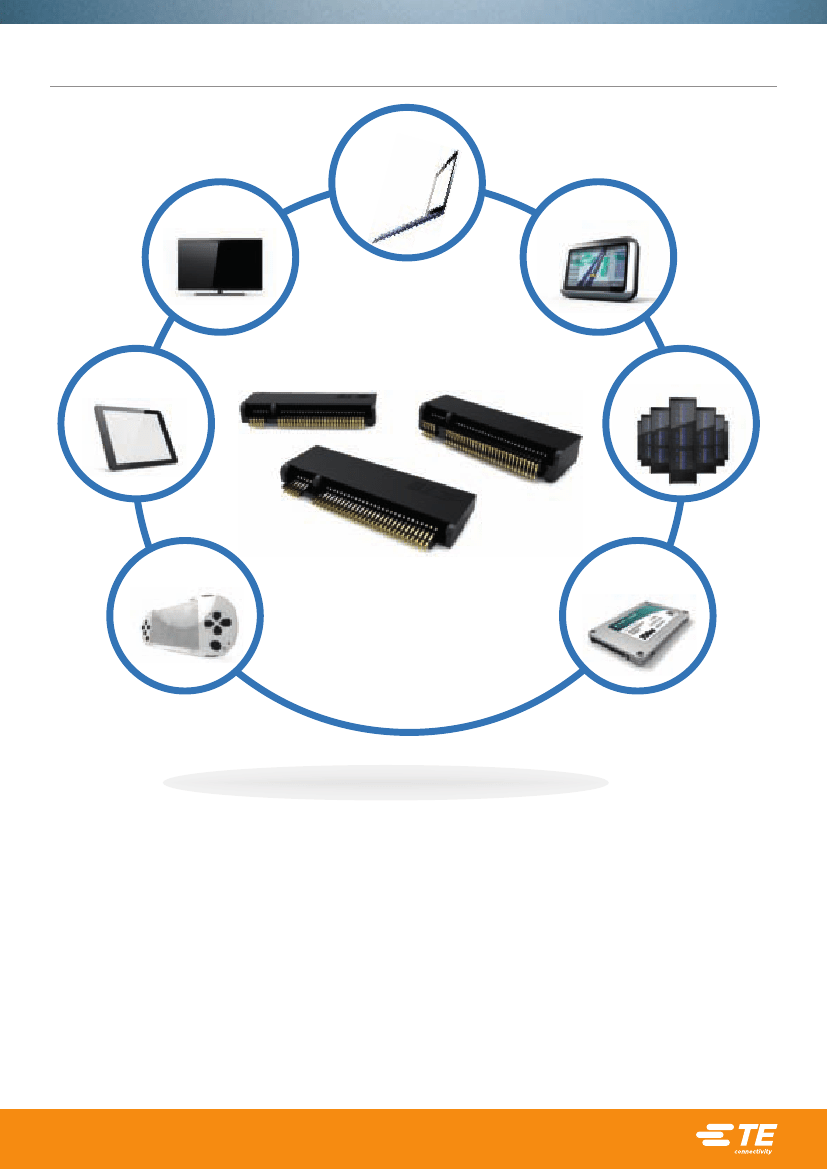

Ultrabook/
Notebook
Smart TV
GPS
Tablet
Server
Gaming
Device
SSD
Wireless Applications
• Wi-Fi
• WWAN (2G, 3G, 4G)
• Bluetooth
• WiGig
• GPS
• Global Navigation Satellite System (GNSS)
• Near Field Communication (NFC)
• Hybrid Digital Radio (HDR)
Host Interfaces
• PCIe, PCIe LP
• SSIC
• USB (2.0, HS, 3.0)
• SDIO
• UART
• PCM/ I2S
• I2C
• SATA
• DisplayPort
• Future variants of the above
te.com/products/ngff
2
TE Connectivity
M.2 (NGFF) Connector
Module Nomenclature
Example: Type 2242-D2-B-M
Used for double slot module cards. Note only single slot connectors are availale.
Type XX XX - XX - X - X
Width (mm)
12
16
22
30
Length (mm)
16
26
30
42
60
80
110
S1
S2
S3
D1
D2
D3
D4
D5
Component Max Ht. (mm)
T Max
1.20
1.35
1.50
1.20
1.35
1.50
1.50
1.50
B Max
0.00
0.00
0.00
1.35
1.35
1.35
0.70
1.50
Key ID
A
B
C
D
E
F
G
H
J
K
L
Pin
8-15
12-19
16-23
20-27
24-31
28-35
39-46
43-50
47-54
51-58
55-62
59-66
Interface
2x PCIe x1/USB 2.0/12C/DP x4
PCIe x2/SATA/USB 2.0/USB 3.0/
HSIC/SSIC/Audio/UIM/I2C
Reserved for Future Use
Reserved for Future Use
2x PCIe x1/USB 2.0/IC2/SDIO/
UART/PCM
Future Memory Interface (FMI)
Generic (Not used for M.2)
Reserved for Future Use
Reserved for Future Use
Reserved for Future Use
Reserved for Future Use
PCIe x4/SATA
* Only for dual slot cards.
M
M.2 (NGFF) Module Card Frequently Asked Questions
What type of applications use key A?
TE’s M.2 key A connectors are found in applications that use wireless connectivity including Wi-Fi, Bluetooth, NFC,
and / or WiGig. Module card types used include 1630, 2230 and 3030.
What type of applications use key B?
TE’s M.2 key B connectors are found in applications that use WWAN+GNSS or Solid State Storage Devices (SSD).
Module card types used include 3042, 2230, 2242, 2260, 2280 and 22110.
What type of applications use key E?
TE’s M.2 key E connectors are found in applications that use wireless connectivity including Wi-Fi, Bluetooth, NFC of
GNSS. Module card types used include 1630, 2230 and 3030.
What type of applications use key M?
TE’s M.2 key M connectors are found in applications that use Host I/Fs that are supported by either PCIe with up to
four lanes or SATA, as well as Solid State Storage Devices (SSD). Module card types used include 2242, 2260, 2280
and 22110.
te.com/products/ngff
3
TE Connectivity
M.2 (NGFF) Connector

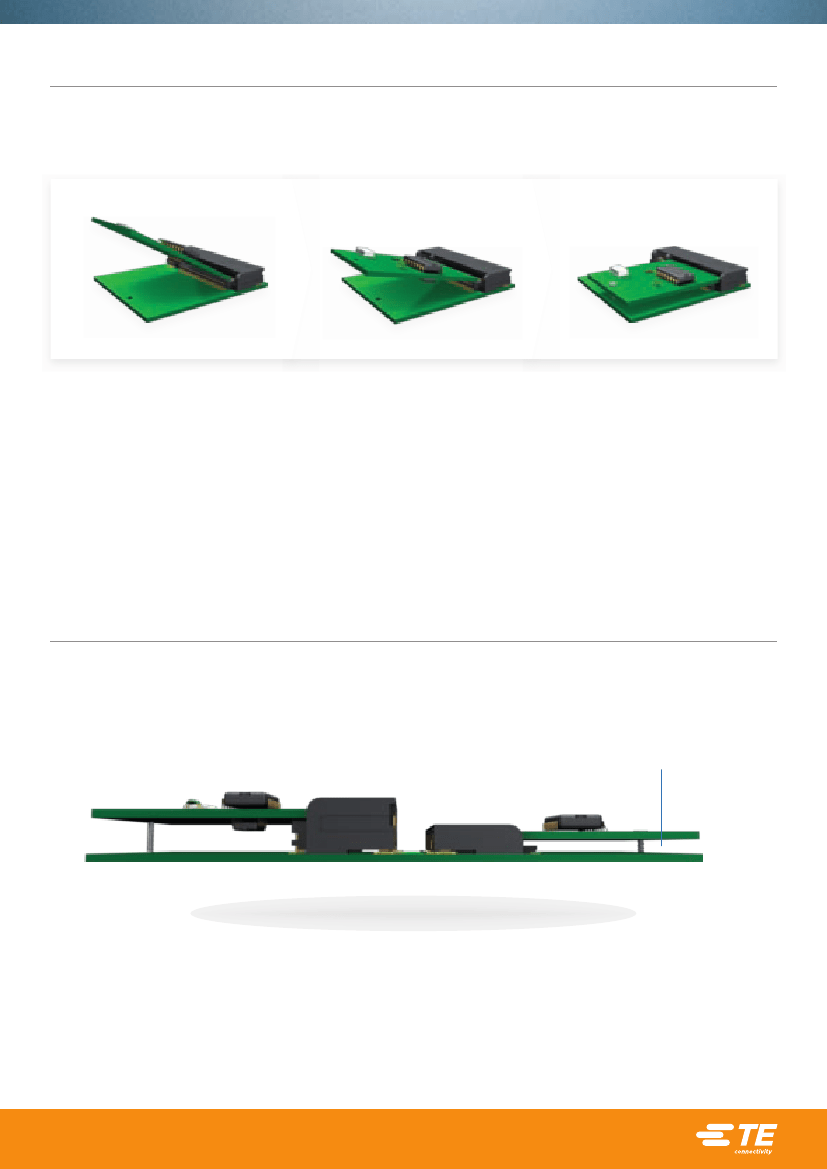

Triple Insertion Module Method
• Step 1:
• Step 2:
• Step 3:
• Step 4:
Move the module against the housing’s chamber
Rotate the module to 25 degrees and insert it until the bottom of the
module surface reaches the ramp
Rotate the module to horizontal position by hand
Fix the module with a PCB screw to secure the module
Please refer to the application specification for a complete description of both the insertion and removal
method for modules.
Application Specification: 114-115006
M.2 (NGFF) Single vs. Double-Sided Modules
Limited Space Limits 2.25H
to Single-Sided Modules
Side #1
Side #1
(4.2H, 3.2H
and 1.80H)
(2.25H)
Side #2
Double-Sided Module
Single-Sided Module
The difference between single and dual-sided modules is functionality. All soldered down type module cards are
single-sided and do not have a pin layout. Single-sided modules are intended to be used in low profile applications.
There are two type of module cards, soldered down and connectorized. TE’s M.2 (NGFF) product line supports the
connectorized modules/ add-in cards.
te.com/products/ngff
4
TE Connectivity
M.2 (NGFF) Connector

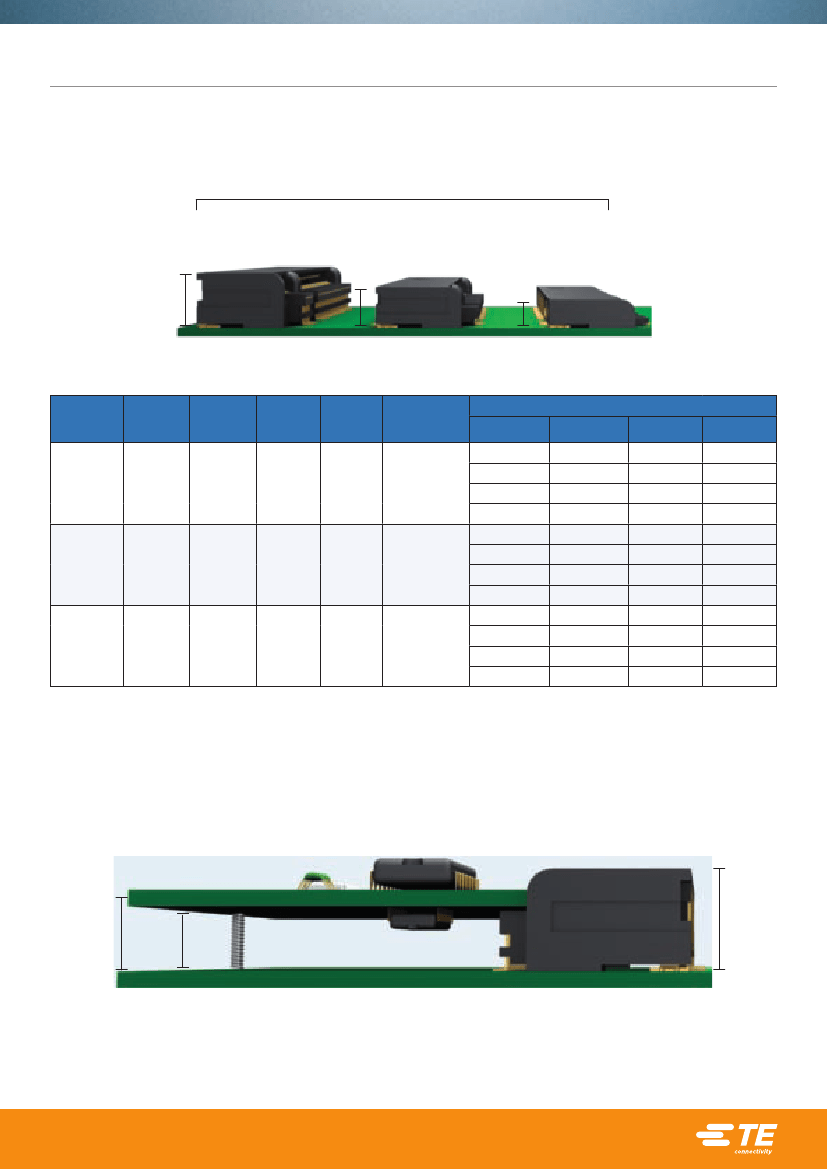

Standard Product Portfolio
Three Heights
Standard Top Mount
2.25mm
PN 2199125-X
Gold Plating
Key
A
2199125-X
2.25
2.15
1.08
0.63
No
B
E
M
A
2199119-X
3.2
3.1
1.94
1.48
Yes
B
E
M
A
2199230-X
4.2
4.1
2.94
2.48
Yes
B
E
M
Gold Flash
-7
-1
-2
-13
-7
-1
-2
-13
-7
-1
-2
-13
15u”
-8
-3
-4
-14
-8
-3
-4
-15
-8
-3
-4
-15
30u”
-9
-5
-6
-15
-9
-5
-6
-16
-9
-5
-6
-16
4.2mm
PN 2199230-X
PN 2199119-X
Base PN
Max.
Height
Nominal
Height
Dim. A
Dim. B
Dim. C
For Double
Sided
Moduleses
3.2mm
All Dimensions in millimeters
Dim. A:
Max. connector height
Dim. B:
Card Centerline to PCB
Dim. C:
Bottom of Card to PCB
Dim. B
Midplane Type = Offset Type
Note that the PN list will be extended in the future to support all key types designated by industry standards groups. Please visit the product landing
